Key Features
  • Equipado con el software de pizarra digital myViewBoard™ y el software para compartir contenido ViewBoard® Cast
  • Potente sistema Intel® Core™ con procesador i7-8700 , 8 GB (hasta 16 GB) de memoria DDR4 y 128 GB (hasta 512 GB) de almacenamiento SSD

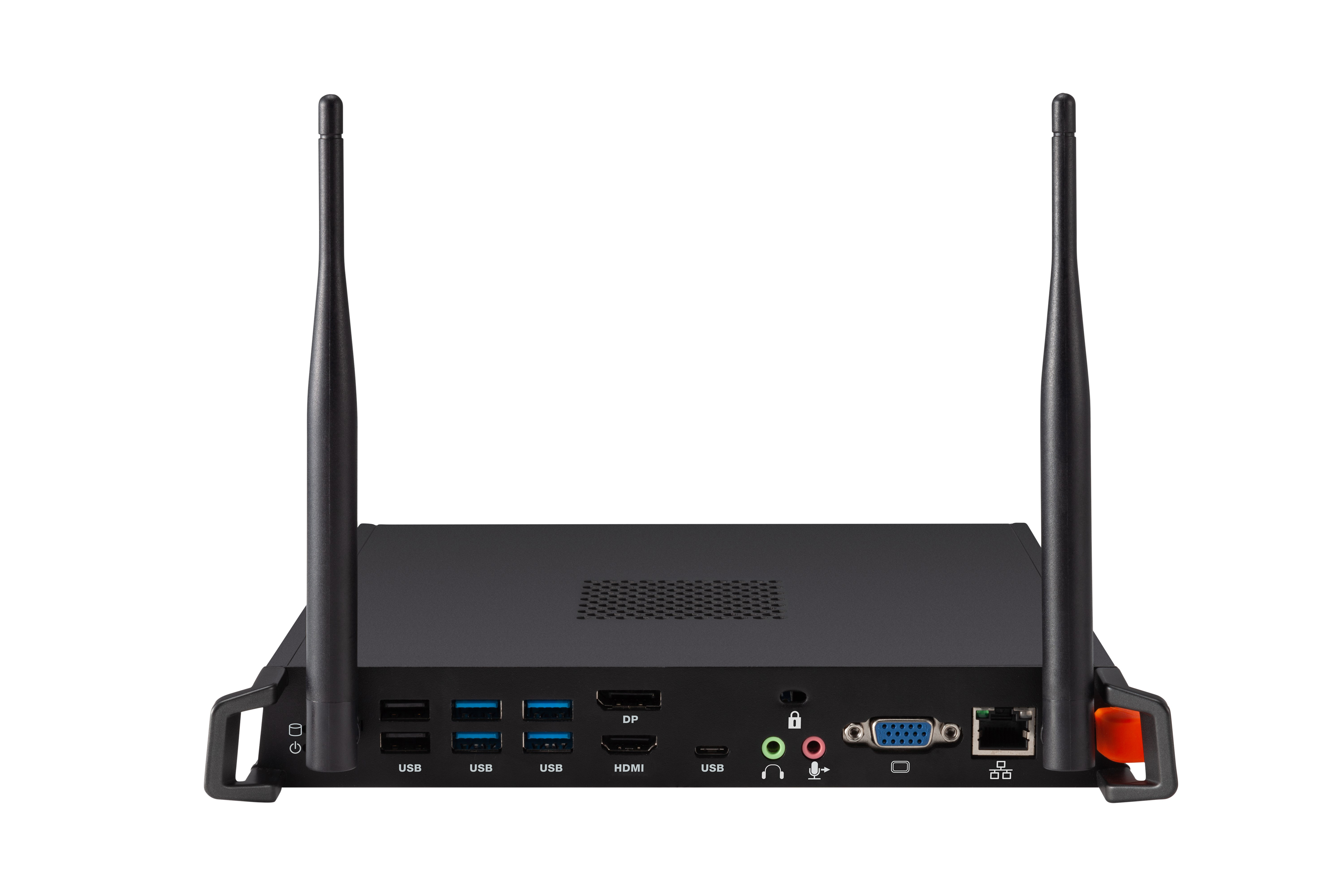

VPC17-WP-3
Product Description
El ViewSonic® VPC17-WP-3 PC OPS es la solución integrada ideal para las pantallas interactivas ViewBoard®. Este módulo PC OPS admite audio y vídeo de alta definición, incluye el software de pizarra digital myViewBoard™ y el software para compartir contenidos ViewBoard® Cast. Con conectividad por cable, Wi-Fi de doble banda y Bluetooth, un potente procesador Intel® Core™ i7, 8GB (ampliable hasta 16GB) de memoria DDR4 y 128GB (ampliable hasta 512GB) de almacenamiento SSD, el VPC17-WP-3 contiene la potencia de computación necesaria para el funcionamiento con aplicaciones de uso intensivo de la CPU.
Visit Us
  • www.viewsonic.com
  • CORE
    CPU: Intel 8th Gen. coffee Lake series with vPro, TPM
    i7-8700 3.2GHz
    Graphics: Integrated Intel® HD Graphics 530
    Total Available Graphics Memory: 64GB
    Max Resolution up to 4096x2304@60Hz
  • MEMORY
    Type: 260-pin DDR4 SO-DIMM x 2
    Capacity: 8GB (up to 16GB)
  • SOFTWARE
    Operating System: Windows 10 Pro 64 bit
  • STORAGE
    Dimension: M.2 -2242(22 x 42 mm) / 2280(22 x 80 mm)
    Capacity: 128GB SSD (up to 512GB)
    Interface: M.2 -2242/2280
  • INPUT
    MIC(Microphone): x1
  • OUTPUT
    RGB / VGA: x1
    DisplayPort: x1 (max. resolution 4096x2304@60Hz)
    HDMI: x1 (max. resolution 3840x2160@24Hz)
    Audio: x1 Earphone Out
  • LAN
    RJ45: 1 x RTL8111(Gigabit)
  • WIRELESS / BLUETOOTH
    Wireless / Bluetooth: Intel 9260 or 9560 WiFi+BT5.0 Module dual band
  • USB
    Type A: USB 3.0 x 4, USB 2.0 x 2
    Type C: USB 3.1 x 1
  • SUPPORT MEDIA FORMAT
    Video format: Container: ASF, WMA, WMV, WM, ASX, WAX, WVX , WMX, WPL, WMD, AVI, MPG, MPEG, M1V, MP2, MP3, MPA, MPE, M3U
    Image format: Container: JPG, JPEG, JPE, JFIF, BMP, , DIB, PNG, GIF, TIF, TIFF
    Audio codec: Container: MID, MIDI, RMI, AIF, AIFC, AIFF, WAV, CDA
  • BUNDLE SOFTWARE
    Bundle Software: myViewBoard for Windows
    QuickLaunch
    Intel Unite
    SureMDM
    Nix Agent
  • POWER
    Voltage: AC 110-240V 50 / 60Hz
    Consumption: 95W
  • OPERATING CONDITIONS
    Temperature (º C): -5°C to 45°C
    Humidity: 10% ~ 90% @ 40°C Non-condensing.
  • DIMENSIONS (W X H X D)
    Physical (inch / mm): 246.2*265.4*32.2mm
    Packaging (inch / mm): 350*310*90mm (1pc)
    495*370*340mm (5pcs)
  • WEIGHT
    Net (lb / kg): 4.3lb / 1.95kg
    Gross (lb / kg): 4.63lb / 2.1kg
  • REGULATIONS
    REGULATIONS: CE, R&TTE, FCC, FCC-IC-ID, cTUVus, , RCM, BSMI, NCC (TBD)
  • PACKAGE CONTENTS
    PACKAGE CONTENTS: 1. VPC17-WP
    2. ViewSonic Wizard CD
    3. QSG
  • UPC CODE
    UPC Code: 76690700322 2
