LCD Display

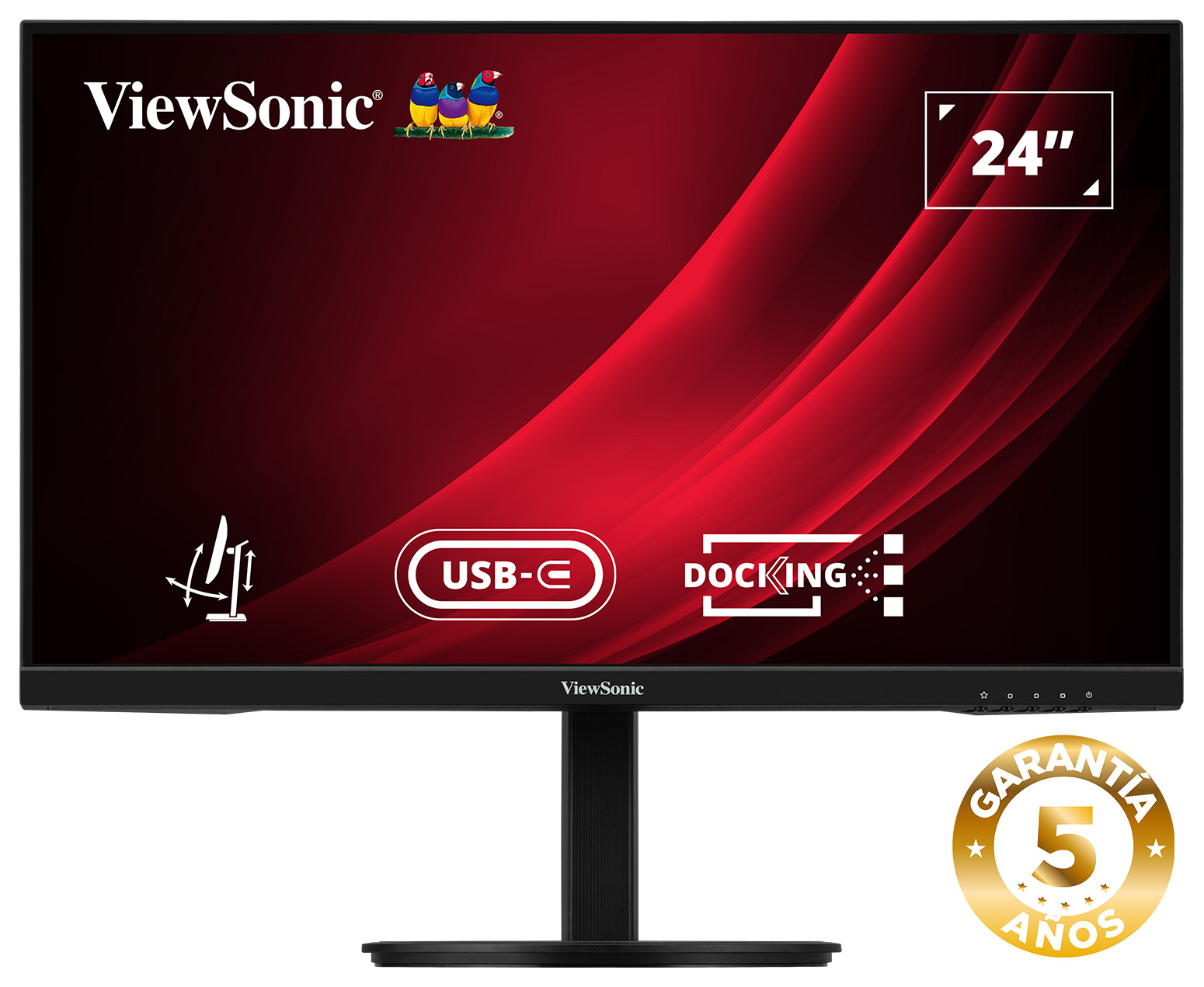

VG2409U-2
Key Features
- Estación de acoplamiento USB-C integrada con Ethernet, capacidad Daisy Chain y carga de energía de hasta 65 W
- Concentrador USB con 3.2 puerto upstream, 1 puertos downstream y entradas HDMI y Display Port para una fácil conectividad
- La frecuencia de actualización variable de 100 Hz ofrece imágenes fluidas
- Capacidades ergonómicas de inclinación, giro, pivote y ajuste de altura
- Certificado TCO, EnergyStar, EPEAT Silver para la sostenibilidad
Product Description
El ViewSonic VG2409U-2 es un monitor FHD de 24" con Hub USB 3.2 con 1 puerto de subida y 2 de bajada, HDMI, DisplayPort y DisplayPort Out para uso profesional y doméstico. Equipado con puertos USB-C de 65 W, ethernet y compatibilidad con conexión en cadena, el VG2409U-2 funciona como una completa estación de acoplamiento integrada para carga, transferencia audiovisual y de datos, y conectividad de red, reduciendo eficazmente el desorden de cables. La frecuencia de refresco variable de 100 Hz, la tecnología Eye ProTech y los distintos preajustes de ViewMode garantizan un rendimiento óptimo de la pantalla y una visualización cómoda sin lagrimeo ni tartamudeos. Simplemente amplía tu espacio de trabajo y experimenta una multitarea realmente fluida y ergonómica en una sola pantalla, con un soporte compatible con VESA y un bajo consumo de energía.
- Menu Control Panel
- Power In
- VESA Compatible(Wall Mount 100 x 100 mm)
- HDMI
- Display Port
- USB Type-C
- Display Port Out
- USB Type-B Upstream
- USB Type-A Downstream*2
- Ethernet(RJ45)
- Audio Out
- Speakers
Visit Us
- www.viewsonic.com
-
DISPLAY
Display Size (in.): 24 Viewable Area (in.): 23.8 Panel Type: IPS Technology Resolution: 1920 x 1080 Resolution Type: FHD (Full HD) Static Contrast Ratio: 1,300:1 (typ) Dynamic Contrast Ratio: 50M:1 High Dynamic Range: HDR10 Light Source: LED Brightness: 350 cd/m² (typ) Colors: 16.7M Color Space Support: 8 bit (6 bit + FRC) Aspect Ratio: 16:9 Response Time (Typical GTG): 4ms Response Time (GTG w/OD): 4ms Viewing Angles: 178º horizontal, 178º vertical Backlight Life (Hours): 30000 Hrs (Min) Curvature: Flat Refresh Rate (Hz): 100 Variable Refresh Rate Technology: Yes Low Blue Light: Software solution Flicker-Free: Yes Color Gamut: NTSC: 72% size (Typ)
sRGB: 104% size (Typ)Pixel Size: 0.275 mm (H) x 0.275 mm (V) Surface Treatment: Anti-Glare, Hard Coating (3H) -
COMPATIBILITY
PC Resolution (max): 1920x1080 Mac® Resolution (max): 1920x1080 PC Operating System: Windows 10/11 certified; macOS tested Mac® Resolution (min): 1920x1080 - CONNECTOR
-
AUDIO
Internal Speakers: 2.5Watts x2 -
POWER
Eco Mode (Conserve): 12W Eco Mode (optimized): 13.5W Consumption (typical): 15.5W Consumption (max): 19.5W Voltage: AC 100-240V Stand-by: 0.5W Power Supply: Internal Power Supply -
ADDITIONAL HARDWARE
Kensington Lock Slot: 1 Cable Organization: Yes -
CONTROLS
Physical Controls: Key 1 (favorite), Key 2, Key 3, Key 4, Key 5 (power) On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu -
OPERATING CONDITIONS
Temperature: 32°F to 104°F (0°C to 40°C) Humidity (non-condensing): 20% to 90% -
WALL MOUNT
VESA Compatible: 100 x 100 mm -
INPUT SIGNAL
Frequency Horizontal: 30 ~ 112KHz Frequency Vertical: 48 ~ 100Hz -
VIDEO INPUT
Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.4), Micro-Packet - Type C -
ERGONOMICS
Height Adjust (mm): 130 Swivel: 360º Tilt (Forward/Back): -5º / 28º Pivot (Right/Left): 90º / 90º -
WEIGHT (IMPERIAL)
Net (lbs): 12.3 Net Without Stand (lbs): 7.7 Gross (lbs): 15.9 -
WEIGHT (METRIC)
Net (kg): 5.6 Net Without Stand (kg): 3.5 Gross (kg): 7.2 -
DIMENSIONS (IMPERIAL) (WXHXD)
Packaging (in.): 24.5 x 20.5 x 5.7 Physical (in.): 21.25 x 15.35~20.47 x 9.18 Physical Without Stand (in.): 21.25 x 12.72 x 2 -
DIMENSIONS (METRIC) (WXHXD)
Packaging (mm): 622 x 520 x 144 Physical (mm): 539.7 x 389.89~519.89 x 233.29 Physical Without Stand (mm): 539.7 x 323.18 x 50.9 -
GENERAL
Regulations: Energy Star, EPEAT, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, TCO 9.0, EAC, UkrSEPRO, BIS PACKAGE CONTENTS: VG2409U-2 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB Type-C Cable (Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Quick Start Guide x1 Recycle/Disposal: Please dispose of in accordance with local, state or federal laws. Warranty: *Warranty offered may differ from market to market Power Management: Energy Star standards, EPEAT
