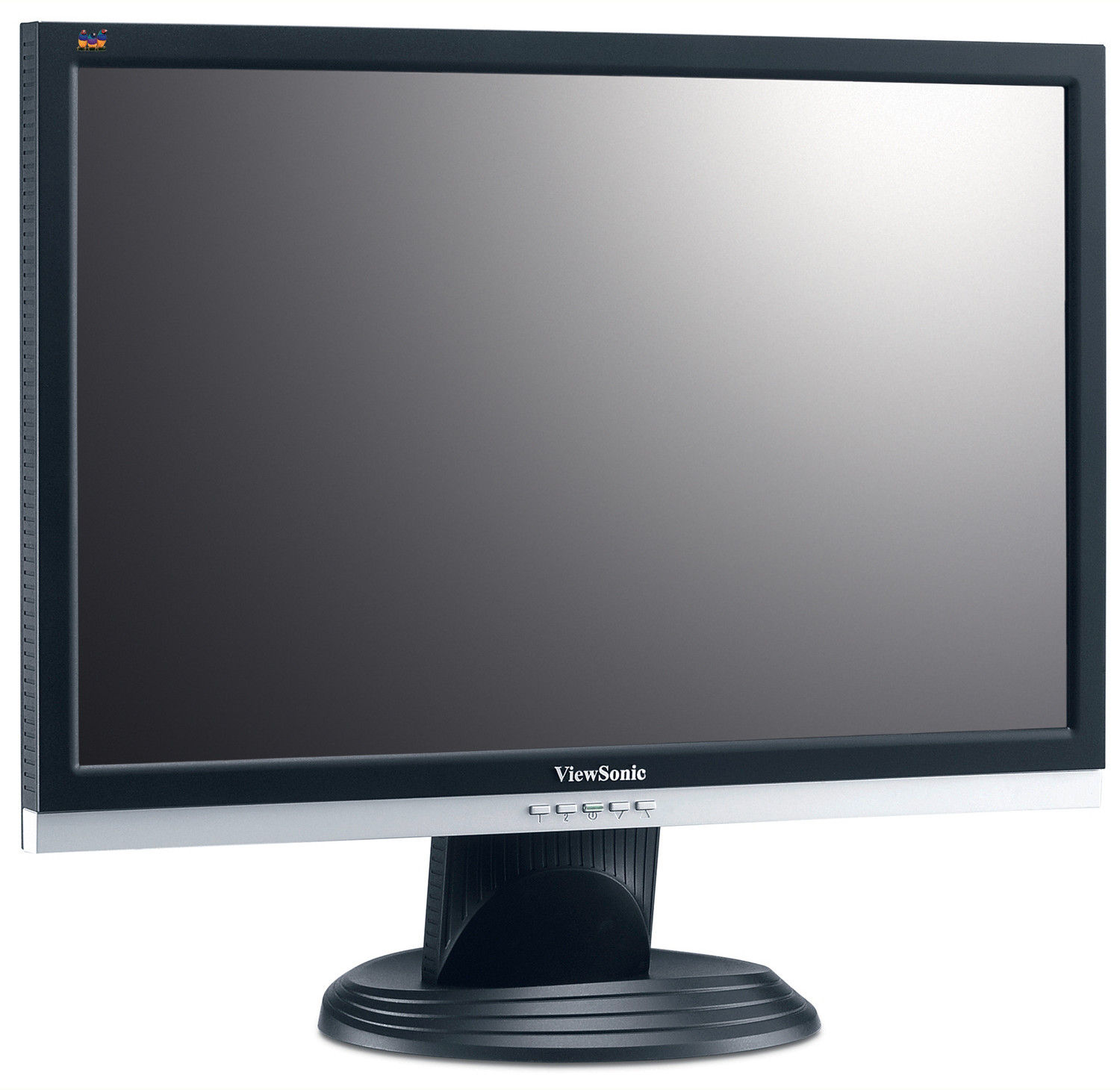

ViewSonic VA2616w 65 cm / 25.5" VALUE SERIES WIDESCREEN LCD WITH 5MS VIDEO RESPONSE

LCD

Tipo:	65 cm / 25.5" color TFT active matrix WUXGA LCD
Ratio de contraste:	800:1 static (typ), 6000:1 DCR
Ángulos de visión:	170° horizontal, 160° vertical @ contrast ratio >10:1 170° horizontal, 170° vertical @ contrast ratio >5:1
Brillo:	450 cd/m² (typ)
Área de visualización:	550 x 344mm, 21.7" (51.12 cm) horizontal x 13.5" (34.25 cm) vertical; 25.5" (64.77 cm)diagonal
Resolución óptima:	1920x1200
Tiempo de respuesta:	5ms (typ)
Fuente de luz:	Long life, 50,000 hrs. (min)
Superficie del panel:	Anti-glare
Tamaño del píxel:	0.2865mm
Gama de colores:	16.7M (6-bit + 2-bit FRC)
Frecuencia de píxel:	165 MHz

COMPATIBILIDAD

PC: VGA up to 1920x1200 non-interlaced

Mac®: Power Mac™ G3/G4/G5 up to 1920x1200
DIMENSIONES

Físicas con la base: 596mm x 480mm x 254mm (23.5" x 18.9" x 10.0")

Físicas sin la base: 596mm x 406mm x 93mm (23.5" x 16.0" x 3.6")
NORMATIVAS

UL, cUL, FCC-B, CB, CE, NOM, IRAM, ERGO (covers ISO13406-2), BSMI, CCC, ENERGY STAR,® PSB, CTICK, RoHS, WEEE, VCCI, GOST-R, SASO, TCO’03
CONTENIDO DE LA CAJA

LCD display, video cable, power cable,
Quick Start Guide, ViewSonic Wizard (DVI and HDMI cables
not included)
RECICLAJE/ALMACENAMIENTO

The lamp in this product contains mercury. Please dispose of in accordance with local, state or federal laws.
CONECTIVIDAD

Analógico: 15-pin mini D-sub

Alimentación: 3-pin AC plug (CEE22
ALIMENTACIóN

Voltaje: AC 100–240V (universal), 50/60Hz (auto switch)

Consumo: 64W (typ); below 1W in standby mode

CONTROLES

Básico:	Power, 1, down, up, 2
OnView®:	Auto image adjust, contrast, brightness, input select (analog, digital, HDMI), ViewMatch® color adjust (sRGB, 9300K, 6500K – default, 5400K, RGB), information, manual image adjust (H. size, H. position, V. position, fine tune, sharpness, display mode, aspect ratio and ECO mode), setup menu etc.), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), memory recall

CONDICIONES DE FUNCIONAMIENTO

Temperatura: 41–95°F (5–35°C)

Humedad: 20–80% (non-condensing)
PESO

Neto con la base: 7.32 kg (16.14 lbs)

Neto sin la base: 5.48 kg (12.08 lbs)

Bruto con la base: 9.76 kg (21.52 lbs)
ENTRADA DE VíDEO

Frecuencia: Fh: 24~82kHz, Fv: 50~85Hz

Syncronización: H/V separated (TTL)

Analógico: RGB analog (75 ohms, 0.7 Vp-p)
GESTIÓN DE ENERGÍA

Meets TCO’03 and ENERGY STAR® standards
SEGURIDAD

Kensington security port
MONTAJE EN LA PARED

VESA FDMI 100X100mm
ERGONOMÍA

Inclinación: -5°/+20°

PC:	VGA up to 1920x1200 non-interlaced
Mac®:	Power Mac™ G3/G4/G5 up to 1920x1200

Físicas con la base:	596mm x 480mm x 254mm (23.5" x 18.9" x 10.0")
Físicas sin la base:	596mm x 406mm x 93mm (23.5" x 16.0" x 3.6")

Analógico:	15-pin mini D-sub
Alimentación:	3-pin AC plug (CEE22

Voltaje:	AC 100–240V (universal), 50/60Hz (auto switch)
Consumo:	64W (typ); below 1W in standby mode

Temperatura:	41–95°F (5–35°C)
Humedad:	20–80% (non-condensing)
