LCD Display

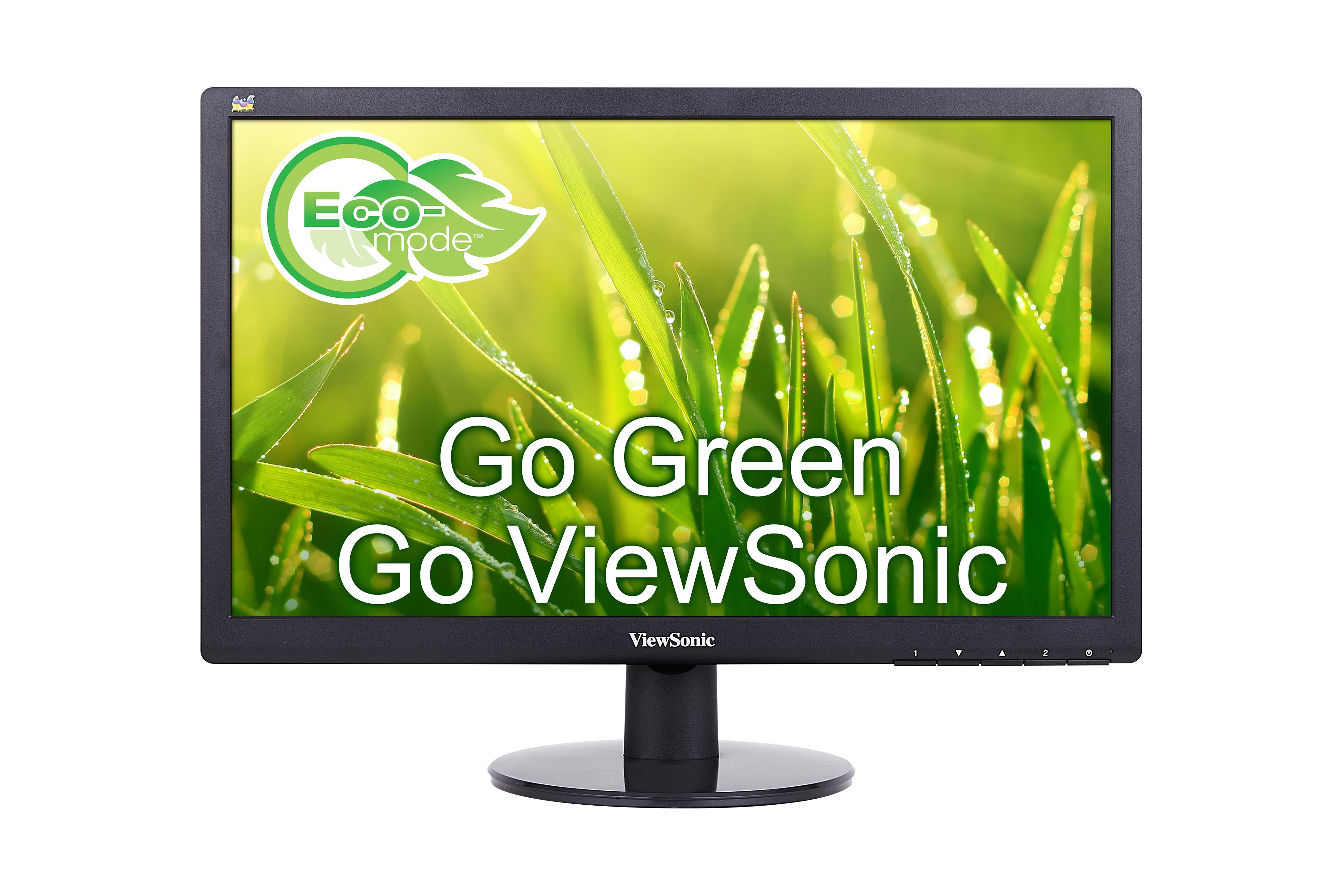

VA1917a
Key Features
Product Description
ViewSonic’s new VA1917a is an environmentally friendly 19’’ (18.5’’ viewable) widescreen display that features LED backlight, providing energy saving up to 40%. With 1366 x 768 HD resolution, 5ms response time and VESA mountable design, the VA1917a is ideal for both home and office. The display’s built-in colour management ensures the most accurate white level for image rendering, allowing users to match different colour temperature settings to create more comfortable working conditions. In addition, energy-saving ECO-mode reduces cost of ownership, making the VA1917a the best choice for both corporate and education customers as well.
Visit Us
- www.viewsonic.com
-
LCD
Type: 18.5" Wide colour a-Si TFT Active Matrix LCD Display Area (inch): 409.8 x 230.4 mm Optimum Resolution: 1366 x 768 Brightness (nits): 200 cd/m² Contrast Ratio: 600:1 (typ) Viewing Angles: 90° / 65° Response Time: Tr+Tf: 5 ms (typ) Panel Surface: Anti-Glare type, Hardness 3H Colours: 16.7M Backlight: WLED light bar Backlight Life: 30,000 hrs -
COMPATIBILITY
PC: VGA up to 1366 x 768 Non Interlaced Mac: Power Mac up to 1366 x 768 -
CONNECTOR
Power: Internal Power Board , 3-pin plug (CEE22) x1 Video: VGA x1 -
WALL MOUNT
VESA®: 100 x 100mm -
INPUT SIGNAL
Sync: Separate Sync Analog: RGB Analog (75 ohms, 0.7 / 1.0 Vp-p) Frequency: Fh = 24 ~82 kHz ; Fv = 50 ~75 Hz -
POWER
Optimize: 15W (typ) Conserve: 12W (typ) Voltage: AC 100-240V (Universal); 50/60 Hz Consumption: 18W (typ) -
ERGONOMICS
Tilt: 20˚ ~ -5˚ -
OPERATING CONDITIONS
Temperature (ºC): 0°C to 40°C Humidity: 10% to 90% (no condensation) -
DIMENSIONS
Packaging (mm): 493 x 348 x 110 mm Physical with stand (mm): 442.40 x 332.87 x 176 mm Physical without stand (mm): 442.40 x 271.77 x 46.20 mm -
WEIGHT
Gross (kg): 2.9 kg Net with stand (kg): 2.2 kg Net without stand (kg): 2.0 kg -
REGULATIONS
cULus, FCC-B, ICES003, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO -
RECYCLE / DISPOSAL
Please dispose of in accordance with local, state or federal laws -
WARRANTY
*Warranty offered may differ from market to market -
PACKAGE CONTENTS
LCD Display Power Cable D-Sub Video Cable Quick Start Guide
*Actual content may differ from market to market
