Key Features
  • Compacto, ligero y portátil
  • Tecnología multitáctil de 10 puntos para un control de pantalla más intuitivo
  • Configuración de pantalla flexible – trabaja desde cualquier ángulo
  • Diseño metálico elegante y duradero con soporte plegable
  • Solución única con cable USB-C para transferencia multimedia, transmisión de señal táctil y carga de energía

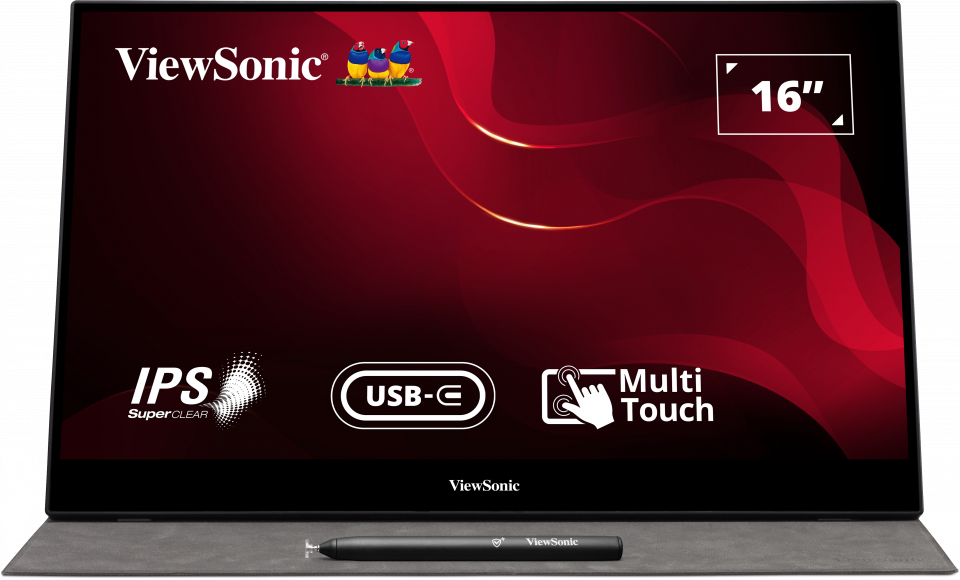

TD1655
Product Description
El ViewSonic TD1655 es un monitor portátil táctil Full HD de 16 pulgadas, perfecto para superar las limitaciones de una pantalla fuera de la oficina. Comparte la pantalla de tu smartphone, tableta o portátil para el trabajo móvil, presentaciones individuales o entretenimiento. Los dos conectores universales USB tipo C proporcionan una solución de un solo cable para la transmisión de vídeo, carga y la función táctil. El amplio soporte ajustable y la pantalla giratoria le permiten acceder a sus ángulos de trabajo preferidos. Con la cubierta antideslizante, la caja metálica, el soporte de aluminio y la pantalla de dureza 6H, el diseño de esta pantalla la hace muy fiable.
  1. USB Tipo C x2
  2. Mini HDMI
  3. Salida Audio
  4. Joystick
Visit Us
  • www.viewsonic.com
  • DISPLAY
    Display Size (in.): 16
    Viewable Area (in.): 15.6
    Panel Type: IPS Technology
    Resolution: 1920 x 1080
    Resolution Type: FHD (Full HD)
    Static Contrast Ratio: 800:1 (typ)
    Dynamic Contrast Ratio: 50M:1
    Light Source: LED
    Brightness: 250 cd/m² (typ)
    Colors: 262K
    Color Space Support: 6 bit true
    Aspect Ratio: 16:9
    Response Time (Typical GTG): 6.5ms
    Response Time (GTG w/OD): 6.599ms
    Response Time (Typical Tr+Tf): 30ms
    Viewing Angles: 178º horizontal, 178º vertical, CR>5; 170º horizontal, 170º vertical, CR>10
    Backlight Life (Hours): 15000 Hrs (Min)
    Curvature: Flat
    Refresh Rate (Hz): 60
    Low Blue Light: Software solution
    Color Gamut: NTSC: 45% size (Typ) sRGB: 64% size (Typ)
    Pixel Size: 0.179 mm (H) x 0.179 mm (V)
    Touch Screen: Projected Capacitive, 10-point multi-touch
    Surface Treatment: Glossy w/ anti-finger print, Hard Coating (≧6H)
    Cover Glass Thickness: 0.8mm
  • COMPATIBILITY
    PC Resolution (max): 1920x1080
    Mac® Resolution (max): 1920x1080
    PC Operating System: Windows 10/11 certified; macOS tested
    Mac® Resolution (min): 1920x1080
  • CONNECTOR
    USB 3.2 Type C Up Stream; DisplayPort Alt mode : 2 (60W power charger)
    3.5mm Audio Out: 1
    Mini HDMI: 1
    Power in: USB Type C (with video & data)
  • AUDIO
    Internal Speakers: 0.8Watts x2
  • POWER
    Eco Mode (Conserve): 6W
    Eco Mode (optimized): 6.9W
    Consumption (typical): 8W
    Consumption (max): 8.3W
    Voltage: AC 100-240V
    Stand-by: 0.5W
    Power Supply: External Power Adaptor
  • CONTROLS
    Physical Controls: Up, Right, Down, Left, Power
    On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
  • OPERATING CONDITIONS
    Temperature: 32°F to 104°F (0°C to 40°C)
    Humidity (non-condensing): 20% to 90%
  • INPUT SIGNAL
    Frequency Horizontal: 15 ~ 82KHz
    Frequency Vertical: 50 ~ 75Hz
  • VIDEO INPUT
    Digital Sync: TMDS - mini HDMI (v1.4), Micro-Packet - Type C
  • ERGONOMICS
    Tilt (Forward/Back): 20º / 60º
  • WEIGHT (IMPERIAL)
    Net (lbs): 2.1
    Net Without Stand (lbs): 2.1
    Gross (lbs): 5.1
  • WEIGHT (METRIC)
    Net (kg): 0.96
    Net Without Stand (kg): 0.96
    Gross (kg): 2.3
  • DIMENSIONS (IMPERIAL) (WXHXD)
    Packaging (in.): 17.3 x 11.3 x 3.5
    Physical (in.): 13.99 x 8.8 x 0.58
    Physical Without Stand (in.): 13.99 x 8.8 x 0.58
  • DIMENSIONS (METRIC) (WXHXD)
    Packaging (mm): 440 x 288 x 89
    Physical (mm): 355.46 x 223.44 x 14.7
    Physical Without Stand (mm): 355.46 x 223.44 x 14.7
  • GENERAL
    Regulations: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, NRCan, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, VCCI, PSE(Adaptor), BIS
    PACKAGE CONTENTS: TD1655 x1, mini HDMI to HDMI Cable (v1.4; Male-Male) x1, USB Type-C Cable (Male-Male) x1, USB Type-C to Type-A 3.2 Gen1 Cable (Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1, Protect cover x1, Clean cloth x1, Passive touch pen x1
    Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
    Warranty: *Warranty offered may differ from market to market
    Power Management: Energy Star standards, EPEAT
