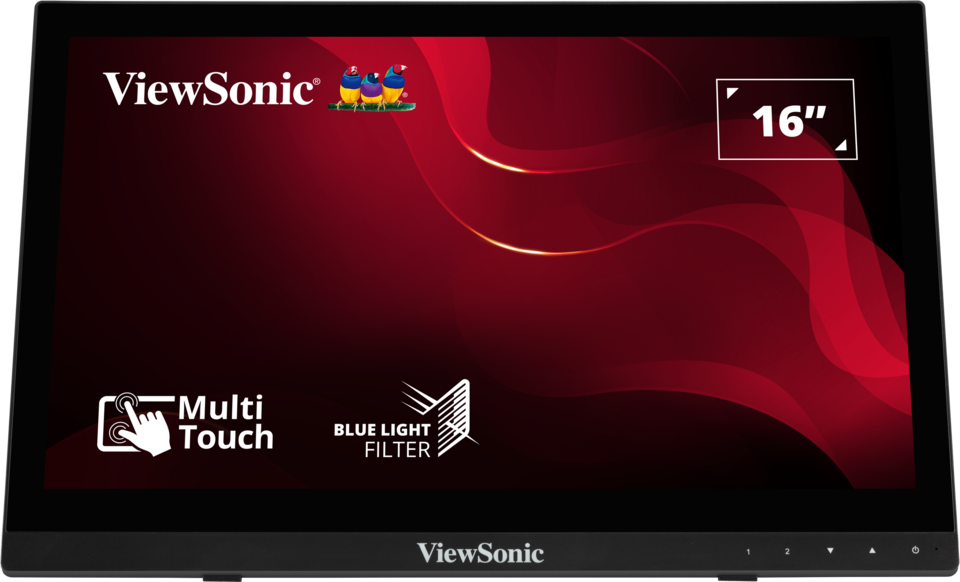

LCD Display
TD1630-3
Key Features
- Táctil capacitativo de 10 puntos
- Soporte ergonómico avanzado para una experiencia táctil óptima
- Conectividad versátil con HDMI y VGA.
- Compatible con Windows 7/8/10/11, Linux Kernel 4.X / 3.X
- Pantalla duradera y resistente a los arañazos
- Altavoces duales integrados
- Mayor comodidad de visualización
- Diseño montable VESA
Product Description
El monitor ViewSonic TD1630-3 es una pantalla de 16" (15.6" visibles) con funcionalidad multitáctil de 10 puntos. Con un diseño ergonómico avanzado, el TD1630-3 puede inclinarse o quedar plano para brindar a los usuarios la máxima comodidad. Ofreciendo versatilidad de pantalla táctil, esta pantalla ofrece una flexibilidad fantástica para la configuración comercial o de negocios, mientras que las entradas VGA y HDMI brindan una amplia conectividad. La compatibilidad con una amplia gama de sistemas operativos, incluidas las versiones de Windows 10/11 y Linux*, junto con los altavoces integrados duales, hacen que esta pantalla táctil intuitiva sea altamente precisa. Una experiencia táctil ultra sensible que es ideal para la interactividad en un entorno de negocios o de retail.
* Compatible con Windows 7/8/10/11, Linux Kernel 4.X / 3.X
* Compatible con Windows 7/8/10/11, Linux Kernel 4.X / 3.X
Visit Us
- www.viewsonic.com
-
DISPLAY
Display Size (in.): 16 Viewable Area (in.): 15.6 Panel Type: TN Technology Resolution: 1366 x 768 Resolution Type: WXGA (Wide XGA) Static Contrast Ratio: 500:1 (typ) Dynamic Contrast Ratio: 10M:1 Light Source: LED Brightness: 190 cd/m² (typ) Colors: 262K Color Space Support: 6 bit true Aspect Ratio: 16:9 Response Time (Typical Tr+Tf): 12ms Viewing Angles: 90º horizontal, 60º vertical Backlight Life (Hours): 15000 Hrs (Min) Curvature: Flat Refresh Rate (Hz): 60 Blue Light Filter: Yes Color Gamut: NTSC: 45% size (Typ)
sRGB: 67% size (Typ)Pixel Size: 0.252 mm (H) x 0.252 mm (V) Touch Screen: Projected Capacitive, 10-point multi-touch Surface Treatment: Glossy, Hard Coating (7H) Cover Glass Thickness: 0.83mm -
COMPATIBILITY
PC Resolution (max): 1366x768 Mac® Resolution (max): 1366x768 PC Operating System: Windows 7/8/8.1/10/11 certified; macOS tested Mac® Resolution (min): 1366x768 -
CONNECTOR
VGA: 1 USB 2.0 Type B: 1 3.5mm Audio In: 1 HDMI 1.4: 1 Power in: DC Socket (Center Positive) -
AUDIO
Internal Speakers: 1Watts x2 -
POWER
Eco Mode (Conserve): 4.3W Eco Mode (optimized): 4.9W Consumption (typical): 5.5W Consumption (max): 6W Voltage: AC 100-240V Stand-by: 0.5W Power Supply: External Power Adaptor -
ADDITIONAL HARDWARE
Kensington Lock Slot: 1 -
CONTROLS
Physical Controls: 1, 2, Up, Down, Power On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall -
OPERATING CONDITIONS
Temperature: 32°F to 104°F (0°C to 40°C) Humidity (non-condensing): 20% to 90% -
WALL MOUNT
VESA Compatible: 75 x 75 mm -
INPUT SIGNAL
Frequency Horizontal: 30 ~ 61KHz Frequency Vertical: 56 ~ 75Hz -
VIDEO INPUT
Digital Sync: TMDS - HDMI (v1.4) Analog Sync: Separate - RGB Analog -
ERGONOMICS
Tilt (Forward/Back): 15º / 50º -
WEIGHT (IMPERIAL)
Net (lbs): 2.9 Net Without Stand (lbs): 2.9 Gross (lbs): 5.5 -
WEIGHT (METRIC)
Net (kg): 1.3 Net Without Stand (kg): 1.3 Gross (kg): 2.5 -

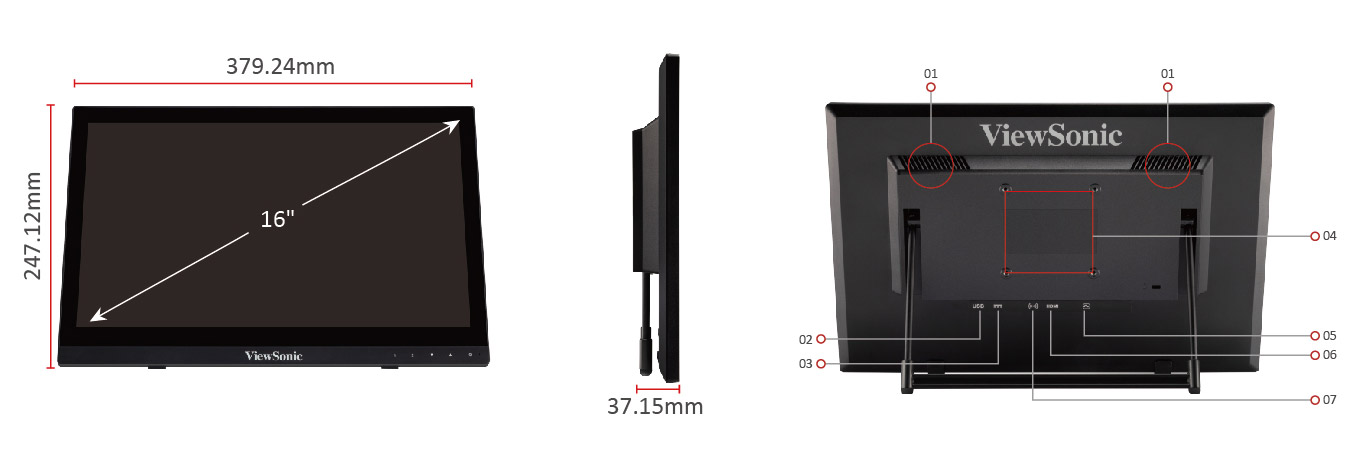

DIMENSIONS (IMPERIAL) (WXHXD)
Packaging (in.): 17.8 x 15.3 x 3.4 Physical (in.): 14.9 x 9.7 x 1.5 Physical Without Stand (in.): 14.9 x 9.7 x 1.5 -
DIMENSIONS (METRIC) (WXHXD)
Packaging (mm): 453 x 389 x 86 Physical (mm): 379 x 247 x 37 Physical Without Stand (mm): 379 x 247 x 37 -
GENERAL
Regulations: CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, BIS PACKAGE CONTENTS: TD1630-3 x1, 3-pin Plug (IEC C13 / CEE22) x1, VGA Cable (Male-Male) x1, USB A/B Cable (v2.0; Male-Male) x1, Audio Cable (Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1 Recycle/Disposal: Please dispose of in accordance with local, state or federal laws. Warranty: *Warranty offered may differ from market to market
