Key Features
  • Tecnología UFT (Ultra Fine Touch)
  • myViewBoard™ software de pizarra digital
  • ViewBoard® Cast software de pantalla dividida para compartir contenido hasta 4 personas
  • SmartPort™ puertos USB frontales compartidos para PC internos y externos
  • Sonido estéreo 2.1 con subwoofer incorporado

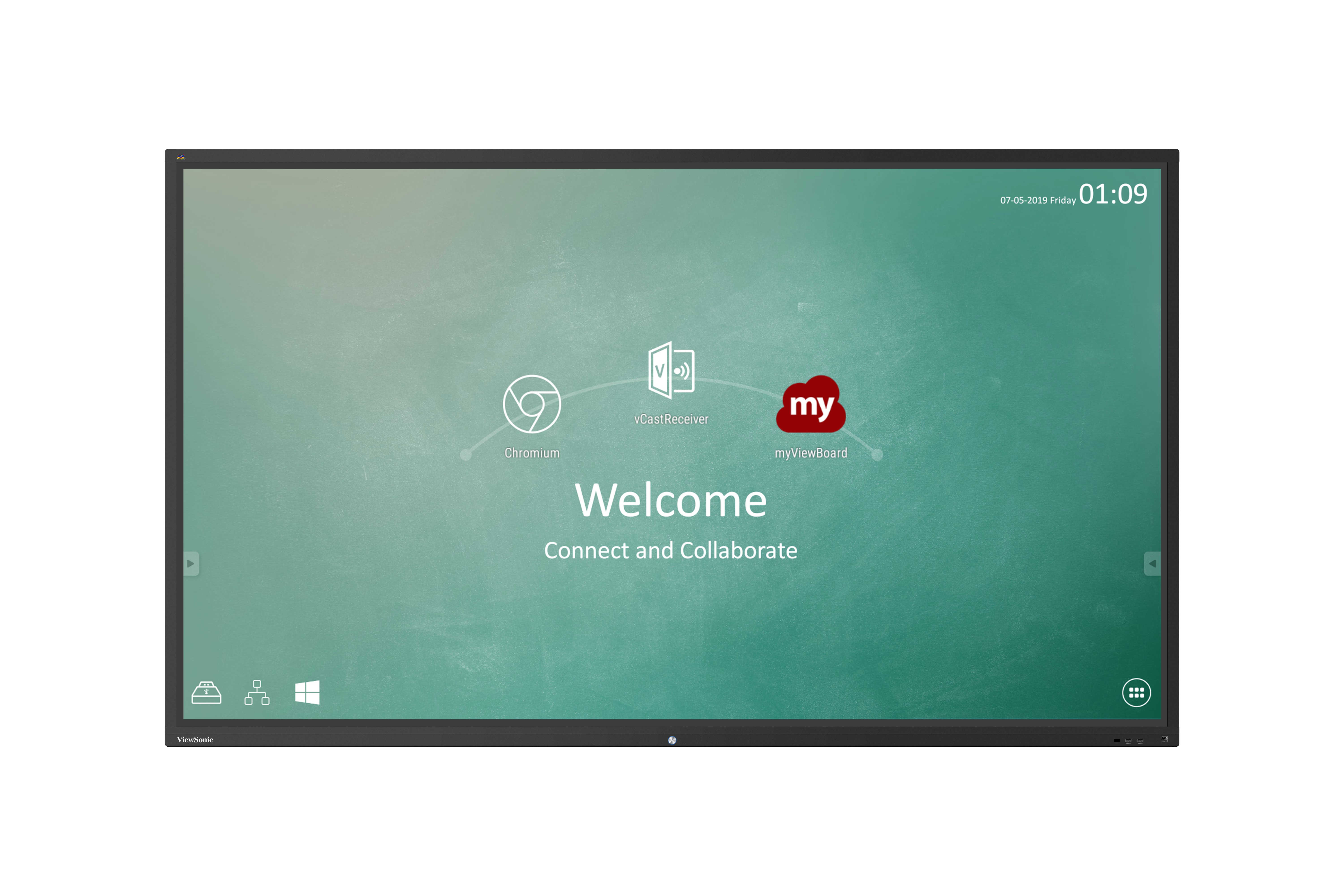

ViewBoard IFP9850-3
Product Description
La serie ViewBoard® IFP50 incorpora la tecnología UFT (Ultra Fine Touch) para ofrecer una escritura más precisa y un tiempo de procesamiento más rápido que los paneles IR tradicionales. La escritura suave y lápiz dual con nuestros nuevos y delgados modelos de 3mm permite a grupos de profesores y estudiantes trabajar de manera eficiente en cualquier tarea detallada que requiera el uso de lápices precisos y con punta fina. La serie ViewBoard® IFP50 está diseñada con un bisel delgado para ampliar su experiencia visual de modo que incluso en el borde del panel pueda escribir con claridad y confianza. El software integrado de pizarra digital myViewBoard™ permite a los usuarios colaborar mientras viajan, mientras que ViewBoard® Cast permite compartir contenido en pantalla dividida hasta 4 personas.

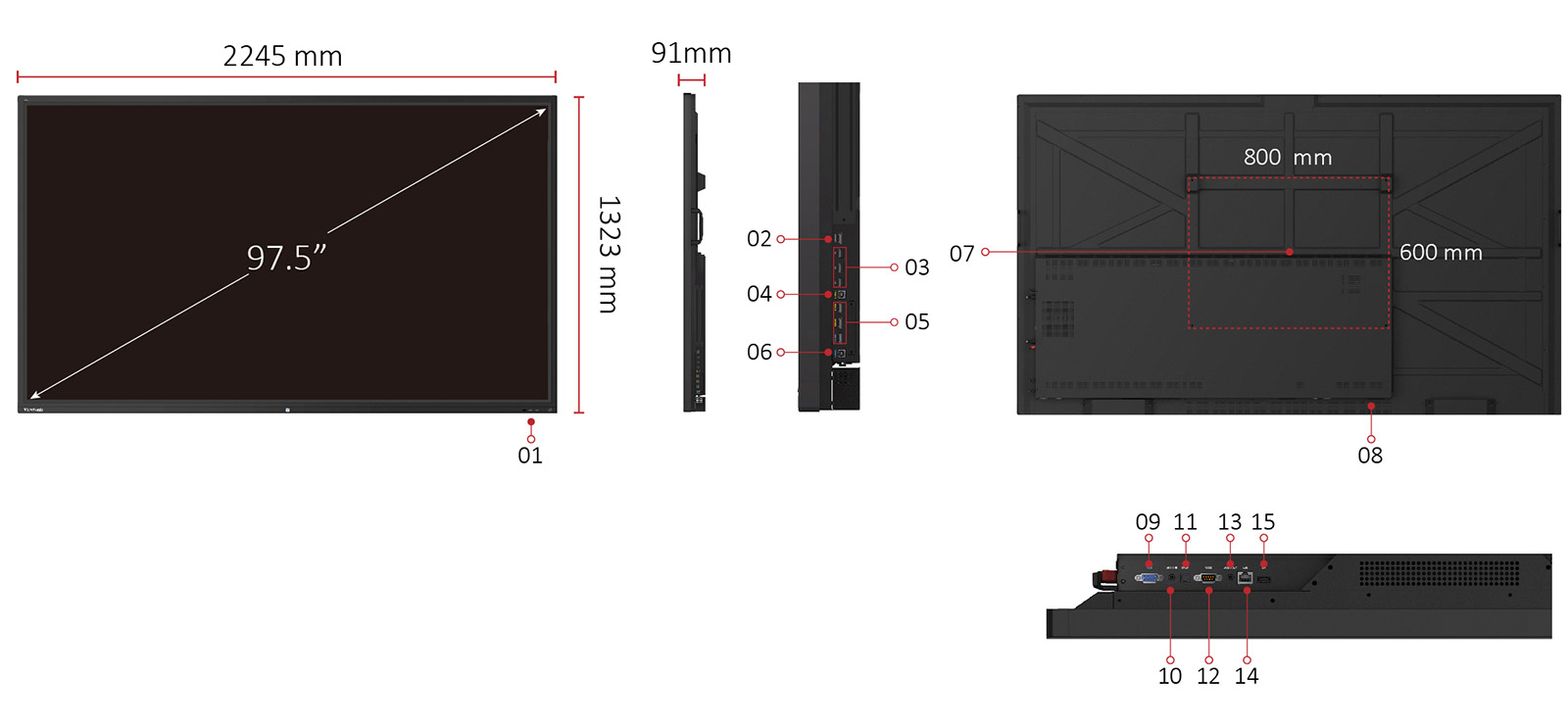

  1. USB 2.0 X 2
  2. HDMI OUT
  3. USB 3.0 X 3
  4. USB Touch Port
  5. HDMI In X 3
  6. USB Touch Port
  7. VESA® WALL Mount 800x600 mm
  8. AC IN
  9. VGA
  10. AUDIO IN
  11. SPDIF Out
  12. RS232
  13. AUDIO OUT
  14. LAN
  15. USB 2.0
Visit Us
  • www.viewsonic.com
  • DISPLAY
    Panel Size: 98"
    Type/Tech: TFT LCD Module with DLED Backlight.
    Display Area (mm): 2171.85(H) x 1232.35(V) (97.52”diagonal)
    Aspect Ratio: 16:9
    Native Resolution: UHD 3840x2160(Pixels)
    Colours: 1.07B colours (10bit)
    Brightness: 350 nits (typ.)
    Contrast Ratio: 1200:1 Typ. , 5000:1 Max.
    Response Time: 6ms
    Viewing Angles: H = 178, V = 178 typ.
    Backlight Life: 30,000 Hours (Min)
    Surface Treatment: Anti-Glare
    Orientation: Landscape
  • PLATFORM
    Processor: ARM Cortex A73*2(1.5GHz)+A53*2(1.2GHz)
    RAM: 3GB DDR4
    Storage: 16GB
  • TOUCH
    Type/ Tech: IR Recognition
    Touch Resolution: 32767 x 32767
    Touch Point: 20 points touch, 10 points writing
  • INPUT
    HDMI: 2.0 x3 (3840x2160 @60Hz)
    RGB / VGA: x1
    Audio: x1 (PC audio in)
    RS232: x1
    OPS: x1 PC Slot
  • OUTPUT
    HDMI: x1
    Audio: x1 (Earphone out)
    SPDIF: 1(optical)
    RS232: x1
  • LAN
    RJ45: x1
  • USB
    Type A: USB 2.0 x3
    USB 3.0 x3
    Type B: x2, for touch
  • SPEAKERS
    SPEAKERS: 12Wx2
  • CAMERA PLATE ON TOP FOR SCREW-IN WEBCAM INSTALLATION
    Camera plate on top for screw-in webcam installation: Yes
  • COMPATIBILITY
    HDMI: 3840x2160
  • USB SUPPORTED FILE FORMAT
    USB SUPPORTED FILE FORMAT: Picture -
    BMP, JPEG, PNG,GIF

    Video -
    Codec: H.263, H.264, MJPEG, MPEG2, MPEG4, RV30/40, VP6, Xvid-ASP
    Container: 3GP, ASF, ASX, AVI, FLV, M4V, MKV, MOV, MP4, MPG, MPEG, RMVB, TS
    H.265

    Audio -
    Codec: AAC, ALAC, FLAC, MPEG 3, Vorbis, WAV, WMA
    Container: AAC, APC, FLAC, M4A, MP3, OGG, WAV, WMA
  • BUNDLE SOFTWARE
    Basic Annotation Software: myViewBoard for android
    Pro Annotation Software: myViewBoard for windows (Embedded in Windows Slot-in PC)
    Wireless Presentation with Touch Feedback: Viewboard Cast: ViewBoard Cast
  • SPECIAL FEATURES
    All-in-one USB port (combine Windows/Android USB port; no need to distinguish them anymore): Front “SmartPort USB” to all channels.
    Simple LAN sharing between IFP and slot-in device: Yes
  • POWER
    Voltage: 100-240VAC +/- 10% Wide Range
    Consumo: 171W (Typ.) < 0.5 W ("Off")
  • ERGONOMICS
    Wall Mount (VESA® ): 800 x 600
  • OPERATING CONDITIONS
    Temperature (º C): 0°C to 40°C
    Humidity: 10% ~ 90% RH non-condensing
  • DIMENSIONS (W X H X D)
    Physical (inch / mm): 88.4 x 52.1 x 3.6 in / 2245 x 1323 x 91 mm
    Packaging (inch / mm): 97.8 x 58.8 x 14.8 in / 2483 x 1493 x 376 mm
  • WEIGHT
    Net (lb / kg): 223.77 lb / 101.5 kg
    Gross (lb / kg): 306 lb / 138.8 kg
  • REGULATIONS
    REGULATIONS: FCC, cTUVus
  • ENERGY STAR VERSION
    Energy Star version: ES8.0
  • EEI RATING
    EEI rating: A++
  • PACKAGE CONTENTS
    PACKAGE CONTENTS: 1. Power cable(3 meters) x 4 2. Remote control 3. USB cable(3 meters) 4. Touching pen x 2 5. Quick Start Guide 6. RS232 adapter 7. Clamp x 5 8. Plate 9. Screw x 8 10. HDMI cable
  • COMPATIBLE SLOT-IN PC
    Compatible Slot-in PC: VPC14-WP series
    VPC10-WP series
    VPC15-WP series
    VPC16-WP series
    VPC17-WP series
