ePoster

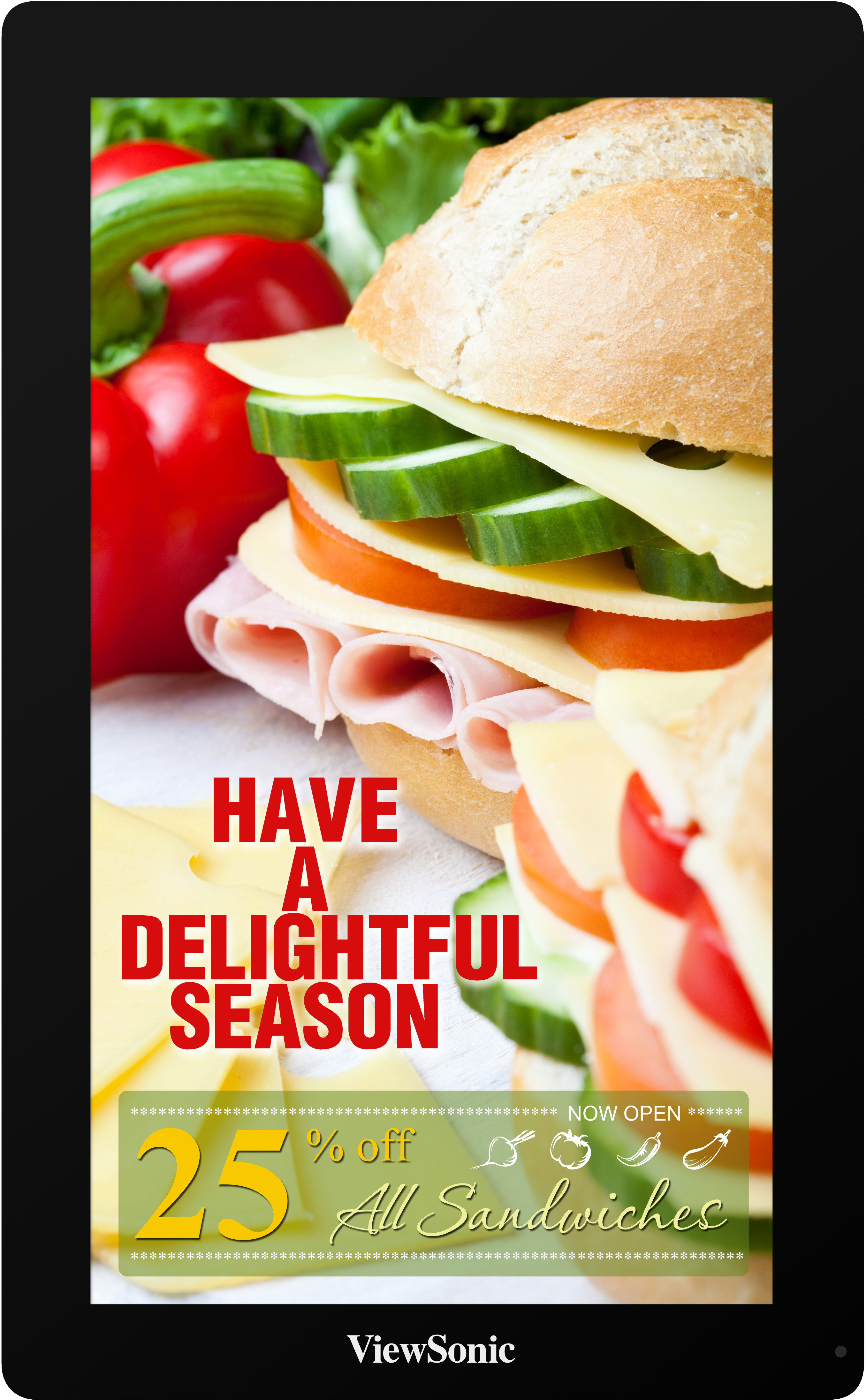

EP3203r
Key Features
Product Description
ViewSonic’s EP3203r is a 32” LED ePoster that delivers brilliant and crystal clear image quality from a large, sleek, and slim profile. The premium design and slim profile allows it to be the perfect wall mount for informational and promotional applications in any setting, while the USB ports offer quick access to a wide range of formats for convenient content management.
Visit Us
- www.viewsonic.com
-
COLORS
Black -
LCD
Tipo: 31.5" color TFT active matrix, wide LCD Ratio de contraste: 4,000:1 Ángulos de visión: 89° (H) / 89° (V) Brillo: Internal: 320 nits / External: 280 nits Área de visualización: 697.68 (H) x 392.26 (V) Resolución óptima: 1366 x 768 Relación de aspecto: 16:9 Superficie del panel: Anti-glare, hard coating (3H) -
DIMENSIONES
Físicas (mm): 809.6 x 499.6 x 40 Físicas (in): 31.87 x 19.67 x 1.57 -
CONECTIVIDAD
HDMI (entrada): x1 Entrada de vídeo: x1 USB: 2.0 x2 Red: RJ45 x1 Analógico: VGA (D-Sub) x1 Power: 2 pin plug -
ALIMENTACIóN
Voltaje: AC 100 - 240V (Universal) , 50 - 60Hz -
AUDIO
Altavoces: Amplifier:5W x2 -
PESO
Bruto: 39.68 lb. (18kg) Neto: 33.01 lb. (15kg) -
CONDICIONES DE FUNCIONAMIENTO
Humedad: 20% ~ 90% (non-condensation) Temperatura: 32°F~122°F (0 ~ 50°C) -
ENTRADA
Supported Image H.264 TBD
Decoding Format
MPEG 1 TBD
MPEG 2 TBD
MPEG 4 - XVID TBD
JPEG TBD -
CONTROLS
System Settings : Language, Clock Display, Scrolling Text, USB Port, Return to Factory Settings
Playback Control : Storage, Priority, Playback Mode, Play Time
Date & Time : Year, Month, Day, Hour, Minute, Update Date & Time
On/Off Timer : Timer Mode, Daily, Sunday-Saturday
Local ID : ID, Save
Screen Mode : Vertical, Horizontal, Save and Reboot
File Management : Information, Format
Source : HDMI, VGA, Digital Signage
System Setting : OSD Language, Reset
Image : Brightness, Contract, Saturation, Color Temp
PC Settings : Auto Adjust, H Position, V Position, Phase, Clock
