ViewBoard

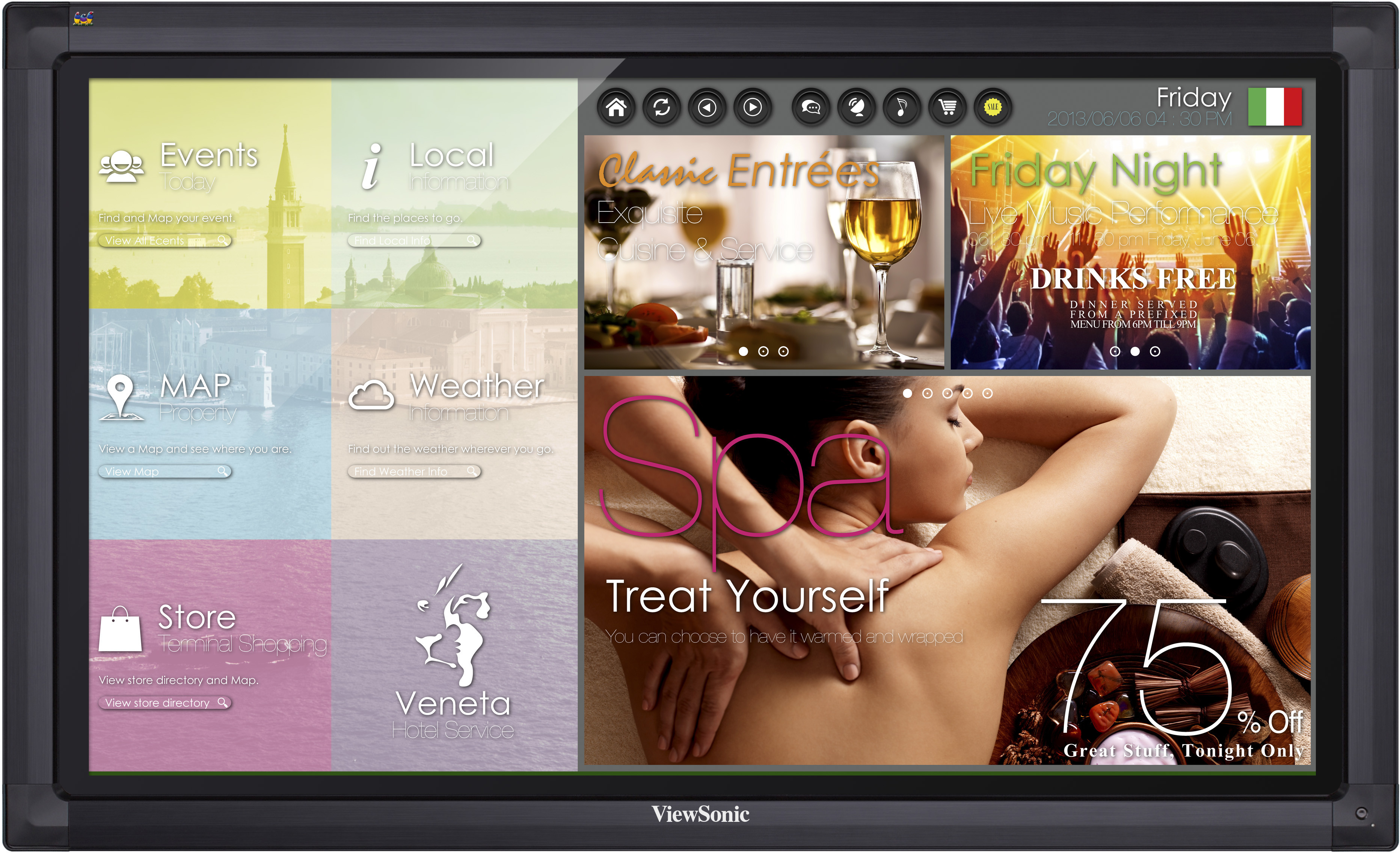

CDE5501-TL
Key Features
Product Description
The CDE5501-TL is a large format interactive display ideal for classrooms and meeting room . Its multi-touch capabilities facilitate interaction and collaboration. The Full HD LED screen guarantees crisp and vivid content. Ergonomically designed, this panel display features a tempered-glass overlay, anti-glare glass treatment and rounded-corner housing. Plus, connectivity is never a problem with various input/output options, including 2 HDMI ports, 2 VGA ports, and analog YPbPr and composite video connectors to connect with PCs or media players.
Visit Us
- www.viewsonic.com
-
LCD
Ratio de contraste: 4,000:1 Ángulos de visión: 178°/178° Área de visualización: 54.6" Tiempo de respuesta: <4ms Resolución nativa: 1920x1080p Brillo: 400 nits Retroiluminación: E-LED Display Orientation: Landscape Service Life: > 30,000hr Touch response area: 5mm Touch Type: Infrared -
COMPATIBILIDAD
PC: TBC Mac®: TBC -
DIMENSIONES
Embalaje: 1480 x 987 x 407mm Physical: 1369 x 828 x 104mm -
NORMATIVAS
CB, WEEE, RoHS, Vista Premium, Windows 8 , Windows 7, UL, cUL, FCC-B, TUV-S, NOM, Energy Star 6.0, CE, GOST-R+Hygienic, SASO, Ukraine, CCC, CEL, BSMI, PSB, C-TICK, KC, e-Standby -
CONTENIDO DE LA CAJA
Power Cable *1, D-Sub*1, Audio Cable *1 (only for VA2046m-LED), Quick Start Guide *1, ViewSonic CD Wizard *1 -
CONECTIVIDAD
Salida de vídeo: CVBS Control: RS232 In OPS or PC slot (Optional): PC Slot (proprietary) Other: USB x 1, B type USB x 1 (for Touch), SPDIF Out x 1 Video/Audio Input: HDMI x 2, VGA x 2, PC audio x 2, S-video x 1, YPbPr x 1, CVBS x 1 -
ALIMENTACIóN
Consumo: 150 max Power Off Mode: < 0.5W (typ) Power On Mode: < 150W (typ) Power-Saving Mode (stand-by): < 0.5W (typ) Rated Voltage: 100V-240V AC, 50/60HZ -
PESO
Neto: 47 kg (103.4 lb.) -
MECHANICAL
Bezel Width (T/B/L/R): 55mm Gross Dimensions (W x H x D): 1480 x 987 x 307mm Net Dimensions (W x H x D): 1369 x 828 x 104mm Net/Gross Weight: 47 / 55 kg Speaker Output: 15W x 2 VESA Mount: 400 x 400 (M8) -
TOUCH
Tempered Glass: 7H, AG Coding Touch Connection: USB Touch Resolution: 4096 x 4096
