OVERVIEW

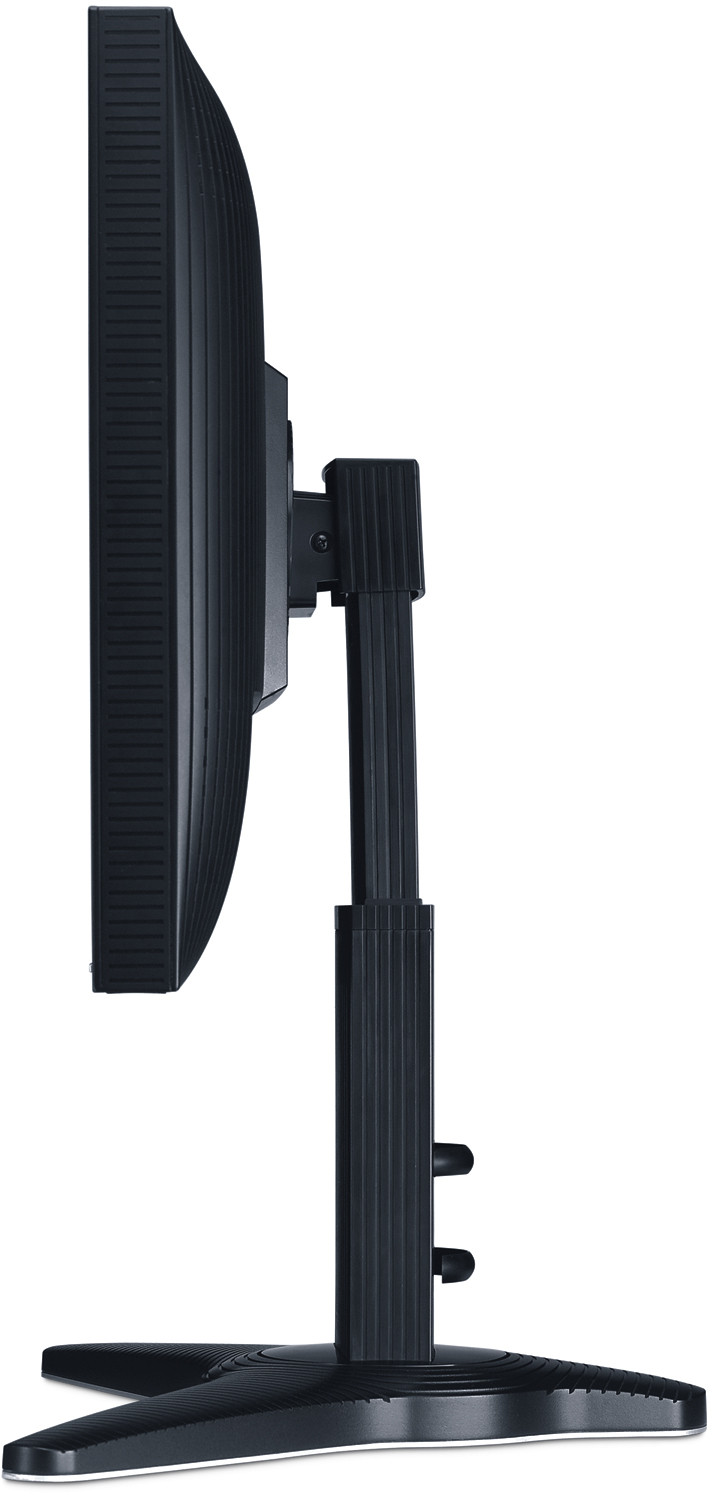

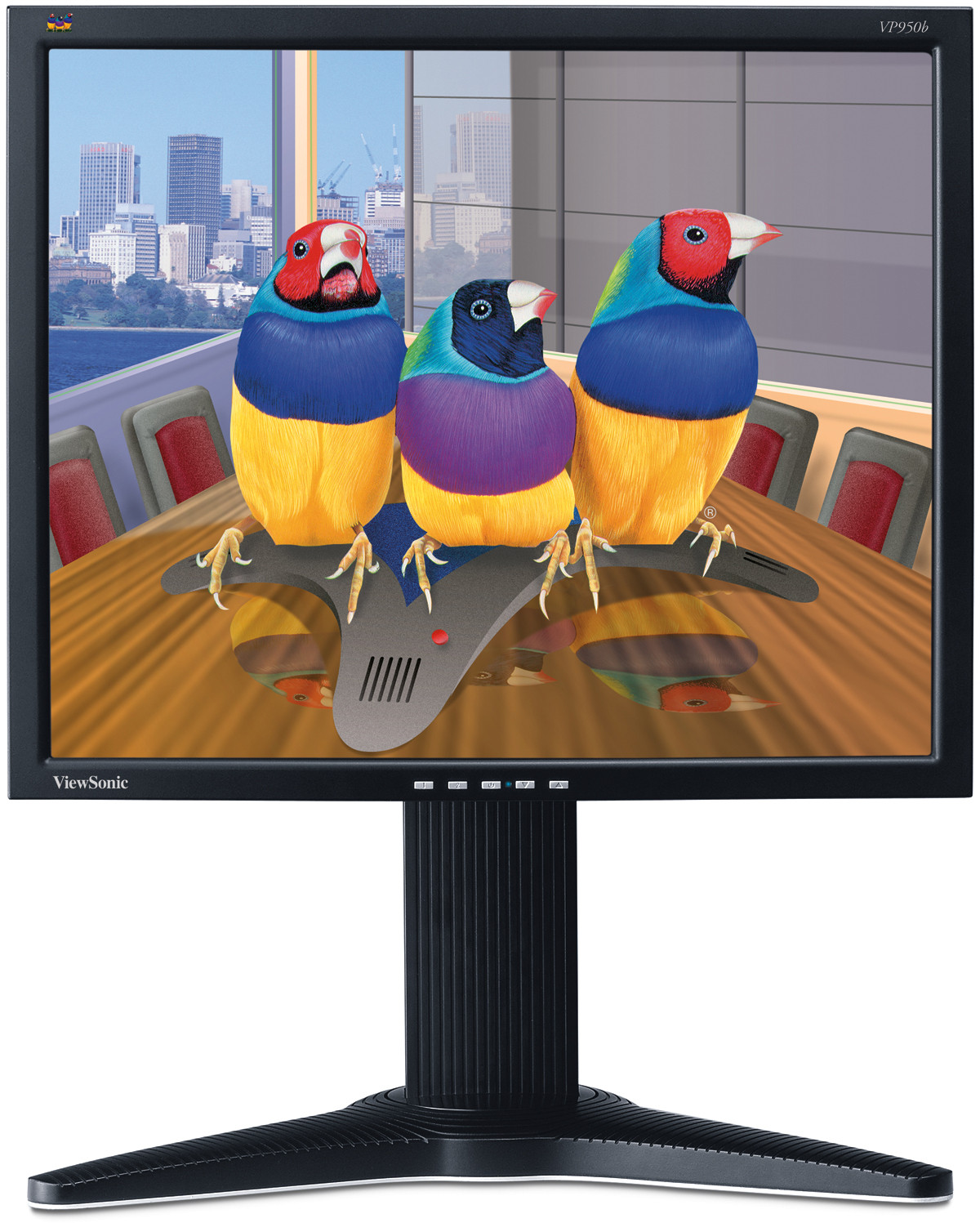

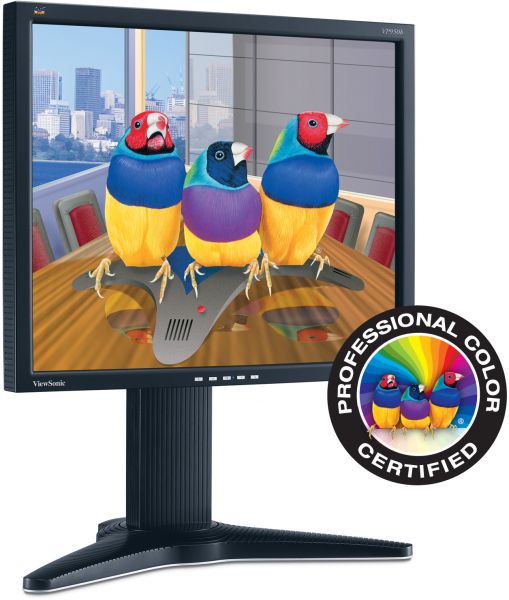

ViewSonic’s 48 cm / 19" VP950b LCD is a professional-grade display with 98% NTSC colour capability for richer, more natural colours across the entire colour spectrum. It is ideal for medical imaging, where precise colour rendition is vital to diagnosis. Graphics production, film and financial professionals will also find this display perfectly suited to their needs. 2000:1 DYNAMIC CONTRAST RATIO (typ.) and ultra-fast ClearMotiv 2ms response time (GtoG) deliver SUPERIOR FRONT-OF-SCREEN PERFORMANCE. The VP950b offers extensive ergonomic adjustments including height adjust, tilt, 120º swivel and pivot, and even a quick release stand. Certified for Windows Vista, this display is also HDCP compatible and features OptiSync digital/ analogue inputs plus 4 USB PORTS TO DELIVER A VERSATILE AND FLEXIBLE professional package. Step into a world of amazing colour and accuracy with the VP950b.Professional-grade colour and performance
It's not just another professional LCD. It's a ViewSonic.
REVIEWS
“Note 1,5”
“Note 1,5”
“Note 1,5”
“Note 1,5”
“Note 1,5”
“The ViewSonic VP Series is included in this CES roundup, highlighting its 110 percent NTSC color gamut.”
“Note 1,5”
SPECIFICATIONS
- COLORSBlack
- LCDTipo: 48 cm / 19" TN colour TFT active matrix SXGA LCD
Ratio de contraste: 800:1 (typ.), 2000:1 DCR (typ.)
Ángulos de visión: 170° horizontal, 160° vertical (at 10:1)
170° horizontal, 170° vertical (at 5:1)
Brillo: 280cd/m2 (typ.)
Área de visualización: 37.6cm horizontal x 30.1cm vertical, 48.3cm diagonal
Resolución óptima: 1280 x 1024@60Hz
Tiempo de respuesta: 2ms (grey-to-grey), 5ms (off-on-off, typ.)
Fuente de luz: Long life, 50000 hrs. (typ.)
Superficie del panel: Anti-glare (3H)
Tamaño del píxel: 0.294mm
Gama de colores: 16.7M colours supported (6-bit+2-bit HI FRC)
Frecuencia de píxel: 140MHz
Gama de colores: Wide colour gamut, 98% of NTSC - COMPATIBILIDADPC: VGA up to 1280 x 1024 non-interlaced
Mac®: Power Mac™ up to 1280 x 1024 non-interlaced
- DimensionesFísicas con la base: 412 x 391-510 x 279
Físicas sin la base: 412 x 331 x 63
Embalaje (LxAxP): 470 x 523 x 195 - NormativasTCO’03, CE, CB, GS, ERGO, ISO 13406-2 (pixel failure class II), UL,
cUL, GOST-R, Hygienic, FCC-B (ICES), ICES-003B, NOM, SASO, ENERGY, ENERGY STAR, C-Tick, KTL/MIC, BSMI, PSB, TUV-S/IRAM/UL-AR S Mark, MPR II, CCC, Green Mark, EPEAT, WEEE, RoHS - CONTENIDO DE LA CAJALCD Monitor, power cable, 15-pin VGA video cable, DVI-D cable, USB cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers)
(multi-language) - ConectividadAnalógico: 15-pin mini D-sub (detachable cable)
Digital: 24-pin DVI-D (detachable cable) (HDCP enabled)
Alimentación: 3-pin plug (CEE22)
USB: 1 x upstream (4-pin Typ B)/4 x downstream (4-pin Typ A), USB 2.0 - AlimentaciónVoltaje: AC 100–240V, 50–60Hz (Auto-Switch), internal power supply
Consumo: 40 watt (typ., without USB peripheral connected), <1 watt in power save mode - CONTROLESBásico: Power, menu [1], up, down, select [2]
Menú en pantalla: Auto image adjust, contrast, brightness, input select (D-sub, DVI-D),
ViewMatch® colour adjust (sRGB, 9300K, 7500K, 6500K, 5000K, user RGB),
information (resolution, H/V frequency, pixel clock, model number, serial
number), manual image adjust (H/V position, H size, fine tune, sharpness, DCR [on/off], response time [standard, advanced, ultra-fast]), setup menu
(language, resolution notice, OSD position, OSD timeout, OSD background, OSD pivot), auto white balance, OSD/power lock - CONDICIONES DE FUNCIONAMIENTOTemperatura: 0° to 40°
Humedad: 10% to 90% (non-condensation) - PesoNeto con la base: 5.6kg
Neto sin la base: 4.4kg
Bruto: 7.5 kg - Entrada de vídeoFrecuencia: Fh: 24-82kHz, fv: 50-85Hz
Syncronización: H/V separated (TTL), composite, sync on green
Analógico: RGB analogue (0.7/1.0 Vp-p , 75 ohms)
Digital: DVI-D (HDCP enabled, TMDS, 100 ohms, DDC/CI) - GESTIÓN DE ENERGÍAMeets TCO’03 and ENERGY STAR standards
- SEGURIDADKensington security port
- MONTAJE EN LA PAREDVESA FDMI 100mm x 100mm
- ERGONOMÍAInclinación: Down 5°, up 20°
Giratoria: 120° (60° left/right)
Ajuste de altura: 0~120mm
Pivote: 0°~90°
