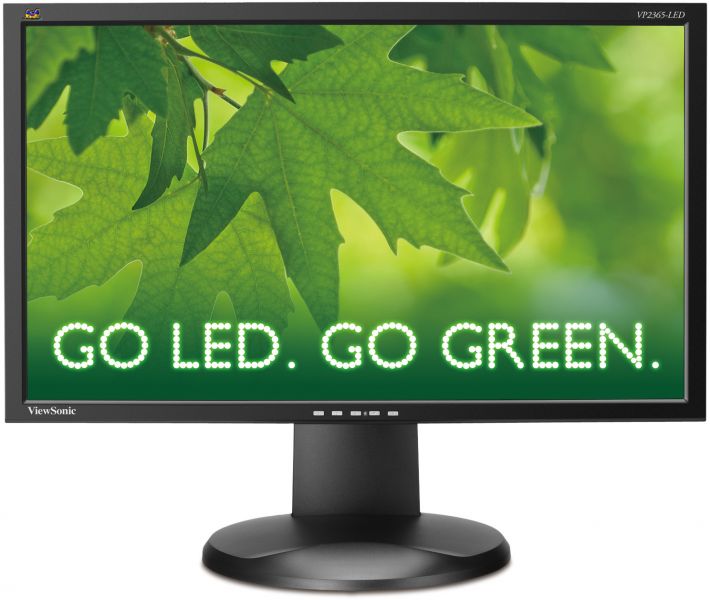

VP2365-LED

23" PROFESSIONAL LED MONITOR

Sales Enquiry

GALLERY

Professional-grade monitor for pros.

The VP2365-LED is one of ViewSonic’s new LED Professional Series monitors that utilizes the power of IPS panel technology. With IPS true colours, high contrast ratio and wide viewing angles coupled with 1920x1080 Full HD resolution, VP2365-LED is the perfect solution for designers, manufacturers, medical applications and movie production. 4-port USB hub for cluster-free connectivity, ergonomic functions with pivot, height adjust, tilt, swivel and slim bezel make the VP2365-LED an amazing monitor. Eco-mode offering up to 40% power consumption. The VP2365-LED will also contribute to a greener world with its power management features and environment-friendly materials.

REVIEWS

Labs Winner and A List Award

SPECIFICATIONS

COLORS
Black
LCD
Ratio de contraste: 1000:1 static (typ), 20,000,000:1 dyanamic
Ángulos de visión: 178º horizontal, 178º vertical @ contrast ratio > 10:1
Brillo : 250 cd/m² (typ)
Área de visualización: 51cm horizontal x 29cm vertical; 58cm diagonal
Resolución óptima: 1920x1080
Tiempo de respuesta: 6ms (GTG)
Fuente de luz : Long life, 30,000 hrs. (typ)
Superficie del panel: Anti-glare
Tamaño: 58cm / 23" Color TFT active matrix e-IPS LED
COMPATIBILIDAD
PC: VGA up to 1920x1080 non-interlaced
Mac®: Power Mac™ up to 1920x1080

Dimensiones
Físicas con la base: 548 x 433 x 250 (mm)
Físicas sin la base: 548 x 326 x 64 (mm)
Embalaje (LxAxP): 624.8 x 525.8 x 302.3 (mm)
Normativas
UL, CUL, FCC-B, CB, CE, TCO 6.0, TUV-S, NOM,Ukraine, REACH,GOST-R, HYGIENIC, CCC, BSMI,PSB,CEL, C-TICK, SASO, WEEE, RoHS, EPEAT-Silver,ENERGY STAR®
CONTENIDO DE LA CAJA
LCD display, power cable, VGA cable, DVI cable, USB
cable, Quick Start Guide, ViewSonic Wizard CD
Conectividad
USB: V2.0, 1-up/4-down
Analógico/Digital: 15-pin mini D-sub / DVI-D
Power: Internal power; 3-pin AC plug (CEE22)
Alimentación
Voltaje: AC 100–240V, 50–60Hz (auto switch)
Consumo: Standard: 27W
Modo Eco: Optimize: 24W / Conserve: 20W
CONTROLES
Menú principal: Auto image adjust, contrast, brightness, input select
(D-SUB, DVI), color adjust (sRGB, 9300K, 7500K, 6500K,
5000K, User color [R, G, B]), information, manual image
adjust (H/V position, horizontal size, fine tune, sharpness,
dynamic contrast, aspect ratio, eco mode), setup menu
(language select, resolution notice, OSD position, OSD
time out, OSD background) memory recall
Entrada de vídeo
Analógico/Digital: RGB analog (75 ohms, 0.7/1.0 Vp-p) / DVI (HDCP)
Frecuencia: Fh: 22~82kHz, Fv: 50~75Hz
Syncronización: H/V separated (TTL), composite, sync-on-green
ERGONOMÍA
Height adjustment range 13.5cm, tilt –5º/+20º,
swivel range 360º, pivot 90º
MONTAJE EN LA PARED
VESA® 100 x 100 (mm)
Peso
Bruto: 7.9 kg
Neto: 5.4 kg
CONDICIONES DE FUNCIONAMIENTO
Humedad: 20–90% (non-condensing)
Temperatura: 32–104ºF (0–40ºC)
