OVERVIEW

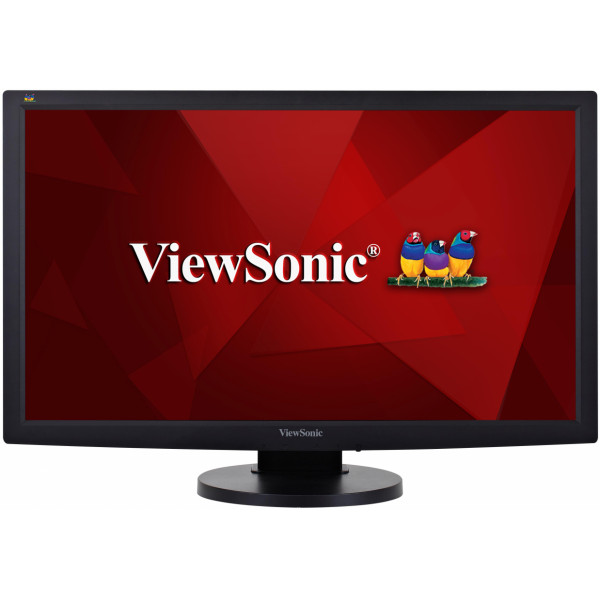

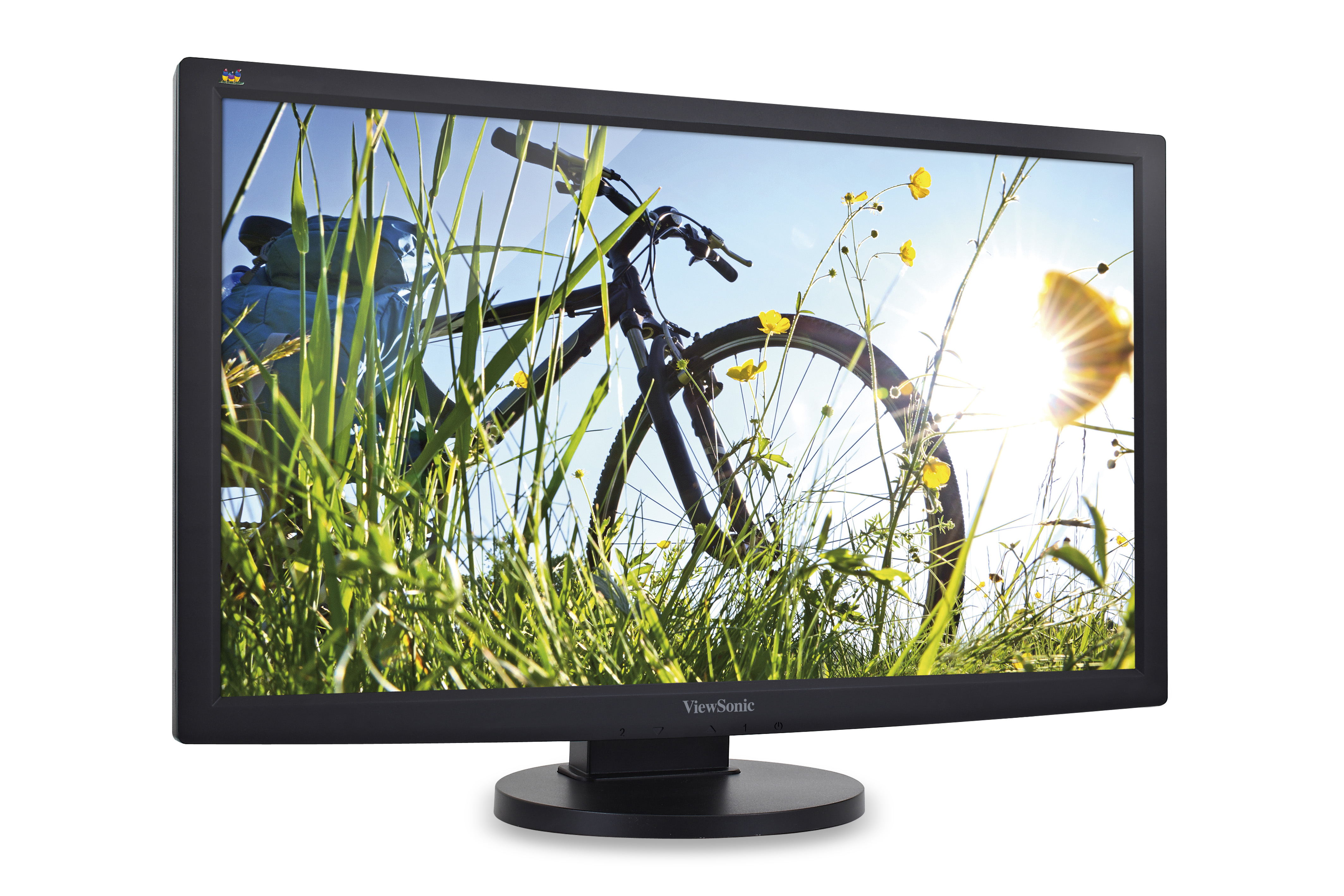

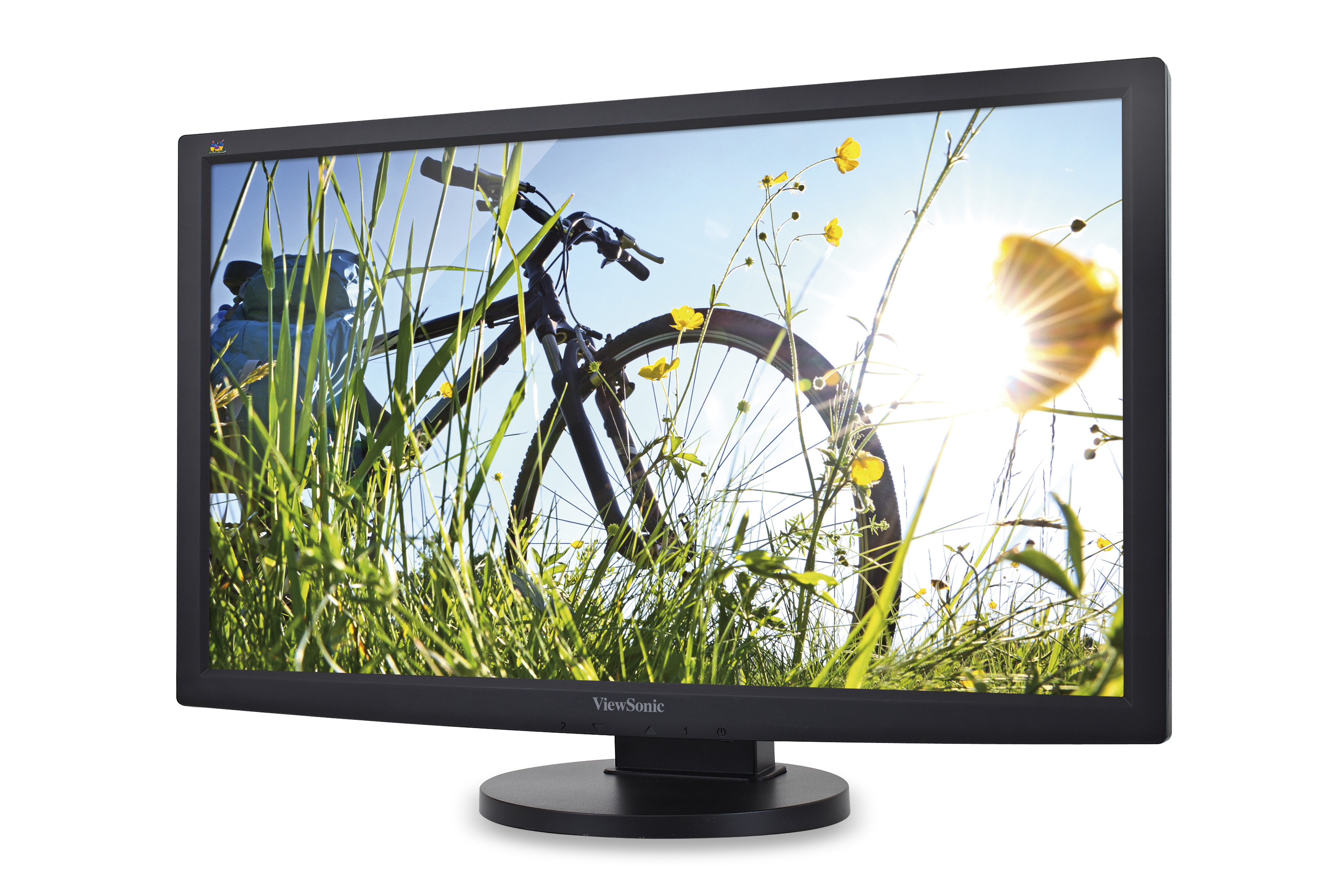

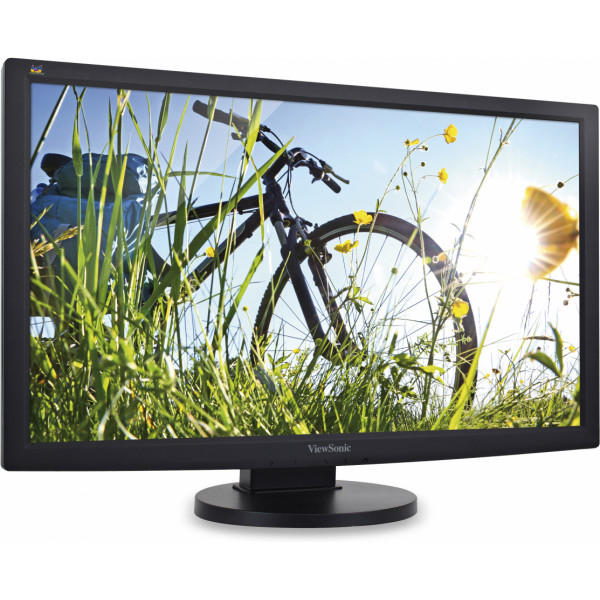

The ViewSonic® VG2433-LED is a 23.6" display ideal for demanding business professionals. With a native 1920x1080 resolution, the VG2433-LED delivers vibrant images and crisp text. Users will also find comfort in the fully ergonomic height adjust, swivel, and tilt features. Equipped with a VESA-mountable design, the display can be mounted on a wall or any VESA-compliant monitor stand. The VG2433-LED also saves up to 50% in energy usage with its efficient LED backlight. With ViewSonic’s industry-best pixel performance guarantee, and a 3-year warranty, the VG2433-LED provides users with peace of mind.Ergonomic design for comfortable working environments

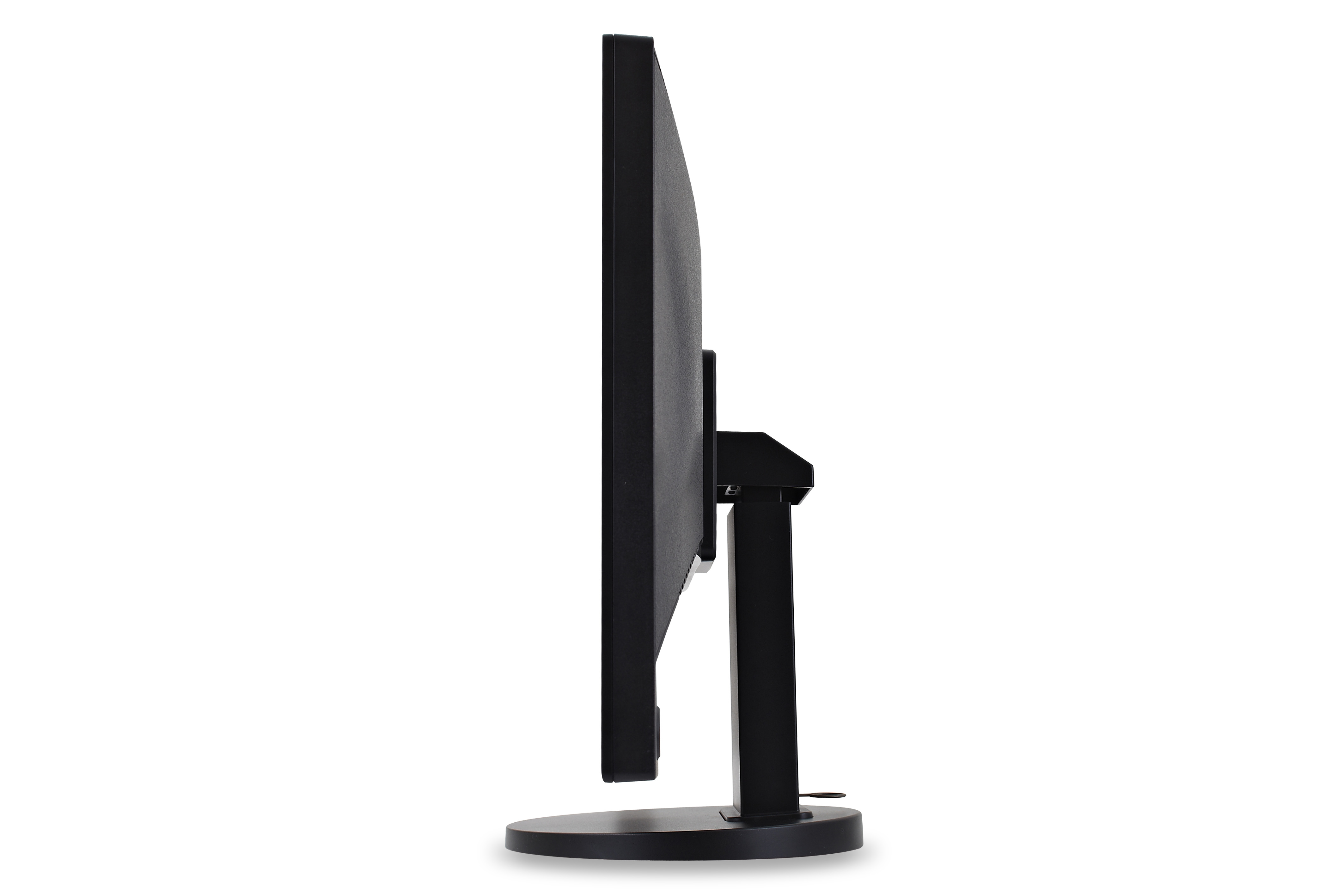

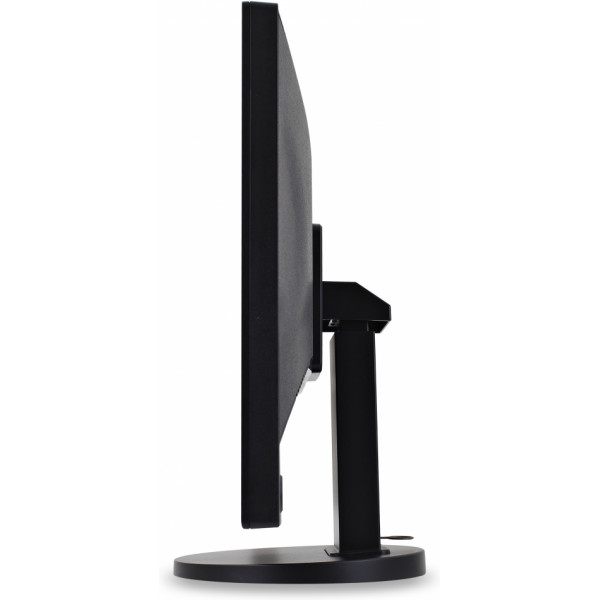

Users can reduce eyestrain and physical fatigue by adjusting the monitor to create their own most comfortable work environment. The VG2433-LED is designed to maximize comfort and productivity with advanced ergonomic technology. This fully ergonomic design offers over 10cm of height adjustment, 360˚ swivel, and a tilt angle from -5˚ to 25˚.
![]() | Full HD resolution for superb pixel performanceExperience the most amazing clarity and detail for any of your computer applications, Microsoft Office Suite operations, or for enjoying the latest multimedia entertainment. The VG2433-LED features full HD 1920x1080 resolution to ensure excellent pixel-by-pixel image performance. Additionally, this 16:9 large screen allows the user to operate multiple windows side by side, thus facilitating a more efficient work environment. |
![]() | MEGA Dynamic Contrast Ratio delivers sharp and crisp imagesThe superior dynamic contrast ratio of 20,000,000:1 delivers a broader range of grayscale, with darker blacks and brighter whites, to ensure all images displayed are rich and detailed. An extremely fast 5ms response time results in crisp and clear video performance. Experience digital broadcast-quality, full-motion video with razor-sharp images that never blur. |
![]() | Eco Mode saves energy and lowers total cost of ownershipViewSonic’s proprietary Eco Mode function is built into all LED displays to provide setting options to “Optimize” (75%) and “Conserve” (50%). Both modes reduce display brightness and conserve up to 40% more energy. Eco Mode adjusts brightness and improves visibility, especially in low ambient light, to reduce eye fatigue and prolong display lamp lifetime. With Eco Mode, replacement expenditures are reduced while practicing eco-friendliness. |

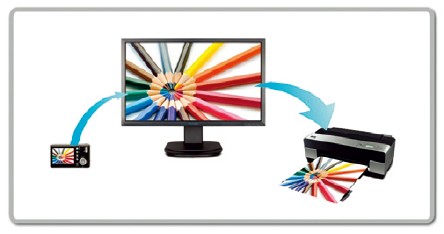

![]() | sRGB delivers the most accurate color performanceAccurate and consistent color performance is essential for professionals in graphic design, video editing, and other multimedia related environments. With built-in sRGB color correction technology, the VG2433-LED reproduces images in their original and authentic colors. |

![]() | ViewSplit para la multitareaEl exclusivo software de escritorio de ViewSonic permite al usuario dividir la pantalla en múltiples secciones para aumentar la eficiencia y la productividad.* disponible para descargar en la página web de ViewSonic |
SPECIFICATIONS
- LCDRatio de contraste: 1,000:1
Ángulos de visión: 170° / 160°
Área de visualización: 23.6” Wide
Resolución óptima: 1920 x 1080
Tiempo de respuesta: 5 ms
Superficie del panel: Anti-glare Type, 3H Hardness
Brillo : 300 cd/m²
Relación de contraste dinámico: 20,000,000:1
Retroiluminación: White-light LED
Vida útil de retroiluminación: 30,000 hrs (min.) - COLORSBlack
- COMPATIBILIDADPC: VGA up to 1920 x 1080 non-interlaced
Mac®: MAC up to 1280 x 1024
- DimensionesEmbalaje: 581mm (W) x 483 mm (H) x187 mm (D)
22.87" (W) x 19.01" (H) x7.36" (D)
Físicas con la base: 566mm (W) x382.4 mm (H) x 204.3 mm (D)
22.28" (W) x 15.06" (H) x8.04" (D)
Físicas sin la base: 566.0mm (W) x343.2 mm (H) x 51mm (D)

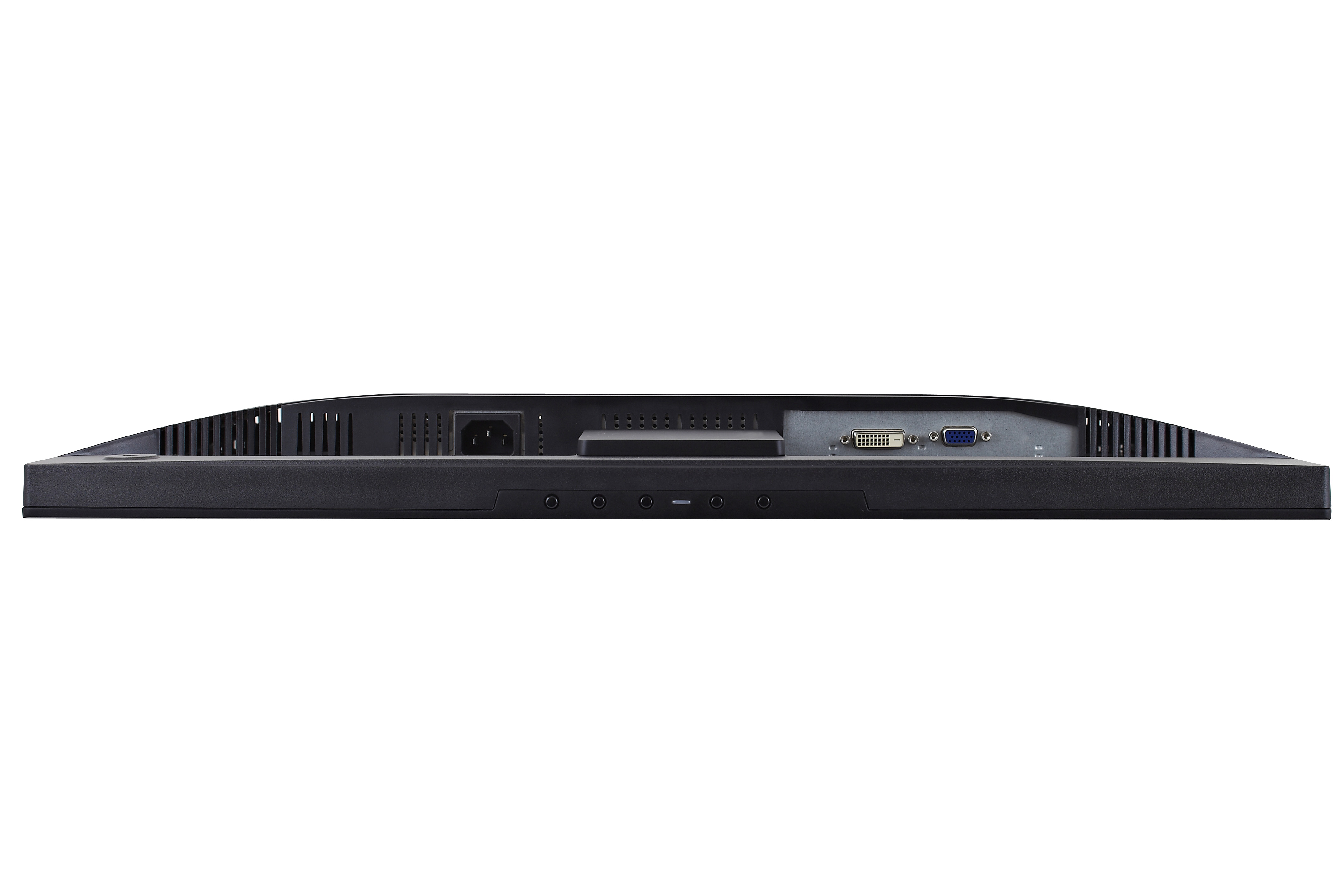

22.28" (W) x 13.51" (H) x2.01" (D) - Entrada de vídeoAnalógico: RGB Analog (75Ω, 0.7 / 1.0 Vp-p)
Frecuencia: Fh:24 - 82kHz;Fv:50 - 75Hz
Syncronización: Separate Sync/ Composite Sync/ SOG
Digital: DVI (TMDS,100 ohms) - ConectividadAlimentación: Internal Power Board , 3-pin plug (CEE22) *1
- AlimentaciónConservación: 15W (typ.)
Optimización: 18W (typ.)
Voltaje: AC 100 - 240V (Universal);50 / 60Hz
Consumo: 22W (typ.) - PesoBruto: 10.27 lbs (4.66 Kg)
Neto con la base: 7.1 lbs (3.22 Kg)
Neto sin la base: 14.82 lbs (6.72 Kg) - VESA® MONTAJE100mm * 100mm
- GESTIÓN DE ENERGÍAEco Mode
- ERGONOMÍAAjuste de altura: 0-100mm
Rotación: 90°
Inclinación: 25%° ~ -5°
Giratoria: 360° - CONDICIONES DE FUNCIONAMIENTOHumedad: 10% to 90% (no condensation)
Temperatura: 32° F to 104° F (0° C to 40° C) - PACKAGE CONTENTSPower Cable *1,D-Sub*1,Quick Start Guide *1
