“"...a very decent model that packs in plenty of colour and a sizeable work area."”
OVERVIEW

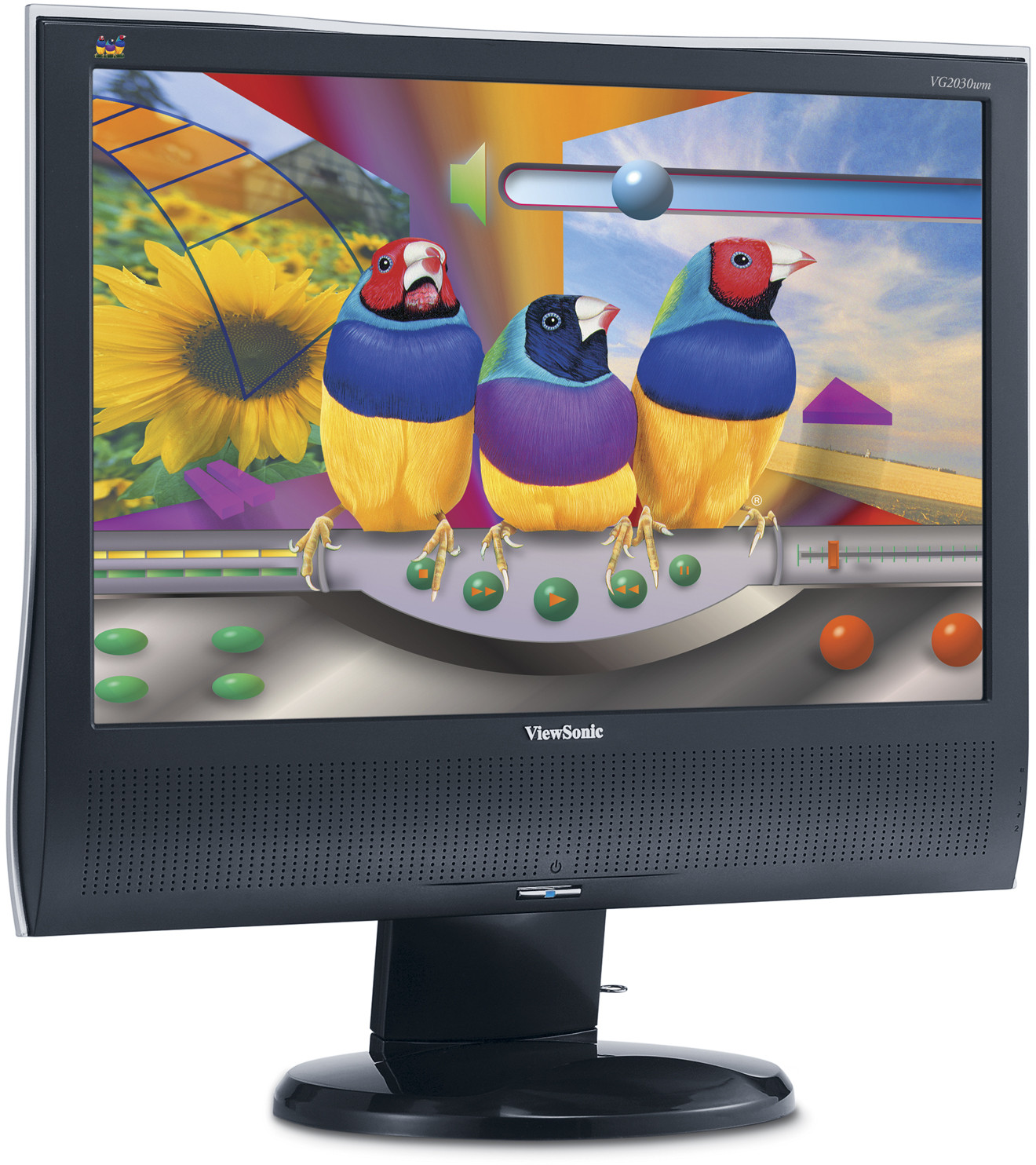

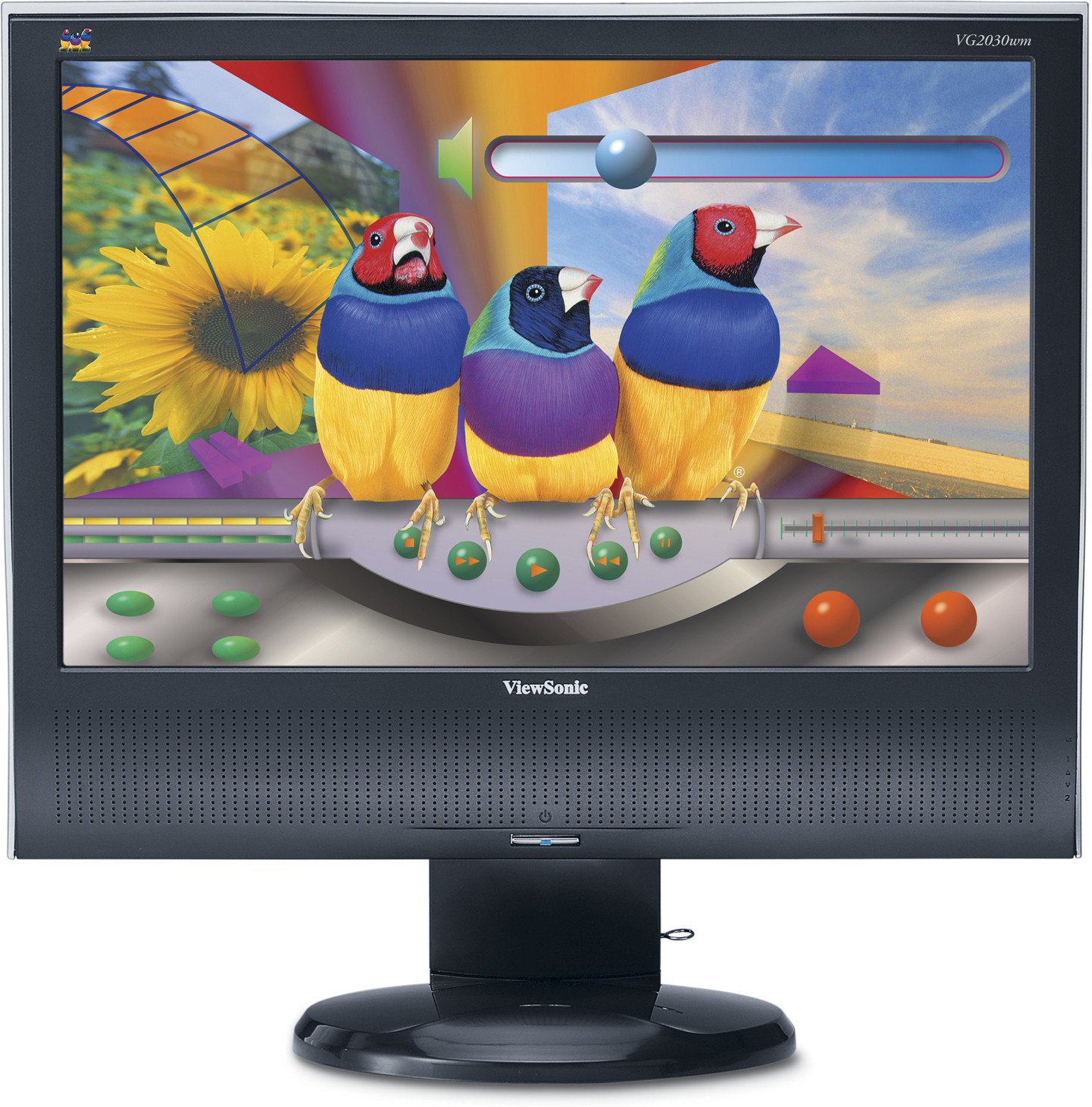

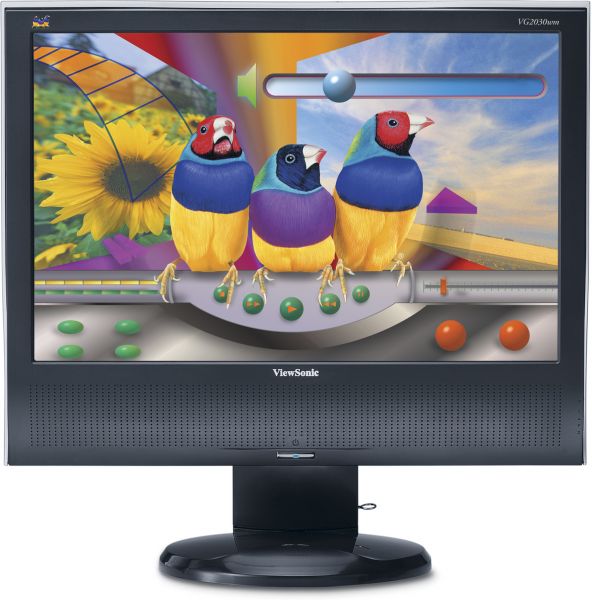

The ViewSonic 20” VG2030wm features 16:10 WIDESCREEN format with 1680 x 1050 optimum resolution and ERGONOMIC HEIGHT ADJUSTMENT. View two documents side-by-side or work in two applications simultaneously to improve productivity. High 300cd/m²brightness and ultra-high 800:1 contrast ratio produce bright, crisp, detailed images. Graphics professionals love the FAST 5MS RESPONSE TIME that delivers blur-free, full motion video. Digital and analogue inputs ensure maximum connectivity options while height adjustment, tilt and 360° swivel settings guarantee the best possible viewing position ensuring you’ll work comfortably for hours. Further, built-in stereo speakers provide multimedia performance without desk clutter. The VG2030wm is the stand-out price/performance choice, offering lifestyle enjoyment and workplace productivity in a single stunning package.Panoramic widescreen display
It’s not just a digital widescreen LCD monitor. It’s a ViewSonic.
REVIEWS
SPECIFICATIONS
- COLORSBlack
- LCDTipo: 20” Wide TN colour TFT active matrix WSXGA+ LCD
Ratio de contraste: 800:1 (typ.)
Ángulos de visión: 160° horizontal, 160° vertical (at 10:1)
170° horizontal, 170° vertical (at 5:1)
Brillo : 300cd/m² (typ.)
Área de visualización: 43.3cm horizontal x 27.1cm vertical; 51.1cm diagonal
Resolución óptima: 1680 x 1050@60Hz
Tiempo de respuesta: 5ms (off-on-off) (typ.)
Fuente de luz : Long life, 60000 hrs. (typ.)
Superficie del panel: Anti-glare
Tamaño del píxel: 0.258mm
Gama de colores: 16.7M colours (6-bit+Hi FRC)
Frecuencia de píxel: 165MHz - COMPATIBILIDADPC: VGA up to 1680 x 1050 non-interlaced
Mac®: Power Mac™ G3/G4/G5 up to 1680 x 1050 non-interlaced
- DimensionesFísicas con la base: 493 x 477-557 x 230
Físicas sin la base: 493 x 388 x 70
Embalaje (LxAxP): 565 x 545 x 273 - NormativasTCO'03, GS, ERGO, ISO 13406-2 (pixel failure class II), CB, CE, GOST-R, UL, cUL, FCC-B, ICES-003, NOM, SASO, Energy Star, C-Tick, MIC, BSMI, PSB, MPR II, CCC, WEEE, RoHS
- CONTENIDO DE LA CAJALCD Monitor, power cable, 15-pin VGA video cable, audio cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language)
- AUDIOAltavoces: 2 x 2 watt integrated stereo speakers x 1.5-watt
- ConectividadAnalógico: 15-pin mini D-sub (detachable cable)
Digital: 24-pin DVI-D (detachable cable)
Alimentación: 3-pin AC plug (CEE22)
Audio: 3.5mm stereo audio line-in - AlimentaciónVoltaje: AC 100–240V, 50/60Hz (auto switch), internal power supply
Consumo: 43 watt (typ.), <1 watt in power save mode - CONTROLESBásico: Power, menu [1], up, down, select [2], mute
Menú en pantalla: Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), audio adjust (volume, mute), ViewMatch® colour adjust (sRGB, 9300K, 7500K, 6500K, 5400K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall - CONDICIONES DE FUNCIONAMIENTOTemperatura: 3°C – 35°C
Humedad: 20% – 80% (non-condensation) - PesoNeto con la base: 7.0kg
Bruto: 9.2kg - Entrada de vídeoFrecuencia: Fh: 24–82kHz, Fv: 50–85Hz
Syncronización: H/V separate (TTL), sync on green
Analógico: RGB analogue (0.7 Vp-p , 75 ohm)
Digital: DVI-D (TMDS, 100 ohm) - GESTIÓN DE ENERGÍAMeets TCO’03 and Energy Star® standards
- SEGURIDADKensington® security port

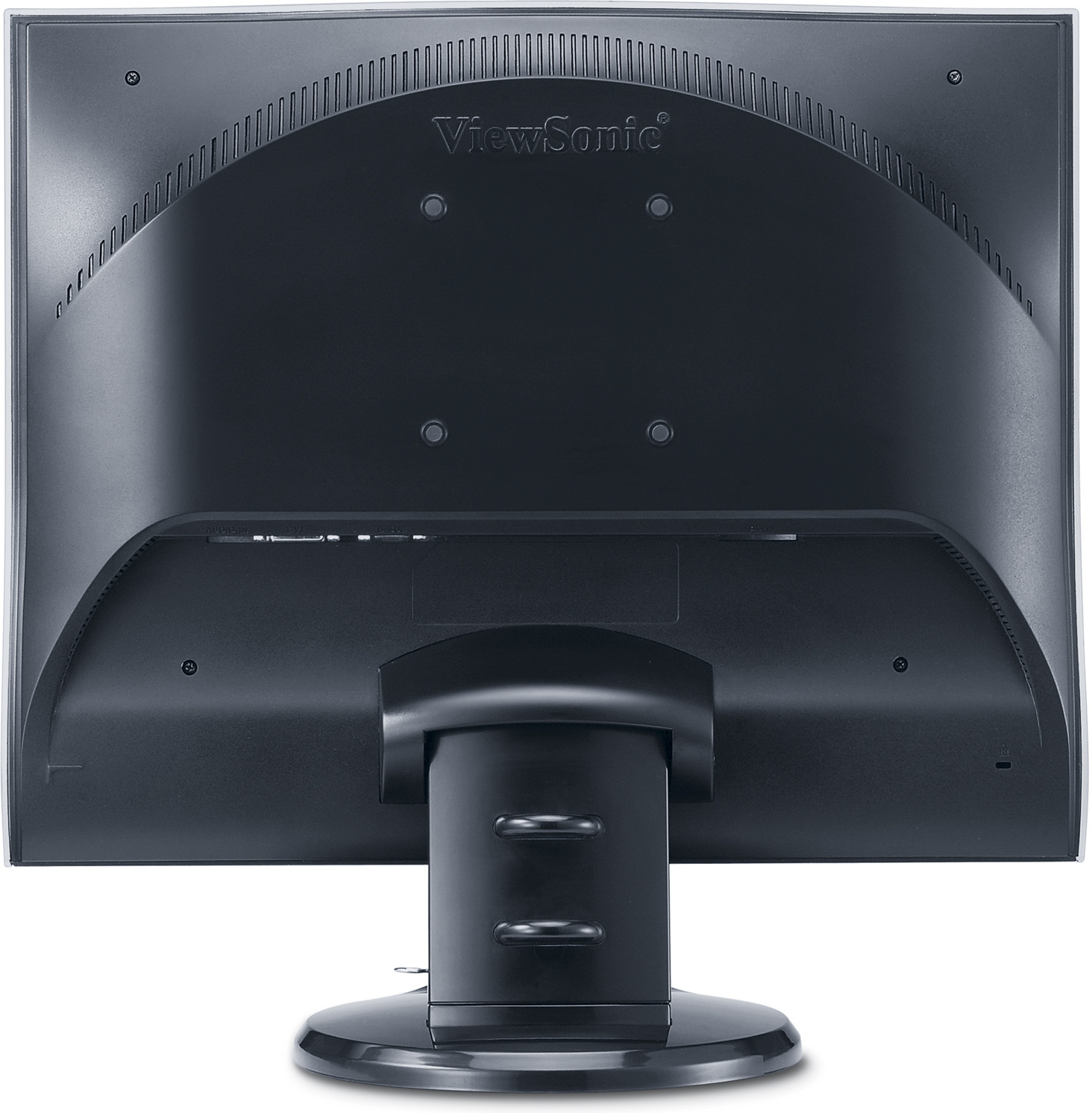

- MONTAJE EN LA PAREDVESA FDMI 100mm x 100mm

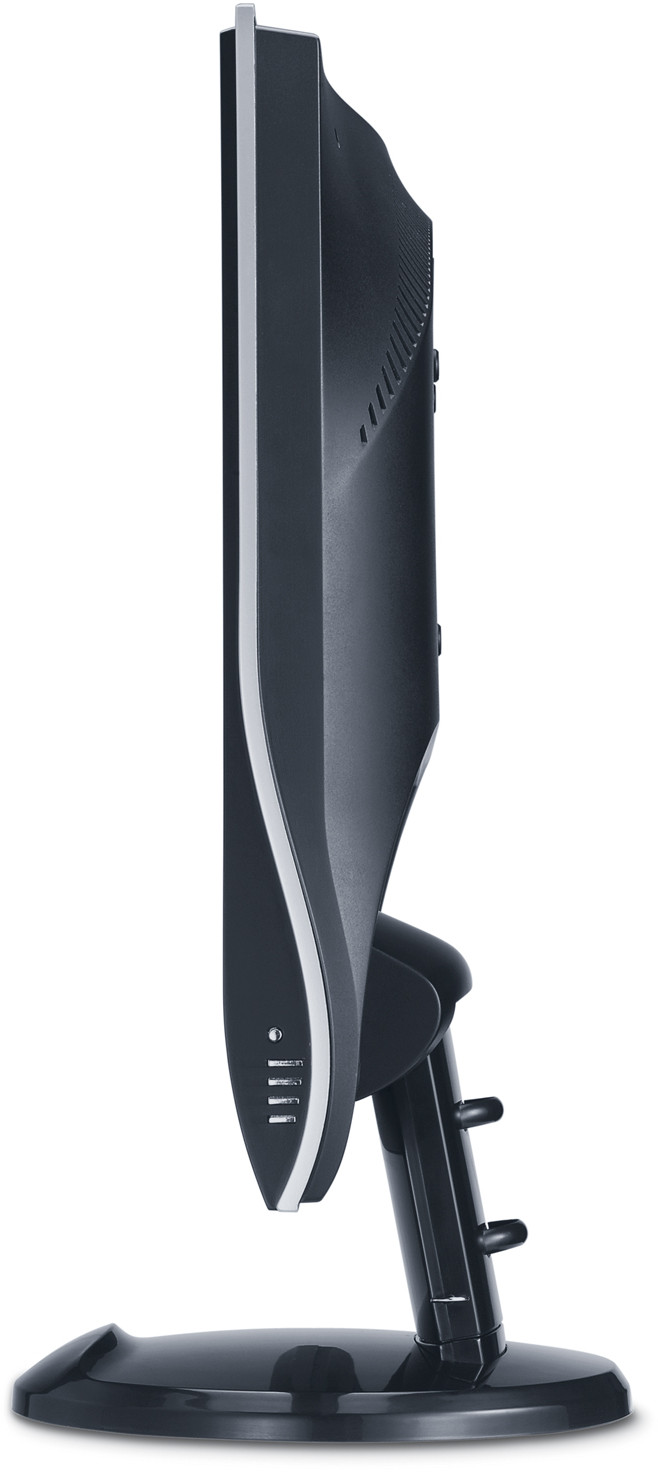

- ERGONOMÍAInclinación: Down 5°, Up 20°
Giratoria: 360° swivel base
Ajuste de altura: 0 ~ 80mm
