VA2212m-LED

54.6cm / 22” Full HD 1080p LED Display

Sales Enquiry

GALLERY

Professional Viewing Quality for Business Users

Experience a lifelike viewing experience with one of ViewSonic’s 22” Full HD 1080p LED displays –the VA2212m-LED. Incorporating an ergonomically accommodating 16:9 widescreen ratio supported by a LED backlit panel, the VA2212m-LED provides professional viewing quality for both business users and home entertainment. ViewSonic also participates in the energy-saving revolution with its new-generation LED backlighting. Exclusive ECO Mode reduces cost and maintenance efforts for corporate users while constructing vivid images with sophisticated details and high colour saturation. Along with a 10,000,000:1 high dynamic contrast ratio, the VA2212m-LED automatically detects the brightness and darkness of input signals to adjust LED backlighting appropriately. The VA2212m-LED also has embedded sRGB colour correction technology whichdisplays an impressive landscape to enhance the viewing experience. This stylish monitor is ideal for any office or corporate environment.

SPECIFICATIONS

COLORS
Black
LCD
Ratio de contraste: 1,000:1 (typ.)
Ángulos de visión: 170° / 160° (typ.)
Brillo : 250 cd / m²
Área de visualización: 54.6cm (21.5”) wide
Resolución óptima: 1920 x 1080
Tiempo de respuesta: Typ. 5 ms
Superficie del panel: Anti-glare type, 3H hardness
Tamaño del píxel: 0.24 mm x 0.24 mm
Relación de contraste dinámico: 10,000,000:1
Retroiluminación: White-light LED
Vida útil de retroiluminación: 30,000 hours (min.)
COMPATIBILIDAD
PC: VGA up to 1920 x 1080
Mac®: MAC up to 1920 x 1080

Dimensiones
Físicas con la base: 511.1 x 391.8 x 189.9mm(W x H x D) (20.1” x 15.4” x 7.4”)
Físicas sin la base: 511.1 x 309.4 x 52.7mm(W x H x D) (20.1” x 12.2” x 2.1”)
Normativas
CE, CB, WEEE, RoHS, REACH SVHC List,

TCO, Energy Star®, Vista Basic, Windows 7,

UL, cUL, FCC-B / ICES-003B, Nemko ERGO,

GOSTR+, Hygienic, UkrSEPRO, ErP, CCC,

CEL Level 1, BSMI, PSB, C-TICK
Entrada
Syncronización: Separate Sync
Analógico: RGB analog (75 Ω, 0.7 / 1.0 Vp-p)
Frecuencia: Fh = 24 ~ 82 kHz ; Fv = 50 ~ 75 Hz
Digital: DVI (TMDS, 100Ω)

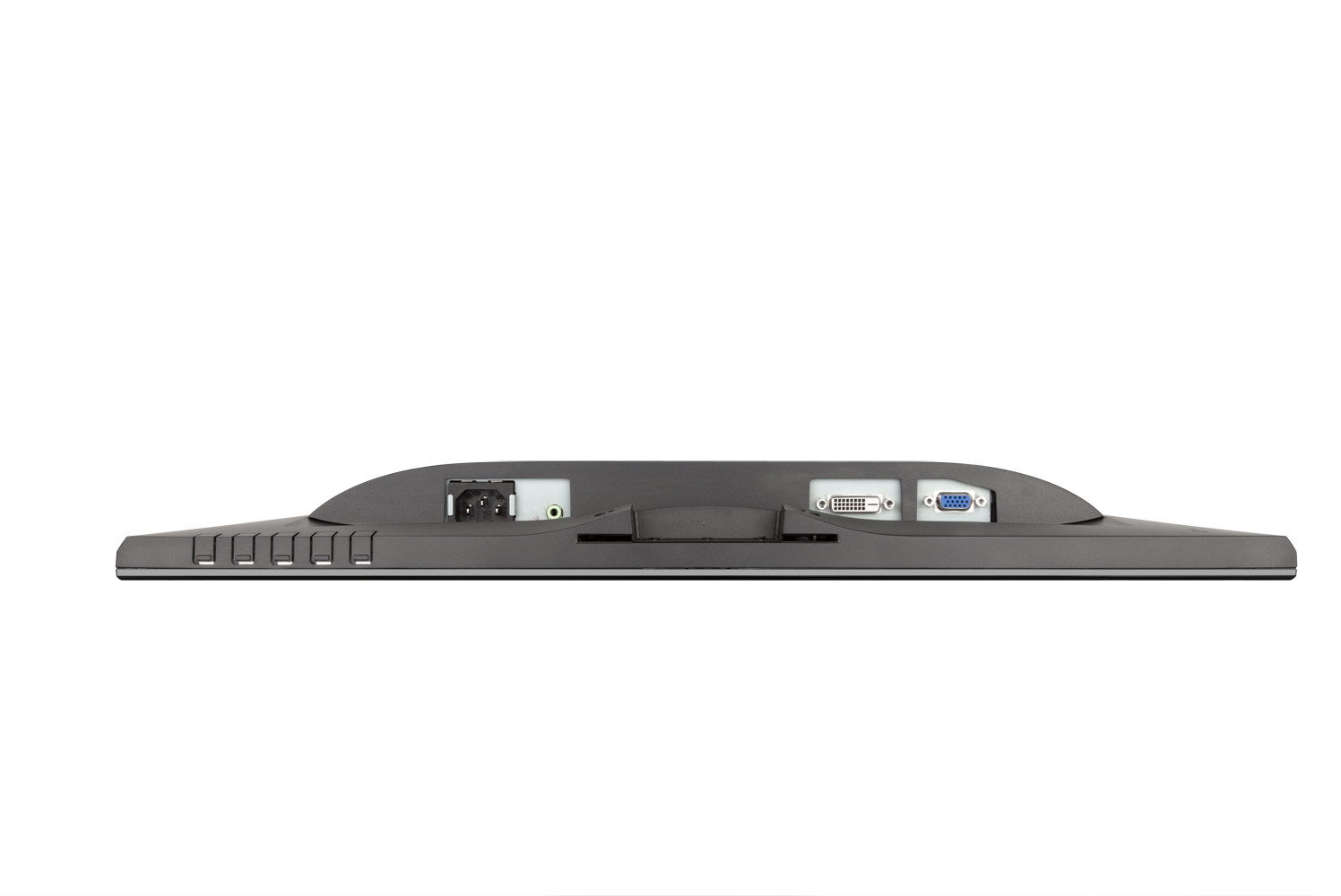

Conectividad
Analógico: D-sub x 1
Digital: DVI- D x 1
Audio: 3.5mm Mini Phone Jack Audio In x 1
Alimentación: Internal Power Board , 3-pin Plug (CEE22) x 1
Alimentación
Voltaje: AC 100 - 240V (universal); 50 / 60 Hz
Consumo: 26W
VESA® MONTAJE
100mm x 100mm
ERGONOMÍA
Inclinación: 22° ~ -5°
AUDIO
Altavoces: 2W x 2
Peso
Neto con base: 2.91 Kg (6.41 lbs)
Neto sin base: 2.6 Kg (5.72 lbs)
CONDICIONES DE FUNCIONAMIENTO
Humedad: 10% to 90% (no condensation)
Temperatura: 32° F to 104° F (0° C to 40° C)
