OVERVIEW

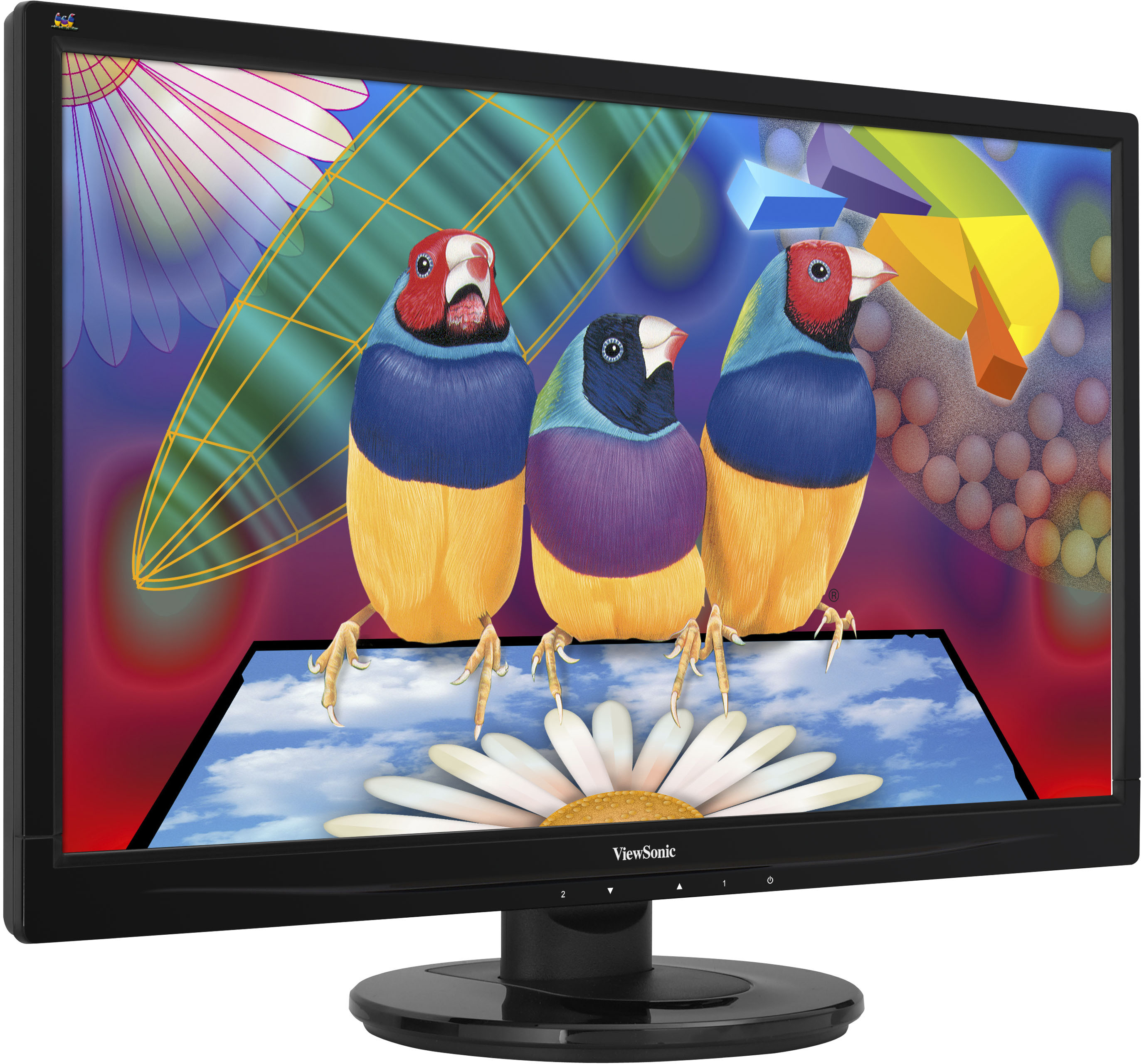

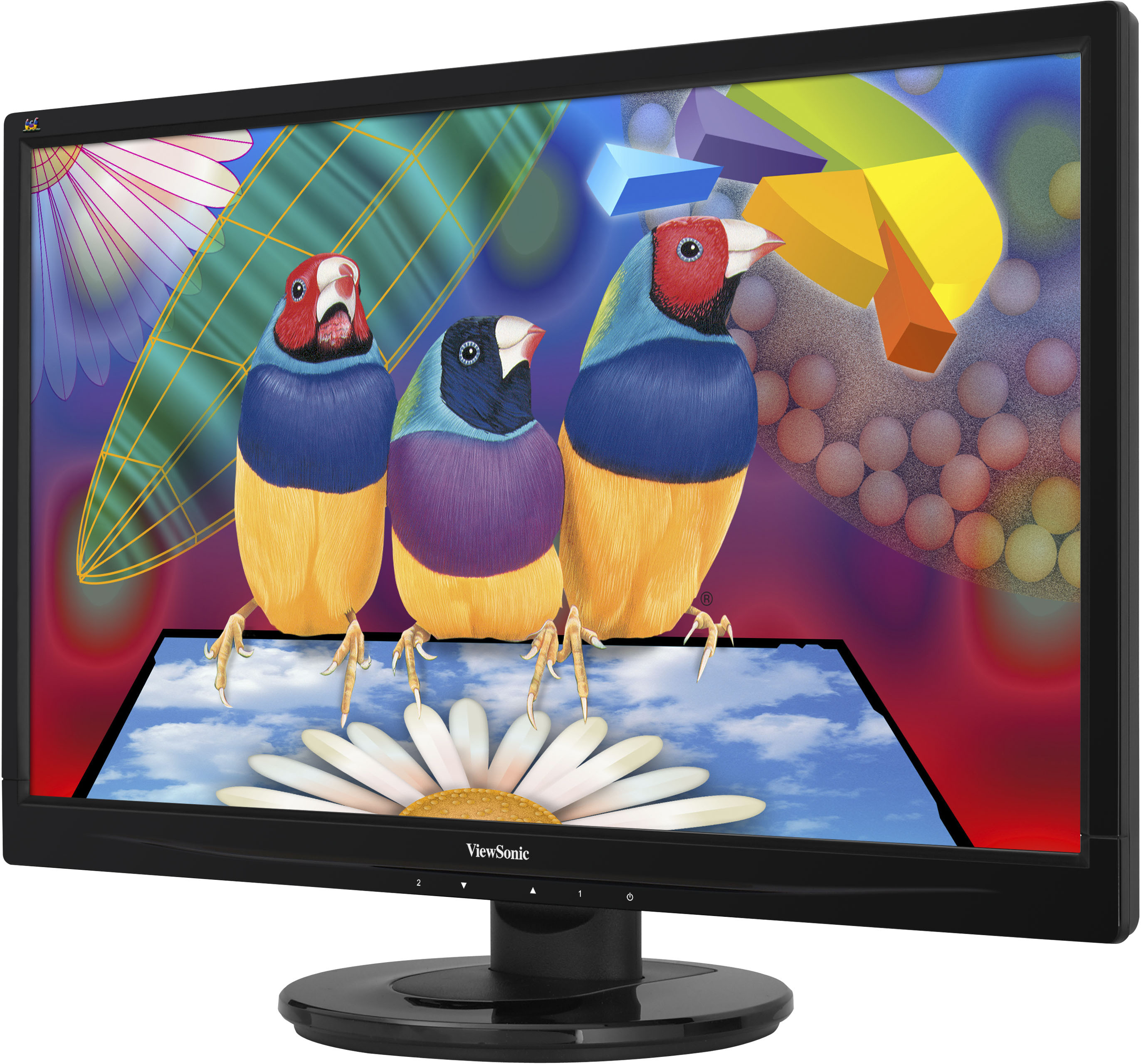

The ViewSonic VA2046m-LED is a 20” widescreen monitor with an LED backlight and glossy, thin-bezel design ideal for use in the home or at the office. With 1600x900 resolution and a 10M:1 dynamic contrast ratio, the VA2046m-LED delivers stunning brightness and contrast, while a quick 5ms response time ensures crisp pictures and smooth playback. As a complete multimedia package, the display also includes a pair of integrated speakers. VGA and DVI inputs provide flexible and convenient connectivity, while a VESA-mountable design offers additional mount flexibility. With an efficient LED backlight and energy-saving Eco mode, the VA2046m-LED is an environmentally friendly display choice. In addition, a 2-year warranty, along with one of the industry’s best pixel performance policies provides great value for the stylish, high-performance VA2046m-LED display. High Resolution for Superior Pixel PerformanceExperience stunning clarity and detail with high-definition office, graphic design, video production, gaming and multimedia applications on ViewSonic’s VA2046m-LED monitor. It features 1600x900 resolution to ensure excellent pixel-by-pixel image performance, while its 10,000,000:1 Mega Dynamic Contrast Ratio guarantees accurate image reproduction with rich, vibrant visual effects. | |
| | |
![]() ![]() | Mega Dynamic Contrast Ratio for Sharp, Crisp ImagesA superior dynamic contrast ratio of 10,000,000:1 better defines the relationship between the darkest and brightest colors, ensuring all displayed images are rich and detailed. Combined with an extremely fast 5ms response time, every motion is naturally and accurately reproduced without any blurs. |
| | |

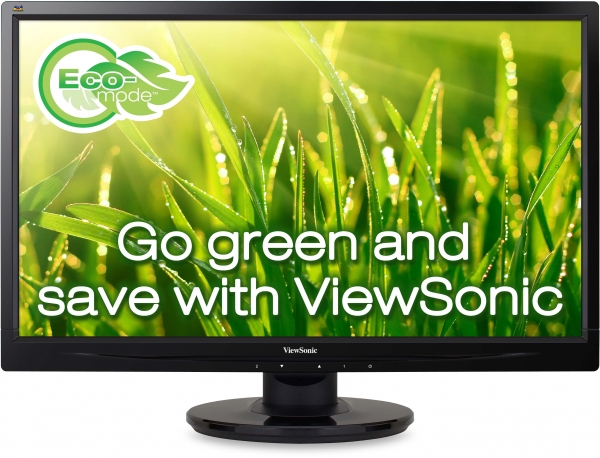

![]() ![]() ![]() ![]() | Energy-Saving Eco-ModeViewSonic’s proprietary Eco-mode function gives you the choice to optimize (75%) or conserve (50%) energy, thus reducing display brightness and conserving energy by up to 50%. Especially in low ambient light, Eco-mode adjusts brightness and improves visibility while reducing eye fatigue and prolonging the display's lamp life. |
| | |
|
| Windows® 8 certified complianceWindows® 8 Certified, the VA2046m-LED provides the most updated Windows® 8 experience without any compatibility issues. Experience the all-new Windows 8 operating system with ViewSonic's VA2046m-LED display |
| | |
|

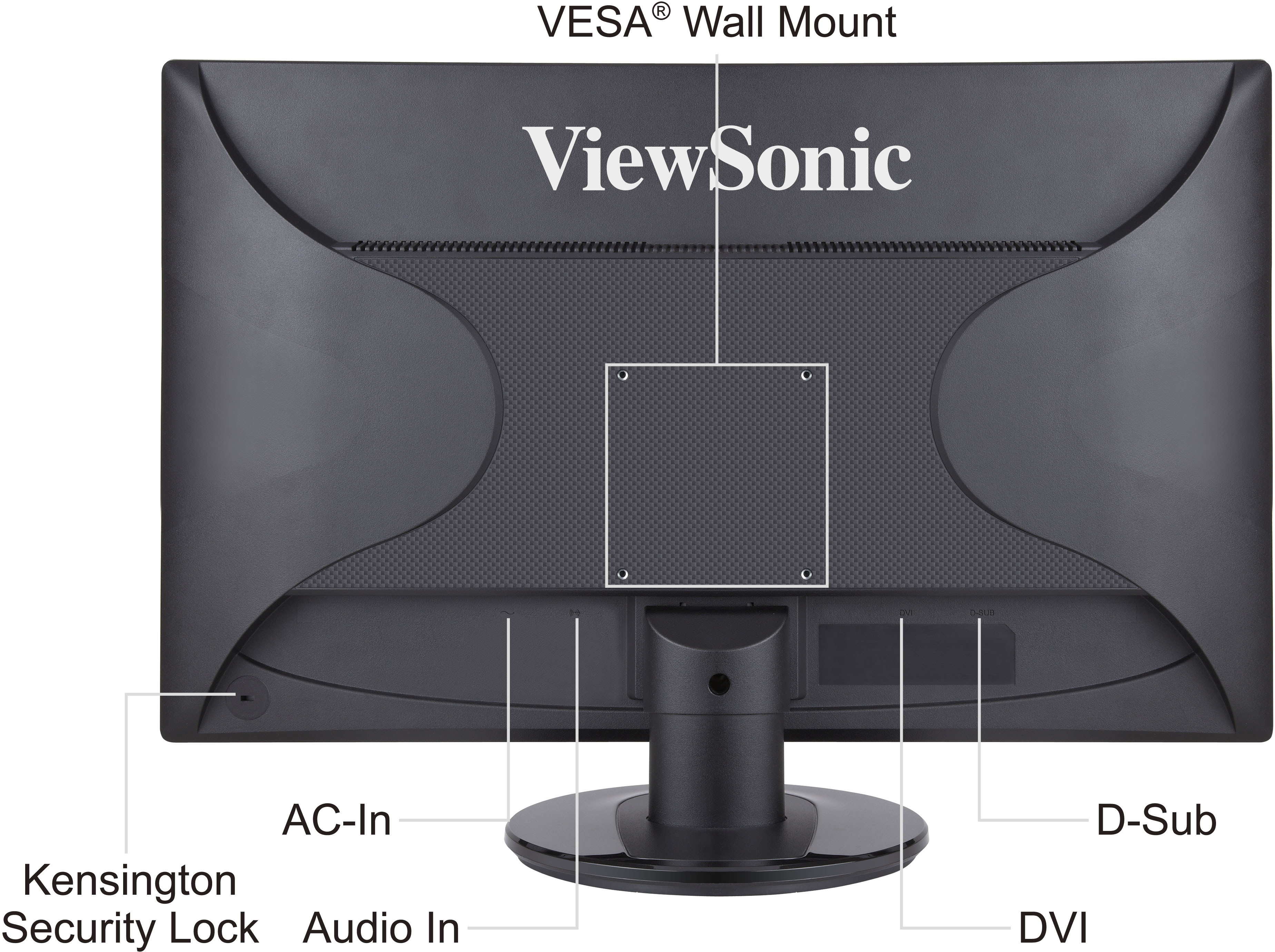

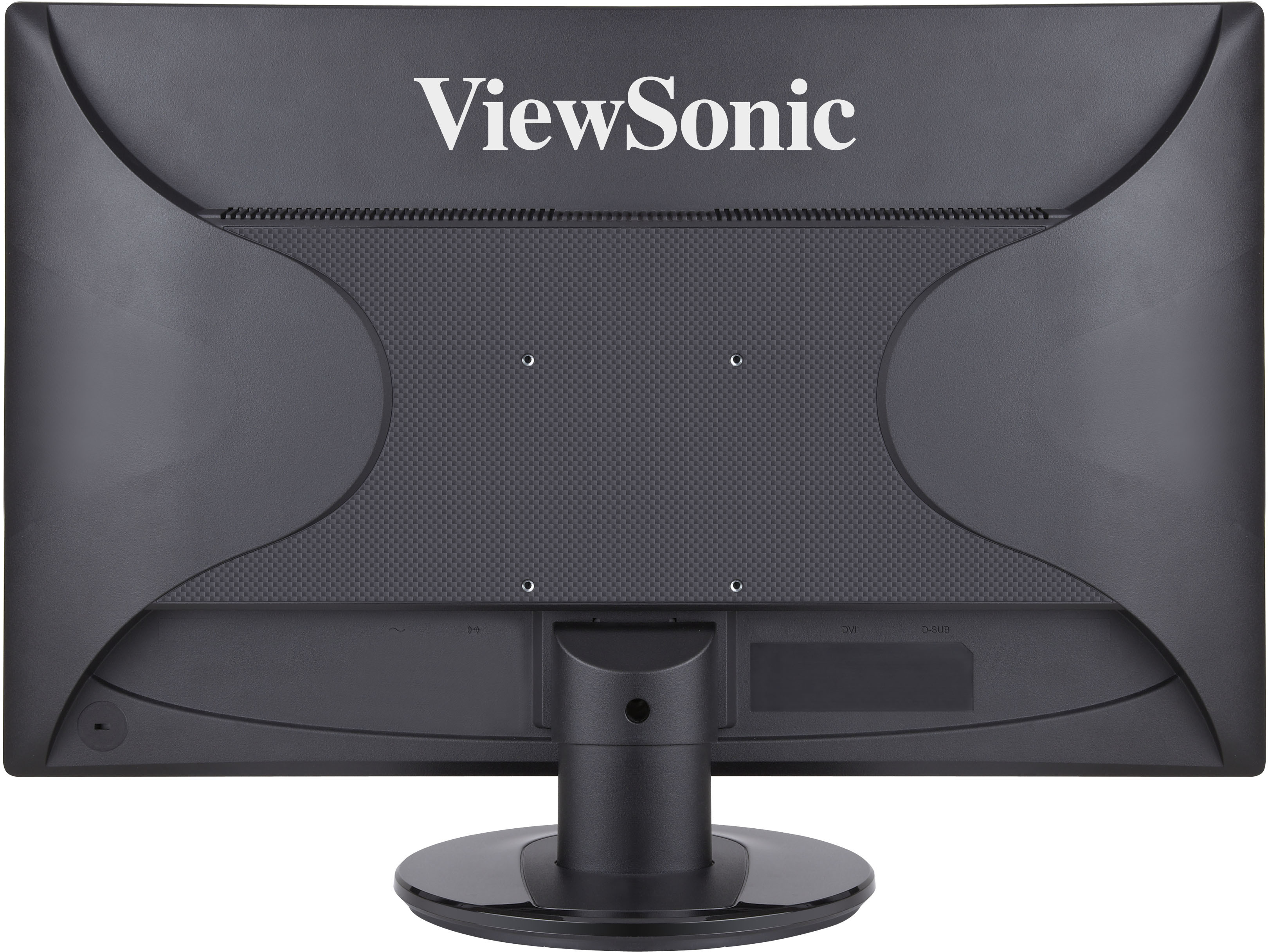

| VESA Mount and Kensington Security Lock CompliantDesigned for use in various settings, the VA2046m-LED’s robust design makes it safe and secure wherever it is installed. That’s because it comes with a Kensington security lock slot and is VESA wall mount compliant – making it the perfect monitor for all office and public settings. |
SPECIFICATIONS
- LCDRatio de contraste: 600:1
Ángulos de visión: 90° / 65°
Área de visualización: 20” wide (19.5” viewable)
Resolución óptima: 1600 x 900
Tiempo de respuesta: 5ms
Superficie del panel: Anti-glare Type, 3H Hardness
Brillo : 200cd/m²
Relación de contraste dinámico: 10,000,000:1
Retroiluminación: White-light LED
Vida útil de retroiluminación: 40,000hr (min.) - COMPATIBILIDADPC: VGA up to 1600 x 900 Non-interlaced
Mac®: MAC up to 1160 x 900 - DimensionesFísicas con la base: 478.2 x 360.2 x 197.6 (mm)
18.8" x 14.2" x 7.8"(inch)
Físicas sin la base: 478.2 x 301.8 x 49.0(mm)
18.8" x 11.9" x 1.9"(inch)
Embalaje: 530 x 395 x 116 (mm)
20.9" x15.6" x 4.57"(inch)
- NormativasCB, WEEE, RoHS, Vista Premium, Windows 8 , Windows 7, UL, cUL, FCC-B, TUV-S, NOM, CE, GOST-R+Hygienic, SASO, Ukraine, CCC, CEL, BSMI, PSB, C-TICK
- CONTENIDO DE LA CAJAPower Cable *1, D-Sub*1, Audio Cable *1, Quick Start Guide *1, ViewSonic CD Wizard *1
- EntradaAnalógico: RGB Analog (75Ω, 0.7 / 1.0 Vp-p)
Frecuencia: Fh: 24 ~ 82kHz; Fv: 50 ~ 75Hz

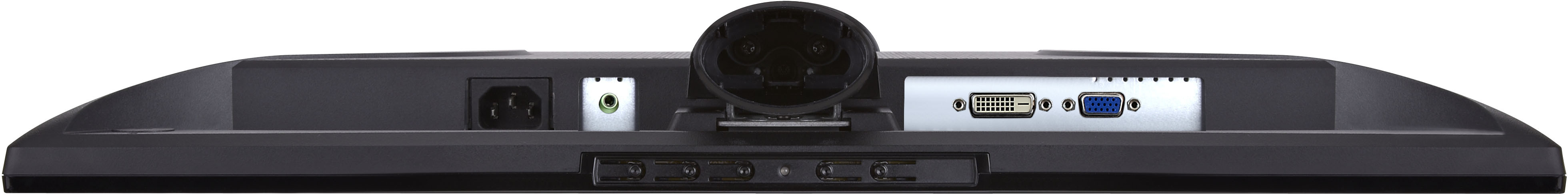

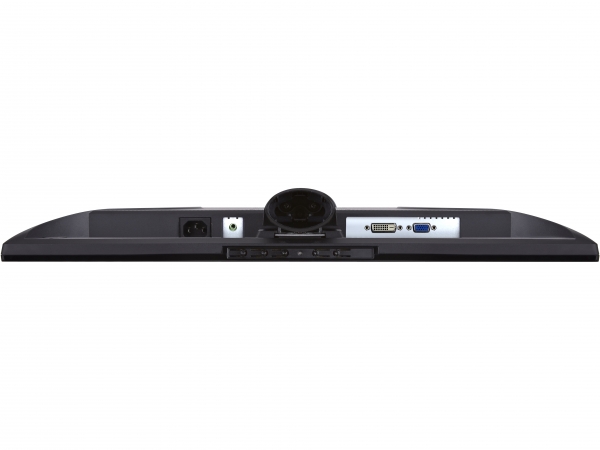

Digital: DVI (TMDS, 100 ohms) - ConectividadDigital: DVI-D x 1
USB: N/A
Audio: 3.5mm x 1
Analógico: RGB Analog
Alimentación: Internal Power Board , 3-pin Plug (CEE22) x 1 - AlimentaciónVoltaje: AC 100 - 240V (Universal); 50 / 60Hz
Consumo: 18W
Modo Eco: Yes
Conservación: 12W
Optimización: 14W - CONDICIONES DE FUNCIONAMIENTOTemperatura: 32°F to 104°F (0°C to 40°C)
Humedad: 5% to 90% (No Condensation) - VESA® MONTAJE100mm * 100mm
- ERGONOMÍAInclinación: -5° ~ 18°
Giratoria: N/A
Rotación: N/A - AUDIOAltavoces: 2W x 2
Amplifier: 2W - PesoBruto: 3.97Kg (8.75lbs)
Neto con base: 3.0Kg (6.6lbs)
Neto sin base: 2.6Kg (5.73lbs)
