Super contrast ratio widescreen

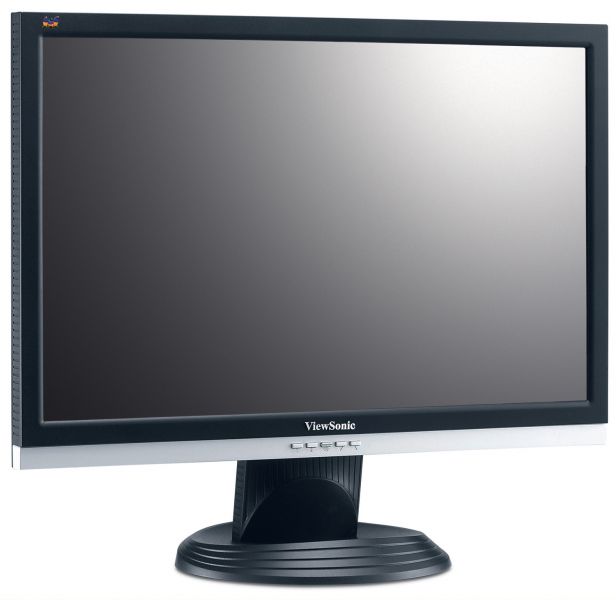

ViewSonic’s 20” VA2016w LCD brings widescreen performance to budget-conscious users. The 16:10 aspect ratio and high 1680 x 1050 resolution allow you to view two documents side-by-side or work in multiple applications simultaneously. The 2000:1 Dynamic Contrast Ratio delivers amazingly sharp and crisp images. PC gamers will appreciate the immersive gaming action delivered by fast 5ms video response. You’ll be amazed by the extreme clarity and brilliant colours of the VA2016w. This widescreen LCD features a stylish chassis that complements any desktop while delivering brilliant image quality and reliable performance all at an appealing price point. It’s the easy choice for gamers, home and small office users and corporate professionals.
It's not just another widescreen LCD. It's a ViewSonic.
SPECIFICATIONS
- COLORSBlack
- LCDTipo: 20” Wide TN colour TFT active matrix WSXGA+ LCD
Ratio de contraste: 1000:1 (typ.), 2000:1 (DCR, typ.)
Ángulos de visión: 170° horizontal, 160° vertical (at 10:1)
175° horizontal, 170° vertical (at 5:1)
Brillo : 300cd/m²
Área de visualización: 43.3cm horizontal x 27.1cm vertical, 51.1cm diagonal
Resolución óptima: 1680 x 1050@60Hz
Tiempo de respuesta: 5ms (off-on-off) (typ.)
Fuente de luz : Long life, 40000 (min.)
Superficie del panel: Anti-glare (3H)
Tamaño del píxel: 0.258mm
Gama de colores: 16.7M colours supported (6-bit + 2-bit FRC)
Frecuencia de píxel: 135MHz - COMPATIBILIDADPC: VGA up to 1680 x 1050 non-interlaced
Mac®: Power Mac™ up to 1680 x 1050 non-interlaced
- DimensionesFísicas con la base: 472 x 408 x 225
Físicas sin la base: 472 x 327 x 65
Embalaje (LxAxP): 526 x 448 x 127 - NormativasTCO’03, GS, ERGO, ISO 13406-2 (pixel failure class II), CE, CB, GOST-R, Hygienic (20 copies), UL, cUL, FCC-B (ICES), ICES-003B, SASO, ENERGY, ENERGY STAR, C-Tick, KTL/MIC, BSMI, PSB, MPR II, TUV-S/IRAM/UL-AR S Mark, CCC, VCCI, WEEE, RoHS
- CONTENIDO DE LA CAJALCD Monitor, power cable, 15-pin VGA video cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language)
- ConectividadAnalógico: 15-pin mini D-Sub (detachable cable)
Alimentación: 3-pin AC plug (CEE22) - AlimentaciónVoltaje: AC 100–240V, 50/60Hz (auto switch), internal power supply
Consumo: 38 watt (typ.), <1 watt in power save mode - CONTROLESBásico: Power, menu [1], up, down, select [2]
Menú en pantalla: Auto image adjust, contrast, brightness, ViewMatch® colour adjust (sRGB, 9300K, 6500K, 5400K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), auto white balance, OSD/power lock, memory recall - CONDICIONES DE FUNCIONAMIENTOTemperatura: 0°C–40°C
Humedad: 20%–90% (non-condensation) - PesoNeto con la base: 4.9kg
Bruto: 6.4kg - Entrada de vídeoFrecuencia: Fh: 30–82kHz, Fv: 50–75 Hz
Syncronización: H/V separate (TTL), composite, sync on green
Analógico: RGB analogue (0.7/1.0 Vp-p, 75 ohm) - GESTIÓN DE ENERGÍATCO’03 and ENERGY STAR standards
- SEGURIDADKensington security port
- MONTAJE EN LA PAREDVESA FDMI 100mm x 100mm
- ERGONOMÍAInclinación: Down 5°, Up 20°
