OVERVIEW

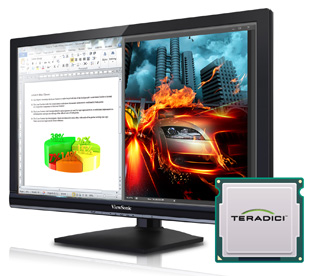

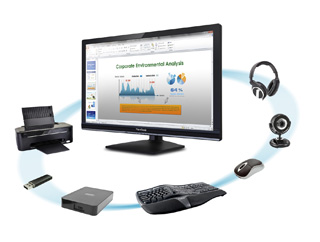

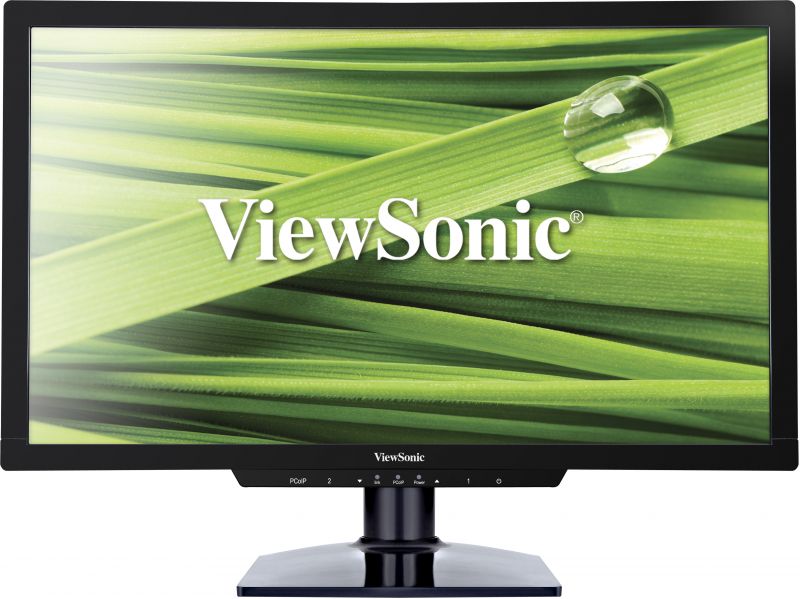

The ViewSonic® SD-Z225 22" (21.5" viewable) zero client monitor is based on Teradici™ Tera 2321, with hardware accelerated PCoIP™ support. The SD-Z225 zero client is the perfect solution for companies seeking a seamless desktop experience, with ultra-high security and reliability in networks based on VMware ® technology. The SD-Z225 is a true zero client and features no local memory or moving parts for the ultimate in energy savings and reliability. The VMware-certified design guarantees performance and compatibility in your network. With the additional DVI output, flexible support is provided for dual monitor productivity. The eco-friendly design with LED display uses up to 80% less energy consumption than standard PCs.Advanced, high-performance Teradici processorViewSonic’s SD-Z225 is equipped with the most advanced Teradici Tera2321 processor designed for VMware-based virtualization. This powerful processor delivers up to 5-times-faster performance, up to 50% lower power consumption, and supports 2D/3D graphic intensive applications for a rich multimedia experience at full frame rates over gigabit Ethernet. ![]() | Flexibility for all your peripheralsVersatile connectivity includes all commonly used port formats for connecting today’s components for work-related business or entertainment. This includes a video-out (DVI-I) port, 4 USB ports for peripherals, mic and headphone ports, and a RJ45 Ethernet input for your 10/100/Gigabit network. ![]() ![]() | |||||
| ||||||

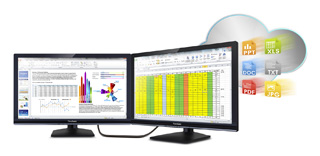

Having a PCoIP zero client configuration in your office doesn’t mean you have to compromise on performance or productivity. With its DVI-I digital or analog outputs, the SD-Z225 provides for dual-display productivity when connected to a secondary 1080p display. ![]() |
The Teradici PCoIP management console provides for simplified and secure centralized deployment and management. With web-based access, administrators will be able to configure, update, manage, and even remotely control the power state of all their PCoIP-based zero clients throughout the network. ![]() | |||||
| ||||||
Low total cost of ownershipAll of the benefits of a virtual desktop deployment can be realized with ViewSonic’s SD-Z225 Zero Client. Offering simple and quick deployment, enhanced security with no local HDD, increased reliability and higher productivity, the SD-Z225 is an efficient and low-cost choice for virtualizing desktops. ![]() | 3-year limited warrantyOne of the aspects that make ViewSonic a market leader is its dedication to quality. ViewSonic is committed to using the highest grade components. We also back our SD-Z225 Zero Client Monitor with a 3-year limited warranty for your peace of mind. ![]() | |||||
| ||||||
With its ultra low 24W typical power consumption in Eco-mode, the SD-Z225 Zero Client monitor is not only environmentally friendly, but will also help reduce user's energy consumption. Large install bases of this Zero Client monitor will translate into significant savings, compared with traditional PCs and monitors. ![]() |

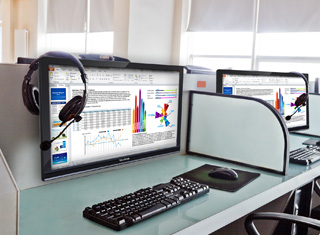

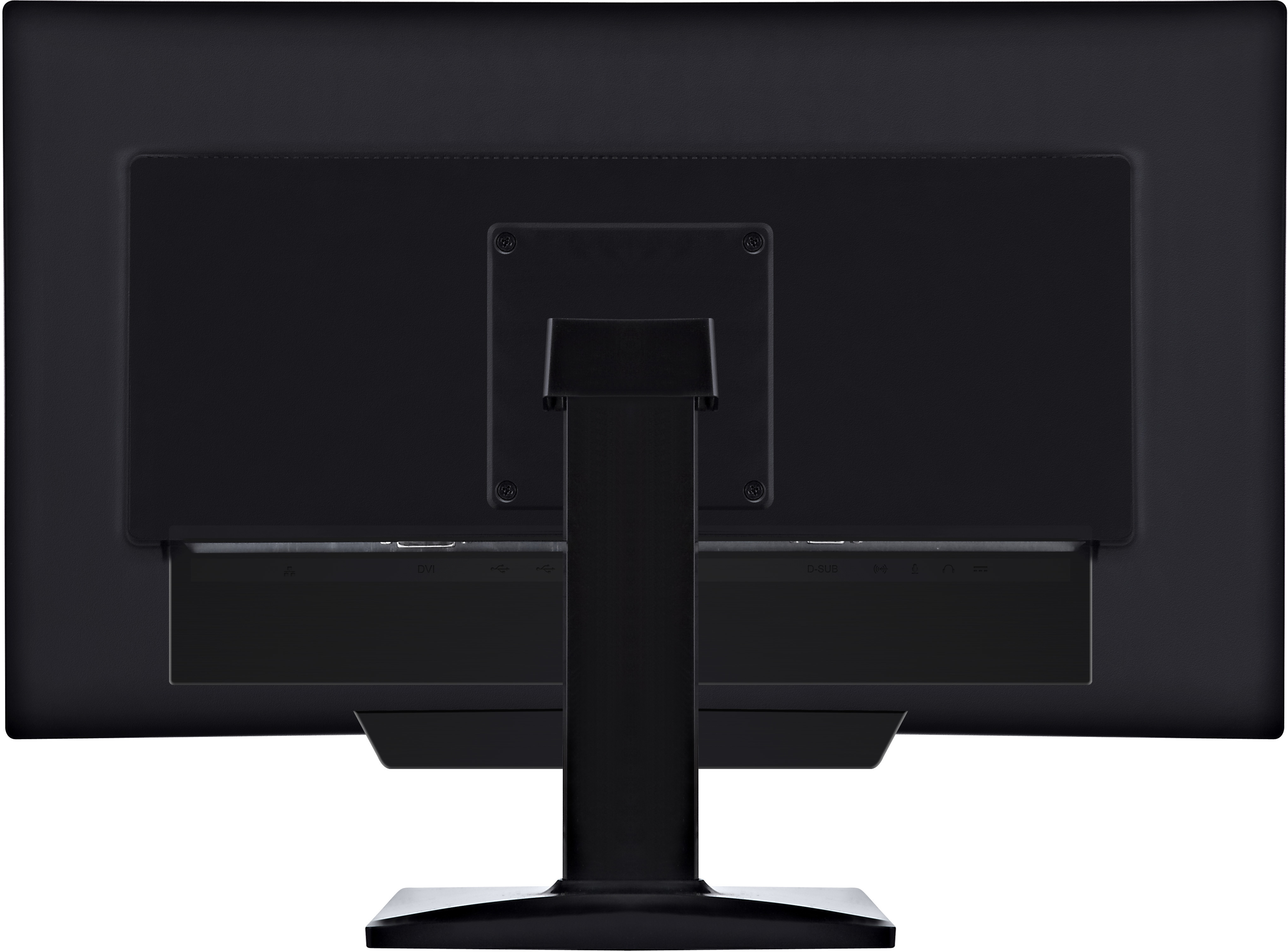

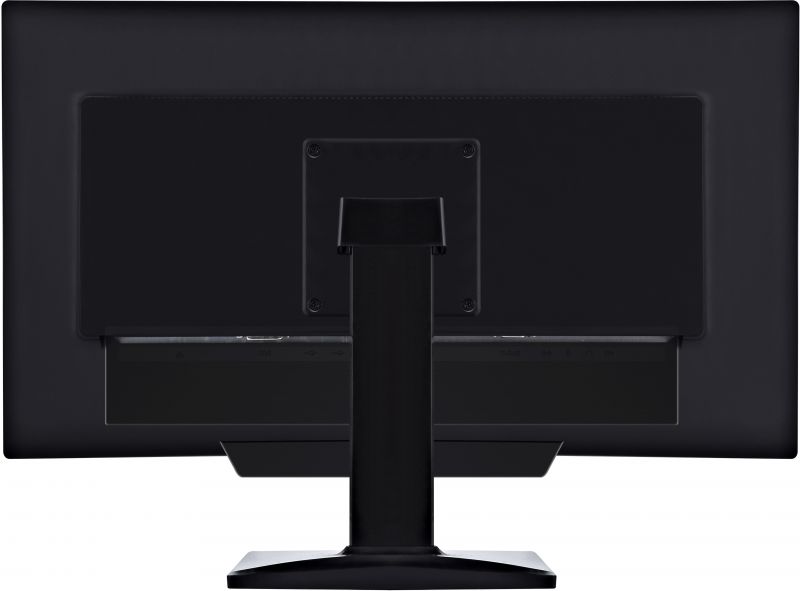

VESA-mount compliance makes it possible to accommodate more flexible mounting options in any working environment. The SD-Z225 features a 100 x 100mm VESA-mountable design that allows for mounting on walls, standard VESA arms, or VESA display stands, depending on the specific needs of your installation. ![]() | |||||
| ||||||
![]() | ||||||
SPECIFICATIONS
- LCDTipo: 24" (23.6" viewable) Wide Colour TFT Active Matrix LED
Área de visualización efectiva: 170º horizontal, 160º vertical
Ratio de contraste: 1000:1 (typ.)
Área de visualización: 20.5" horizontal x 11.5" vertical; 23.6" diagonal
Resolución óptima: 1920 x 1080
Tiempo de respuesta: 5ms (typ.)
Superficie del panel: Anti-glare, hard-coating (3H)
Brillo : 250 cd/m2 (typ.)
Relación de contraste dinámico: 20,000,000:1
Retroiluminación: White-light LED
Vida útil de retroiluminación: 30,000 hours (min.) - COMPATIBILIDADPC: PC compatibles (VGA up to 1920x1080 non-interlaced)
Mac®: Up to 1920x1080 - DimensionesFísicas con la base: 22.3 x 15.5 x 7.5 in. / 566.4 x 392.7 x 189.9 mm
Físicas sin la base: 22.3 x 13.6 x 1.9 in. / 566.4 x 345.4 x 48 mm
Embalaje: 24.8 x 18.4 x 6.2 in. / 630 x 467 x 158 mm
- ConectividadEntrada de vídeo: 15-pin mini D-sub (VGA)
Salida de vídeo: DVI-I (x1)
USB: USB 2.0 (x4)
Auriculares: 3.5mm mini jack (x1)
Red: RJ45 (x1)
Entrada de línea: 3.5mm mini jack (x1)
Alimentación: External power adapter
Microphone in: 3.5mm mini jack (x1) - AlimentaciónVoltaje: AC 100-240 V (universal), 50/60 Hz
Consumo: 28W (typ) - CONTROLESBásico: PCoIP, 2, Down, Up, 1, Power
Menú en pantalla: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Colour Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall (See user guide for full OSD functionality) - CONDICIONES DE FUNCIONAMIENTOTemperatura: 32–95ºF (0–35ºC)
Humedad: 15–90% (non-condensing) - PesoNeto con la base: 11.2 lb. / 5.1 kg
Neto sin la base: 8.6 lb. / 3.9 kg - MemoriaStorage: None
System: DDR3 512MB @ 1066MHz - Entrada de vídeoAnalógico/Digital: RGB analog (0.7 / 1.0 Vp-p, 75 ohms)
Frecuencia: Fh: 24~82kHz, Fv: 50~75Hz
Syncronización: Separate Sync - SOPORTE DE PROTOCOLOSVMware PCoIP
- ERGONOMÍAInclinación: Forward 5º / Back 20º
- SOFTWAREProtocols: VMware PCoIP
- ComunicaciónRed Ethernet: 10/100/1000 MB
- GRÁFICOChipset: None
Resolution: 1920 x 1200 (for single display) - AUDIOAltavoces: 2-watt (x2)
- NÚCLEOPROCESADOR: Teradici Tera2321
Image Performance: 50Mpps (DVI out)
