SC-Z56
Perfect solution for optimized VMware performance
OVERVIEW
The ViewSonic® SC-Z56 quad output zero client is the perfect solution for organizations seeking a secure, easy to manage, reliable solution in networks based on VMware. Certified for VMware® Horizon View™, this highly secure zero client supports advanced 2D/3D applications and can simultaneously drive up to four Full HD displays. Based on the Tera 2140 chip platform, this new zero client provides the highest possible performance in a VMware View environment. The SC-Z56 is ideal for high-end workstations, investment traders, or any user requiring multiple displays and maximum workspace. ViewSonic’s zero clients are the smart choice for optimizing your virtual desktops.
The ViewSonic SC-Z56 is equipped with the most advanced Teradici Tera2140 processor designed for VMware-based virtualization. This powerful processor delivers faster performance, supports 2D/3D graphic intensive applications for a rich multimedia experience at full frame rates over gigabit Ethernet, as well as drives up to two 2560x1600 displays or four 1920 x 1200 displays.
|

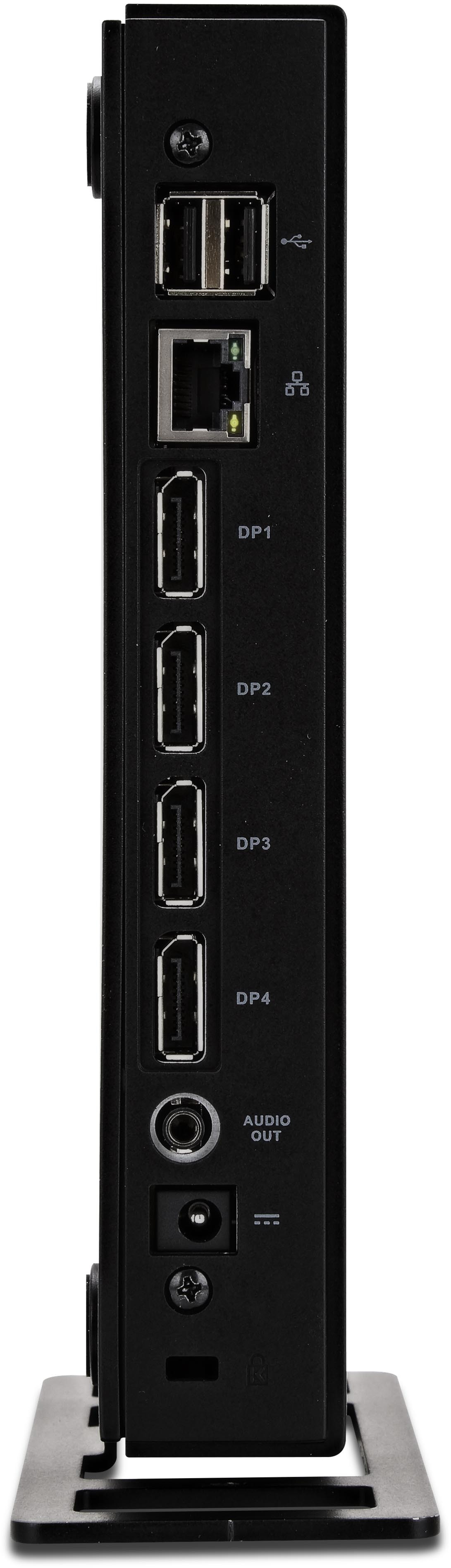

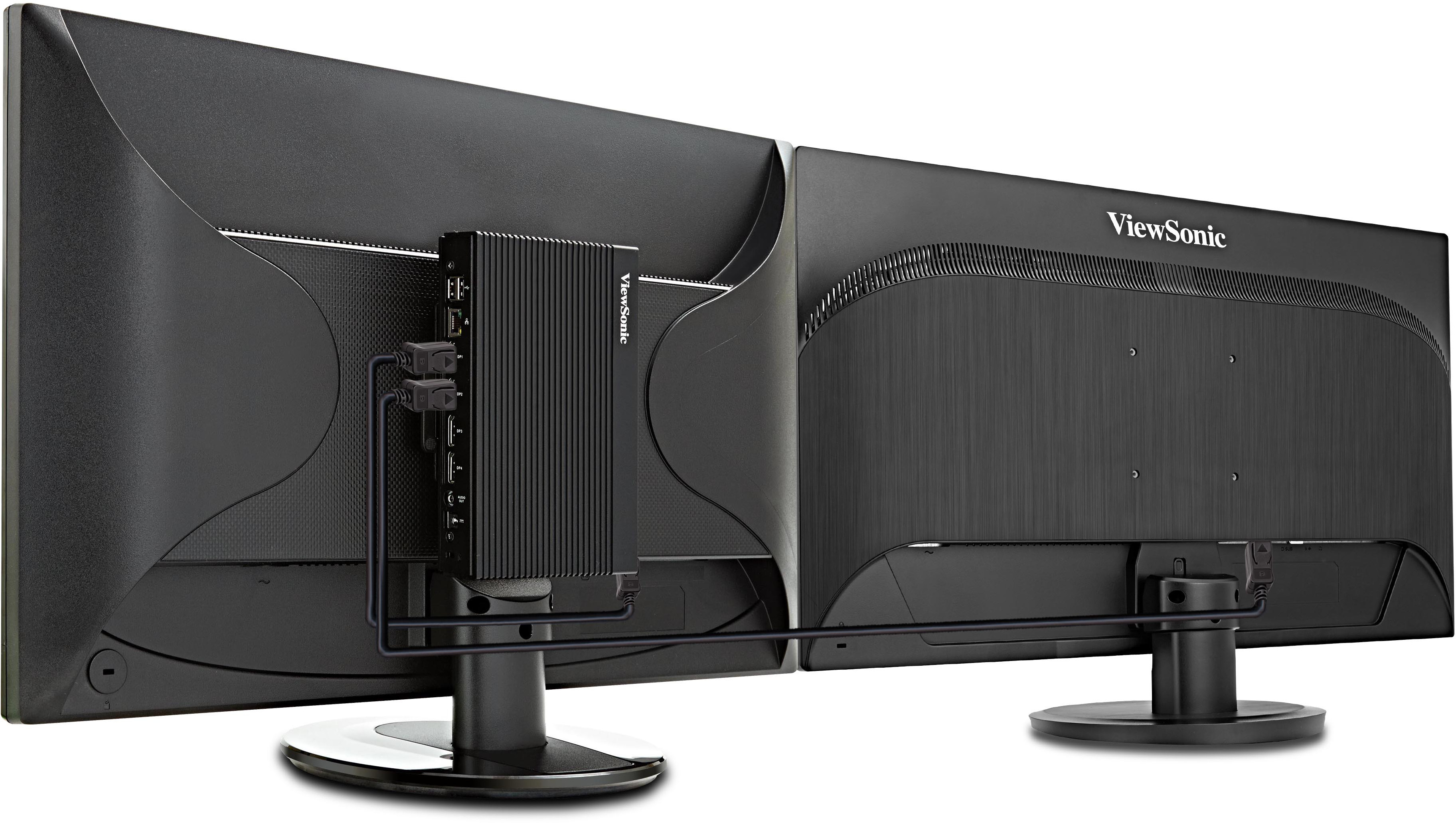

The SC-Z56 is featured with 4 integrated DisplayPort connections to support up to 4 Full HD displays or 2 QHD displays. This enhances working efficiency and productivity for today’s high-end workstations, or for any user that requires multiple displays.
| |||||

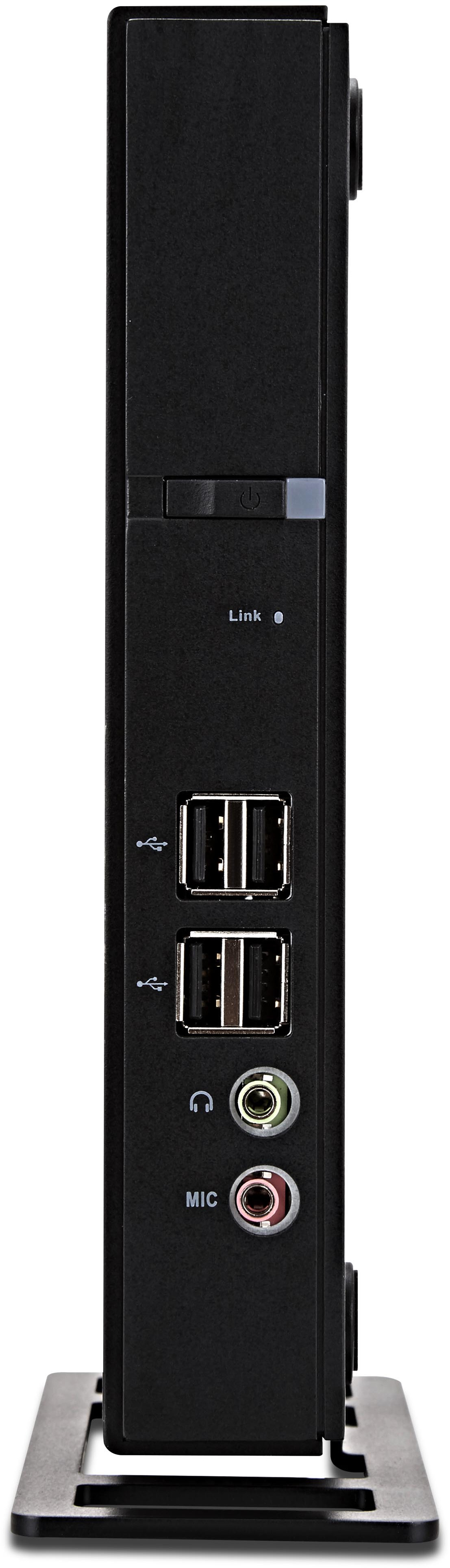

6 USB ports provide versatile connectivity for work or entertainment-related peripherals. The SC-Z56 is equipped with 2 USB ports in the front and 4 in the back to ease the connection of keyboard, mouse, hard drive, and more. Also included are 10/100/1000Mbps Gigabit Ethernet, and microphone and headphone inputs that deliver fast LAN connectivity and video conference capability.
|
The free Teradici PCoIP management console provides for simplified and secure centralized deployment and management. With web-based access, administrators will be able to configure, update, manage, and even remotely control the power state of all their PCoIP-based zero clients throughout the network.
| |||||
Viewsonic's SC-Z56 Zero Client offers all the benefits related to a virtual desktop deployment. These include the simple and quick deployment, enhanced security with no local HDD, increased reliability and higher productivity, the SC-Z56 is an efficient and low-cost choice for virtualizing desktops.
|

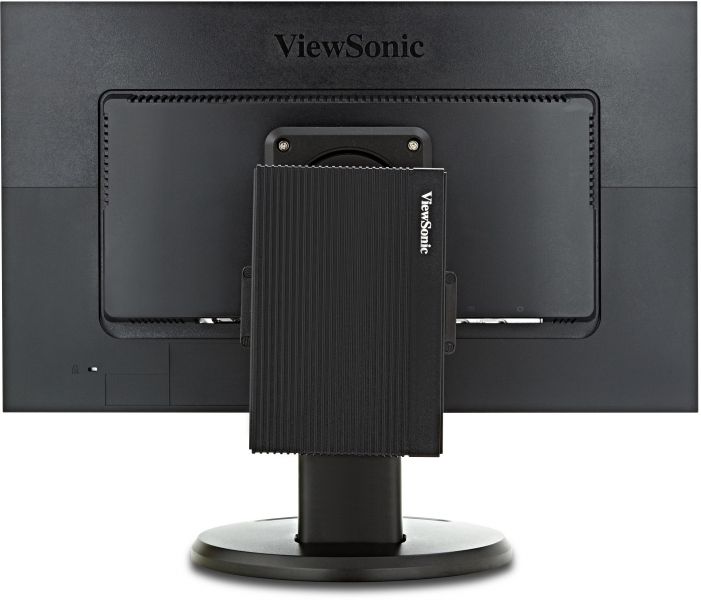

A VESA-compliant mount accommodates flexible placement in any work environment. The SC-Z56 is equipped with a 100 x 100mm VESA mount plate that allows for desktop stand mounting, wall mounting, and more depending on the specific needs of your installation.
|
SPECIFICATIONS
- SYSTEMCPU Processor: Teradici Tera2140
CPU Processor Speed: 50Mpps(VDI)
Protocols: VMware PCoIP
System Memory: DDR3 512MB (Speed 1333Mhz) - COMMUNICATIONGigabit Ethernet: 10/100/1000 Mbps
- INPUT/OUTPUTUSB: Front USB 2.0 x 4 Rear USB 2.0 x2
HDMI: x4
LAN/Ethernet: RJ45 x1
Audio: Headphone jack x1 Microphone in x1
Video: DisplayPort x4
Power: DC-In jack x1
- POWERVoltage: 19V DC; 2.37A, 45W
Consumption: 15W (typ) - OPERATING CONDITIONSHumidity: 20-80% (non-condensing)
Temperature (º F / º C): 32°-104°F (0°-40°C) - DIMENSIONSPhysical (inch / mm): 1.46 x 8.11 x 5.42 in / 37.1 x 206 x 137.7 mm
Packaging (inch / mm): 10.87 x 8.19 x 5.71 in / 276 x 208 x 145 mm - WEIGHTNet (lb / kg): 1.15 lbs / 0.75 kg
Gross (lb / kg): 2.32lbs / 1.05kgs - WALL MOUNTVESA® (mm): 100x100mm
- REGULATIONSFCC/NRTL, WEEE, RoHS compliant, REACH compliant
- RECYCLE/DISPOSALPlease dispose of in accordance with local, state or federal laws
- WARRANTY**Warranty offered may differ from market to market
- PACKAGE CONTENTSZero Client*1, Power cord*1, Power Adapter *1, Quick Star Guide *1, Stand*1, CD*1, Compliance information*1, Screw of M4xL6.0*2(Mounting SC-Z56 and the neck of VG48 monitor), Screw of M4XL8.0*2(Mounting stand on SC-Z56), VESA mount plate screw*4, VESA mount plate*1
*Actual content may differ from market to market
