OVERVIEW

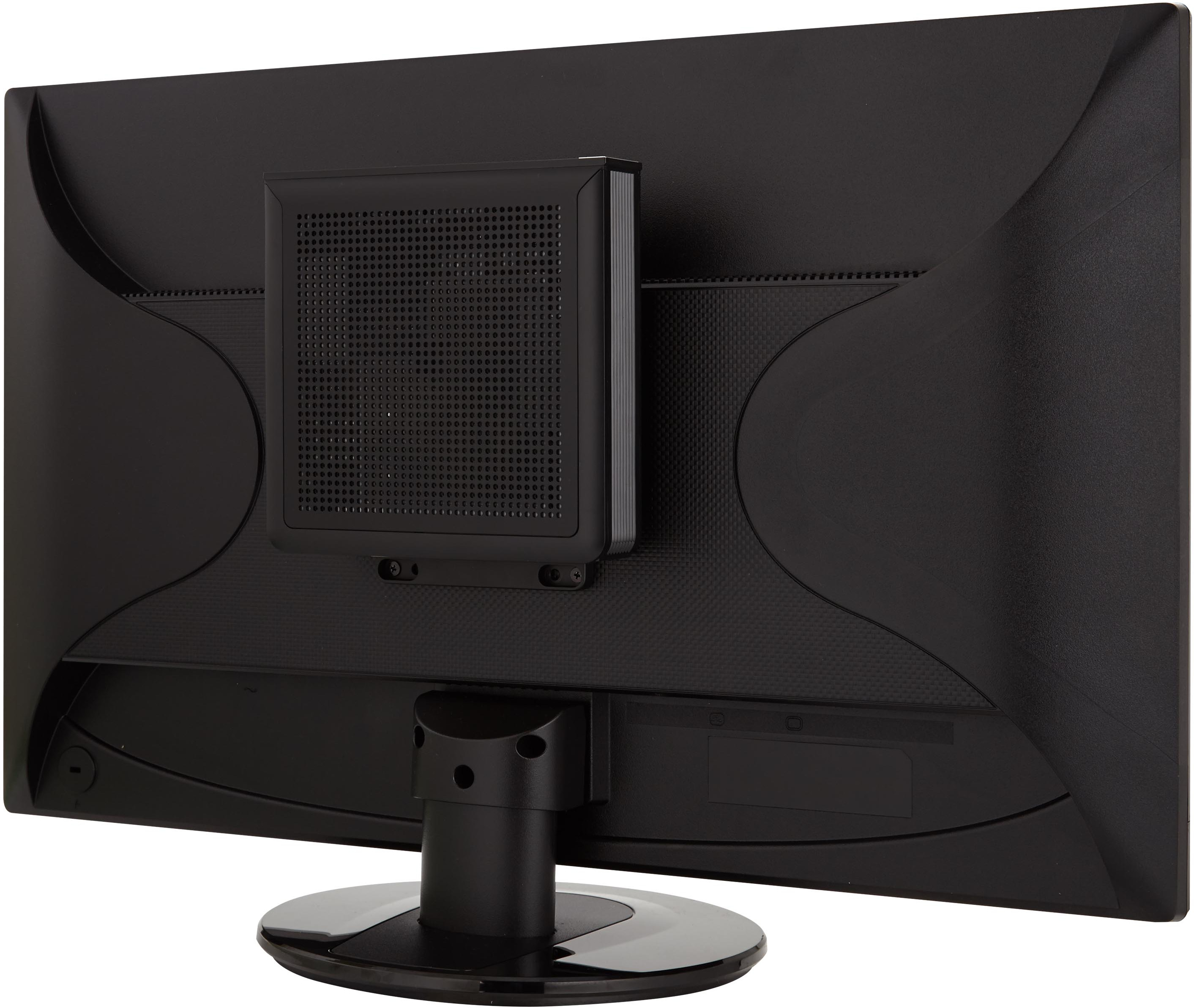

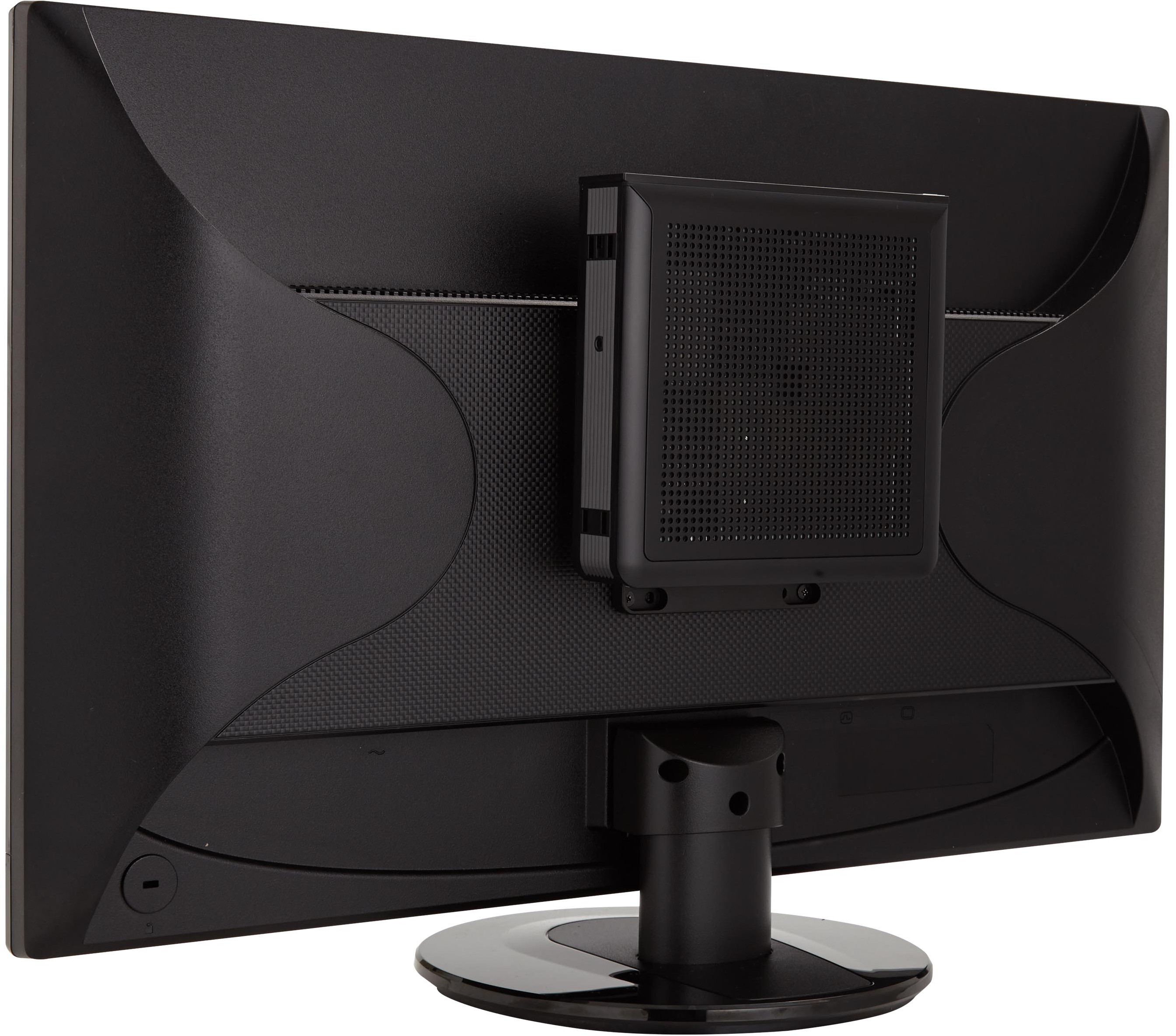

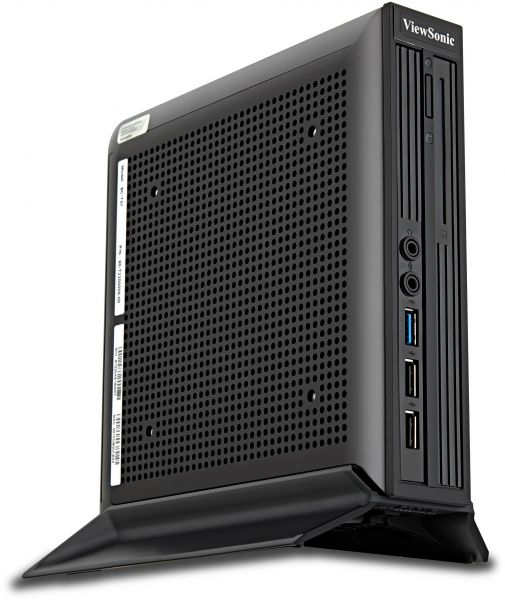

The ViewSonic® SC-T47 Thin Client PC uses the powerful Intel J1900 2GHz CPU, with Windows 8 Embedded Standard OS. The SC-T47 is optimised for all the major remote networking protocols including Citrix ICA/HDX, VMware PCoIP, and Microsoft RemoteFX— providing a versatile virtualization solution with endless possibilities. The SC-T47 also allows to simultaneously save energy and space, thanks to its low consumption rate (only 18w) and to the VESA-ready feature (easily mounted by simply applying the brackets provided). The SC-T47 Thin Client has been designed to satisfy the need for a true thin client solution able to combine a PC-like performance with the capability of controlling up to four 1080P displays. ViewSonic’s Thin Clients are the smart choice for optimizing your virtual desktop deployments.
With an Intel J1900 2.0 GHz processor and a Windows 8 Embedded Standard operating system, the SC-T47 is equipped to handle the highest demands of both virtual and local processing, including the most graphic-intensive 2D/3D applications to provide true PC-like performance.
|

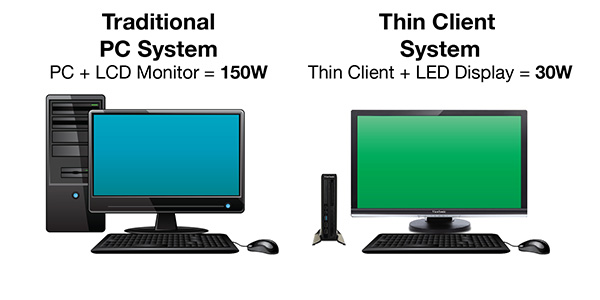

With its ultra-low 18W typical power consumption and ENERGY STAR certification, the ultra-compact SC-T47 Thin Client is not only environmentally friendly, but also offers 75% energy cost savings. Moreover, when the Thin Client PC is combined with an LED display, this will translate into significant savings, compared to traditional PCs and monitors.
| ||||
ViewSonic’s SC-T47 thin client provides all those benefits related to the virtual desktop deployment. In fact, the SC-T47 is an efficient and low-cost choice to allow a simple and quick deployment for enhanced security with no local HDD, increased reliability, and higher productivity.
|

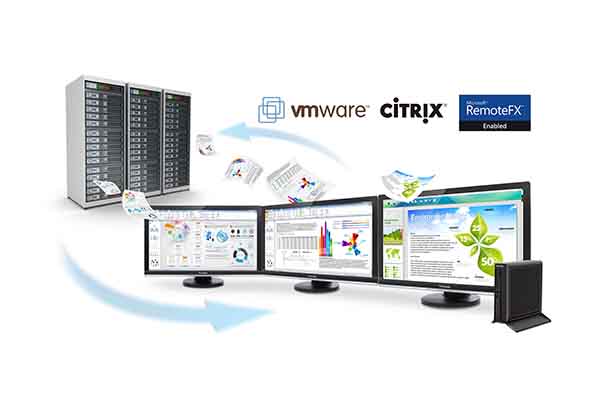

Whether running Citrix XenDesktop, VMware View, or Microsoft-based VDI, the SC-T47 is the most flexible solution to handle all any VDI-based virtualization and traditional computing needs.
| ||||

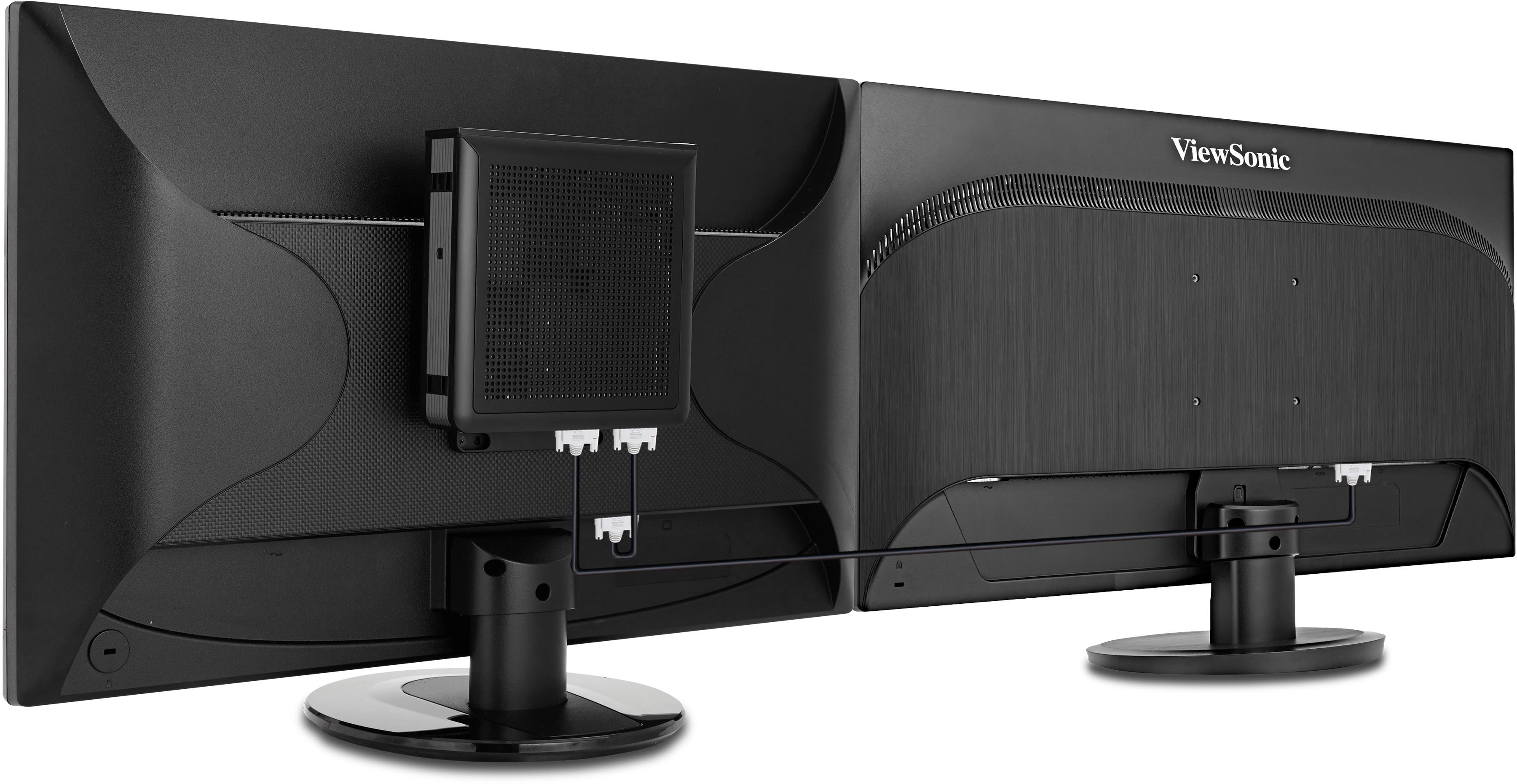

A Thin Client PC provides great performance and productivity. The SC-T47 can support up to four 1920x1200 or 1080p displays able to run multiple applications and full streaming video.
|
The free bundled ViewSonic Device Manager software provides IT administrators with a powerful interface for easier and faster deployment. This client-side software also eases the management of thousands of deployed devices centrally, providing a higher control over software license renewals, compliance and security.
| ||||

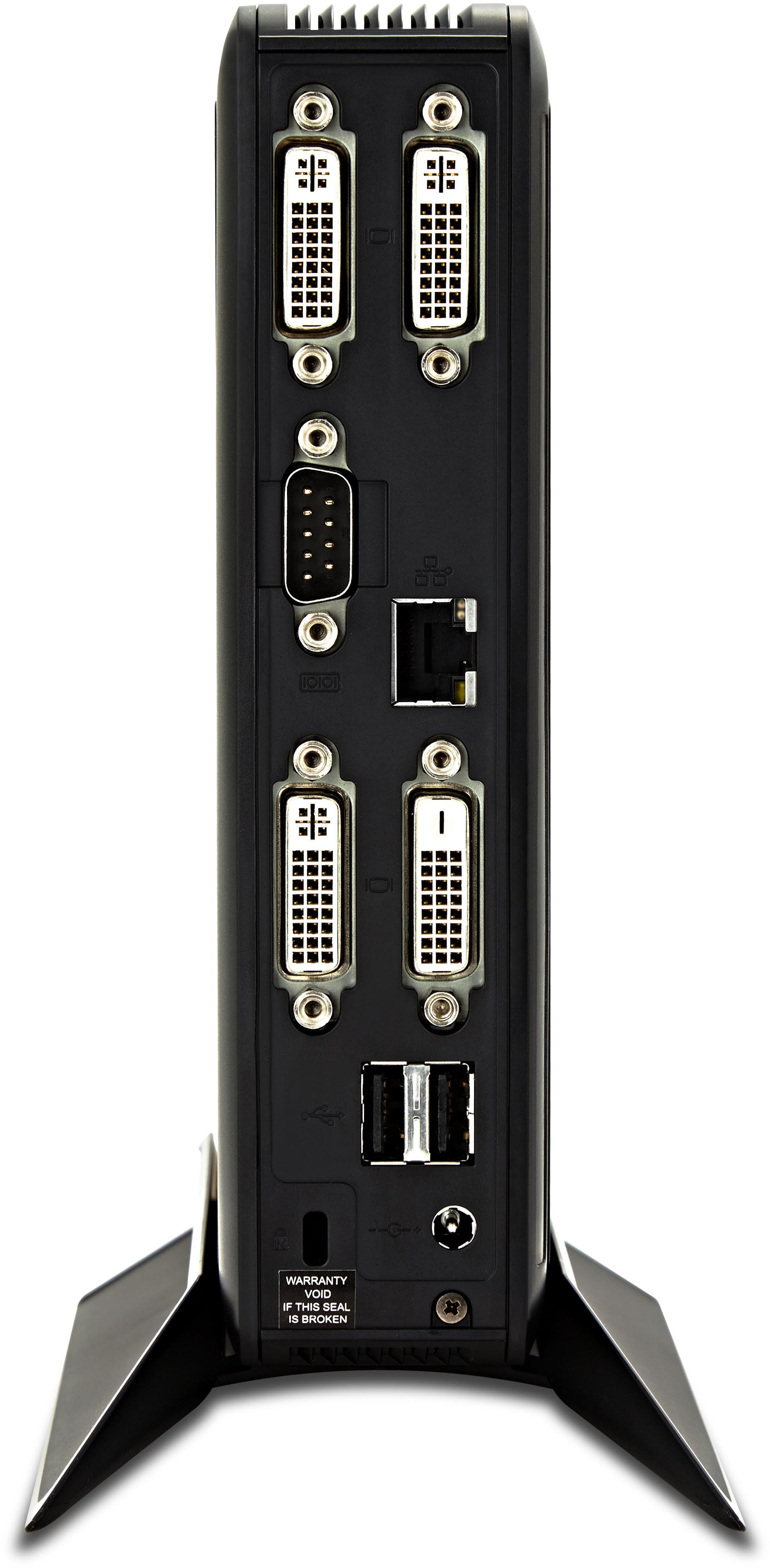

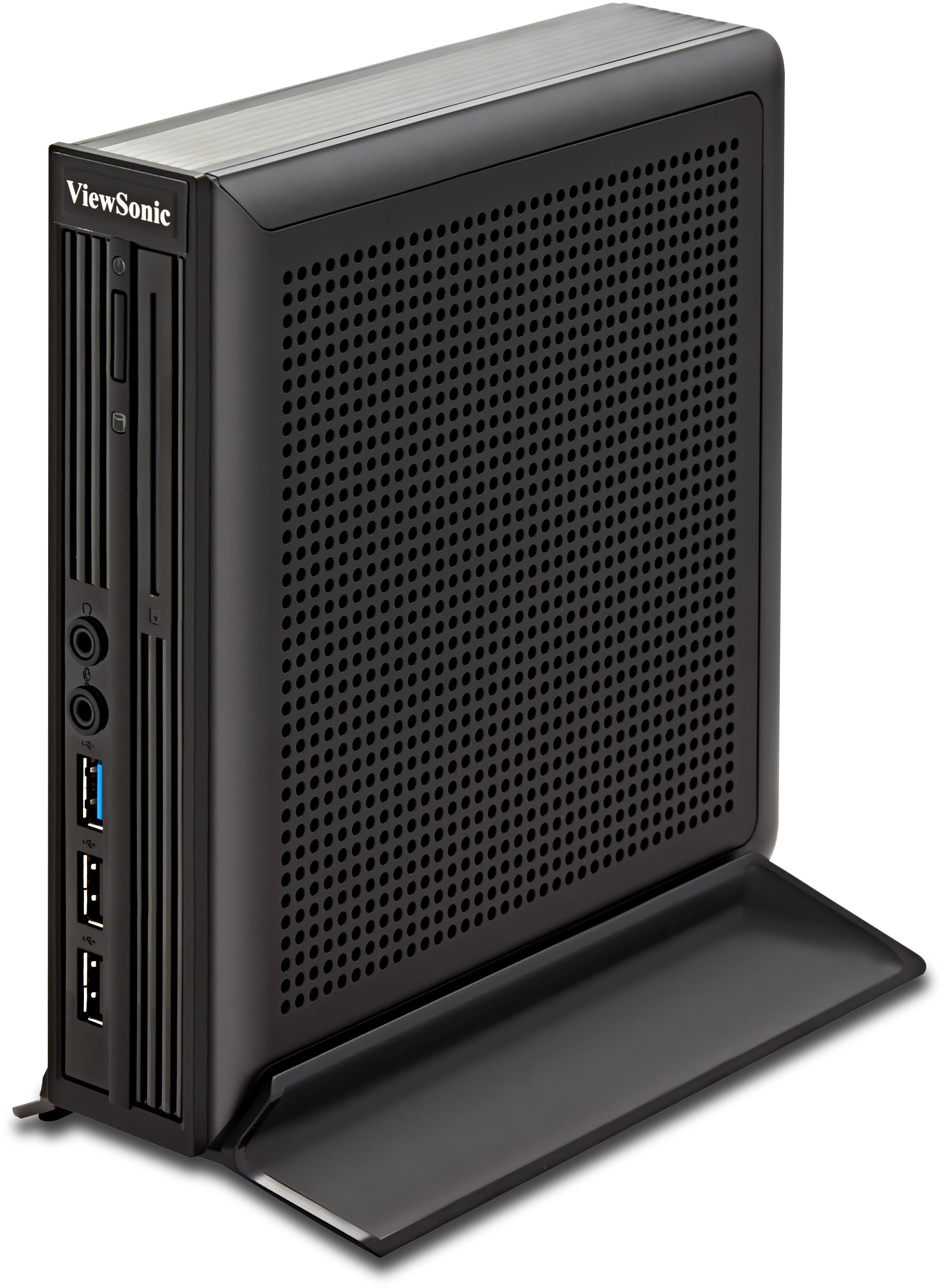

Versatile connectivity includes all common formats for connecting today’s components for business and entertainment such as: dual video (DVI-D and DVI-I), Mic and headphone, 5-USB ports (4 x V2.0, 1 x V3.0) to connect the peripherals, and RJ45 Ethernet suitable for a 10/100/Gigabit network. When an RJ45 Ethernet port is not available, the SC-T47 also supports wireless connectivity either with a built-in WiFi option or by utilizing an optional USB wireless adapter, such as the WPD-100.
|

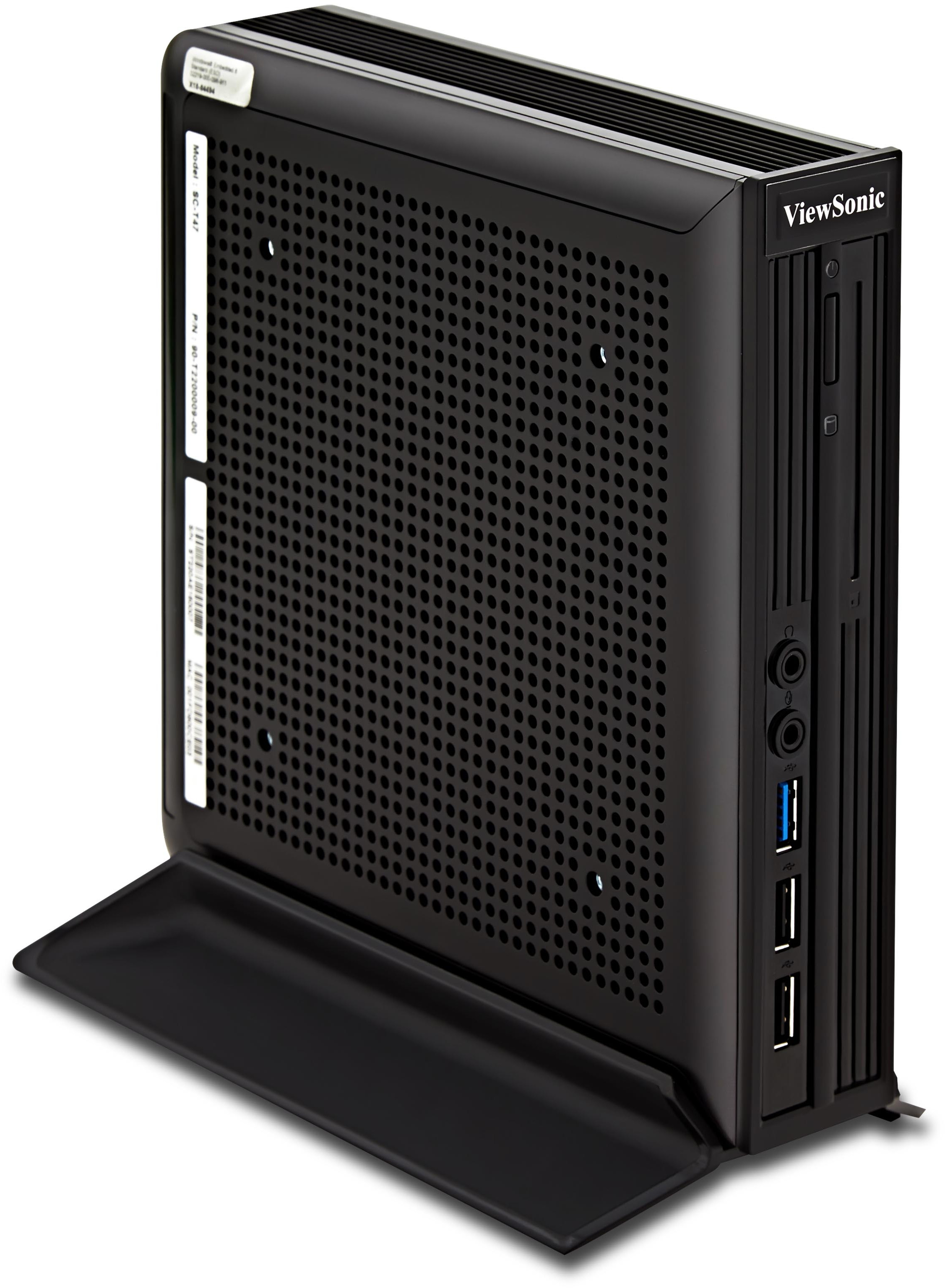

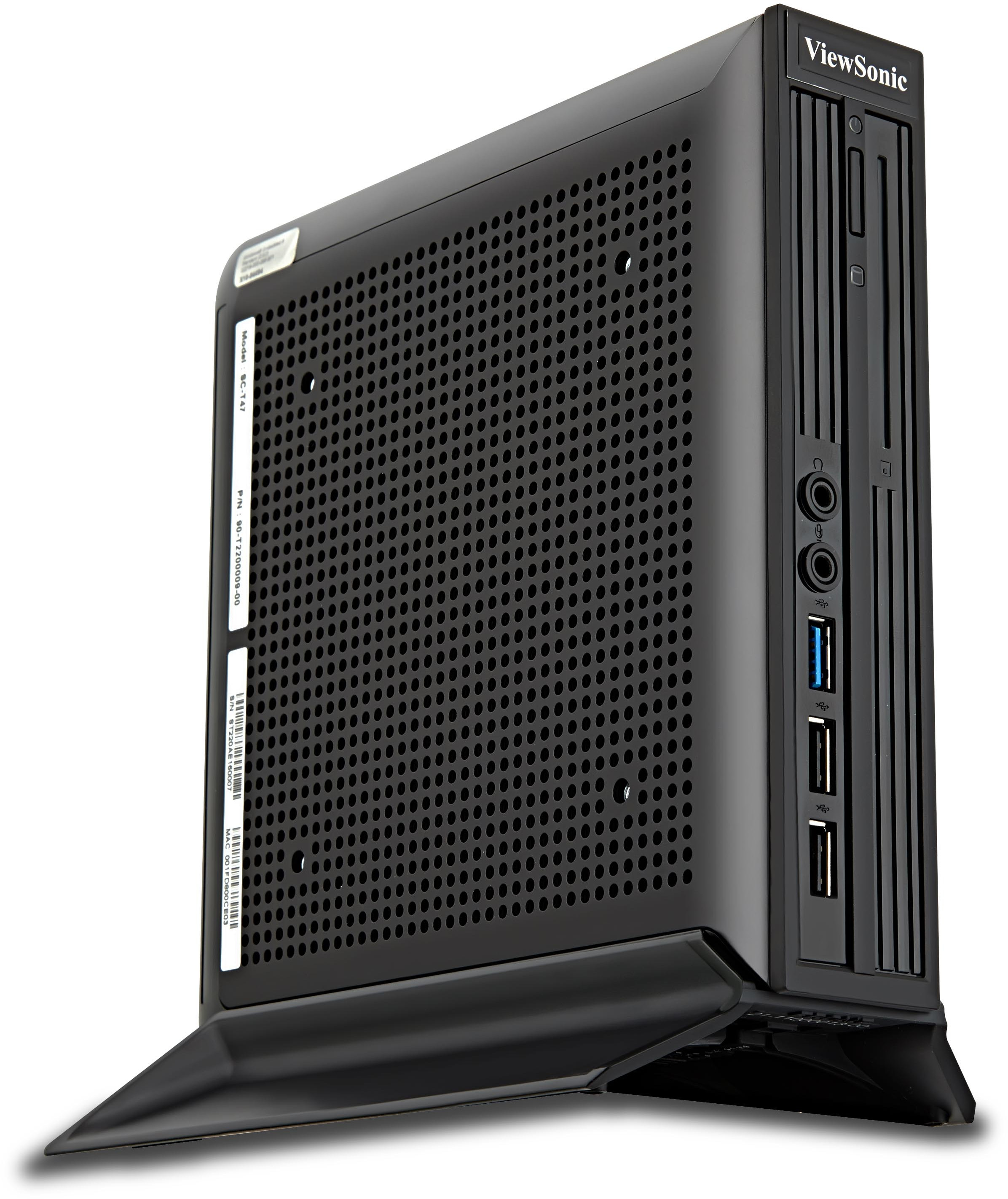

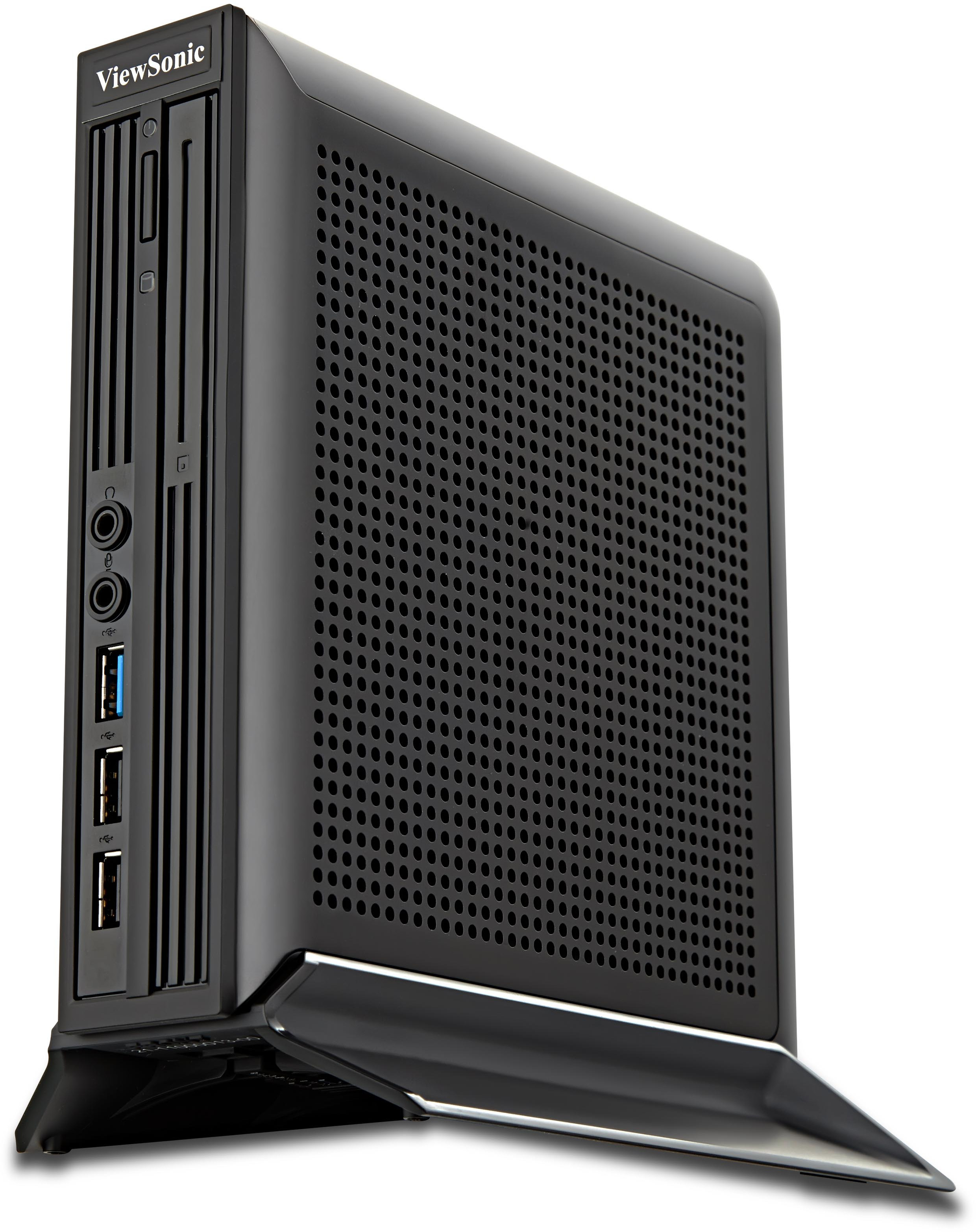

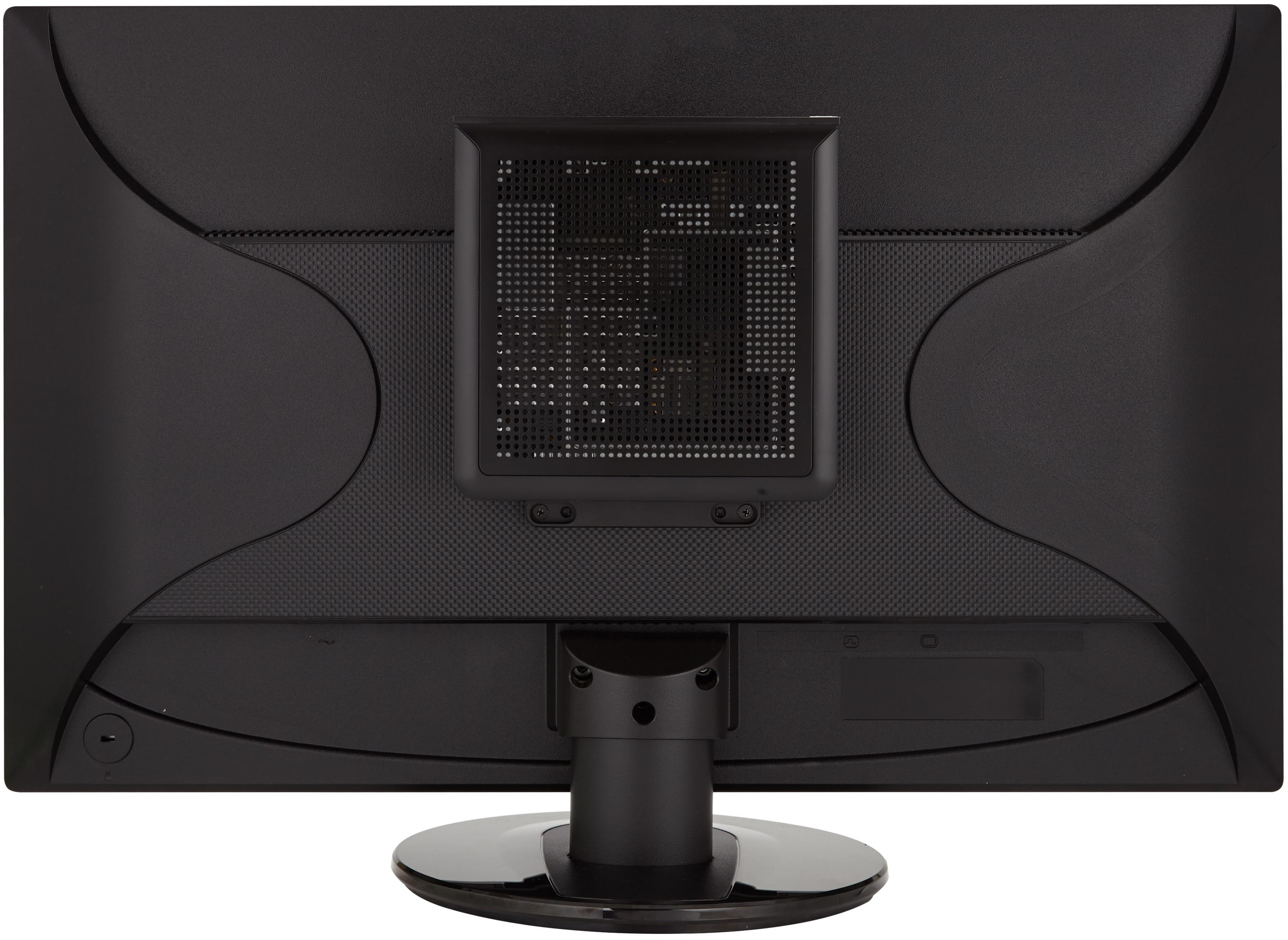

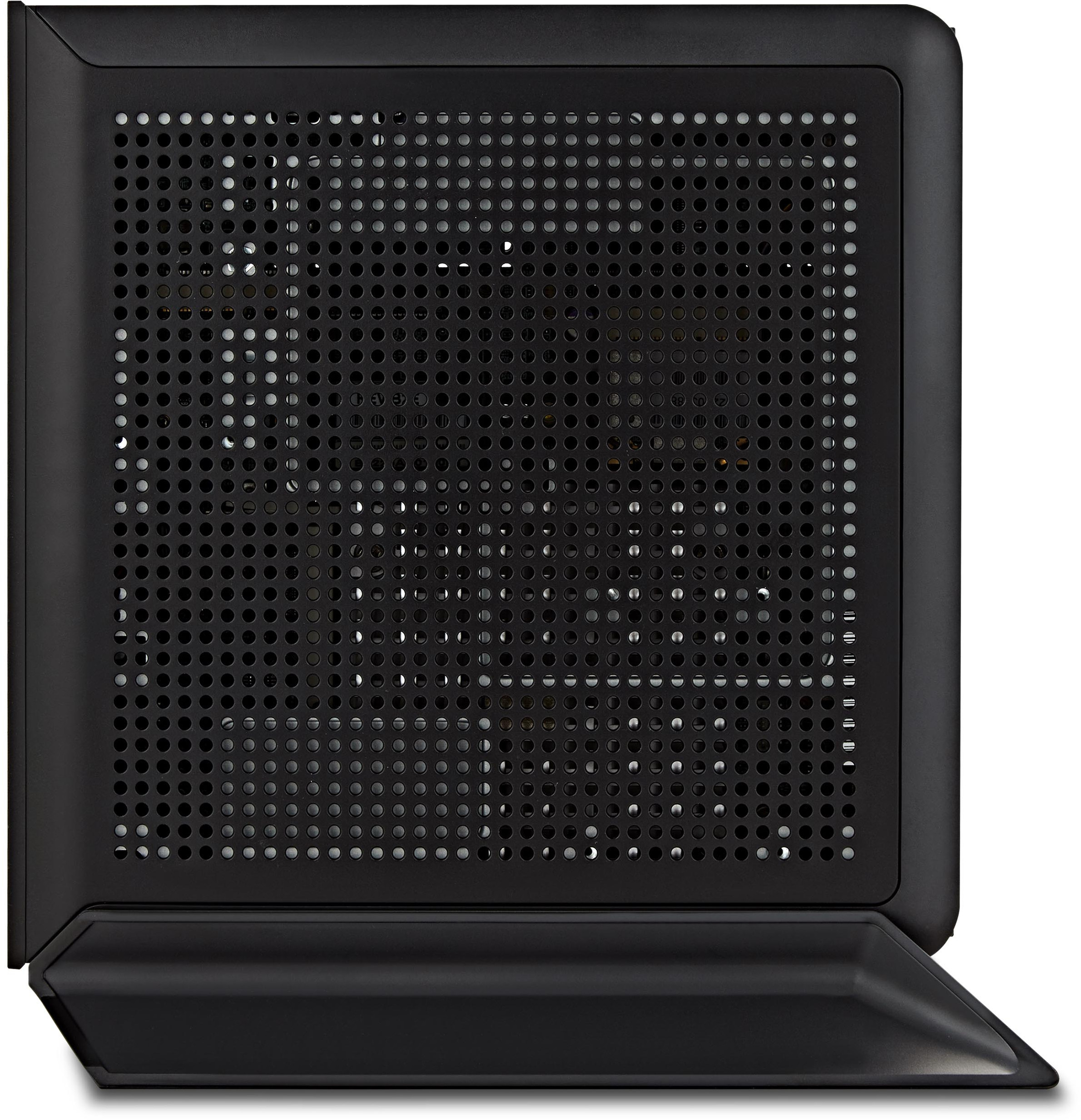

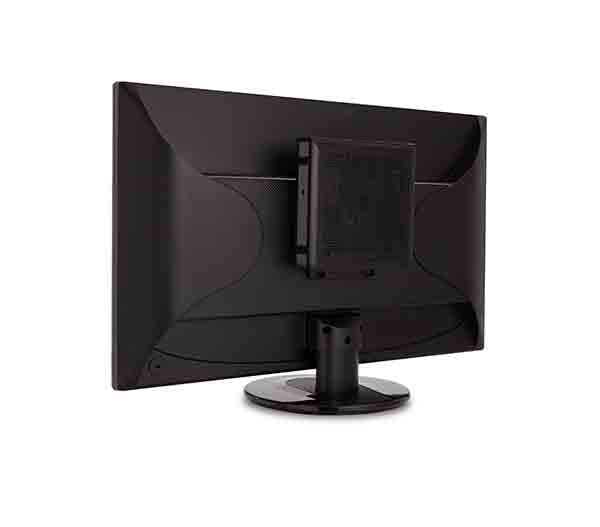

The sleek and compact design allow the the SC-T47 to reduce clutter and streamlines the deskop. It also features a unique desktop stand that can either be used in a free-standing configuration, on the desk, or when VESA-mounted to a monitor, depending on your specific needs.
| ||||
The SC-T47 supports 802.11 a/b/g/n WiFi connection to a cloud server, as well as 10/100/1000 Mbps Gigabit Ethernet via RJ45 to provide flexible and stable connectivity.
|
SPECIFICATIONS
- SYSTEMCPU Processor: Intel Baytrail Quad-core J1900
Operating System: Windows Embedded 8 standard
System Memory: DDR3 4GB
Storage Memory: 8GB - DISPLAYOptimum Resolution: Integrated in main chipset, 1920x1200.

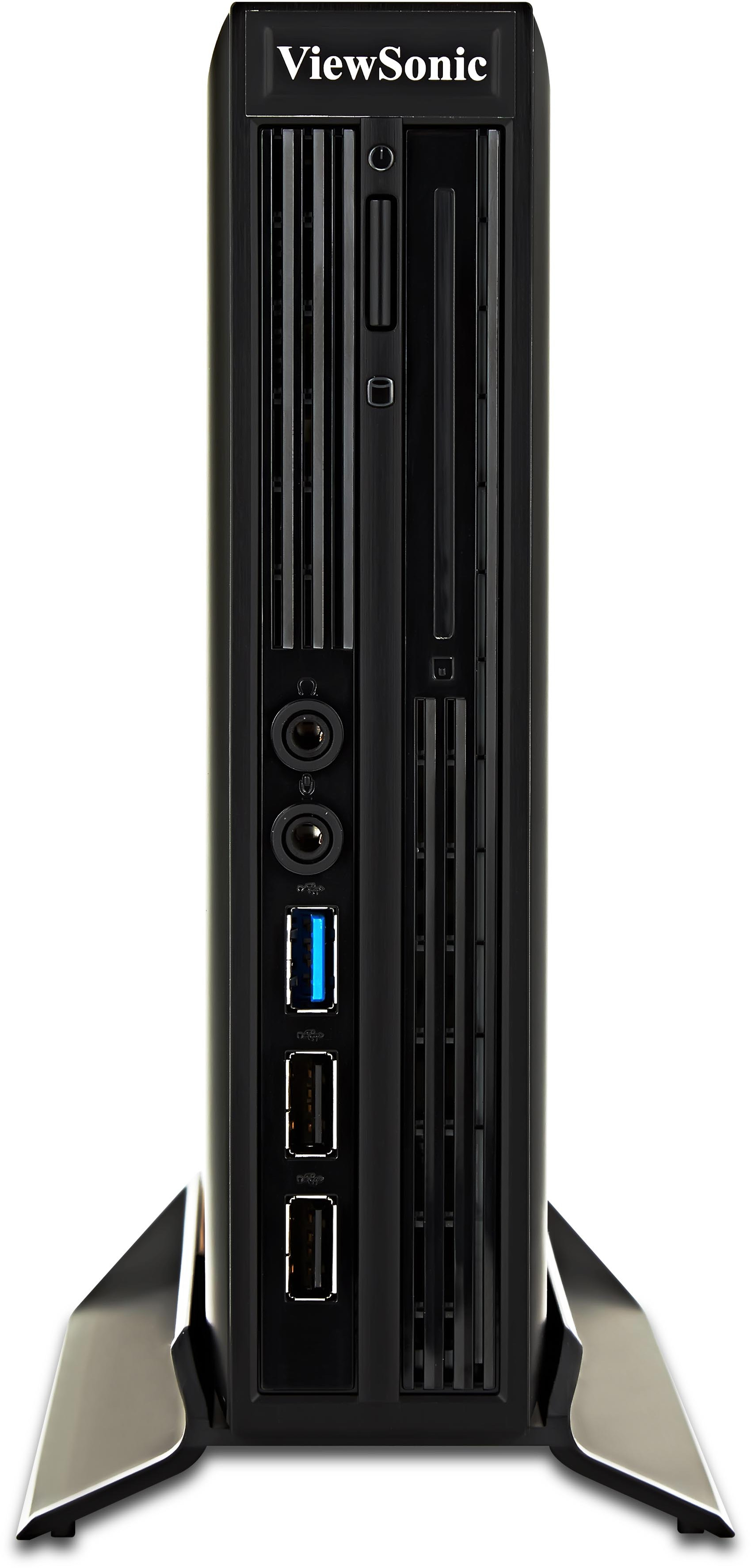

- INPUT/OUTPUTUSB: Front USB 2.0 x 2, USB 3.0 x1 , Rear USB 2.0 x2
LAN/Ethernet: RJ45 x1
Power: DC IN (x1)
- POWERVoltage: 12V DC; 3A, 36W
- OPERATING CONDITIONSHumidity: 10% ~ 90%, Non-Condensation
Temperature (º F / º C): 32°~95°F / 0°~35°C - DIMENSIONSPhysical (inch / mm): 7.05” (W) x 7.76” (H) x 1.73” (D) 179 mm (W) x 197.2mm (H) x 44mm (D)
Packaging (inch / mm): 19.49 ” (W) x 10.43” (H) x 10.83” (D) 495 mm (W) x 265 mm (H) 275 mm (D) - WEIGHTNet (lb / kg): 1.19lbs(0.54kgs)
Gross (lb / kg): 2.49lbs(1.13kgs) - WALL MOUNTVESA® (mm): 75x75; 100x100
- REGULATIONSFCC(ICES003)/CB/CE EMC/CE R&TTE/IC/FCC ID Others: ENERGY STAR, EPEAT Silver, WEEE, RoHS Compliant, REACH Compliant
- RECYCLE/DISPOSALPlease dispose of in accordance with local, state or federal laws
- WARRANTY**Warranty offered may differ from market to market
- PACKAGE CONTENTSAccessories: 1. Thin Client*1 2. Power cord *1 3. Power Adapter *1 4. Quick Star Guide *1 5. VESA Mount Plate*1 6. CD Wizard*1 7. Compliance information*1 8. Stand*1 9. DVI to VGA adaptor*1
*Actual content may differ from market to market
