OVERVIEW

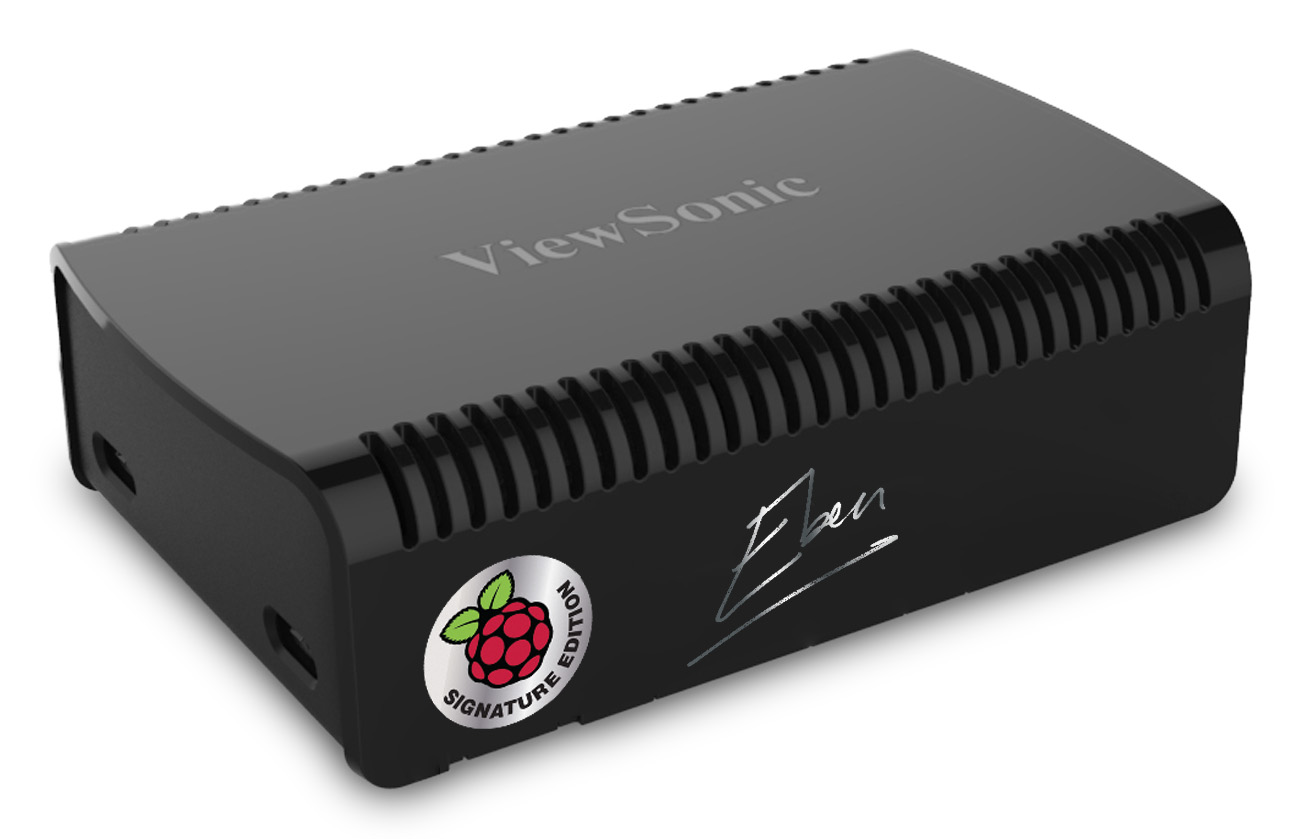

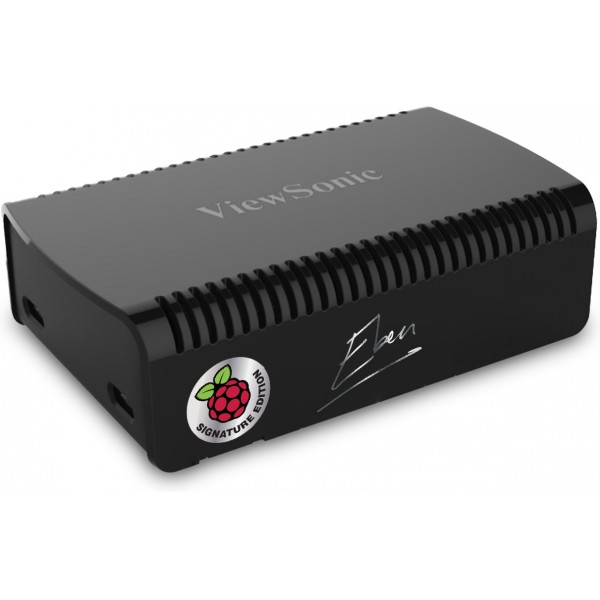

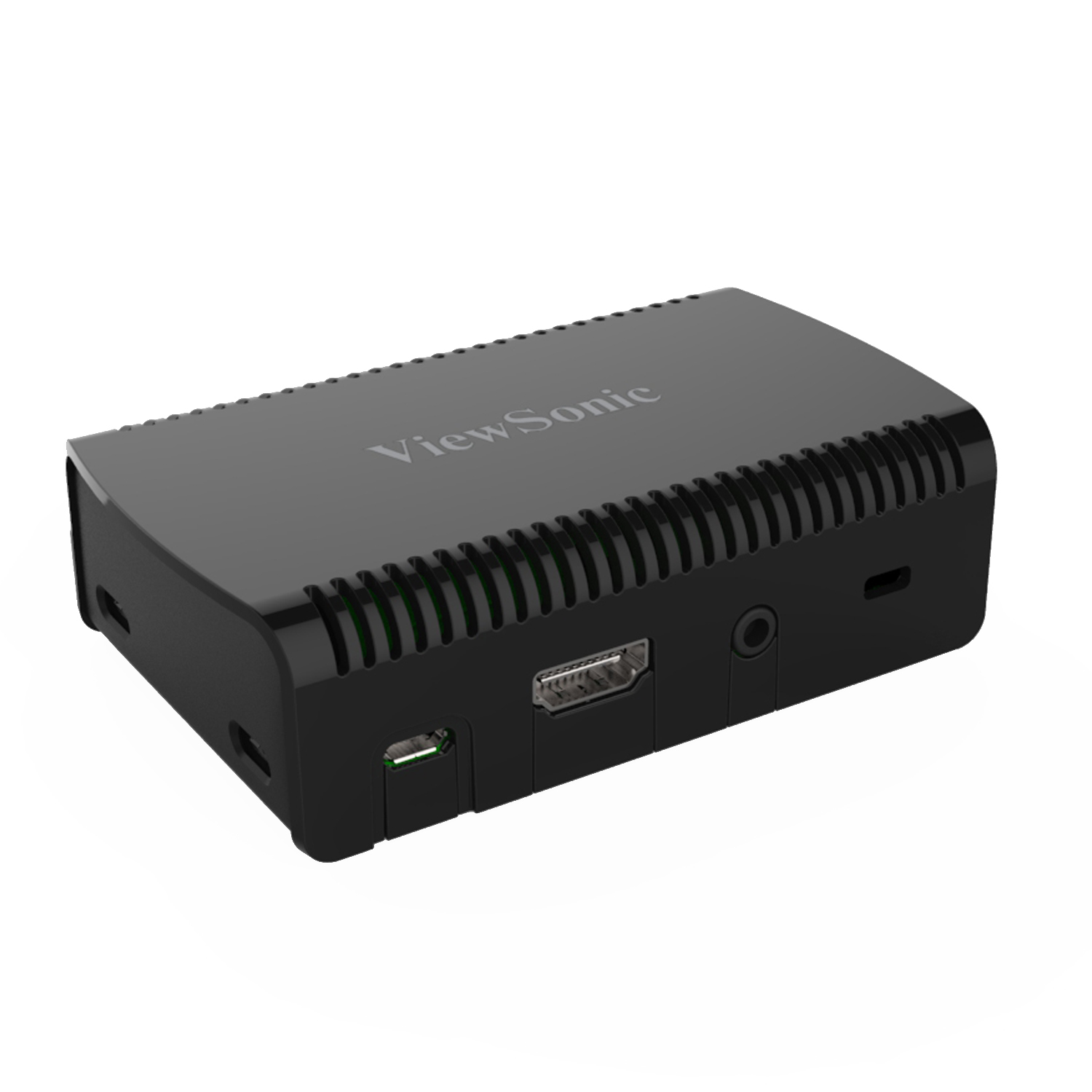

The ViewSonic® SC-T25 Raspberry Pi 3 Thin Client is perfect for businesses looking for cost-effective and flexible solutions for their virtual desktop computing needs. Equipped with a Broadcom BCM2837 quad core ARM Cortex CPU and ViewSonic Thin OS (VTOS) Arm Linux OS, the SC-T25 is optimized for Citrix HDX. The included ViewSonic Device Manager (VDM3.0) software allows for simple provisioning and updating across the network. With a slim and compact design, the SC-T25 easily attaches to your VESA-ready monitor with optional mounting plate, and also saves energy with an eco-friendly design that consumes less than 13W of power and uses up to 90% less energy than standard PCs. ViewSonic’s SC-T25 is the smart choice for your virtual desktop deployment.- Raspberry Pi Platform
- Highly Optimized HDX Thin Client
- Digital HDMI output supports displays up to 1920 x 1200
- Equipped with Wi-Fi and RJ45
- Enhanced peripheral support with four USB (V2.0) ports

Raspberry Pi Platform
This high-performance HDX-ready thin client is built upon the latest Raspberry Pi 3 platform. It delivers a high-definition experience to users of rich media apps and desktops in a virtual computing environment. With this thin client, you can achieve the best possible Citrix performance at the lowest per-seat cost.
Optimized for HDX
This thin client is Citrix Ready – HDX Verified, providing users with secure, fast, and convenient access to remote desktops and applications on their Citrix servers in a familiar Windows environment. It’s a perfect thin client device for Education, SMB, and Enterprise customers.
HDMI Output
With a digital HDMI output, this thin client supports displays with up to 1920x1200 resolution.
Equipped with Wi-Fi and RJ45
This smart display includes Wi-Fi 802.11 a/b/g/n and RJ45 Ethernet, providing flexible access options for website browsing, cloud access, and data exchange.
4 USB Ports
4 USB ports deliver versatile connectivity to diversified storage devices, peripherals, and high-definition electronics for enhanced convenience and flexibility.
Simplified and Secure Management
The bundled ViewSonic Device Manager (v3.0) software provides IT administrators with a powerful interface for easier, faster deployment.
VESA-Compatible Mount
With a sleek, compact form factor, this client device reduces clutter and streamlines the desktop. It features a unique desktop stand that can either be used in a free-standing configuration on the desk, or VESA-mounted to a monitor (with optional adapter plate), depending on your specific needs.
Low Total Cost of Ownership
All of the benefits of a virtual desktop deployment can be realized with ViewSonic thin clients. From simple and quick deployment, enhanced security with no local HDD, increased reliability, and higher productivity—this thin client is an efficient and low-cost choice for virtualizing desktops.
SPECIFICATIONS
- CORECPU: Broadcom BCM2837
CPU Processor Speed: 1.2GHx Quad Core Cortex A3 - GRAPHICSChipset: Dual core ViseoCore IV. Multimedia Processor
Resolution: 1920 x 1200 (Max) - MEMORYSystem: 1GB LPDDR2 450MHz
Storage: External 8GB micros SD

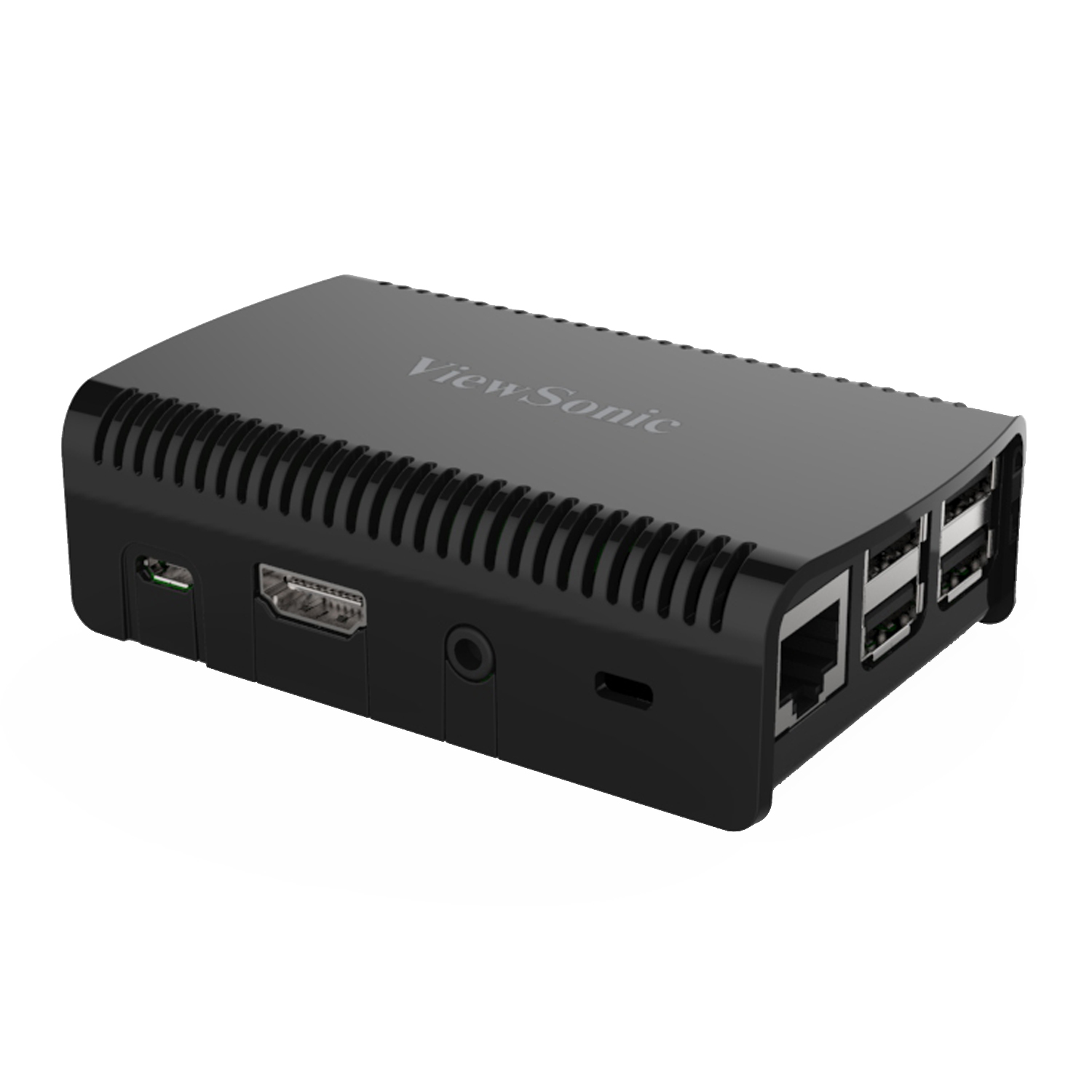

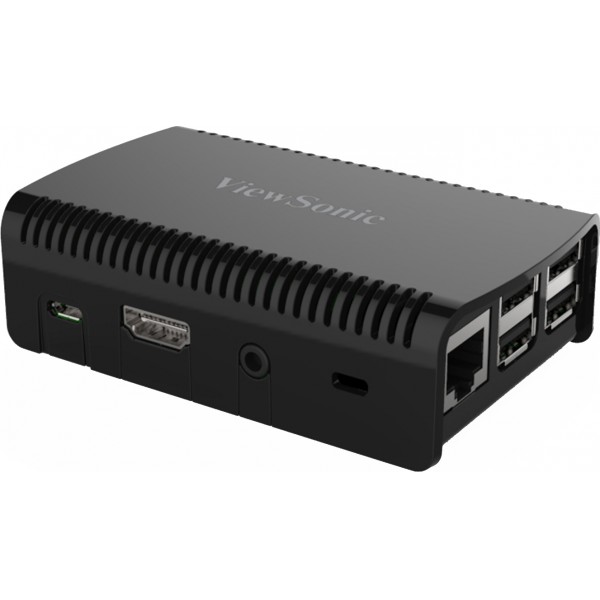

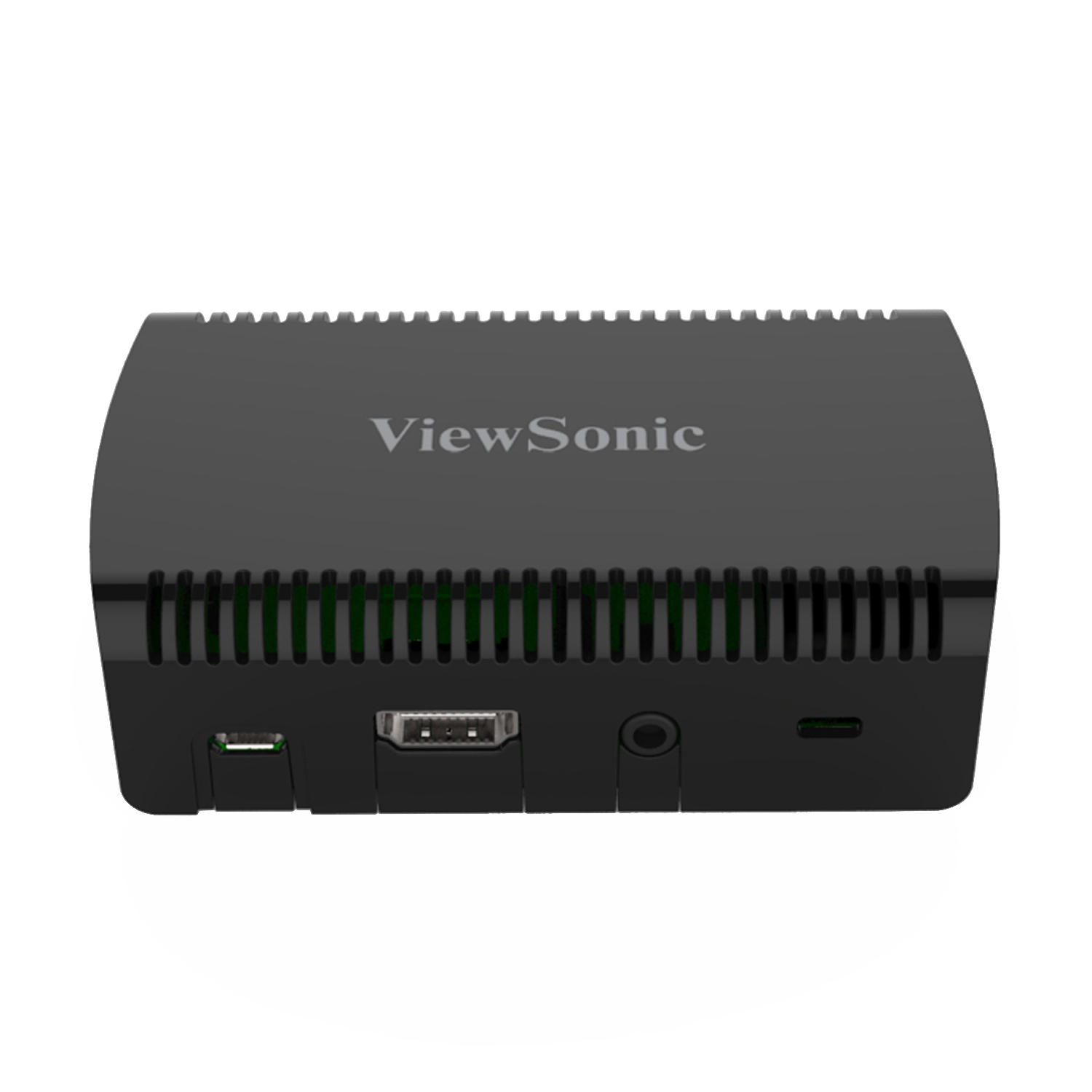

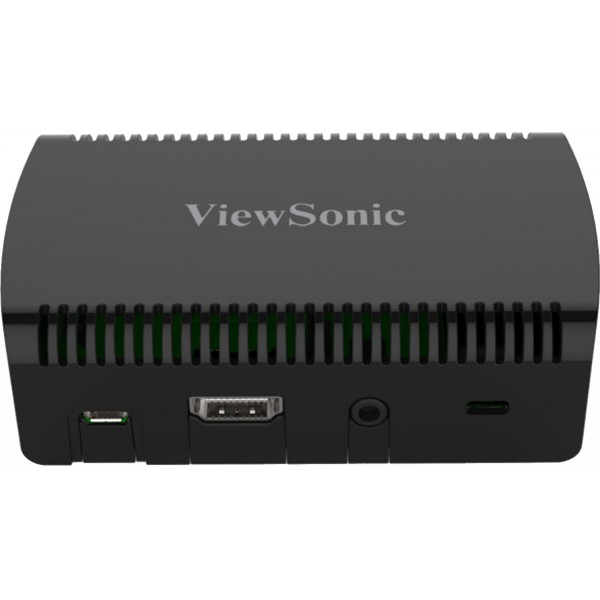

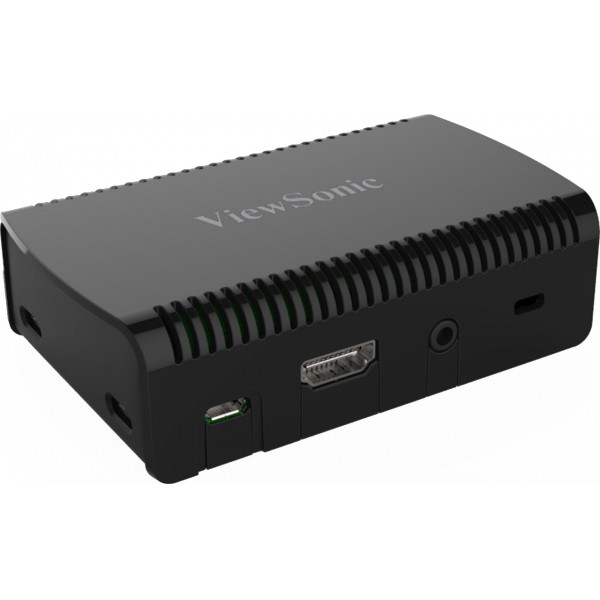

- CONNECTORHDMI: 1 (rev 1.3 &1.4)
USB: USB2.0 x 4
Audio/Composite video jack: 3.5mm mini jack (x1)
LAN: RJ45 (x1)
Power: DC In - COMMUNICATIONEthernet LAN: 10/100Mbps
Wireless LAN: 802.11 b/g/n
Physical: 99mm x 61mm x 29.5mm (3.9" x 2.4" x 1.16")
Packaging: 160mmx 110mmx 60mm (6.3"x 4.33" x2.36") - REGULATIONSFCC, ENERGY STAR®, EPEAT Silver, WEEE, RoHS, REACH
- SOFTWAREOS: VTOS( Linux Debian Jessie 8 and Kernel 4.4.7)
Protocols: HDX, VMC, X11, Web, Performance monitor, VDM3.0
Management: ViewSonic Device Manager / ViewSonic configuration tool - POWERVoltage: 5.1V DC; 2.5A, 13W
Consumption: 13W (typ) - VESA® MOUNT100mm x 100mm
- PACKAGE CONTENTSSC-T25 Thin Client, Universal power plug pack , power adapter, Quick Start Guide, Compliance information brochure
**Actual content may differ from market to market - OPERATING CONDITIONSHumidity: 10–90% (non-condensing)
Temperature: 32-104ºF (0-40ºC)
