OVERVIEW

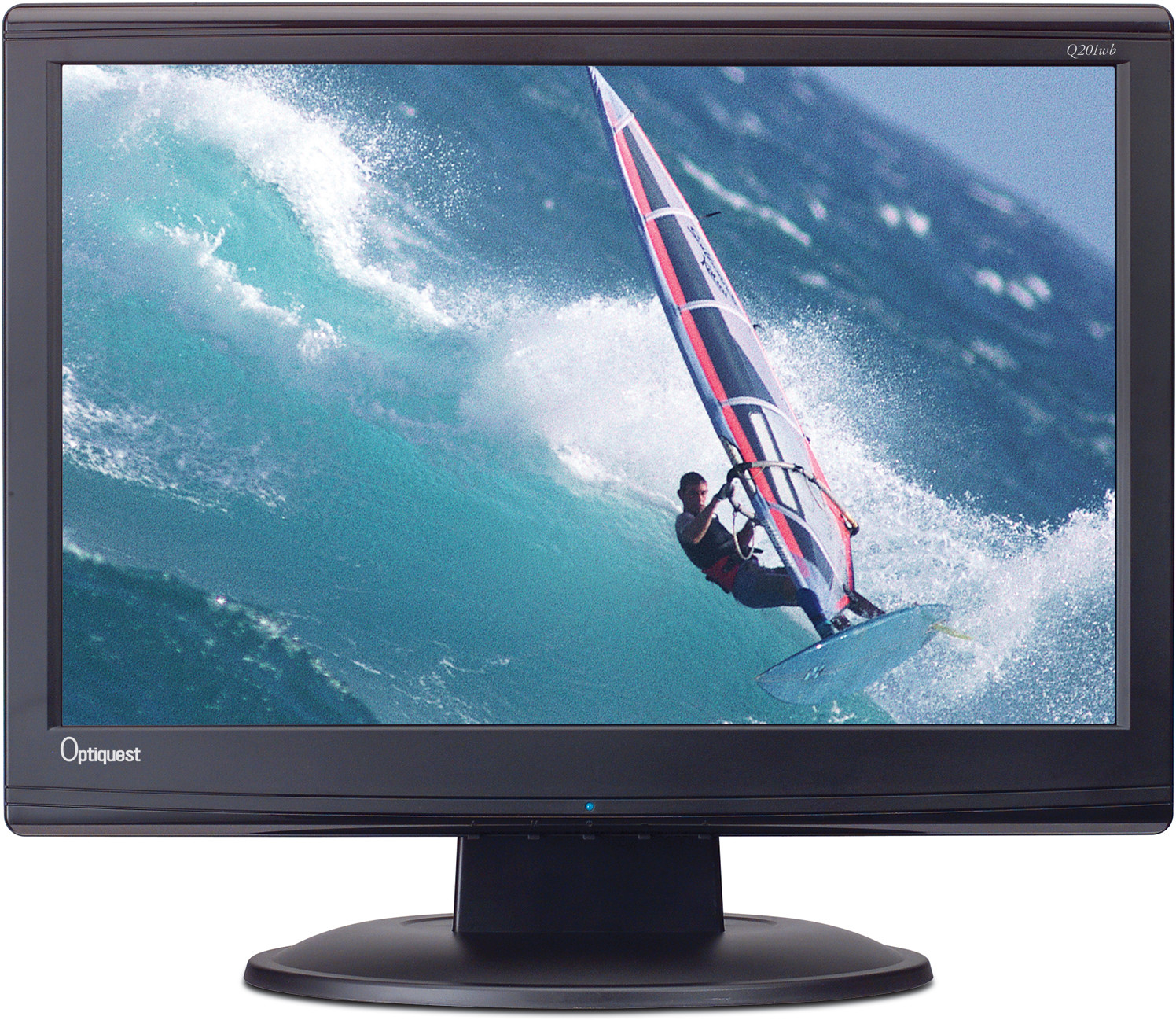

The Optiquest® Q201wb 51 cm / 20" widescreen LCD is the big screen choice for users on a budget. You won’t sacrifice performance for price with this display. It combines high brightness and contrast ratio with SUPER-FAST 5MS VIDEO RESPONSE for crystal-clear, blur free video, text and graphics. The super-high 1680x1050 resolution reduces eye fatigue and ensures text and graphics are crisp. The widescreen that lets you work in two applications or documents side-by-side, enhancing your productivity. The integrated power supply and VESA® wall-mount compliance reduce clutter and free up valuable desktop real estate. Furnish your desktop in style with the budget-friendly, budget-friendly, feature-rich Q201wb.Affordable widescreen performance
SPECIFICATIONS
- COLORSBlack
- LCDTipo: 51 cm / 20" color TFT active matrix WSXGA LCD
Ratio de contraste: 1000:1 (typ)
Ángulos de visión: 170º horizontal, 160º vertical @ contrast ratio ≥10:1
170° horizontal, 170° vertical @ contrast ratio ≥5:1
Brillo : 300 cd/m2 (typ)
Área de visualización: 43 cm/ 17.1" (horizontal), 27 cm / 10.6" (vertical) ; 51 cm / 20.1" diagonal
Resolución óptima: 1680x1050
Tiempo de respuesta: 5ms (typ)
Fuente de luz : Long life, 40,000 hrs. (typ)
Superficie del panel: Anti-glare
Tamaño del píxel: 0.258mm(H) X 0.258mm(V) - COMPATIBILIDADPC: VGA up to 1680x1050 non-interlaced
Mac®: G3/G4/G5 up to 1680x1050
- DimensionesFísicas con la base: 486mm x 409mm x 204mm (19.1" x 16.1" x 8.0")
Físicas sin la base: 486mm x 345mm x 79mm (19.1" x 13.6" x 3.1") - NormativasUL, cUL, FCC-B, NOM, ENERGY STAR , TUV-S CE, ISO13406-2 Class II, WEEE, RoHS, GOST-R / Hygenic
- GARANTÍAOne-year limited warrranty on parts, labor and backlight
- RECICLAJE/ALMACENAMIENTOThe lamp in this product contains mercury. Please dispose of in accordance with local, state and federal laws.
- ConectividadAnalógico: 15-pin mini D-sub
Alimentación: 3-pin AC plug (CEE22) - AlimentaciónVoltaje: AC 100–240V (universal), 50–60Hz (auto switch)
Consumo: 45W (typ) - CONTROLESBásico: Power, 2, up, down, 1
OnView®: Auto image adjust, brightness, contrast, color adjust (sRGB, 9300K, 6500K, 5400K, user color), H. position, V. position, H. size, OSD position, OSD timeout, OSD background, fine tune, sharpness, language, input select, recall - CONDICIONES DE FUNCIONAMIENTOTemperatura: 32-104ºF (0-40ºC)
Humedad: 20-80% (non-condensing) - PesoNeto con la base: 4.7 kg (10.3 lb).
- Entrada de vídeoFrecuencia: Fh: 30-80kHz; 55-75Hz
Syncronización: H/V Separate (TTL)
Analógico: RGB analog (75 ohms, 0.7 Vp-p) - GESTIÓN DE ENERGÍAENERGY STAR standards
- MONTAJE EN LA PAREDMeet VESA ( 75mm X 75mm ) Standards
- ERGONOMÍAInclinación: -5°/+15°
