OVERVIEW

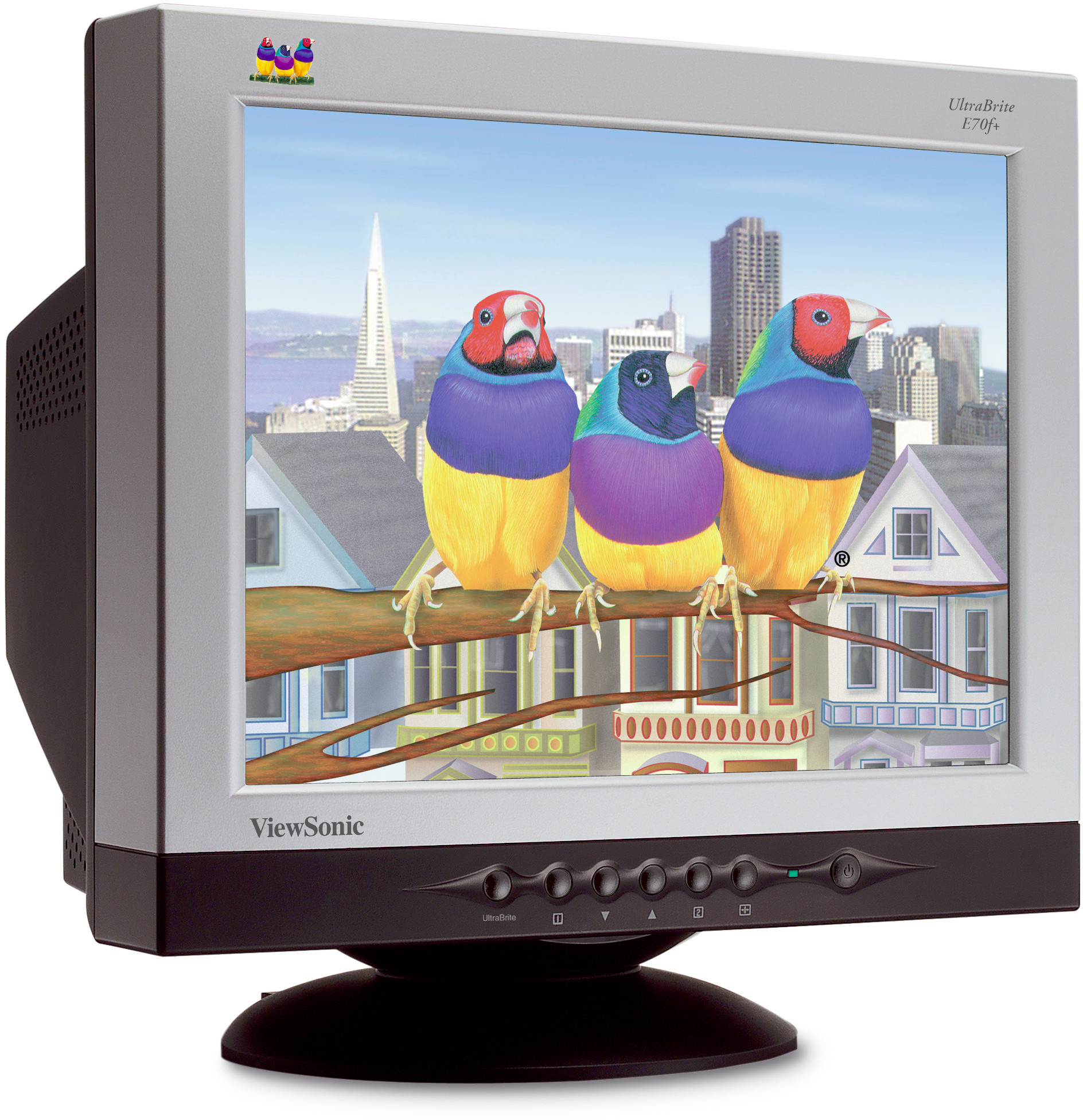

ViewSonic's ultra-stylish black-on-silver E70fSB combines upscale style and crystal clear image performance for exceptional value. The PerfectFlat screen ensures you'll view edge-to-edge, distortion-free images with minimised reflection and glare. Its ultrafine 0.21mm horizontal dot pitch and a flicker-free 1024 x 768 resolution delivers precise picture definition when viewing everyday applications. Adjust your screen with the OnView® controls and secure them with the OSD lock function to ensure optimum screen performance. The E70fSB is ideal for small and home offices, school and internet users.
Affordable performance for work and home
SPECIFICATIONS
- COMPATIBILIDADPC: PC and compatible from VGA up to 1280 x 1024
Mac®: Power Mac™ up to 1024 x 768 (max. 75Hz) - DimensionesFísicas con la base: 395 x 395 x 419
Embalaje (LxAxP): 455 x 416 x 495 - NormativasTCO'03, TUV/GS, ISO9241-3, ISO9241-7, ISO9241-8, CE, CB, GOST-R, UL/cUL , DHHS, FCC-B, ICES-003, MPR II, NOM, PSB, BSMI, WEEE, RoHS
- SEÑAL DE ENTRADAFrecuencia: Fh: 30 - 70kHz, Fv: 50 - 160Hz
Video: RGB analogue (0.7 Vp-p, 75 ohms)
Syncronización: H/V separated (TTL) - ConectividadAlimentación: 3-pin AC plug (CEE22)
Señal: 15-pin mini D-Sub (attached cable) - AlimentaciónVoltaje: AC 90-132/198- 240V, 50/60Hz (auto switch)
Consumo: <68 wattts (typ.), active off <2 watts - CONTROLESBásico: Power on/off, menu [1], up, down, select [2], auto-adjust
Menú en pantalla: Contrast, brightness, zoom, H/V size, H/V position, pincushion, pin balance, trapezoid, parallelogram, tilt, moiré reduction, degauss, ViewMatch® colour (9300k, 6500k, 5000k user), ViewMeter, OSD position, language (8 options), OSD lock, memory recall - CONDICIONES DE FUNCIONAMIENTOTemperatura: 0°C to 40°C
Humedad: 5% to 95% (no condensation) - PesoPeso: 13.9kg
Bruto: 16.4kg - OtroDDC1, DDC2B
- Entrada de vídeoAncho de banda: 120MHz
- GESTIÓN DE ENERGÍAMeets TCO'03 standard
- CRTTipo: 43cm / 17" (16.0" viewable) CRT, 90° deflection, PerfectFlat
Tamaño de punto: 0.20mm horizontal x 0.13mm vertical, 0.25mm diagonal
Fósforo: RGB medium/short persistence
Superficie de cristal: Tint: (TM = 57%), anti-reflection, anti-static, anti-glare - MODOS PROGRAMABLESFábrica: 12
Usuario: 10 - ÁREA DE VISUALIZACIÓNAjustes de fábrica: 310mm (H) x 230mm (V) (typ)
Escaneo máximo: 325mm (H) x 244mm (V) (depending on signal timing used)
