OVERVIEW

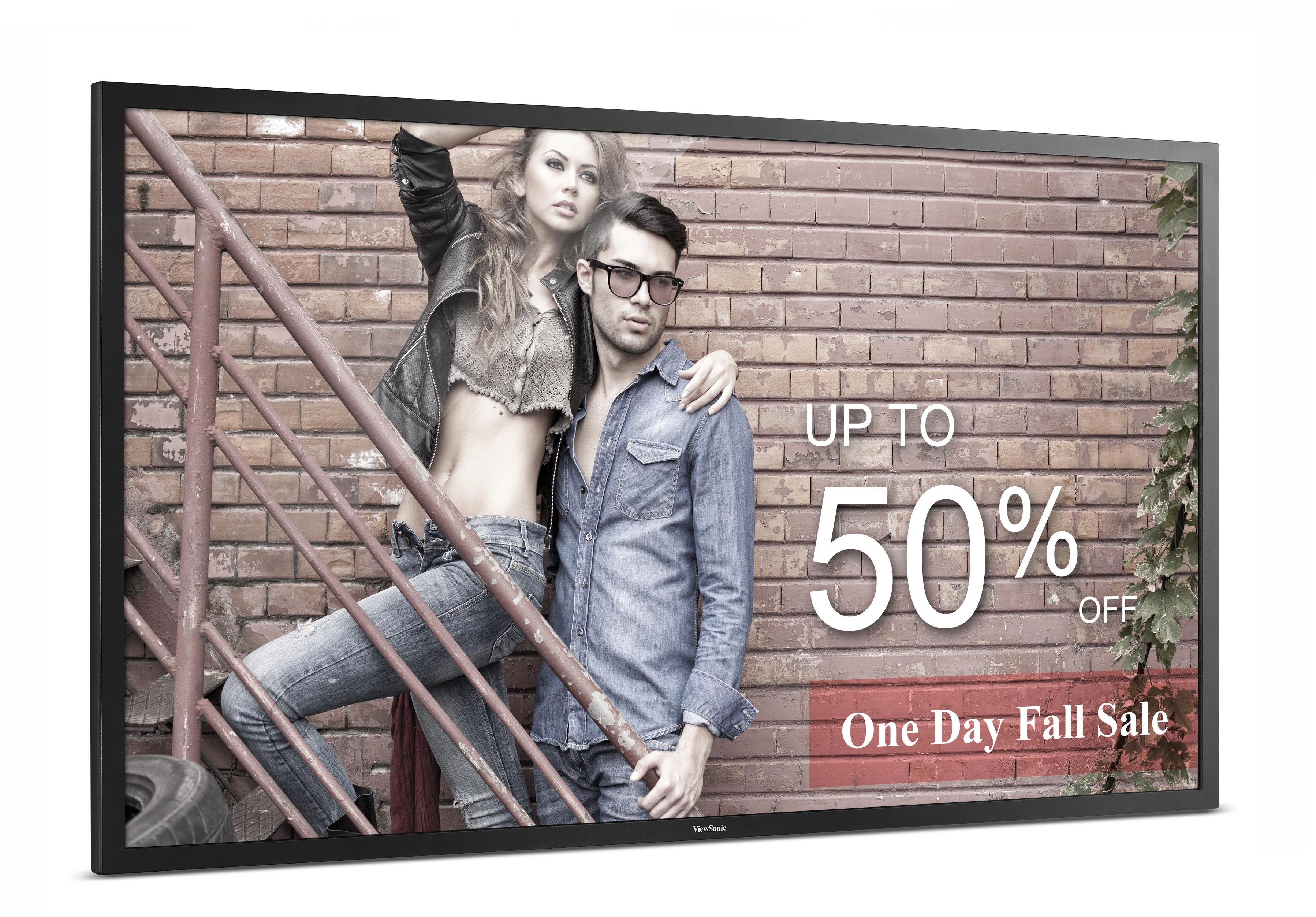

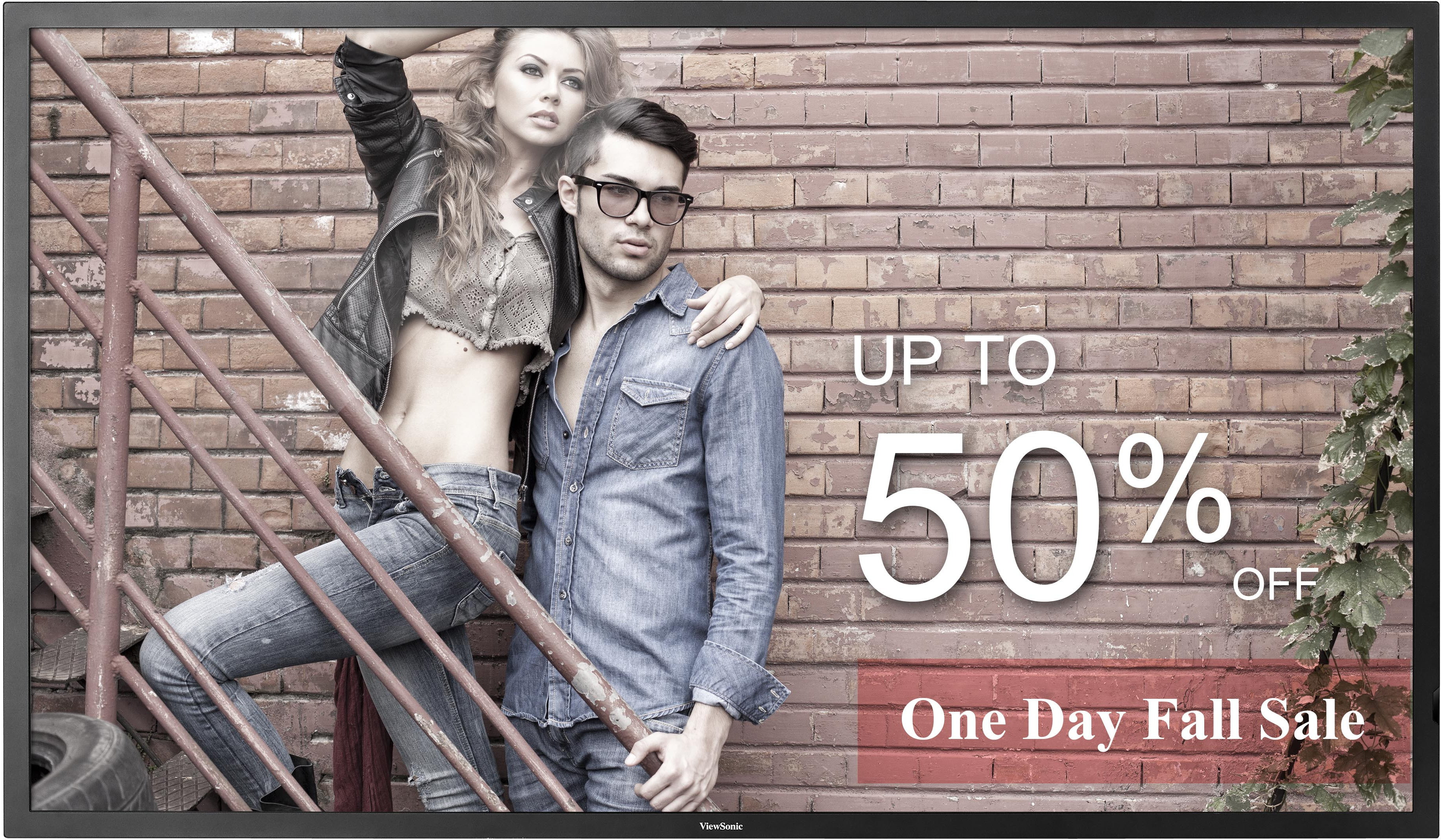

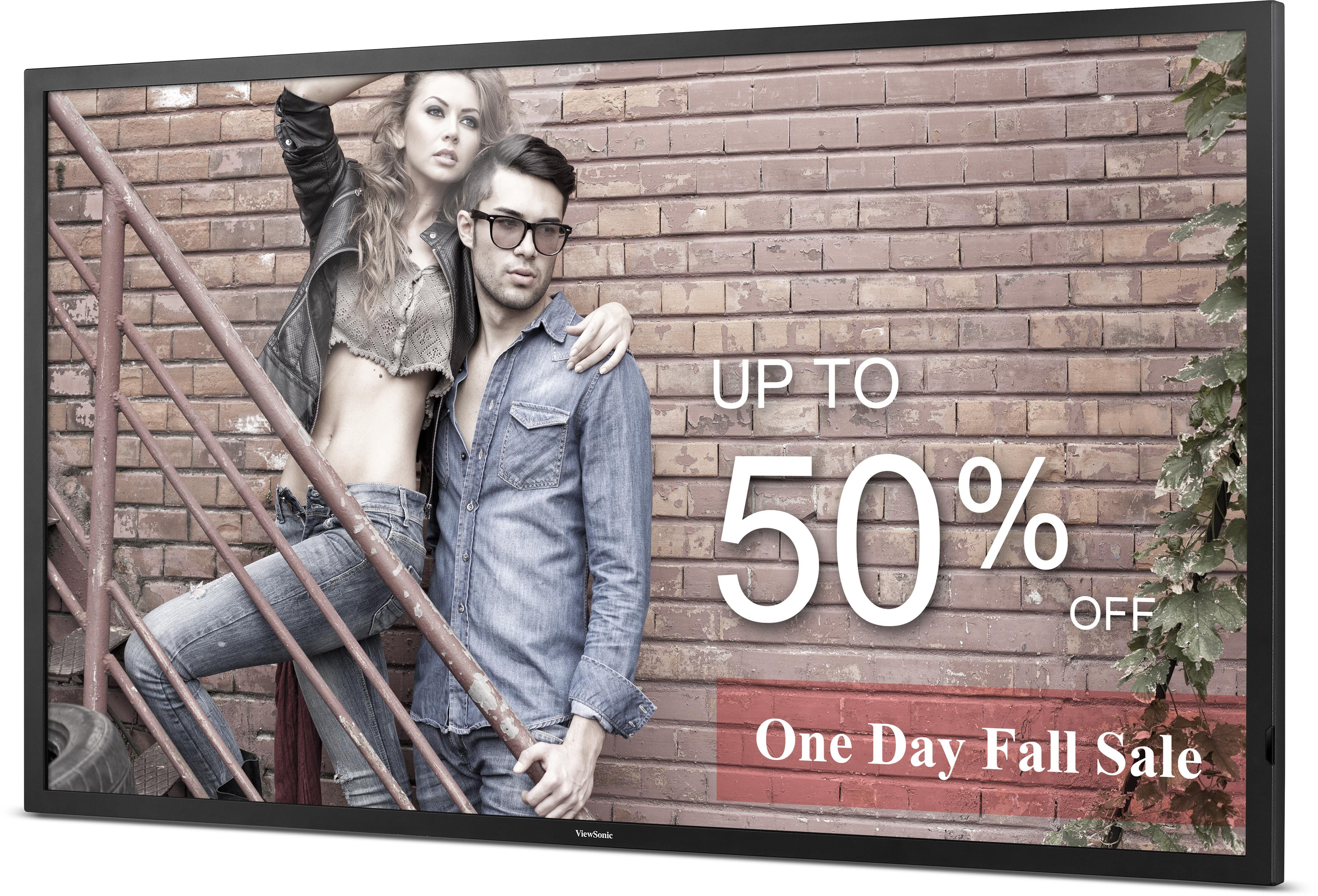

The ViewSonic CDE5500-L is a 55’’ (55’’ viewable) commercial LED display with a 24mm narrow-bezel design that delivers more impactful visual messaging for corporate, retail, hospitality, and other indoor environments. An integrated media player supports USB-drive playback of videos, photos, and music, as well as content scheduling. In addition, it provides LAN content loading from PCs or mobile devices via network connection, offering an efficient and fast way to display content. Featuring Full HD 1080p resolution, 350-nit high brightness, 1400:1 high contrast ratio, SuperClear® technology for improved wide-angle viewing, and dual 7W stereo speakers, the CDE5500-L delivers sharp, vivid images with incredible sound for superior multimedia messaging performance. Versatile connectivity options include HDMI, DVI, D-Sub, YPbPr, and CVBS inputs for easy installation and control of a variety of high-definition devices. Integrated RS232 with IR pass-through and a one-time setting function make the CDE5500-L an easy-to-manage solution for multiple-display configurations.

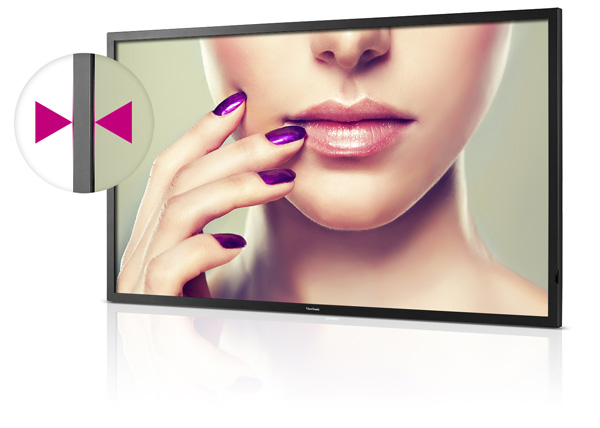

Sleek, narrow bezel design for greater visual impact

ViewSonic’s CDE5500-L commercial display features a 24mm narrow bezel design. This sleek, narrow bezel maximizes impactful visual messaging for passersby, making the CDE5500-L the perfect choice for digital signage installations.
CDE4600-L Narrow-Bezel-Design feature
Icon-LED

Energy-Saving LED Backlight

The CDE5500-L utilizes an energy-saving LED backlight that consumes 35% less power than conventional CCFL backlight displays. This provides for a lower overall cost of ownership, along with a higher ROI, making this display a great long-term investment.
CDE4600-L LED-Backlight feature

Built-in media player for USB playback of videos, photos and music

The CDE5500-L features an integrated media player with convenient USB playback function. Now, photos, music and 1080p video can be quickly displayed on-screen directly from a USB drive – without the need for a PC.
CDE4600-L USB-Multimedia-Player-For-Scheduling feature
Lan V-BL

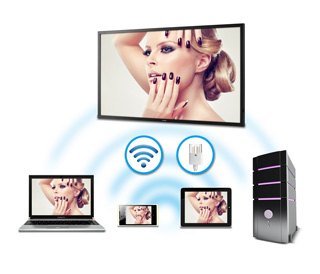

Easy LAN and wireless content streaming from PCs and mobile devices

The CDE5500-L features a RJ45 port to connect directly with PCs or notebooks via Intranet connection. This provides for the efficient loading of content onto multiple displays through a primary display. DLNA-compatible mobile devices can also utilize a wireless hub to push multimedia content directly to selected displays.
CDE4600-L Easy-Content-Uploading-Via-LAN-And-Wireless-From-PCs feature

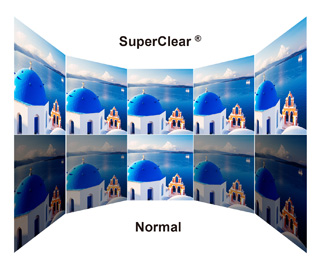

SuperClear® technology with wide viewing angles

SuperClear® image enhance technology delivers 178-degrees of vertical and horizontal viewing angles. Target audiences will experience accurate, vivid colours, and consistent brightness levels whether looking at the screen from above, below, the front, or the side—with no distortion or decay.
CDE4600-L Super-Cleas feature

Full HD for Superior True-Color Performance

The ViewSonic’s CDE5500-L displays content in Full HD 1920 x 1080 resolution to deliver superior pixel-by-pixel true-colour performance. At this resolution and brightness, high-definition multimedia messaging can be seen crystal-clear with a more realistic viewing experience.
CDE4600-L Full HD feature

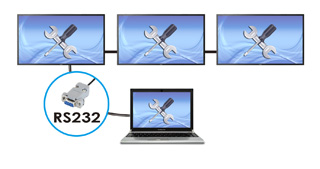

RS232 Input and output for easier Management

RS232 input and output connectivity, along with IR pass-through functionality, provides for easy and efficient management of multiple-display configurations from a single notebook or PC. By using the RS232 output, daisy-chained configurations can be managed via a primary CDE5500-L display.


CDE4600-L RS232 feature

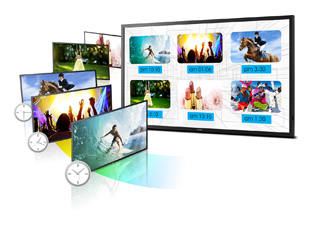

Efficient, user-friendly content scheduling and settings

The ViewSonic CDE5500-L commercial display provides an efficient, user-friendly scheduling interface via the on-screen display (OSD). Display setup features include time and date scheduling, repeat and shuffle settings, as well as content source settings for various inputs.
CDE4600-L videos-Photos-And-Music feature
Icon-hdmi

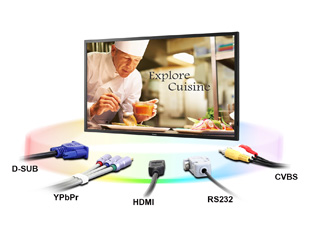

Versatile Inputs and One-Time Configuration Settings

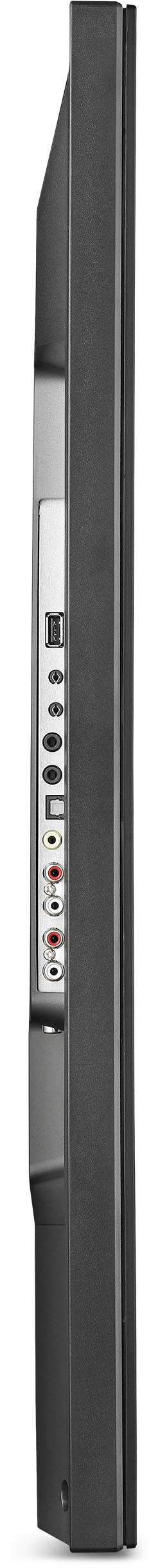

With a versatile selection of inputs, including HDMI, DVI, CVBS, YPbPr (YCbCr) and VGA, the CDE5500-L commercial display enables you to easily connect and use a variety of analogue and digital equipment. Best of all, the one-time display installation and setup feature means your preferred source settings are never lost.
CDE4600-L Versatile-Inputs feature
2Wx 2 Speaker

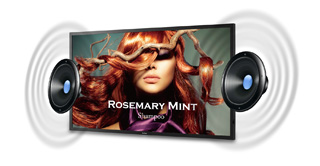

Dual stereo speakers for enhanced audio

With a pair of integrated 7W speakers, the CDE5500-L combines eye-catching multimedia content with high-quality sound effects—creating a lasting audio-visual impression on your target audience or demographic.

CDE 4600-L Dual7-Watts-Stereo-Speakers feature
Icon-vesa

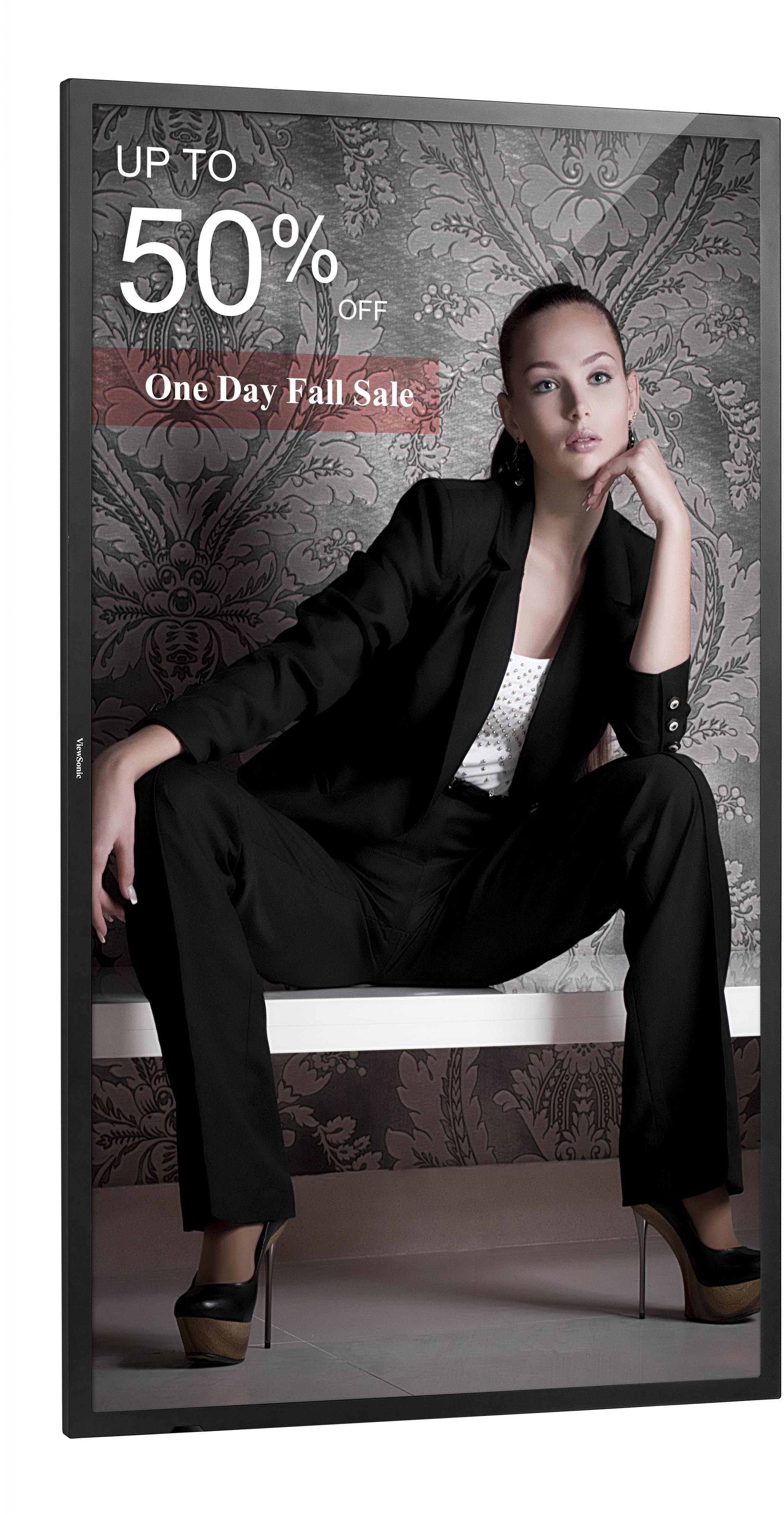

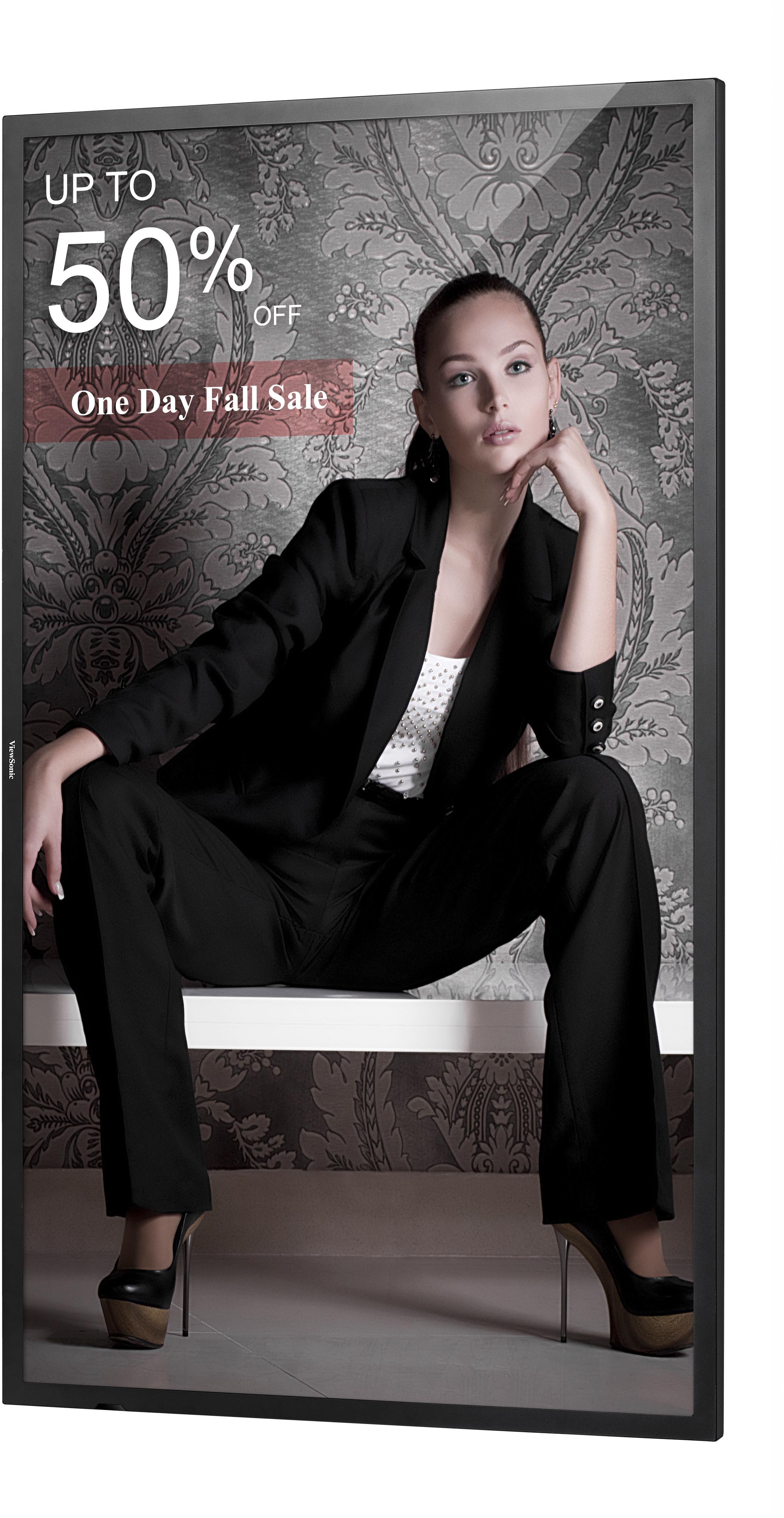

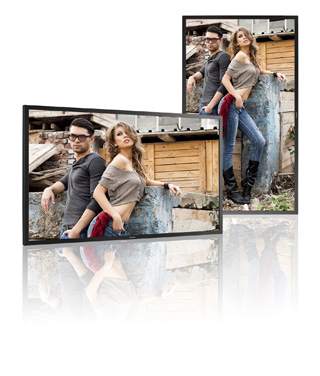

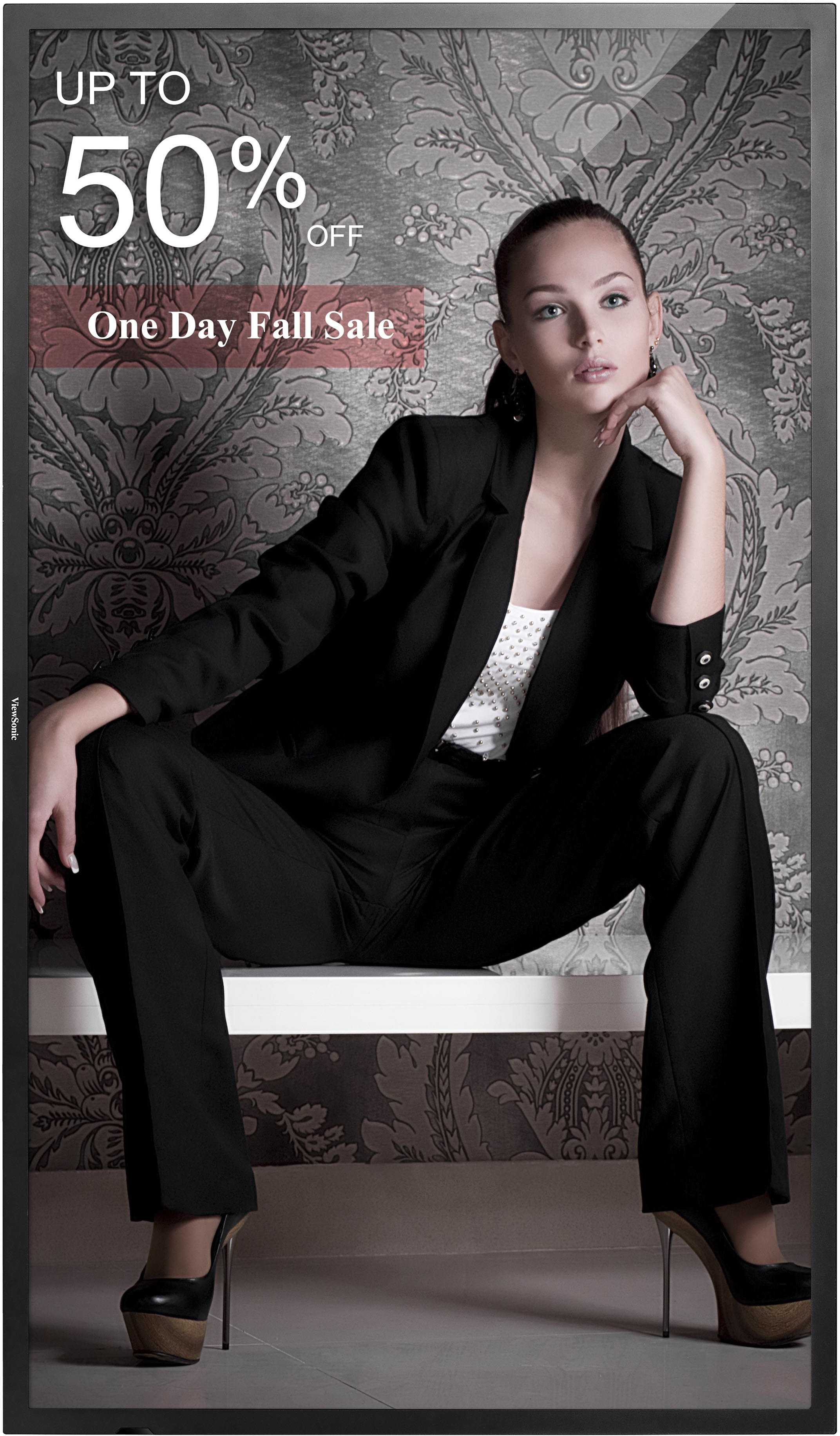

Portrait or Landscape Mountable

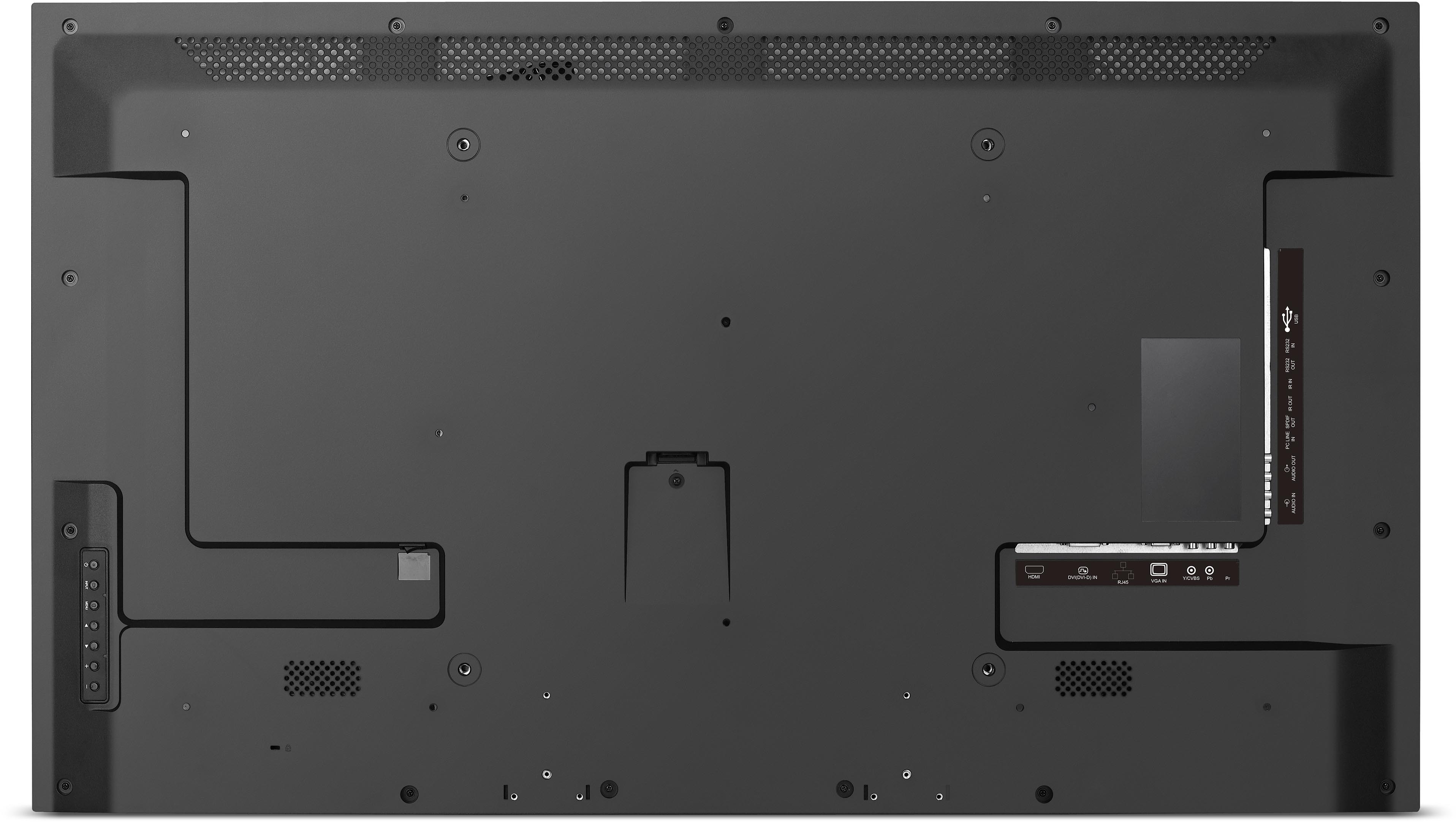

The CDE5500-L can be VESA-mounted (400mm x 400mm) in either portrait or landscape orientation for display flexibility in a variety of settings.
CDE4600-L Flexible-Landscape-Portrait-Wall-mounted-Installation feature

SPECIFICATIONS


  • LCD
    Tipo: TFT LED Module with LED Backlight

    Ratio de contraste: 1400:1 Typ.
    Ángulos de visión: 178° horizontal, 178° vertical SuperClear®
    Área de visualización: 1209.6(H) x 680.4 (V) (55” diagonal)
    Resolución óptima: 1920x1080
    Tiempo de respuesta: 6ms
    Relación de aspecto: 16:9
    Superficie del panel: Hardness 3H
    Gama de colores: 16.7M colours
    Tamaño: 55” (55” viewable)
    Brillo : 350 cd/m2
    Retroiluminación: LED
    Vida útil de retroiluminación: 30,000 Hours Typ
  • COMPATIBILIDAD
    Component: 480i, 480p,720p,1080i,1080p
    DVI-D: 480i, 480p,720p,1080i,1080p
    HDMI: 480i, 480p,720p,1080i,1080p
    RGB PC / HDMI PC: Refer to timing table

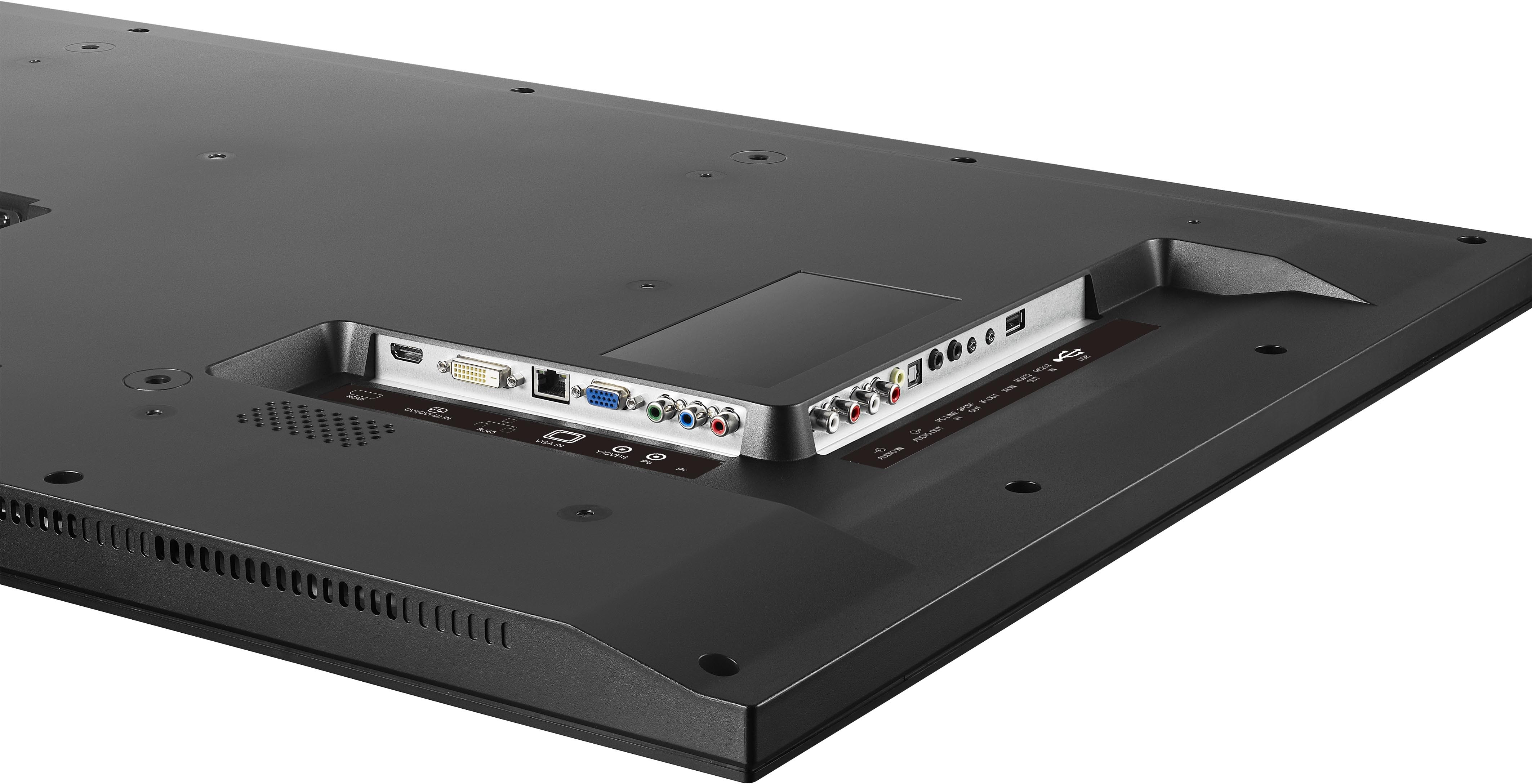

  • Conectividad
    CVBS: (Share with component Y) x 1
    HDMI (entrada): x 1
    RS-232: x 1
    Audio (entrada/salida): x 1 (RCA L/R) / x 1 (RCA L/R)
    USB: x 1
    PC-VGA: x 1
    Entrada componentes: x 1
    DVI: DVI-D x 1
    Red: x 1 (RJ45)

    PC Audio Input: x 1 (3.5mm jack)
    IR Pass Through: x 1
