OVERVIEW

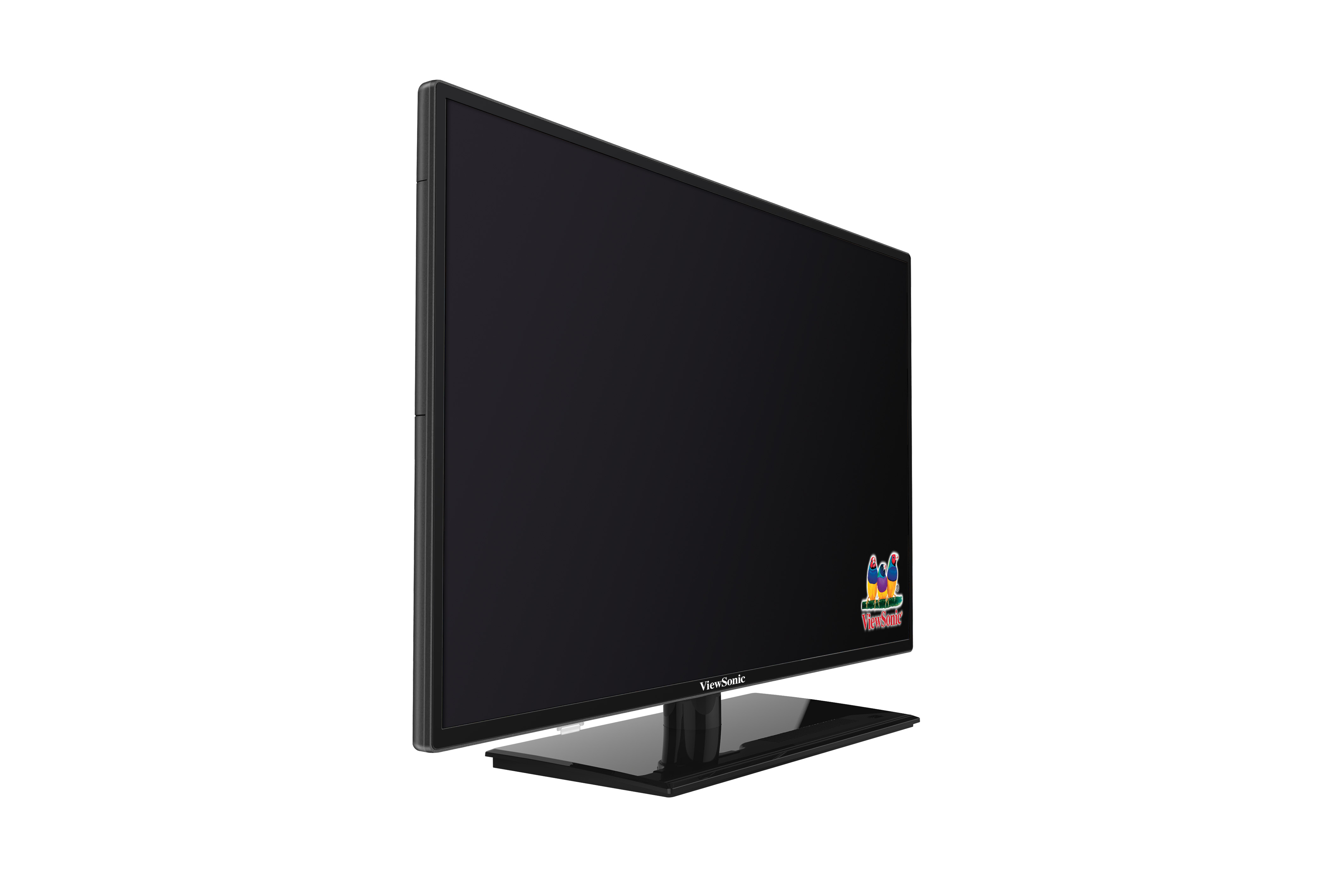

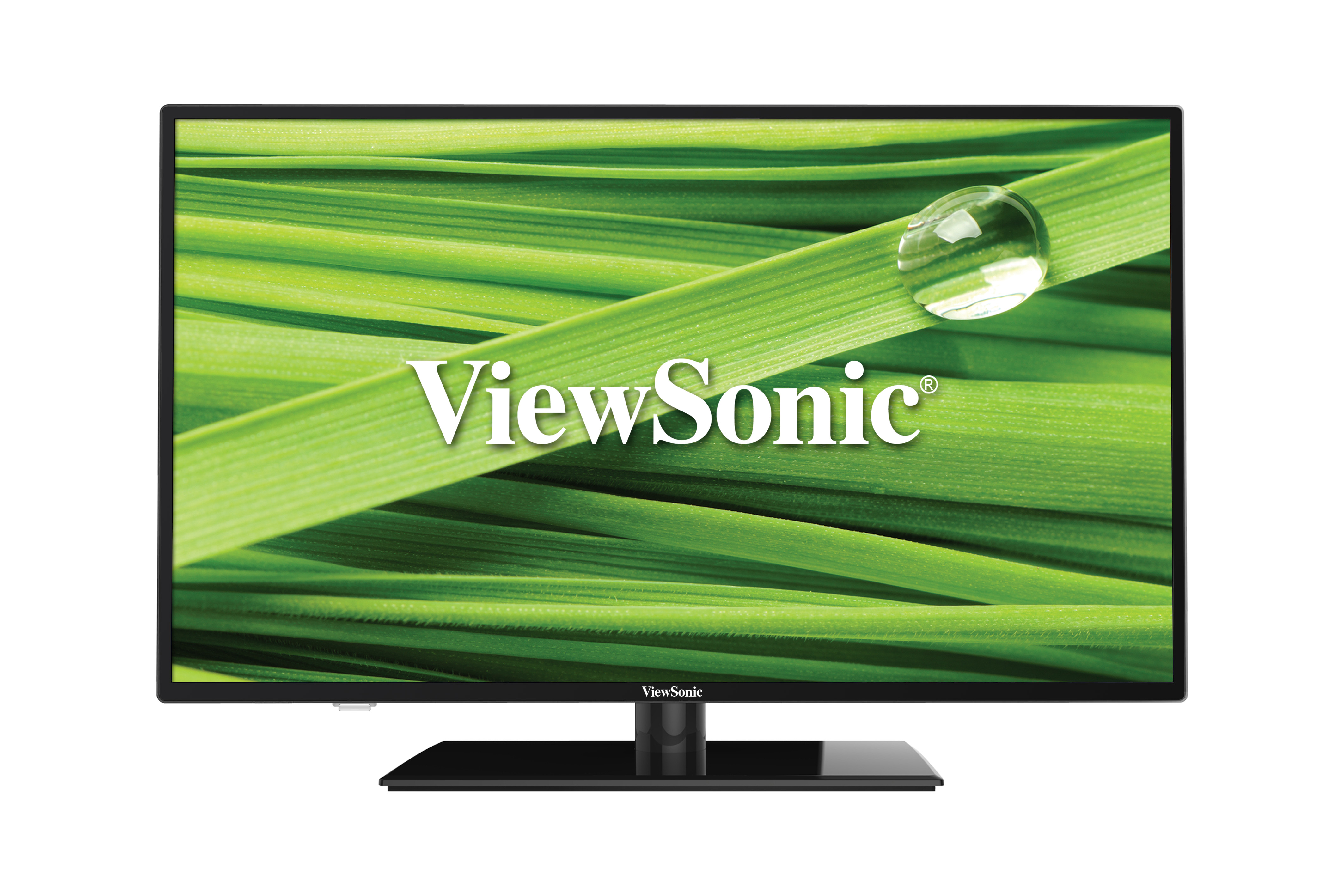

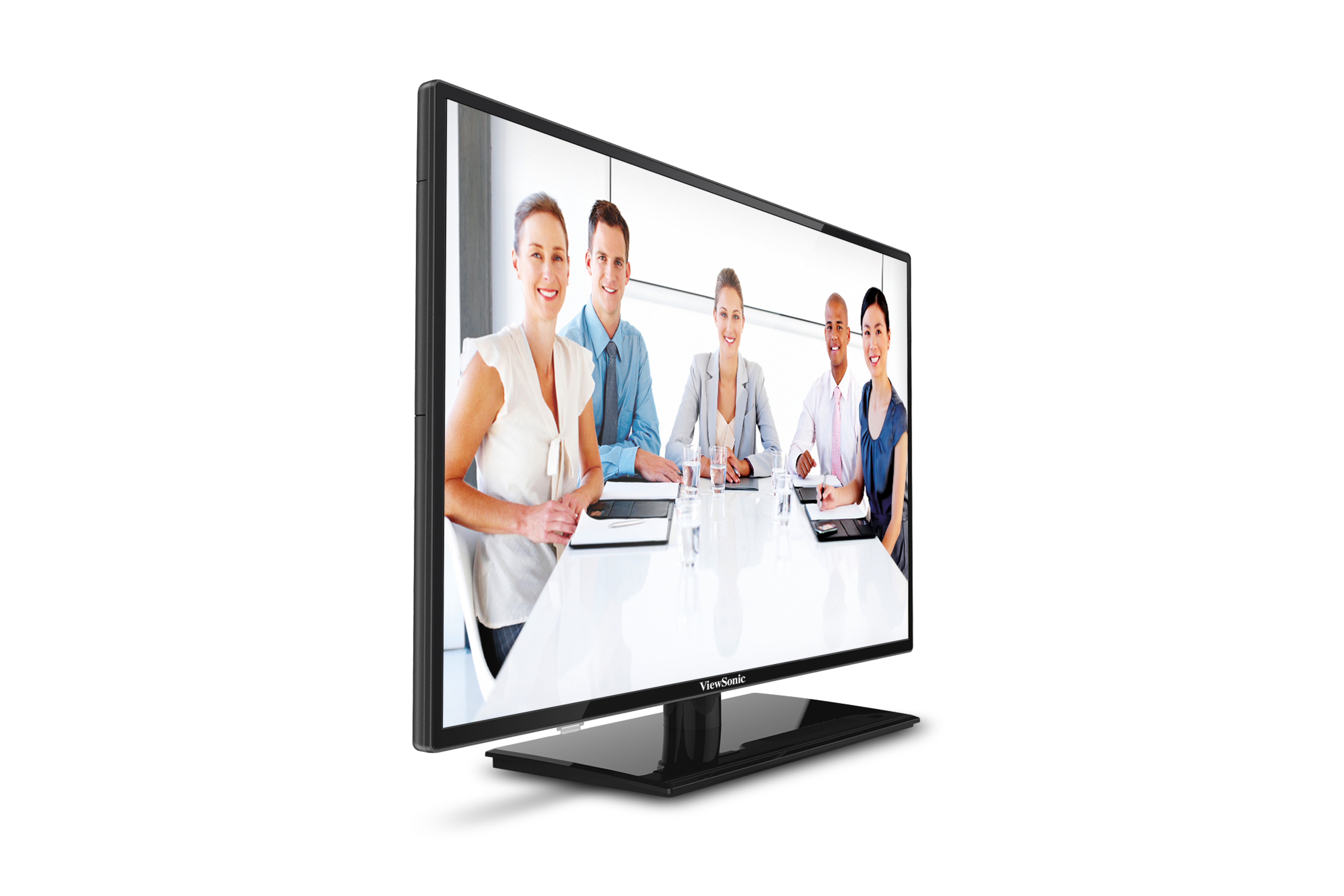

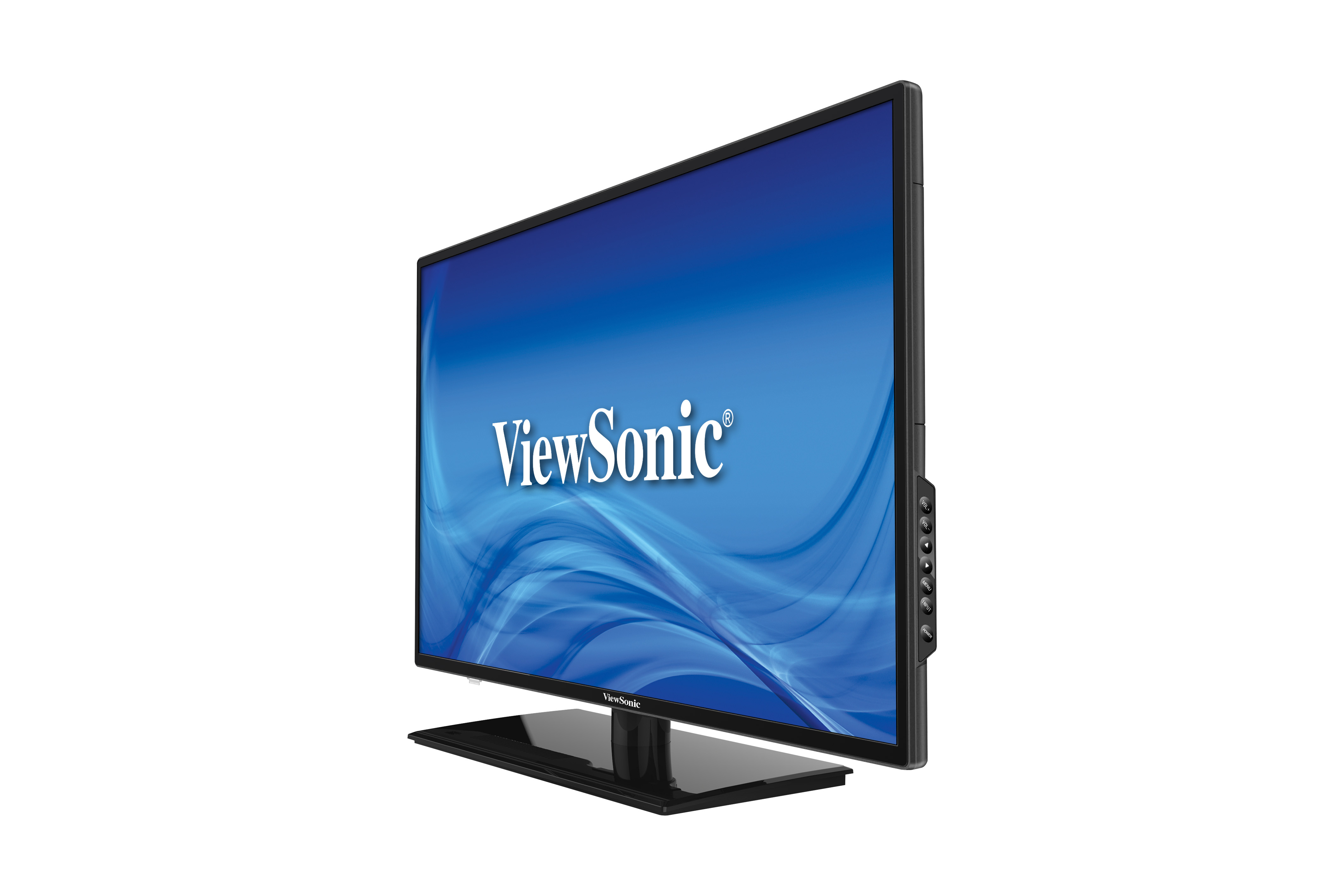

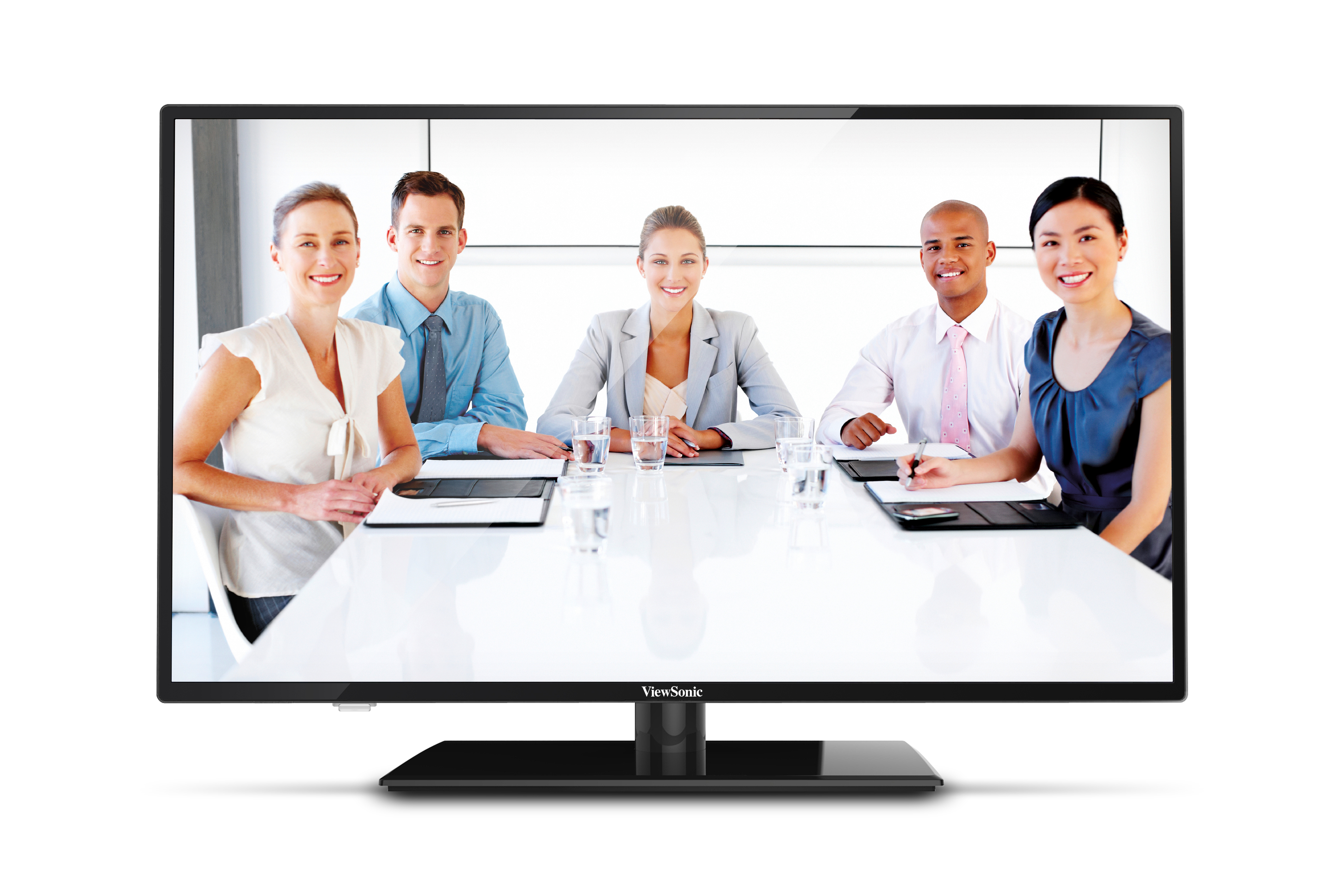

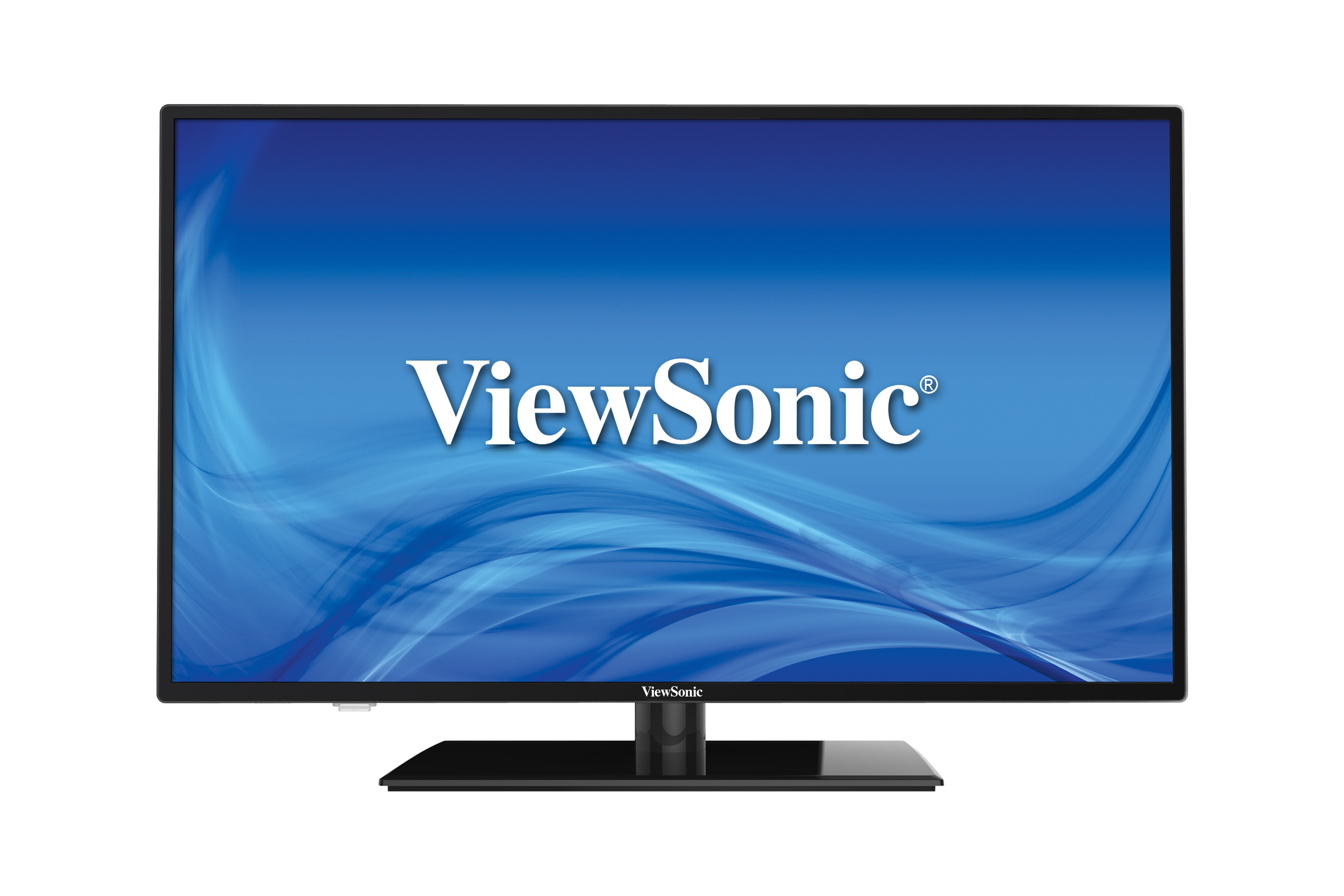

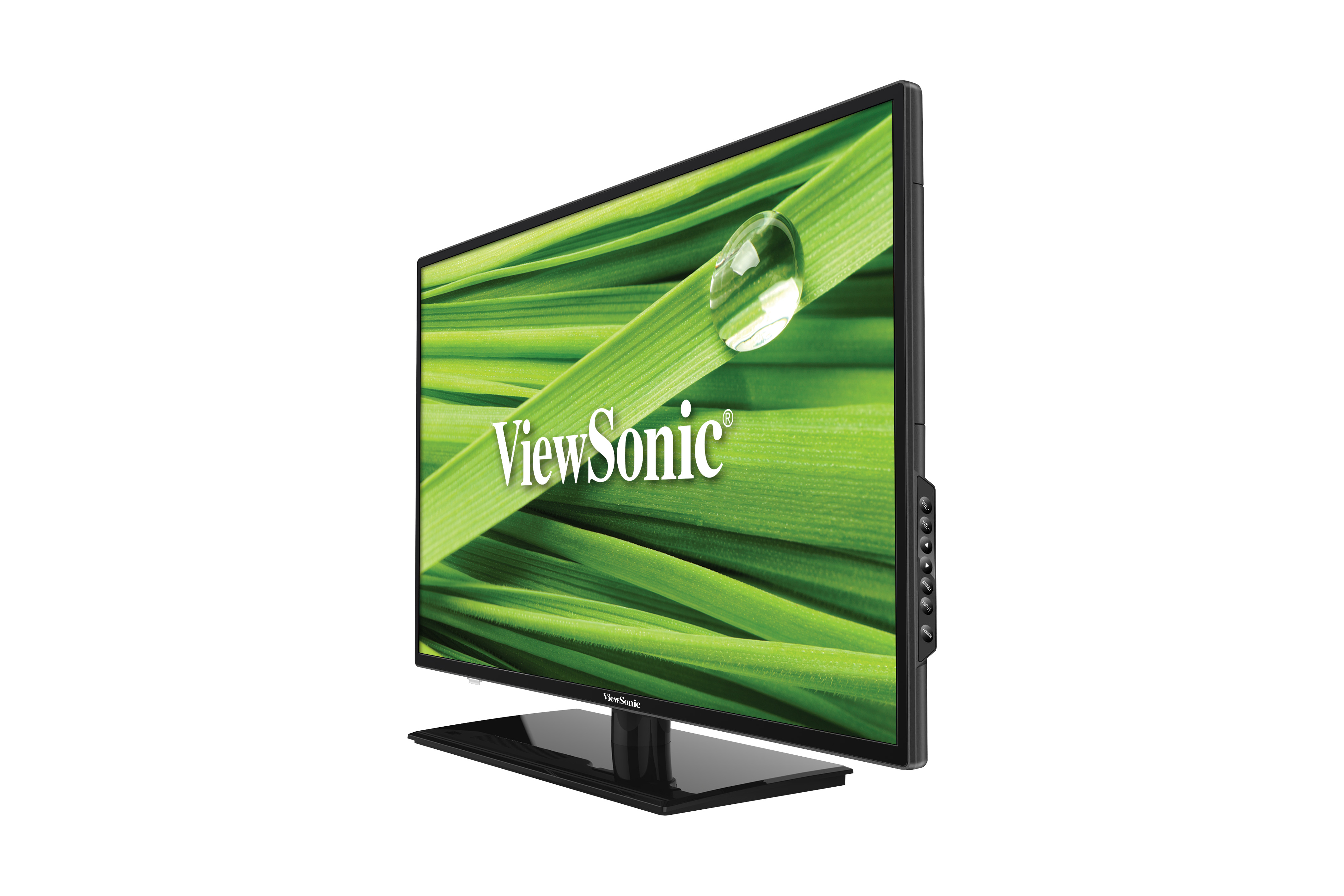

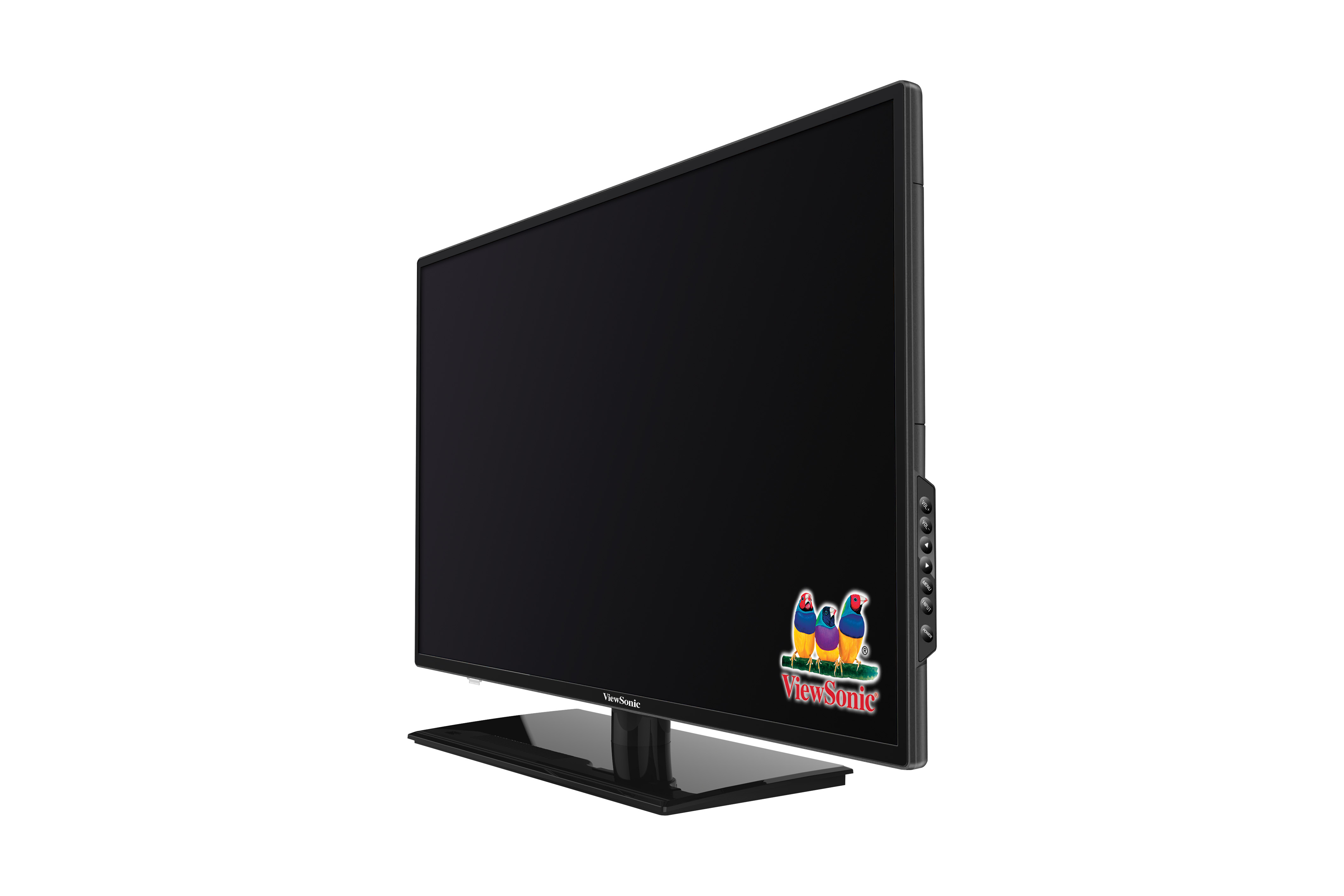

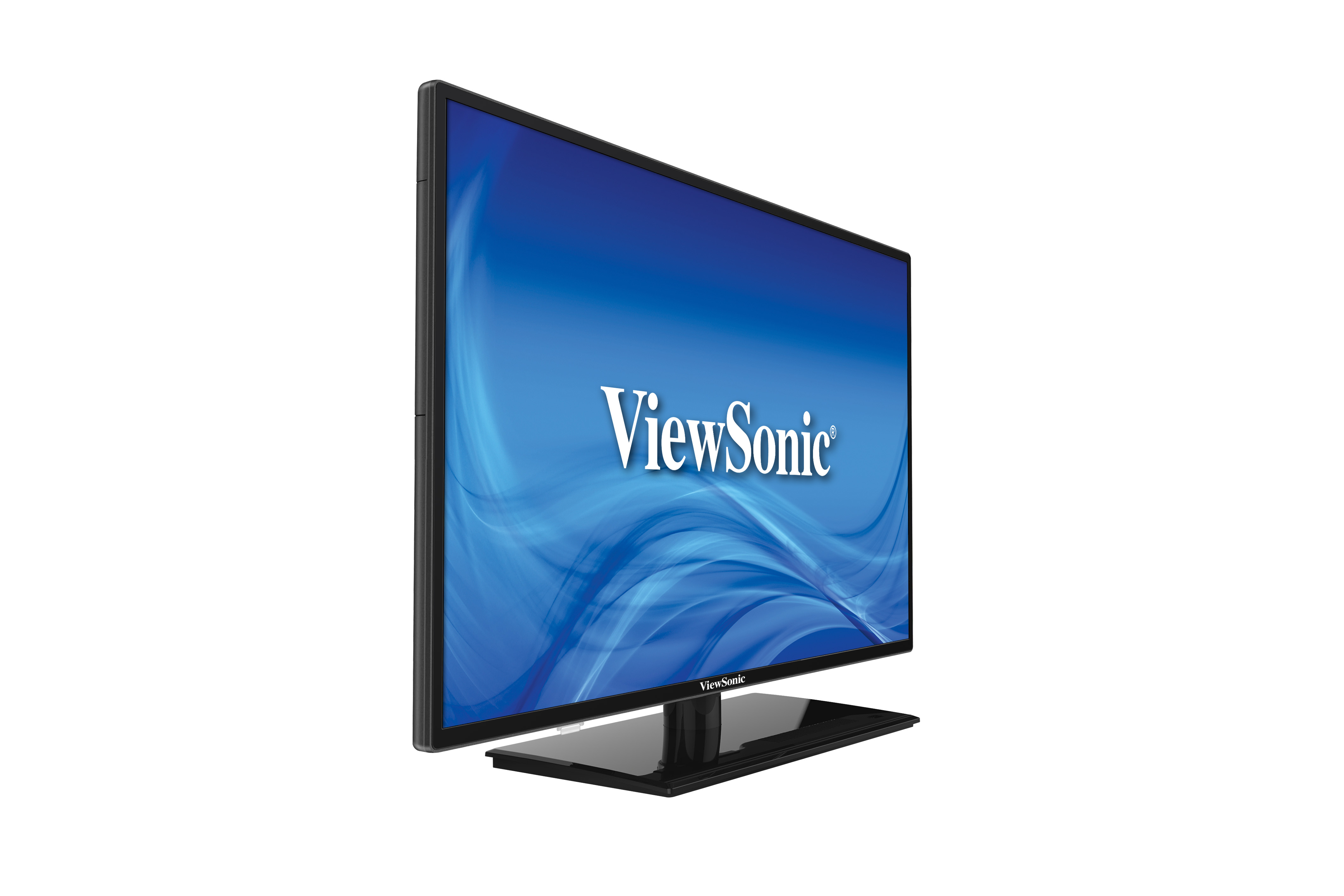

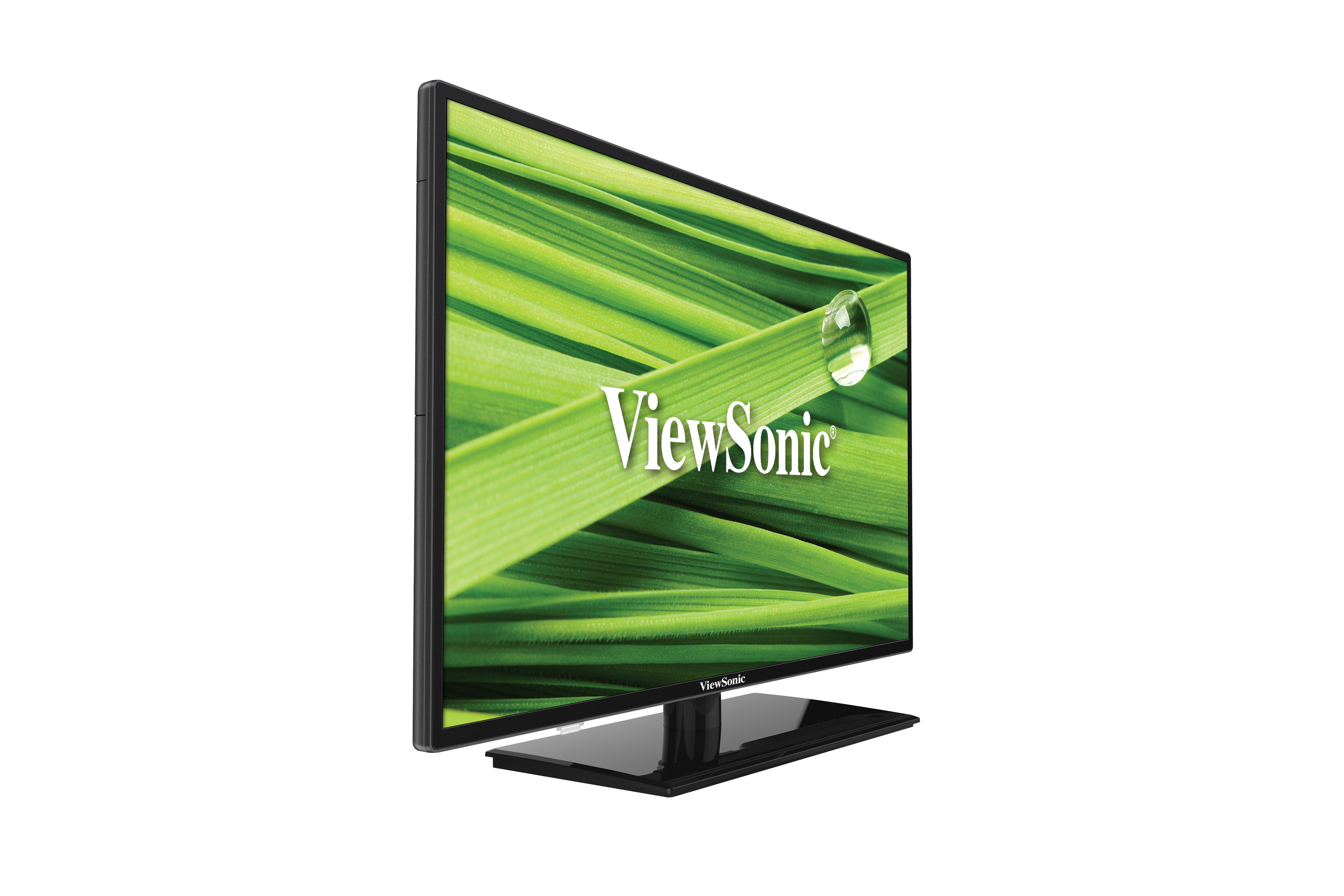

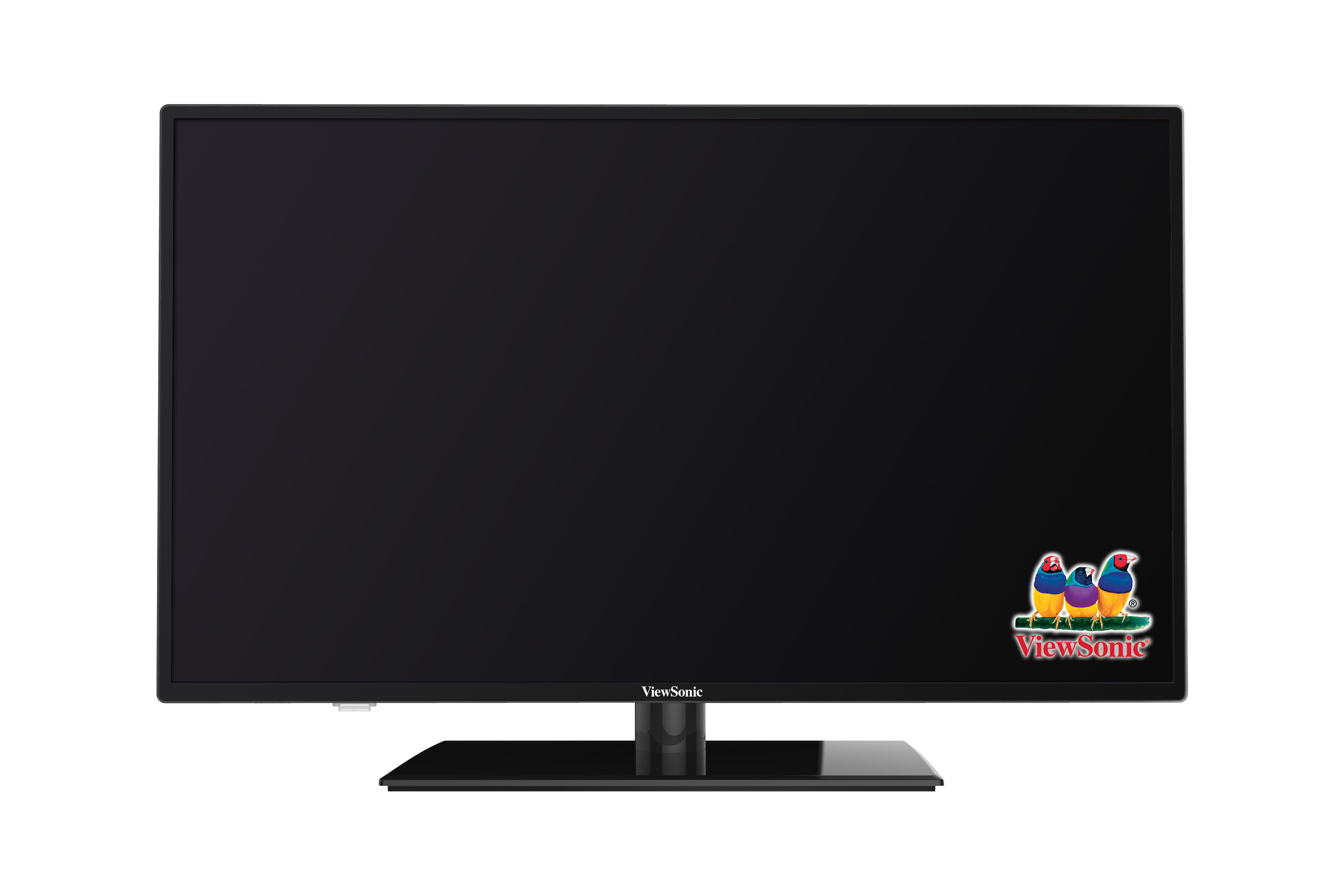

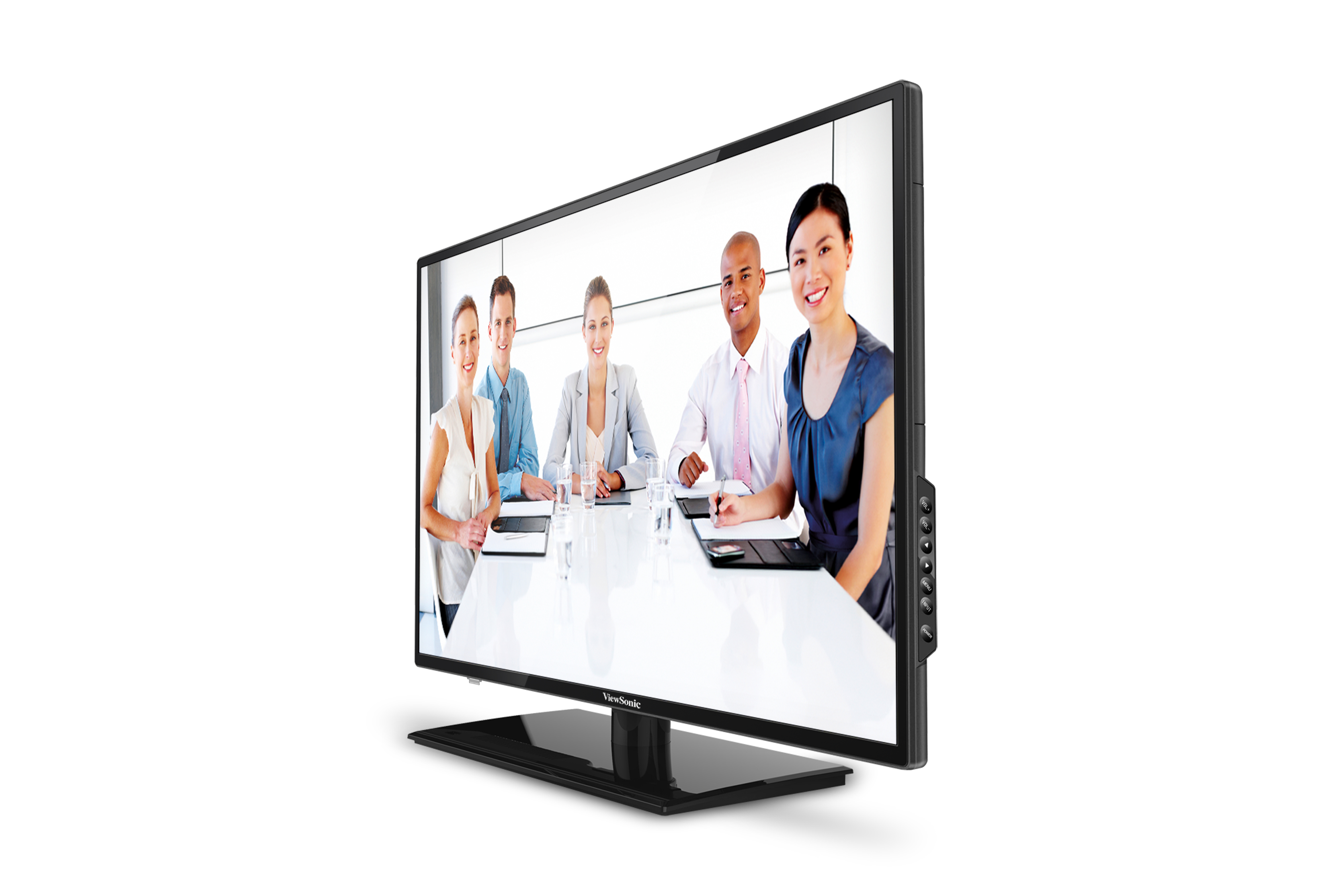

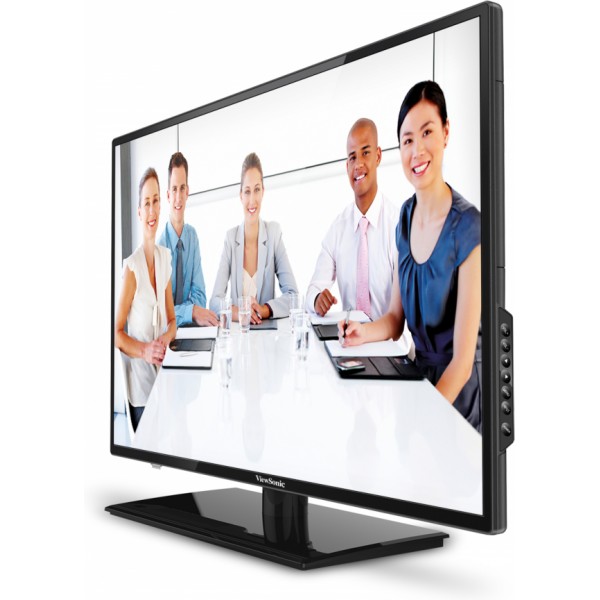

The ViewSonic CDE4200-L is the ideal display solution for business, hotel, and hospitality environments. It fits perfectly in most spaces, either mounted on a wall or placed on a surface. The 42-inch Full HD LED professional display features versatile input connectivity including 3x HDMI, VGA, Composite, and YPbPr. With a brightness of 350 nits, and a 3000:1 contrast ratio, this LED panel display delivers stunning brightness and contrast at a 6.5ms response time to ensure crisp pictures and smooth playback. Built-in 10W x 2 speakers and SPDIF digital audio output provide crystal-clear sound. The CDE4200-L makes informating, communicating and presentating clear and simple.- 42” full HD 1920x1080p resolution
- LED backlight technology
- Hospitality programmable display calibration
- USB cloning
- IR pass-through port
- Slim bezel and attractive design
- HDMI CEC control port
- 200x200 VESA wall mount

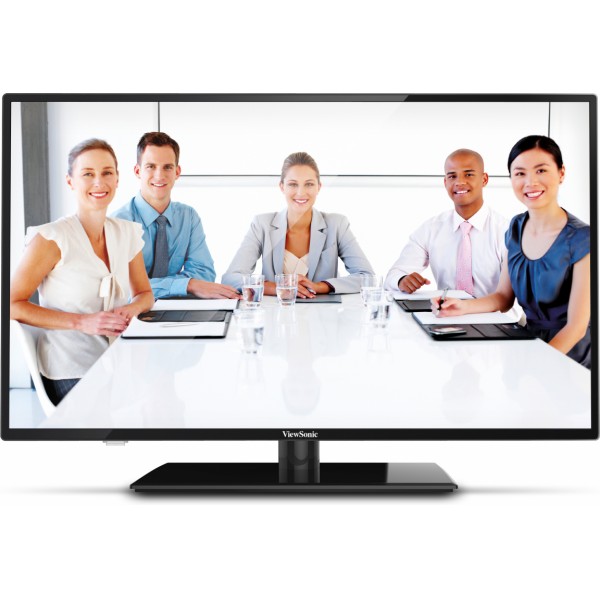

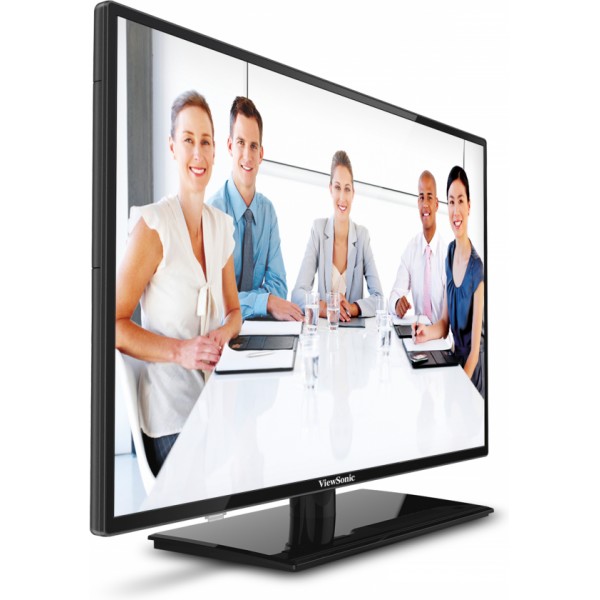

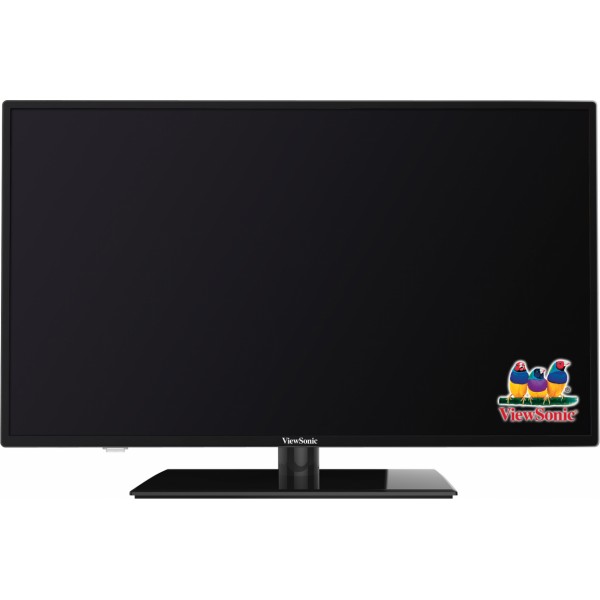

42’’ Full HD LED Large Format Display With Hospitality Calibration Features
The ViewSonic CDE4200-L LED large-format display is designed for use in business, hotel, and hospitality installations. In addition, the CDE4200-L includes USB cloning for easy duplication in multi-screen environments. Features also include automated control using RS232, HDMI CEC control, and IR pass through for easy connection to HD set-top-boxes, media players, and Blu-ray players. A programmable hospitality menu allows for custom calibration of features such as channel defaults, audio levels, and power up—making the CDE4200-L ideal for use as in-room hotel televisions.
SPECIFICATIONS
- DimensionesFísicas sin la base: 974.2 x 567.2 x 64.4 mm
Embalaje: 1200 x 700 x 143 mm
Físicas con la base: 974.2 x 626.3 x 254.0mm - AlimentaciónConsumo: 59W (typ), 75 W (max)
Voltaje: 100-240VAC +/- 10% 50/60Hz Wide Range - Resolución1920x1080 @60Hz (148MHz)
- PantallaBrillo: 350 typ.
Tiempo de respuesta (típico): 6.5ms
Tamaño: 42’’
Ángulo de visión: 170/170
Soporte de color: 16.7M colors
Ratio de contraste: 3000:1 typ. - RELIABILITYBacklight: 30,000 Hours Typ
- ACCESORIOS INCLUIDOSRemote control with batteries
Power cord (for –L model, USx1; for –L-E model, EUx1 + UKx1)
User Guide (CD, 1 language, English)
Quick Start Guide (Hard Copy, 1 language, English)
Screw driver - ERGONOMÍAGiratoria: -15°~+15°
Ajuste de altura: None
Rotación: None
Wall mount: 200 x 200
Inclinación: None - AUDIOMicrophone: None
Altavoces: 10Wx2 @THD=10% - PesoNeto sin base: 11.9kg
Gross without stand: 14.7kg
Gross With Stand: 15.4Kg

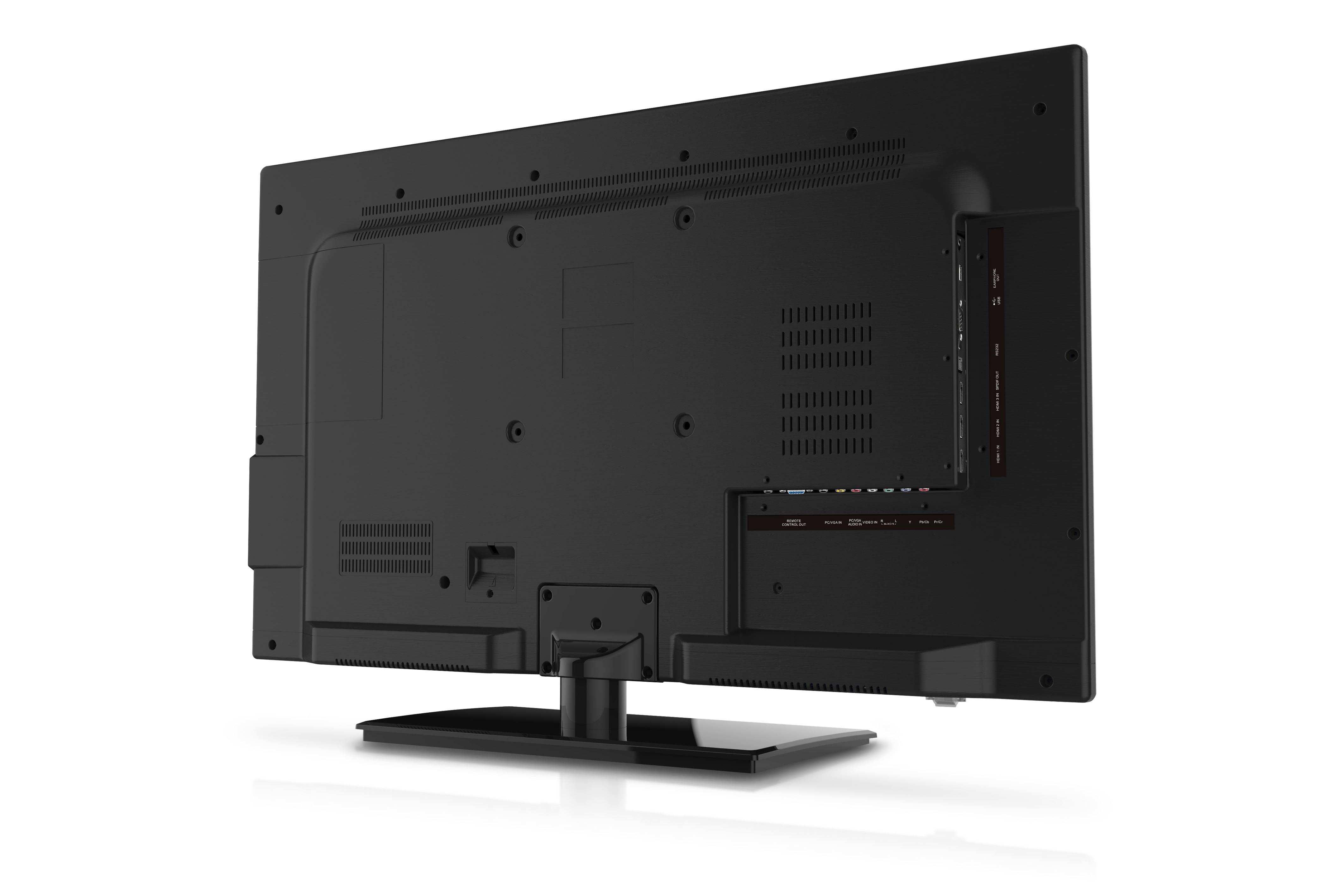

Neto con base: 12.6 Kg - CONNECTORSCVBS x 1, YPbPr(YCbCr) x 1, HDMI x 3, VGA x 1, SPDIF out (Optical) x 1, Earphone out x 1, USB x1 , RS232x 1, PC audio in(3.5 mm) x 1, Shared RCA audio (L+R) x 1, Remote control out x 1
- Video I/OHDMI in: 480i, 480p,720p, up to 1080p
YPbPr in: 480i, 480p,720p, up to 1080p

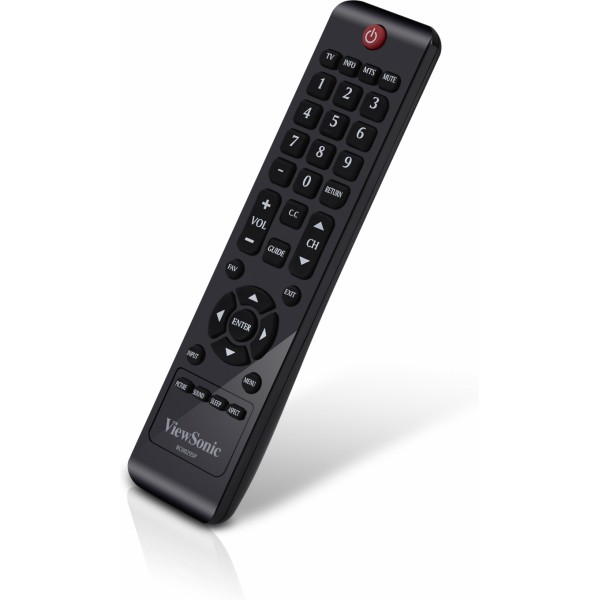

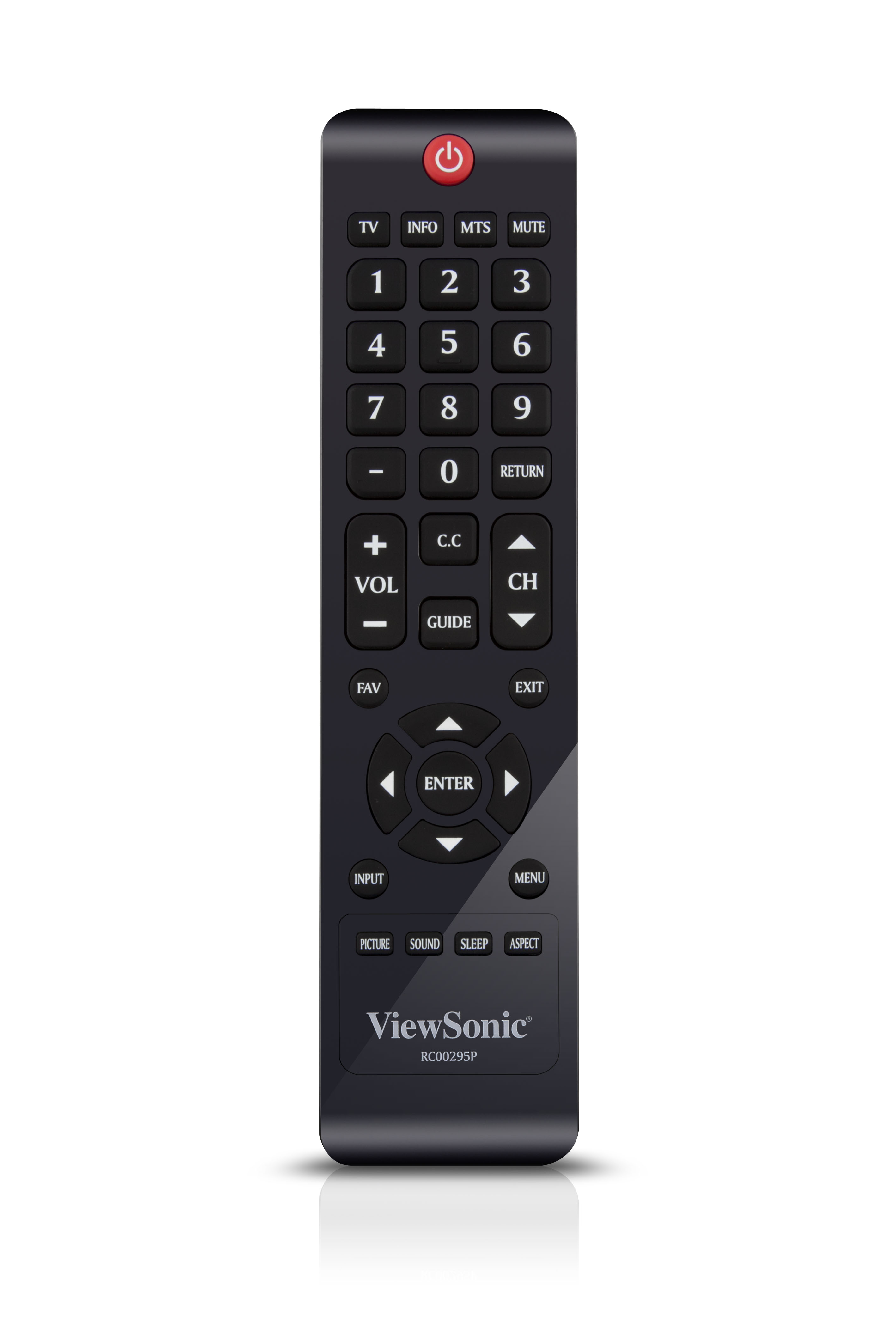

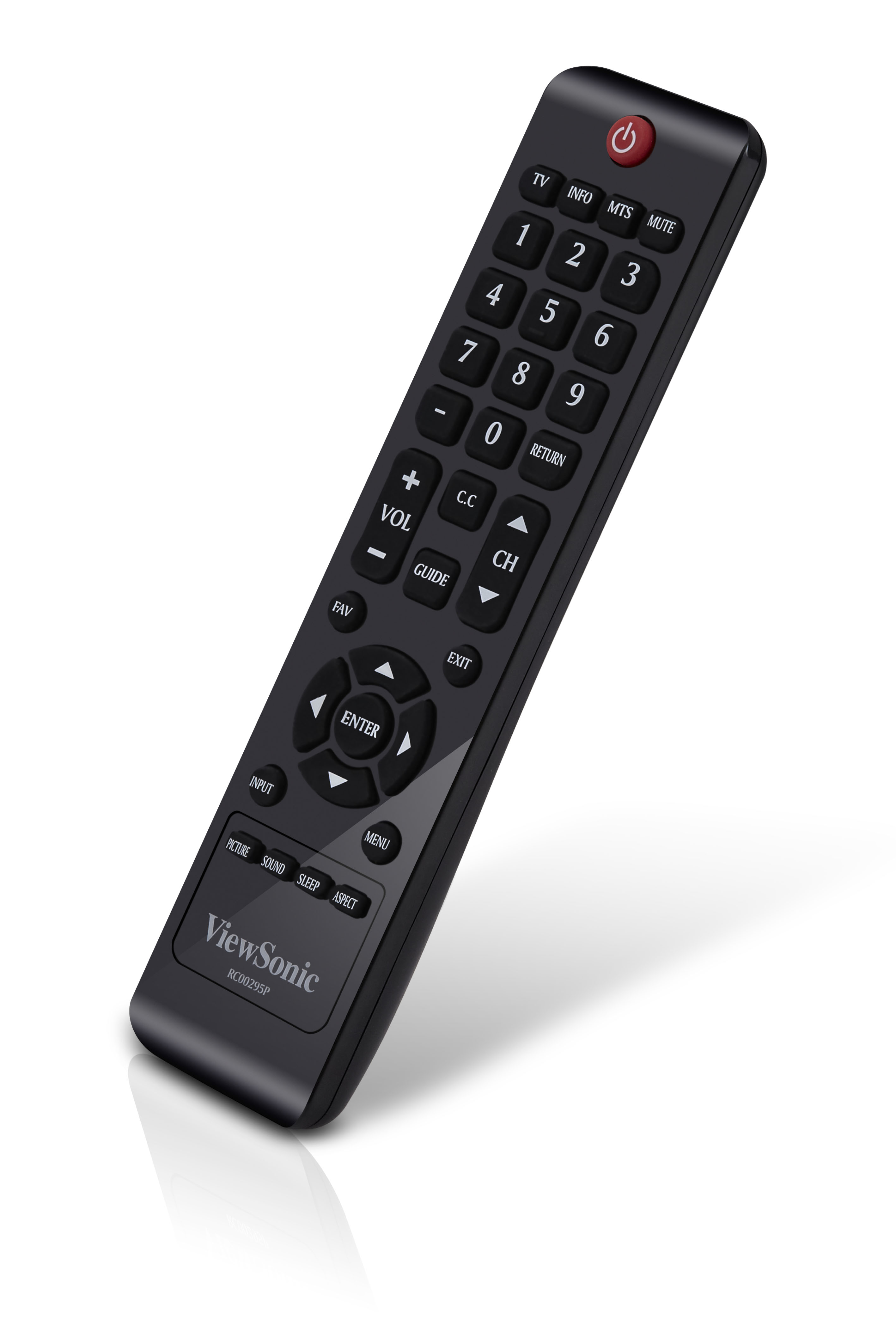

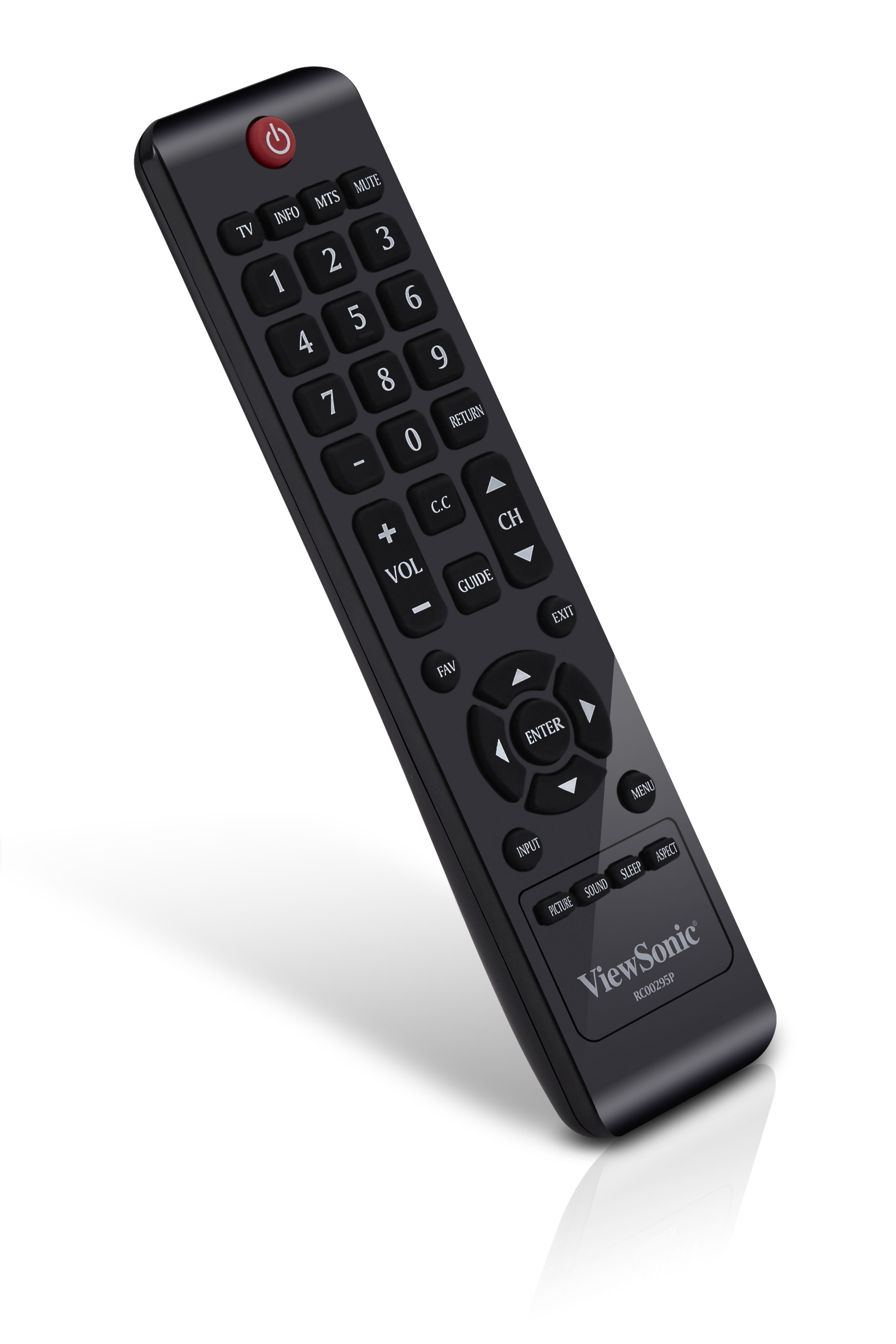

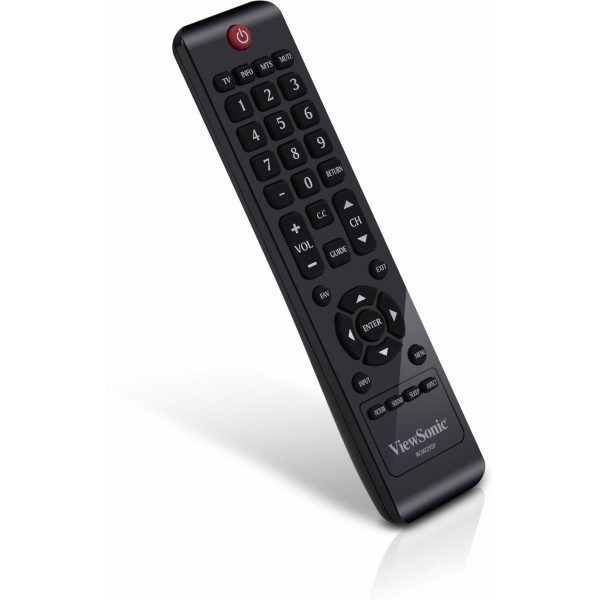

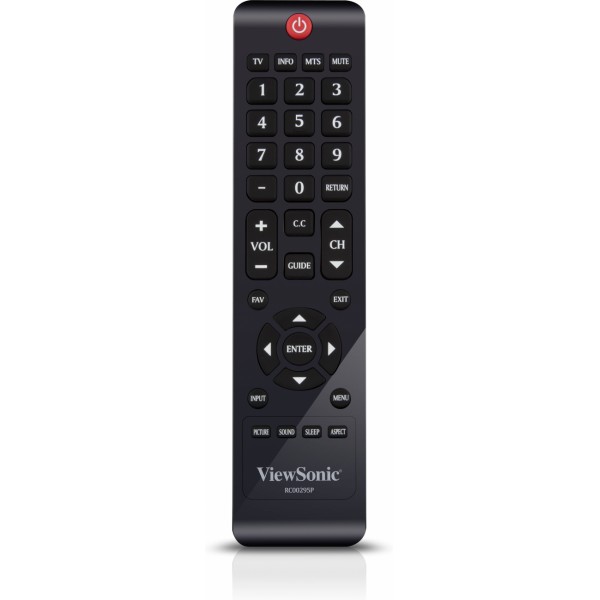

CVBS in: 480i,576i - REMOTE CONTROL UNITType: IR; RC5 protocol
Range: Stragt-line distance: 8M
Transmit angle + 30° > 6M
