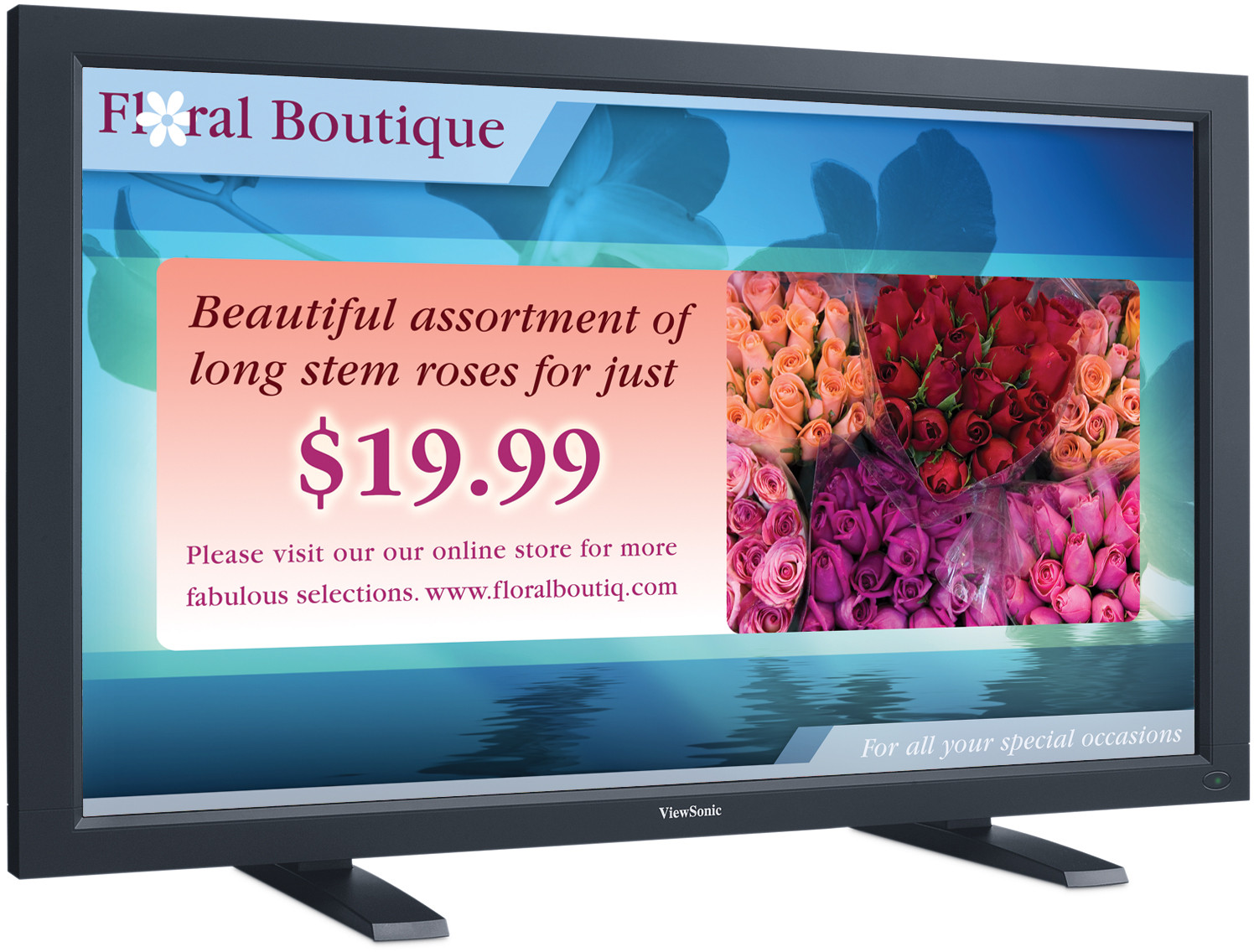

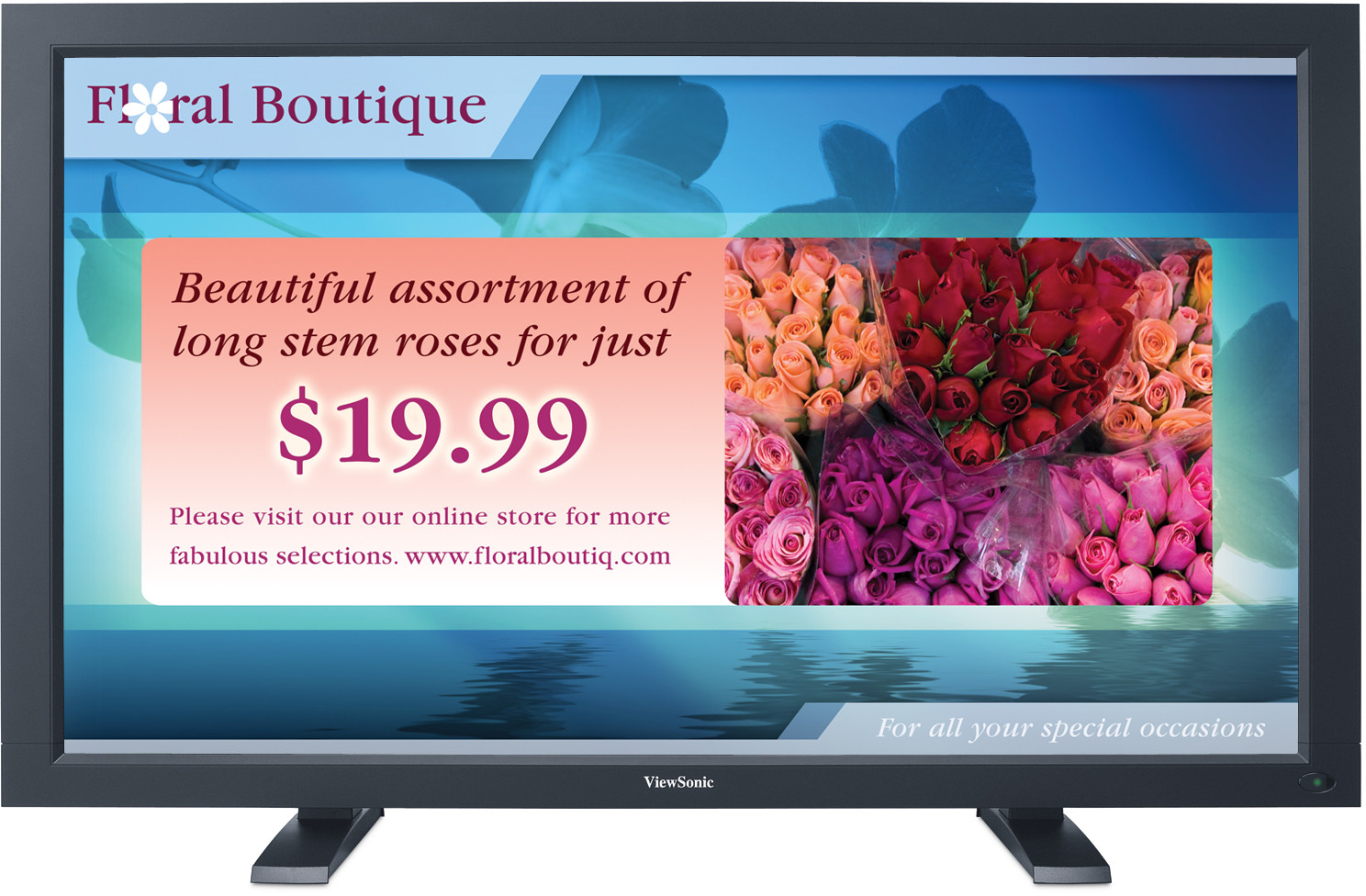

High Impact Digital Signage
ViewSonic’s 42” CD4220 Commercial Display delivers STUNNING HIGH DEFINITION CONTENT TO YOUR AUDIENCE FOR THEIR VIEWING PLEASURE. This LCD panel displays stunning images at almost print-quality resolution in your Digital Signage applications. VGA input and output plus RS-232 input allows you to DAISY CHAIN MULTIPLE DISPLAYS into the signage network and still be able to control each display individually. Other inputs include HDMI, S-VIDEO, COMPONENT, COMPOSITE and PC-VGA. Wide viewing angles, high brightness and contrast and 1366 x 768 native resolution ensure crystal clear images in virtually any room or lighting conditions. A fast 8ms response time delivers crisp scrolling text or videos. The CD4220 sets a new standard for large format, high impact Digital Signage solutions.
SPECIFICATIONS
- COLORSBlack
- LCDTipo: 107 cm / 42" wide colour TFT active matrix
Ratio de contraste: 1500:1 (typ.)
Ángulos de visión: 178° horizontal, 178° vertical (at 10:1)
Brillo : 500cd/m²
Área de visualización: 93.0cm horizontal x 52.3cm vertikal, 106.7cm diagonal
Tiempo de respuesta: 8 ms (Grey-to-Grey)
Relación de aspecto: 16:9
Resolución nativa: 1366 x 768

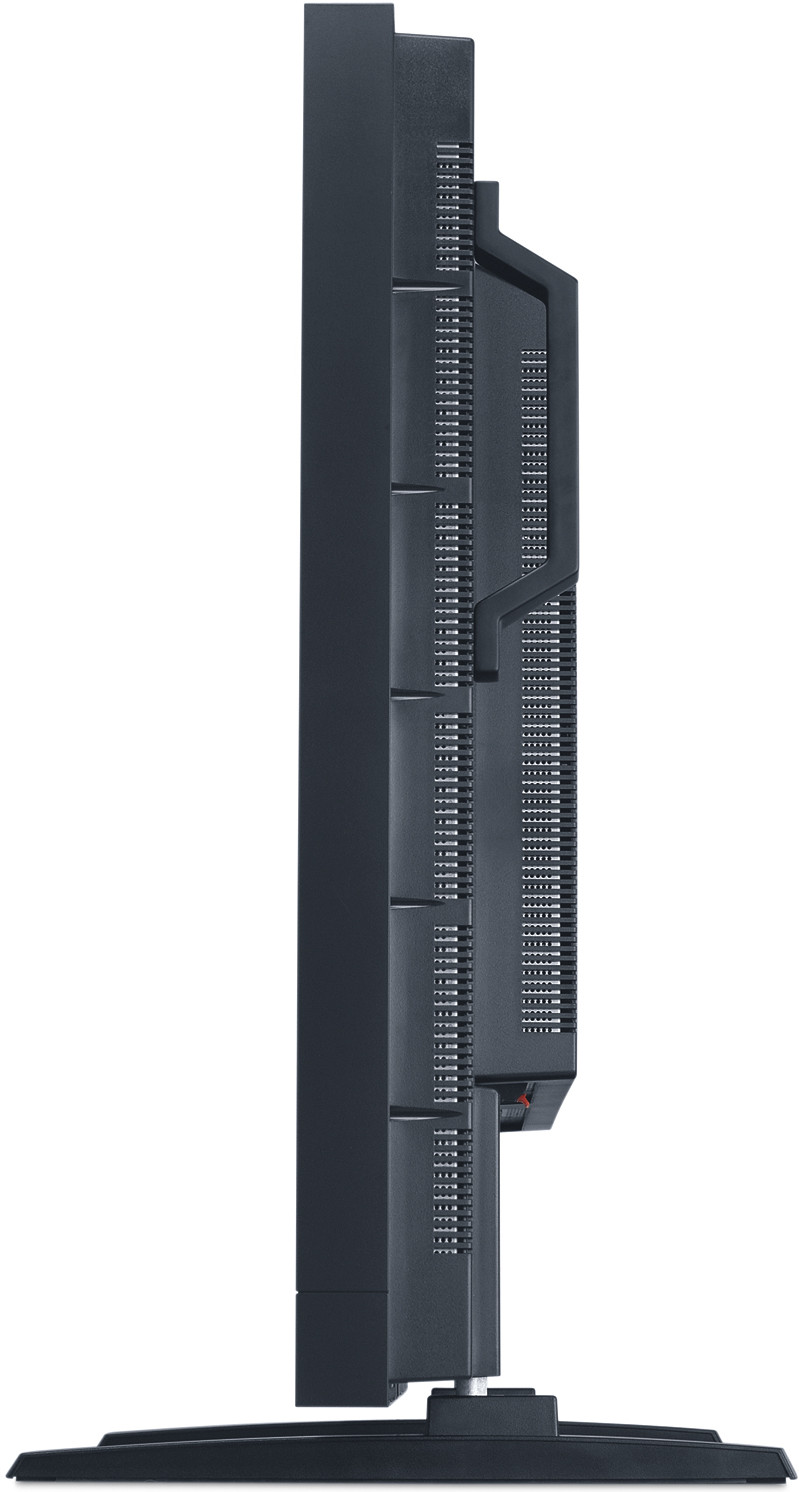

Superficie del panel: Anti-glare, hard coating (2H) - DimensionesFísicas (AnxAlxP): 1022 x 612 x 127 mm (without stand)
- NormativasCE, CB, TÜV/GS, GOST, UL/cUL, FCC-B, NOM, WEEE, RoHS
- CONTENIDO DE LA CAJALCD display, 1.8m power cables (Europe [Schuko]/UK), remote control, batteries, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language)
- AUDIOSeñal: 2 x 7 watt with SRS TruSurround¹
- ConectividadSalida de audio : 1 x 3.5mm mini stereo
2 x RCA (left/right)
Entrada de vídeo compuesto: 1 x RCA (CVBS)
1 x BNC (CVBS)
Entrada de vídeo por componentes: 3 x BNC (YPbPr/YCbCr)
Entrada de audio: 1 x 3.5mm mini stereo
2 x RCA (left/right)
Entrada analógica: 1 x 15-pin mini D-Sub (detachable cable)
Salida analógica: 1 x 15-pin mini D-Sub (detachable cable)
Salida de vídeo compuesto: 1 x BNC (CVBS)
Alimentación: 1 x 3-pin plug
Control/salida de red: 1 x 9-pin mini D-sub RS-232
Control/entrada de red: 1 x 9-pin mini D-sub RS-232
Entrada digital: 1 x HDMI (with HDCP) - AlimentaciónVoltaje: AC 100–240V (universal), 50/60Hz
Consumo: <246 watt, <5 watt in power save mode - CONTROLESBásico: Power, menu, exit, source, up/down, volume, mute, main power switch
Menú en pantalla: Picture Menu (brightness, contrast, sharpness, black level, NR, tint, colour, colour temperature, colour User-RGB, picture reset),
Screen Menu (H/V position, H size, fine tune, zoom [H&V zoom, H zoom, V zoom, H/V zoom position], screen reset),
Audio Menu (balance, treble, bass), PIP Menu (PIP size, PIP audio source, PIP reset),
Configuration Menu (auto setup, auto adjust, power save, OSD language, screen saver, colour TV system, OSD turn off, information OSD, off timer, OSD H/V position, display information, config. reset),
Advanced Menu (input resolution, black level expansion, Gamma, scan mode, scan conversion, film mode, remote control, display ID, tiling [H/V monitors, position, frame compensation, enable], power on delay, date/time, auto on/off scheduler [day, hour, minute, input], monitor ID, DDC/CI, sync type, advanced reset) - CONDICIONES DE FUNCIONAMIENTOTemperatura: 0°C–40°C landscape mode, 5°C–35°C portrait mode
Humedad: 20%–80% (non-condensing) - PesoNeto: 29.9kg (w/o stand, w/o speakers), 31.7kg (w stand, w/o speakers)
Bruto: 34.7kg - Entrada de vídeoFrecuencia: Fh: 15.6kHz, 15.7kHz, 31-91kHz, Fv: 50-75Hz
Syncronización: H/V separate (TTL), composite, sync on green
Analógico: RGB analogue (0.7/1.0 Vp-p, 75 ohm), PAL, SECAM, NTSC, SDTV/EDTV (480i/p, 576i/p), HDTV (720p, 1080i)

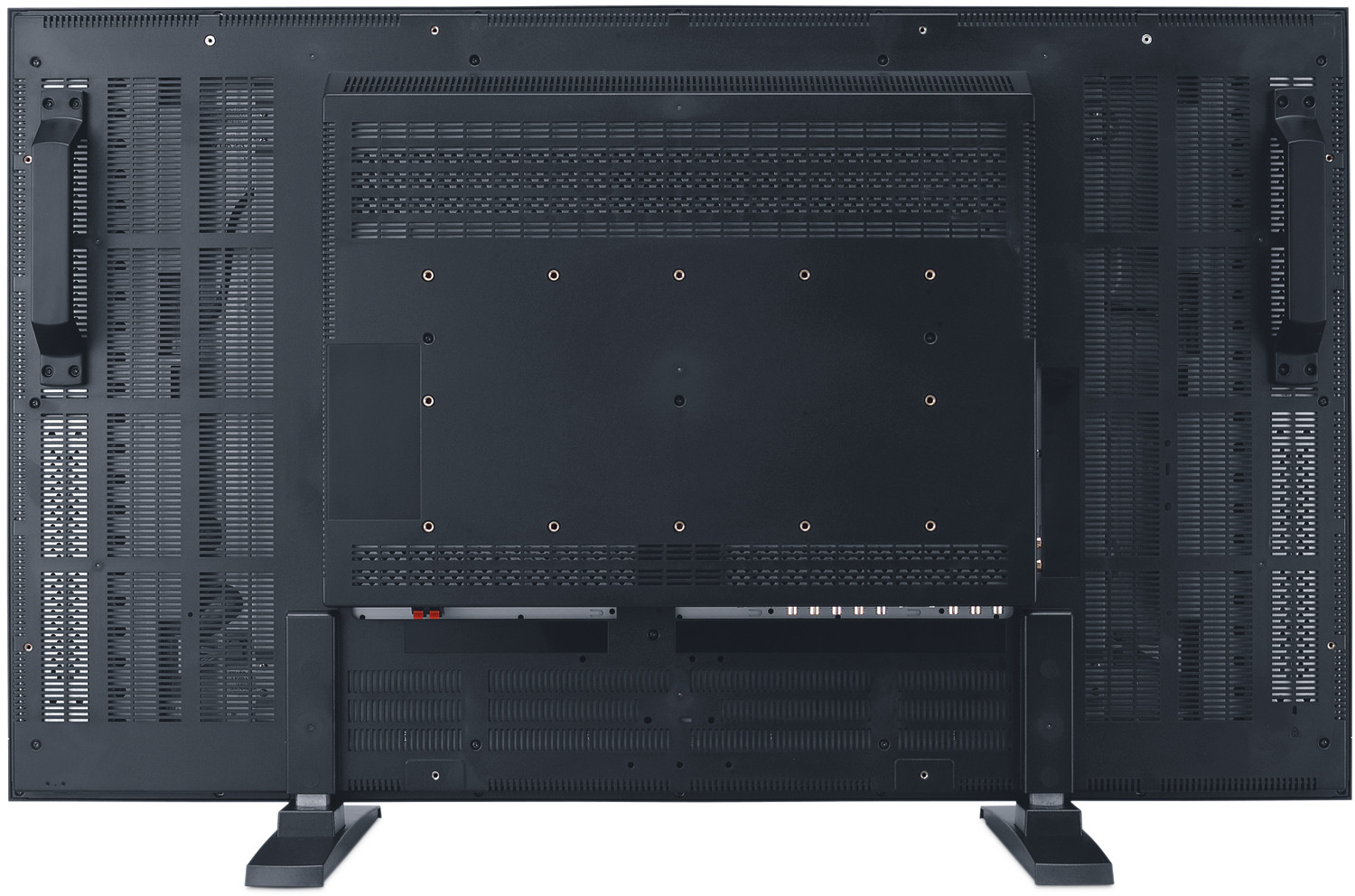

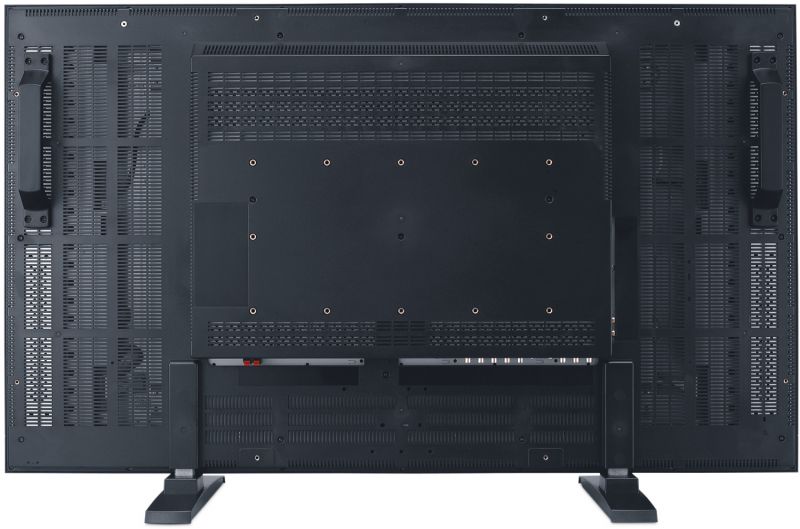

Digital: HDMI (HDCP enabled; TMDS, 100 ohm) - MONTAJE EN LA PAREDVESA FDMI 400mm x 200mm, M6 screws
