“The ViewSonic VP Series is included in this CES roundup, highlighting its 110 percent NTSC color gamut.”
OVERVIEW

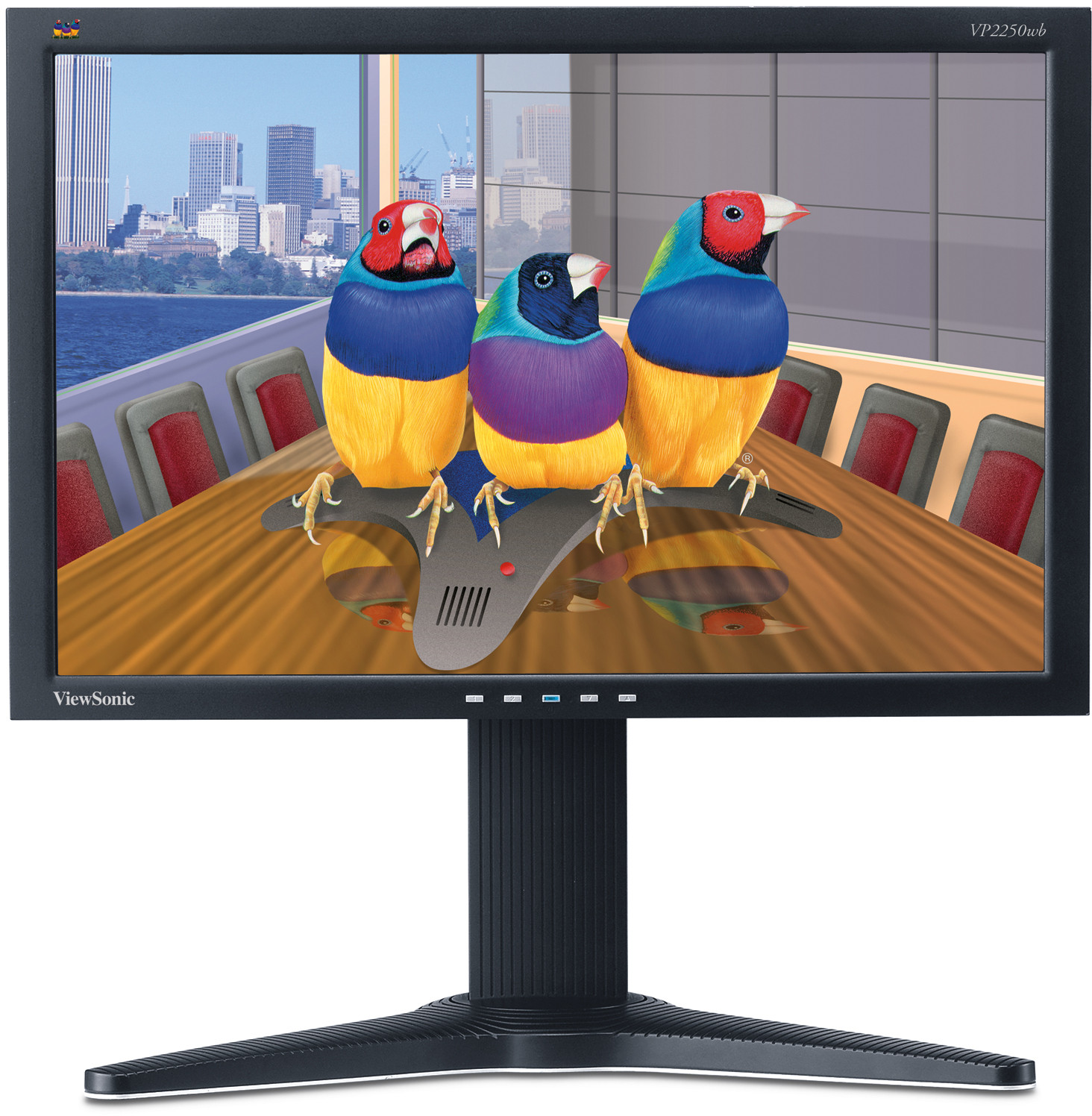

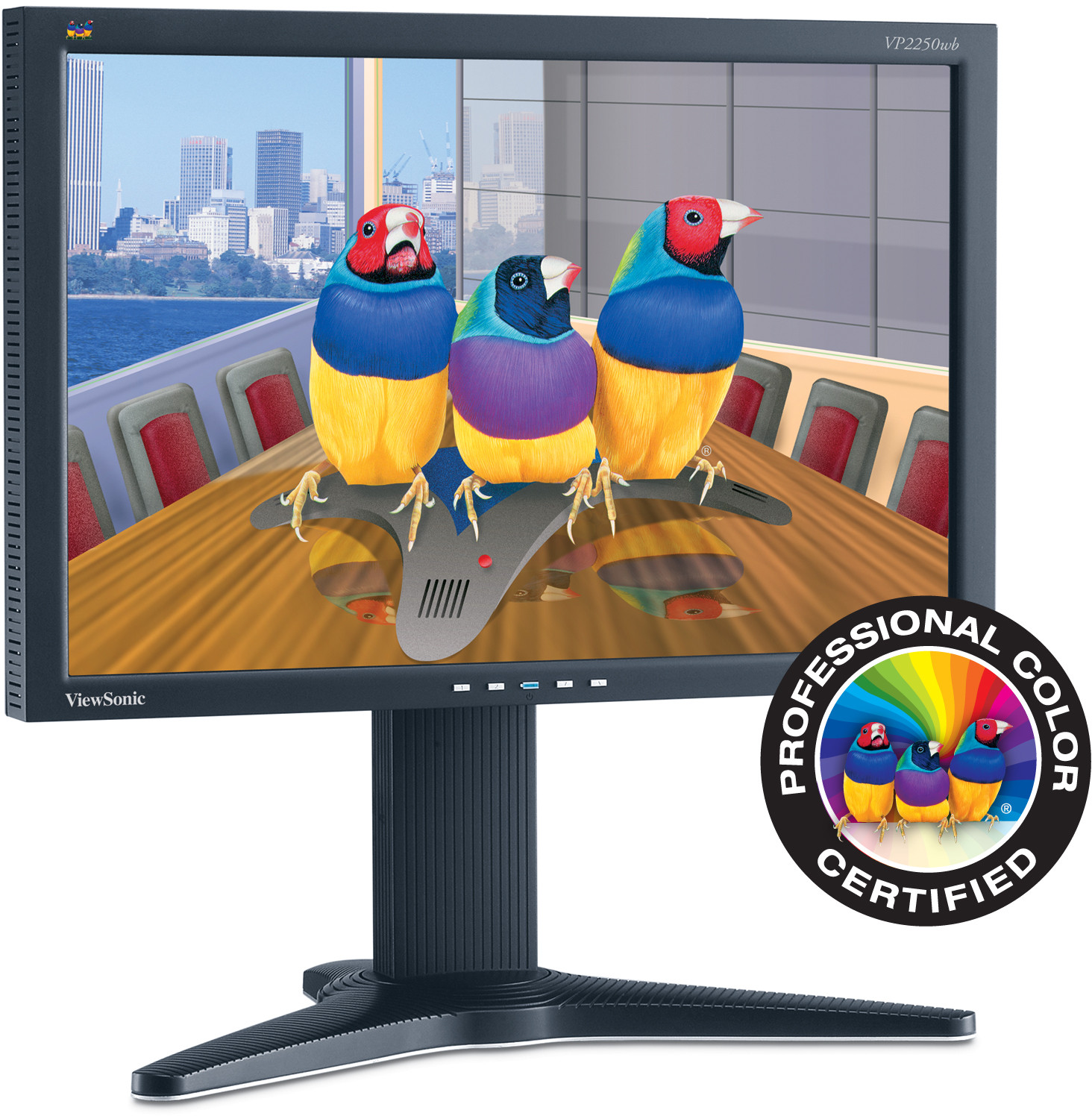

ViewSonic’s 55 cm / 21.6" VP2250wb widescreen LCD is a professional- grade display with 106% NTSC colour capability for richer more natural colours. Ideal for graphics production, financial and medical professionals where precise colour rendition is vital to the job. The VP2250wb features 3000:1 DYNAMIC CONTRAST RATIO (typ.) and ultra-fast ClearMotiv 2ms (grey-to-grey) response time for SUPERIORFRONT-OF-SCREEN PERFORMANCE. Designed with the discriminating professional in mind, this display offers extensive ergonomic adjustments including height adjust, tilt, 120º swivel and pivot, and even a quick release stand. Certified for Windows Vista, this display is also HDCP compatible and features OptiSync digital/analogue inputs plus 4 USB ports to deliver a versatile and flexible professional package. Step into a world of amazing colour and accuracy with the VP2250wb.Professional-grade colour and performance
It's not just another professional LCD. It's a ViewSonic.
REVIEWS








“Based on the ROI potential, its performance and ViewSonic's channel program, the Test Center can recommend the VP2250wb for VAR customers who are seeking substantial display upgrades over older models.”


“"For those who want a 22-inch monitor that can properly reproduce colors but who can't justify the stratospheric price commanded by some models, the $559 ViewSonic VP2250wb offers some welcome middle ground." - Les Shu”

“"The bottom line is that this new ViewSonic model has a significantly larger color gamut than typical consumer home/office LCD computer displays and better supports the Adobe Photoshop standard and requirement for editing digital photography." - David E. Brooks”
SPECIFICATIONS
- COLORSBlack
- LCDTyp: 55 cm / 21.6" TN colour active matrix WSXGA+
Kontrastverhältnis: 1000:1 (typ.), 3000:1 DCR (typ.)
Betrachtungswinkel: 160° horizontal, 160° vertical (at 10:1)
170° horizontal, 170° vertical (at 5:1)
Helligkeit: 300cd/m² (typ.)
Anzeigefläche: 46.5cm horizontal x 29.1cm vertical, 54.9cm diagonal
Optimale Auflösung: 1680 x 1050@60Hz
Reaktionszeit: 2ms (grey-to-grey), 5ms (off-on-off, typ)
Lichtquelle: Long life, 40000 hrs. (typ.)
Panel-Oberfläche: Anti-glare (3H)
Pixelabstand: 0.276mm
Farbtiefe: 16.7M colours supported (6-bit+2-bit HI FRC)
Pixeltakt: 205MHz (analogue), 165MHz (digital)
Farbgamut: Wide colour gamut: 106% NTSC - KompatibilitätPC: VGA up to 1920 x 1080 (1080p) non-interlaced,
1680 x 1050@60Hz (native reslution) preferred
Mac®: Power Mac™ up to 1920 x 1080 (1080p) non-interlaced,
1680 x 1050@60Hz (native resolution) preferred
- AbmessungenPhysisch mit Fuß: 510 x 388-508 x 309
Physisch ohne Fuß: 510 x 334 x 66
Verpackung (B x H x T): 590 x 493 x 271 - ZertifikateTCO’03, CE, CB, GS, ERGO, ISO 13406-2 (pixel failure class II), UL, cUL, GOST-R, Hygienic, FCC-B (ICES), ICES-003B, NOM, SASO, ENERGY STAR®, C-Tick, KTL/MIC, BSMI, PSB, TUV-S/IRAM/UL-AR S Mark, MPR II, CCC, WEEE, RoHS
- LieferumfangLCD Monitor, power cable, 15-pin VGA video cable, DVI-D cable, USB cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language)
- AnschlüsseAnalog: 15-pin mini D-sub (detachable cable)
Digital: 1 x 24-pin DVI-D (detachable cable) (HDCP enabled)
Stromversorgung: Power 3-pin plug (CEE22)
USB: 1 x upstream (4-pin Typ B)/4 x downstream (4-pin Typ A), USB 2.0 - Stromversorgung Spannung: AC 100–240V, 50–60Hz (Auto-Switch), internal power supply
Verbrauch: 50 watt (typ., without USB peripherals connected), <1 watt in power save mode - BedienungselementeGrundausstattung: Power, menu [1], up, down, select [2], main power switch
OSD: Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), ViewMatch® colour adjust (sRGB, 9300K, 7500K, 6500K, 5000K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness, DCR [on/off], response time [standard, advanced, ultra-fast], colour space [RGB, YUV]), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background, OSD pivot), auto white balance, OSD/power lock - BetriebsbedingungenTemperatur: 0° to 40°
Feuchtigkeit: 10% to 90% (non-condensation) - GewichtNetto mit Fuß: 7.3kg
Netto ohne Fuß: 4.9kg
Brutto: 9.6kg - Videoeingang Frequenz: Fh: 24-95kHz, Fv: 50-85Hz
Synchronisierung: H/V separated (TTL), composite, sync on green
Analog: RGB analogue, (0.7/1.0 Vp-p, 75 ohms)
Digital: DVI-D (HDCP enabled, TMDS, 100 ohms, DDC/CI) - EnergieverwaltungMeets TCO’03 and ENERGY STAR standards
- SicherheitKensington security port
- WandhalterungVESA FDMI 100mm x 100mm

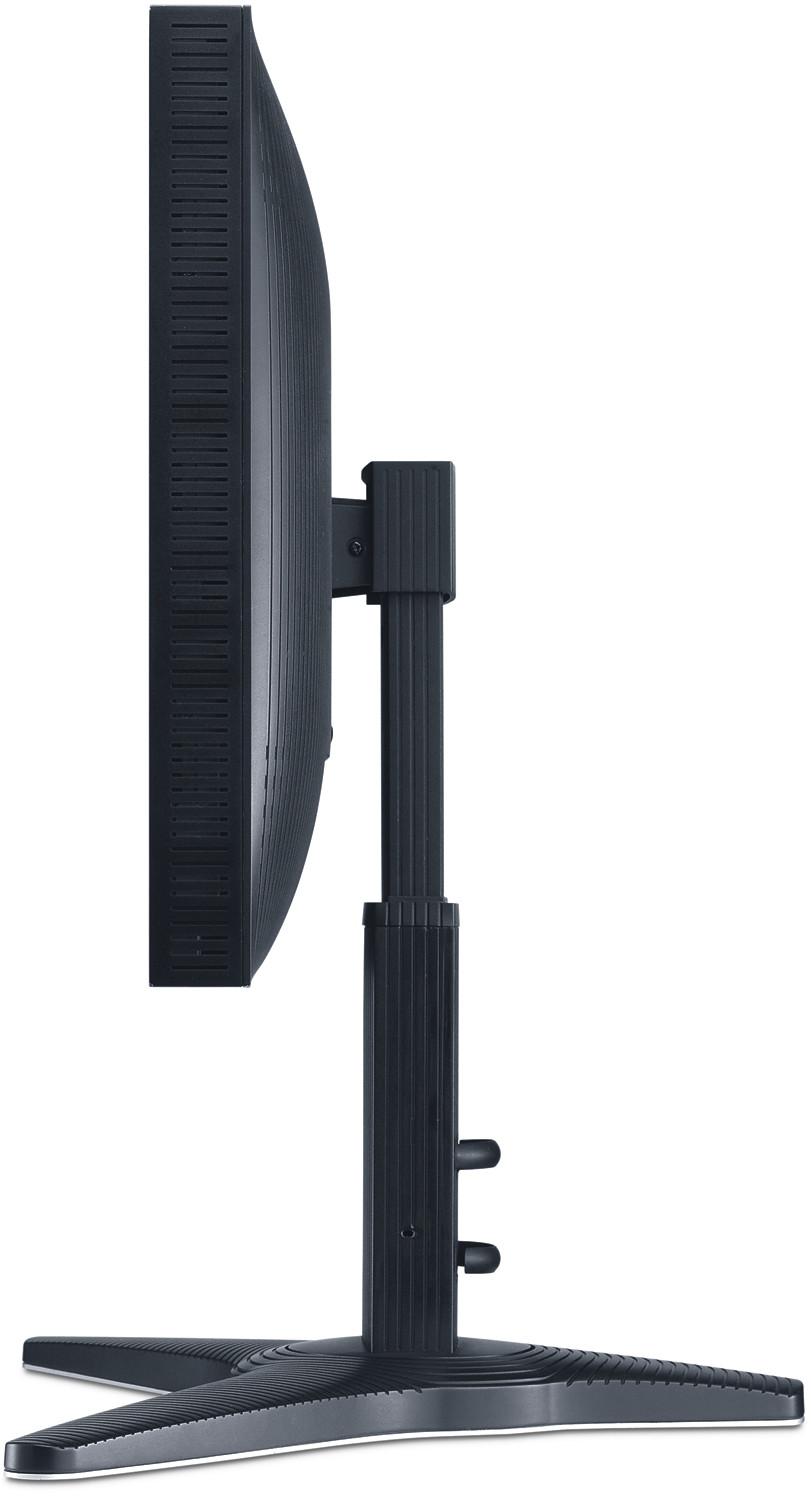

- ErgonomieNeigung: Down 5°, Up 20°
Schwenken: 120° (60°left/60° right)
Höhenverstellung: 0~120mm
Drehung: 0°–90°
