Reliable, high-quality performer

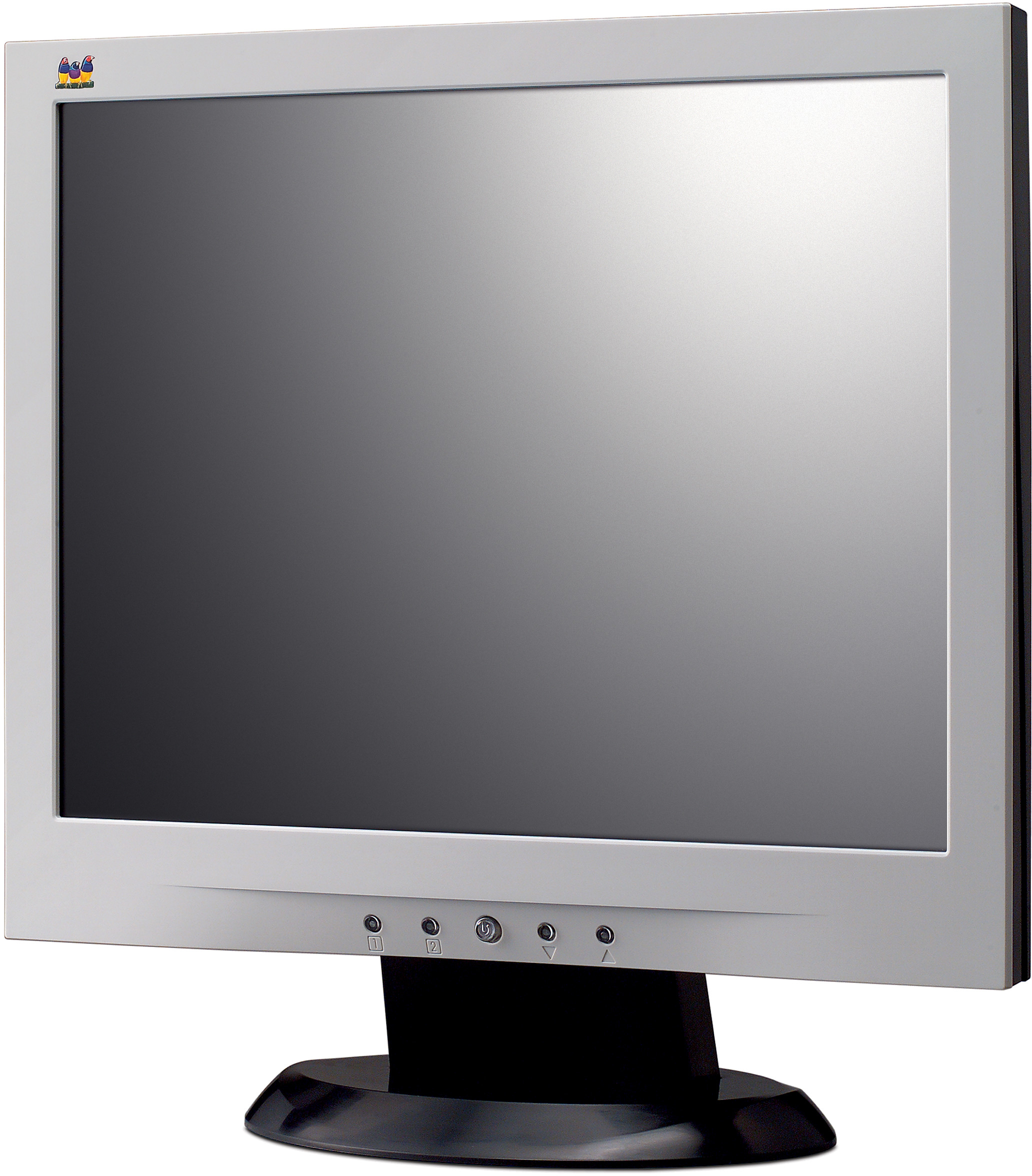

ViewSonic’s 38cm / 15" VA503m LCD monitor delivers impressive front-of-screen performance enhanced by a fast 16ms video response time that delivers crystal-clear graphics and smooth, full-motion video. With a 450:1 contrast ratio (typ.) and 250cd/m² brightness (typ.), the VA503m displays brilliant colours, while sRGB colour management technology further assures precise colour accuracy. Enjoy a true multimedia experience with built in stereo speakers delivering efficient audio to your desktop.This display’s clean lines, slim bezel and compact size give you more room on your desktop. The VA503m is an ideal choice for customer facing small office, home office, education and government users.
SPECIFICATIONS
- LCDTyp: 38cm / 15" TN colour TFT active matrix XGA LCD
Kontrastverhältnis: 450:1 (typ.)
Betrachtungswinkel: 120° horizontal, 100° vertical (at 10:1)
Helligkeit: 250cd/m² (typ.)
Anzeigefläche: 30.4cm horizontal x 22.8cm vertical; 38.1cm diagonal
Optimale Auflösung: 1024 x 768
Reaktionszeit: 16ms (off-on-off) (typ.)
Lichtquelle: Long life, 30000 hrs. (typ.)
Panel-Oberfläche: Anti-glare
Pixelabstand: 0.297mm
Farbtiefe: 16.2M colours (6-bit + 2-bit FRC)
Pixeltakt: 85MHz - KompatibilitätPC: VGA up to 1024 x 768 non-interlaced (@ 60Hz recommended)
Mac®: Power Mac™ up to 1024 x 768 non-interlaced (@ 60Hz recommended) - AbmessungenPhysisch mit Fuß: 344 x 348 x 147
Physisch ohne Fuß: 344 x 290 x 54
- ZertifikateTCO’99, CE, CB, GS, Ergo, ISO13406-2 (pixel failure class II),
UL/cUL, Energy Star, FCC-B, ICES 003, NOM, GOST-R, SASO, BSMI,
CCC, PSB, C-TICK, TUV-S/IRAM/UL-AR S Mark, WEEE, RoHS - LieferumfangLCD Monitor, power cable, 15-pin VGA video cable, audio cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers)
- AUDIOLautsprecher: 2 x 1 Watt integrated invisible stereo speakers
- AnschlüsseAnalog: 15-pin mini D-sub (attached cable)
Stromversorgung: 3-pin AC plug (CEE22)
Audio (Eingang/Ausgang): 3.5mm stereo audio line-in - Stromversorgung Spannung: AC 100 – 240V, 50/60Hz (auto switch), internal power supply
Verbrauch: <23 watt (max.), <1 watt in power save mode - BedienungselementeGrundausstattung: Power, menu [1], up, down, select [2]
OSD: Auto image adjust, contrast, brightness, audio adjust (volume, mute), ViewMatch® colour adjust (sRGB, 9300K, 6500K, 5400K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number, website), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language [English, Finnish, French, German, Italian, Japanese, Spanish, Simplified Chinese, Traditional Chinese], resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall - BetriebsbedingungenTemperatur: 0°C – 40°C
Feuchtigkeit: 20% – 90% (non-condensing) - GewichtNetto mit Fuß: 2.7kg
- Videoeingang Frequenz: Fh: 30 – 82kHz
Fv: 50 – 85Hz
Synchronisierung: H/V separated (TTL)
Analog: RGB analogue (0.7 Vp-p, 75 ohm) - EnergieverwaltungMeets TCO’99 and Energy Star standards
- SicherheitKensington® security port
- WandhalterungVESA FDMI 75mm x 75mm
- ErgonomieNeigung: Down 5°, Up 20°
