Q191wb

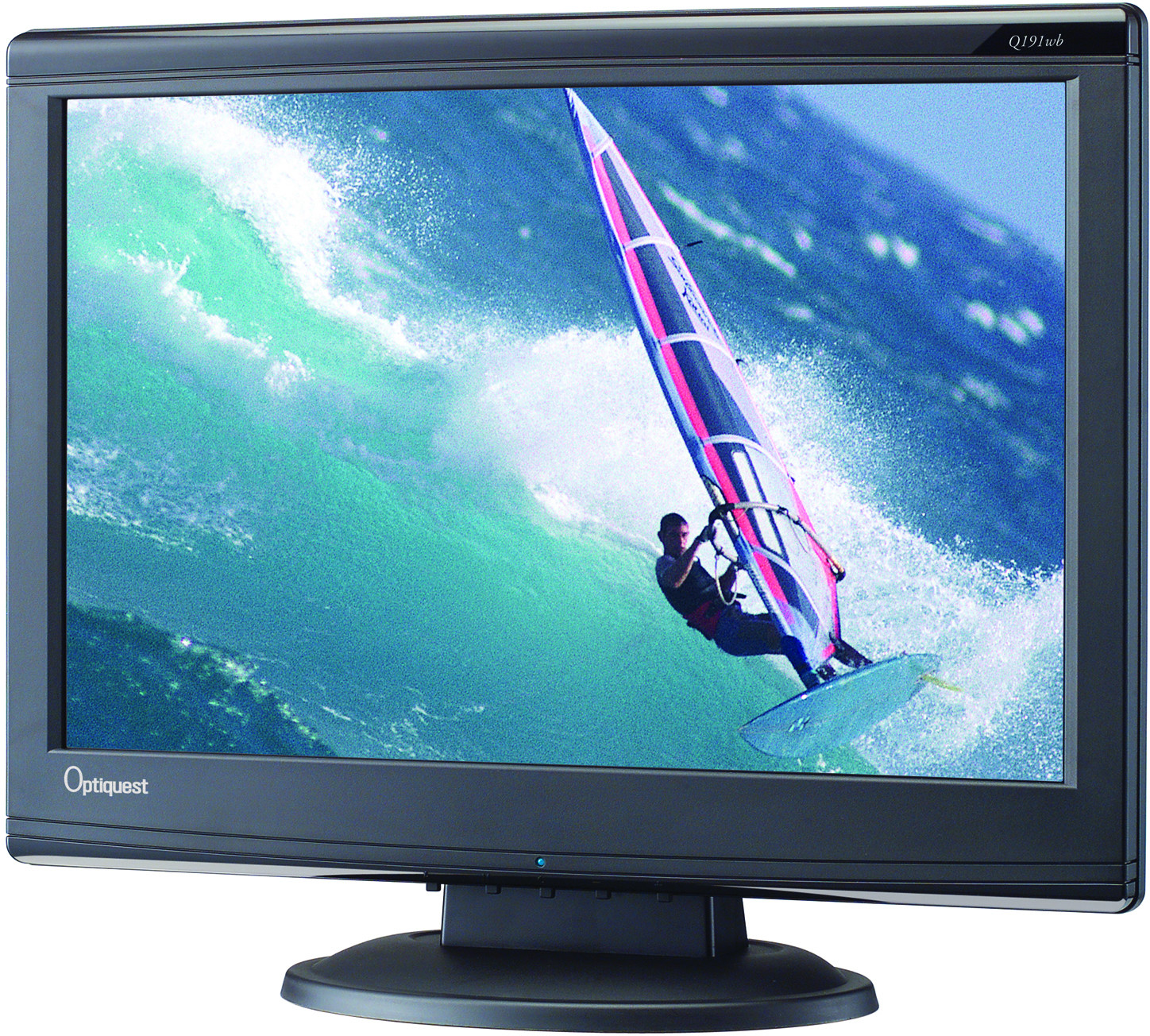

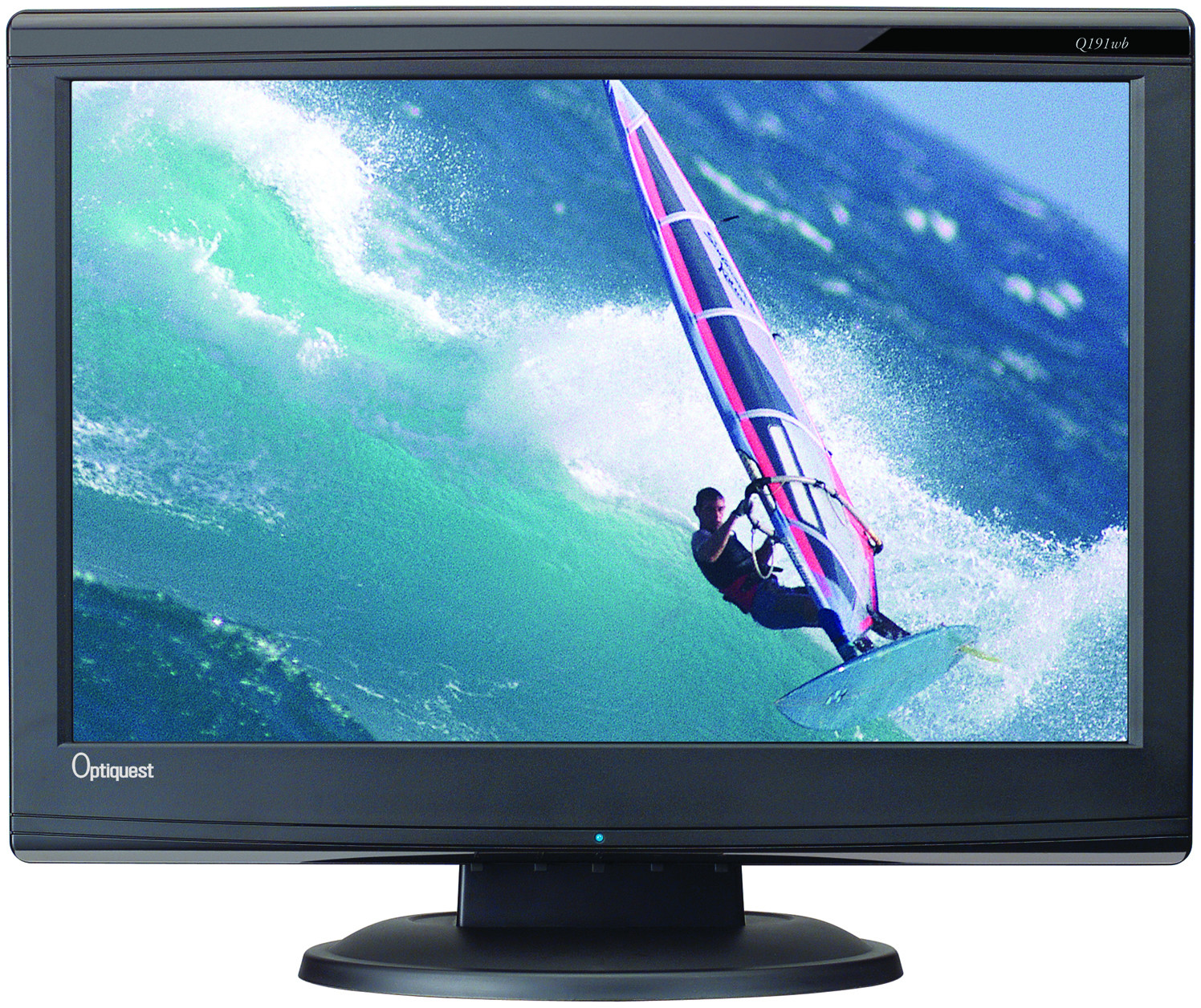

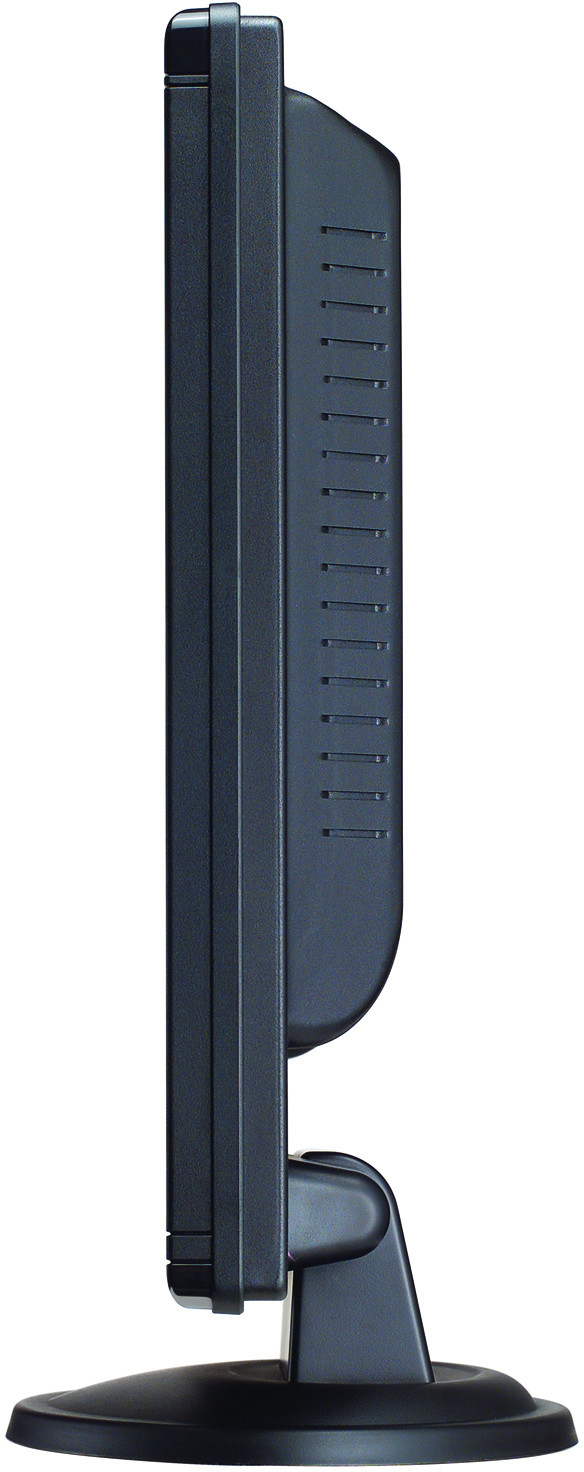

48 cm / 19" WIDESCREEN LCD WITH SUPER-FAST 5MS VIDEO RESPONSE

Sales Enquiry

GALLERY

OVERVIEW

The Opt iquest® Q191wb 48 cm / 19" widescreen LCD enhances your productivity because it lets you work in two applications or documents side-by-side. Enjoy the crystal-clear, blur-free video and graphics delivered by broadcast-quality, 5ms video response. High brightness and contrast ratios ensure your colors are rich and vibrant. The integrated power supply and VESA® wall-mount compliance reduce clutter and free up valuable desktop real estate. The OSD lock ensures your screen settings are secure and the Kensington® security port provides theft deterrence. Furnish your workplace in style with the budget-friendly, feature-rich Q191wb LCD.

Widescreen enhances productivity.

SPECIFICATIONS

COLORS
Black
LCD
Typ: 48 cm / 19" color TFT active matrix WXGA LCD
Kontrastverhältnis: 700:1 (typ)
Betrachtungswinkel: 150° horizontal, 130° vertical @ contrast ratio ≥ 10:1

160° horizontal, 150° vertical@ contrast ratio ≥ 5:1
Helligkeit: 300 cd/m² (typ)
Anzeigefläche: 410mm W x 256mm H
Optimale Auflösung: 1440x900
Reaktionszeit: 5ms (typ)
Lichtquelle: Long life, 40,000 hrs. (typ)
Panel-Oberfläche: Anti-glare
Kompatibilität
PC: VGA up to 1440x900 non-interlaced
Mac®: G3/G4/G5 up to 1440x900

Abmessungen
Physisch mit Fuß: 464mm x 383mm x 169mm (18.3" x 15.1" x 6.7")
Physisch ohne Fuß: 464mm x 309mm x 58mm (18.3" x 12.2" x 2.3" )
Zertifikate
UL, cUL, FCC-B, NOM, ENERGY STAR®, TUV-S, ISO13406-2 Class II, CE, WEEE, RoHS, GOST-R / Hygienic
Lieferumfang
LCD display, power cable, video cable, Quick Start Guide, Wizard CD-ROM
Garantie
One-year limited warrranty on parts, labor and backlight
Recycling/Entsorgung
The lamp in this product contains mercury.
Please dispose of in accordance with local, state or federal laws.
Anschlüsse
Analog: 15-pin mini D-sub
Stromversorgung: 3-pin AC plug (CEE22)
Stromversorgung
Spannung: AC 100–240V (universal), 50–60Hz (auto switch)
Verbrauch: 35W (typ)
Bedienungselemente
Grundausstattung: Power, 2, up, down, 1
OnView®: Auto image adjust, brightness, contrast, color adjust (sRGB, 9300K, 6500K, 5400K, user color), H. position, V. position, H. size, resolution notice, OSD position, OSD timeout, OSD background, fine tune, sharpness, language, recall
Betriebsbedingungen
Temperatur: 41–95ºF (5–40ºC)
Feuchtigkeit: 20–80% (non-condensing)
Gewicht
Netto mit Fuß: 4.2 kg (9.2 lb. )
Netto ohne Fuß: 3.4 kg (7.5 lb. )
Brutto mit Fuß: 5.3 kg (11.7 lb.)
Videoeingang
Frequenz: Fh: 30~65kHz, Fv: 55~75Hz
Synchronisierung: H/V separated (TTL)
Analog: RGB analog (75 ohms, 0.7 Vp-p)
Energieverwaltung
ENERGY STAR® standards
Ergonomie
Neigung: 20 ~ -5 degrees
