VX1945wm
Product Description

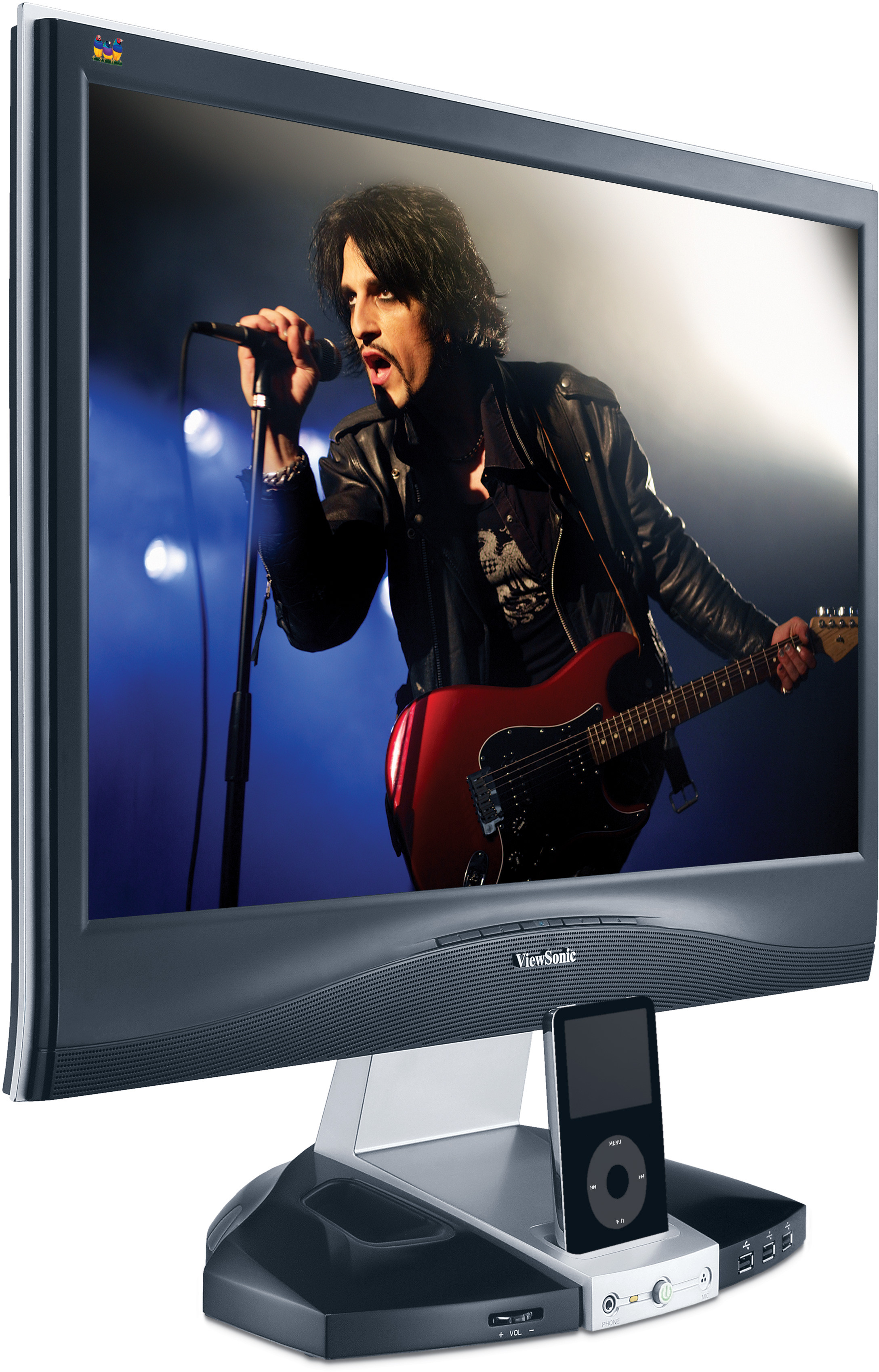

Stop, Dock and Rock – the ViewSonic 19” VX1945wm ViewDock™ LCD is the ultimate entertainment display. Dock your iPod® to access all your digital content. Boost your handheld photos and videos and view on the large widescreen display. Hear your digital content with built-in stereo speakers and additional subwoofer for unparalleled audio performance – or go silent with the headphone jack. Manage your digital media with the integrated 8-in-1 digital card reader for camera cards. Connect your digital devices through the 4 USB ports. Chat on-line using the built-in microphone. The super-fast 5ms response time screen lets you watch movies or play games free from blurs or ghosting. Your desktop experience will never be the same once you bring it all together with the VX1945wm ViewDock and iPod®.
Visit Us
  • www.viewsonic.com
  • COLORS
    Black
  • LCD
    Type: 19” Wide TN colour TFT active matrix WXGA+ LCD
    Contrast Ratio: 700:1 (typ.)
    Viewing Angles: 140° horizontal, 140° vertical (at 10:1), 160° horizontal, 160° vertical (at 5:1)
    Brightness: 300cd/m2
    Display Area: 41.0cm horizontal x 25.6cm vertical, 48.3cm diagonal
    Optimum Resolution: 1440 x 900@60Hz
    Response Time: 5ms (off-on-off) (typ.)
    Light Source: Long life, 40,000 hrs. (typ)
    Panel Surface: Anti-glare
    Pixel Pitch: 0.285mm
    Colour Support: 16.2M colours (6-bit+2-bit FRC)
    Pixel Clock: 140MHz
  • COMPATIBILITY
    PC: VGA up to 1440x900 non-interlaced
    Mac®: Power Mac™ G3/G4/G5 up to 1440 x 900 non-interlaced
  • DIMENSIONS
    Physical With Stand: 450 x 449 x 212
    Physical Without Stand: 450 x 341 x 66
    W x H x D mm: 545 x 520 x 260
  • REGULATIONS
    CE, CB, ERGO, ISO13406-2 (pixel failure class II), GOST-R + 20 original copies hygienic, UL, cUL, FCC-B, ENERGY STAR®, NOM, MPR II, SASO, BSMI, CCC, PSB, C-TICK, WEEE, RoHS
  • PACKAGE CONTENTS
    LCD Monitor, power cable, 15-pin VGA video cable, DVI cable, audio cable,
    USB cable, iPod® adapter, Quick Start Guide, ViewSonic Wizard CD-ROM
    (User Guide/drivers) (multi-language)
  • WARRANTY
    Three-year limited warranty on LCD, parts and labor. Optional Express Exchange® service program available.
  • AUDIO
    Speaker: 2 x 2 watt integrated stereo speakers
    Sub-woofer: 1 x 3 watt intergrated into base
    Microphone: Integrated into base
  • RECYCLE/DISPOSAL
    The lamp in this product contains mercury. Please dispose of in accordance with local, state and federal laws.
  • CONNECTOR
    Analogue: 15-pin mini D-Sub (detachable cable)
    Digital: 24-pin DVI-D (detachable cable)
    Power: 3-pin plug
    USB: USB 2.0 hub, 1x upstream (4-pin Typ B)/4x downstream (4-pin Typ A)
    Base: iPod dock, USB (A type)x4, USB (B type)x1, audio out stereo jack, 2-in-1 audio in, headphone jack
    Audio: 1 x 3.5mm stereo audio line-in, 1 x 3.5mm stereo audio line-out
    Headphone: 3.5mm mini stereo jack
    ViewDock: iPod® dock (Made for iPod® certified)
    Card Reader: 8-in-1 digital card reader
  • POWER
    Voltage: AC 100– 240V, 50/60Hz (auto switch), internal power supply (Display)
    Consumption: 59 watt (typ.), <1 watt in power save mode
  • CONTROLS
    Basic: Power, menu [1], up, down, select [2], mute, subwoofer volume up/down
    OSD: Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), ViewMatch® colour adjust (sRGB, 9300K, 7500K, 6500K, 5400K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall
  • OPERATING CONDITIONS
    Temperature: 0°C – 40°C
    Humidity: 20%–80% (non-condensation)
  • WEIGHT
    Net With Stand: 5.7kg
    Net Without Stand: 4.7kg
    Gross With Stand: 7.7kg
  • VIDEO INPUT
    Analog/Digital: RGB analogue (0.7 Vp-p, 75 ohm)
    Frequency: Fh: 30~82kHz, Fv: 50~85Hz
    Sync: H/V separated (TTL), composite, sync-on-green
    Digital: DVI-D (TMDS, 100 ohm)
  • POWER MANAGEMENT
    Meets MPR II and ENERGY STAR® standards
  • SECURITY
    Kensington® security port
  • VESA MOUNT COMPLIANT
    VESA FDMI 100mm x 100mm
  • ERGONOMICS
    Tilt: Down 5°, Up 20°
