Digital Signage

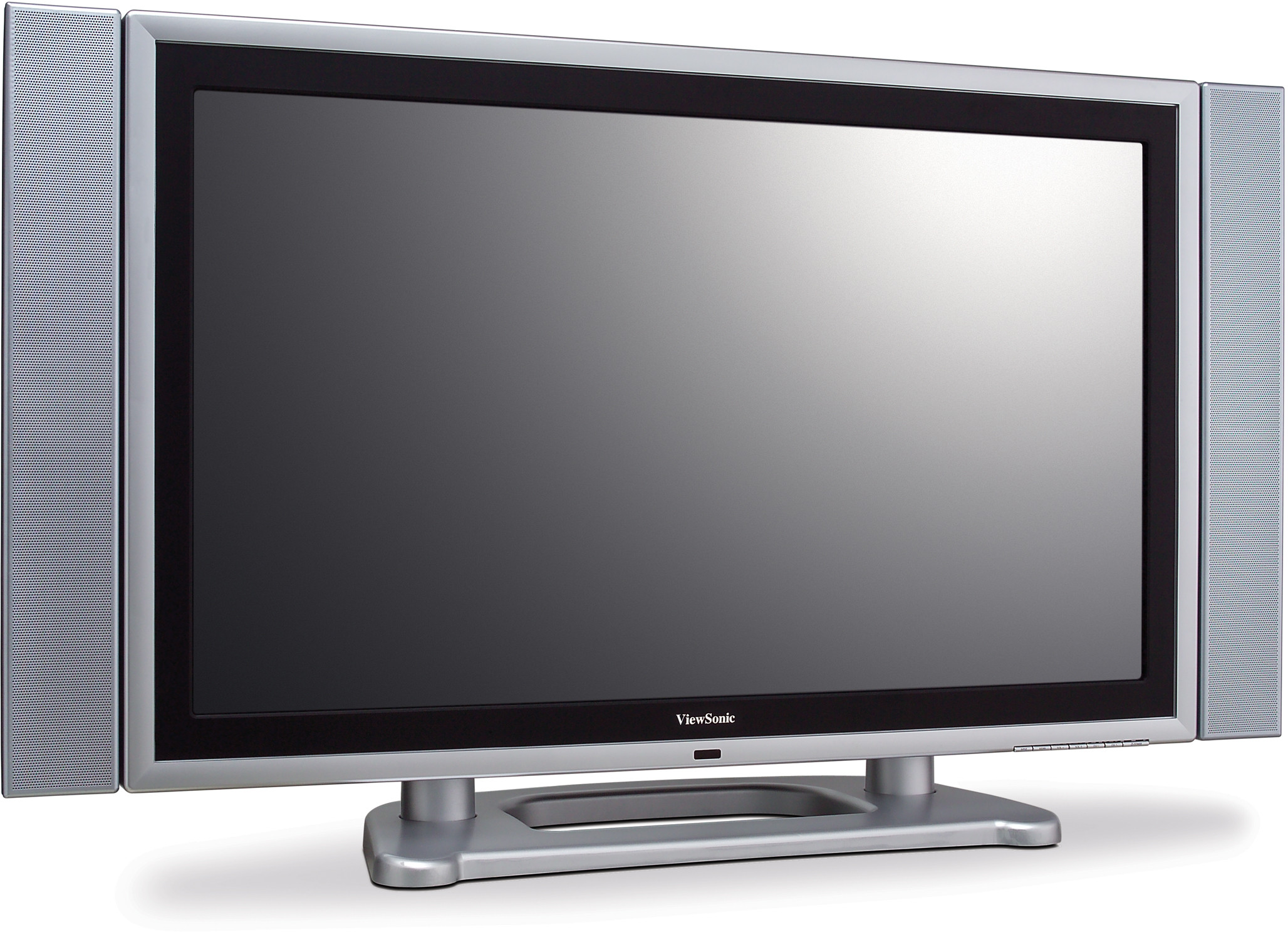

ND4210w
Key Features
Product Description
Visit Us
- www.viewsonic.com
-
LCD
Type: 107 cm / 42" IPS colour TFT active matrix, wide 1366 x 768 Contrast Ratio: 1600:1 (typ.) Viewing Angles: 178° horizontal, 178° vertical (at 10:1) Brightness: 500cd/m² Display Area: 93.0cm (horizontal) x 52.3cm (vertical), 107cm diagonal Optimum Resolution: 1366 x 768@60Hz Response Time: 8ms (off-on-off) (typ.) Aspect Ratio: 16:9 Panel Surface: Anti-glare (3H) Colour Support: 16.7M colours (8-bit) -
DIMENSIONS
Physical (WxHxD): 1243 x 739 x 304 (with stand) -
REGULATIONS
CB, UL/cUL, FCC - 15B/IC - ES003B, CE (EN55022/55024/LVD), C-Tick, NOM-019, TÜV-S Mark, CB, SASO, SABS, CCC, BSMI, PSB, GOST-R -
PACKAGE CONTENTS
LCD Monitor, power cable, Ethernet cable, remote control, batteries, Quick Start Guide, ViewSonic Wizard CD-ROM -
CONNECTOR
Power: 3-pin AC plug (CEE22) USB: 2 x USB (4-pin Typ A) (support for HIB and WLAN connection) Audio: 1 x RCA set R/L
1 x external speakers R/L (8 ohms)Network/Daisy Chain: 2 x RJ-45 -
POWER
Voltage: AC 100– 240V, 50/60Hz (auto switch), internal power supply Consumption: 390 watt (typ.), +/- 10% watts -
OPERATING CONDITIONS
Temperature: 5°C – 40°C Humidity: 20% – 85% (non-condensation) -
WEIGHT
Net: 33kg Gross: 41kg -
DECODING
Video: MPEG-1,2,4, Macromedia® Flash™ Audio: MPEG-1 (layers 1, 2, 3), MP3, WMA, AAC, Dolby® AC-3 (pass through) -
STREAMING PROTOCOL
Types: HTTP, UDP, RTP, IP/TV (separate A/V), ISMA, local file playback -
IMAGE FILE
Formats: JPEG, BMP -
VESA MOUNT COMPLIANT
VESA FDMI 200mm x 200mm -
VIDEO CHIPSET
Sigma EM8621L
Freescale MPC8247 -
VIDEO SCANNING FORMAT
SDTV/EDTV (480i/p, 576i/p), HDTV (720p, 1080i) -
STORAGE/MEMORY
HDD: 40GB RAM: 128MB Flash: 64MB RAM Sigma: 64MB CompactFlash: up to 1GB
