OVERVIEW

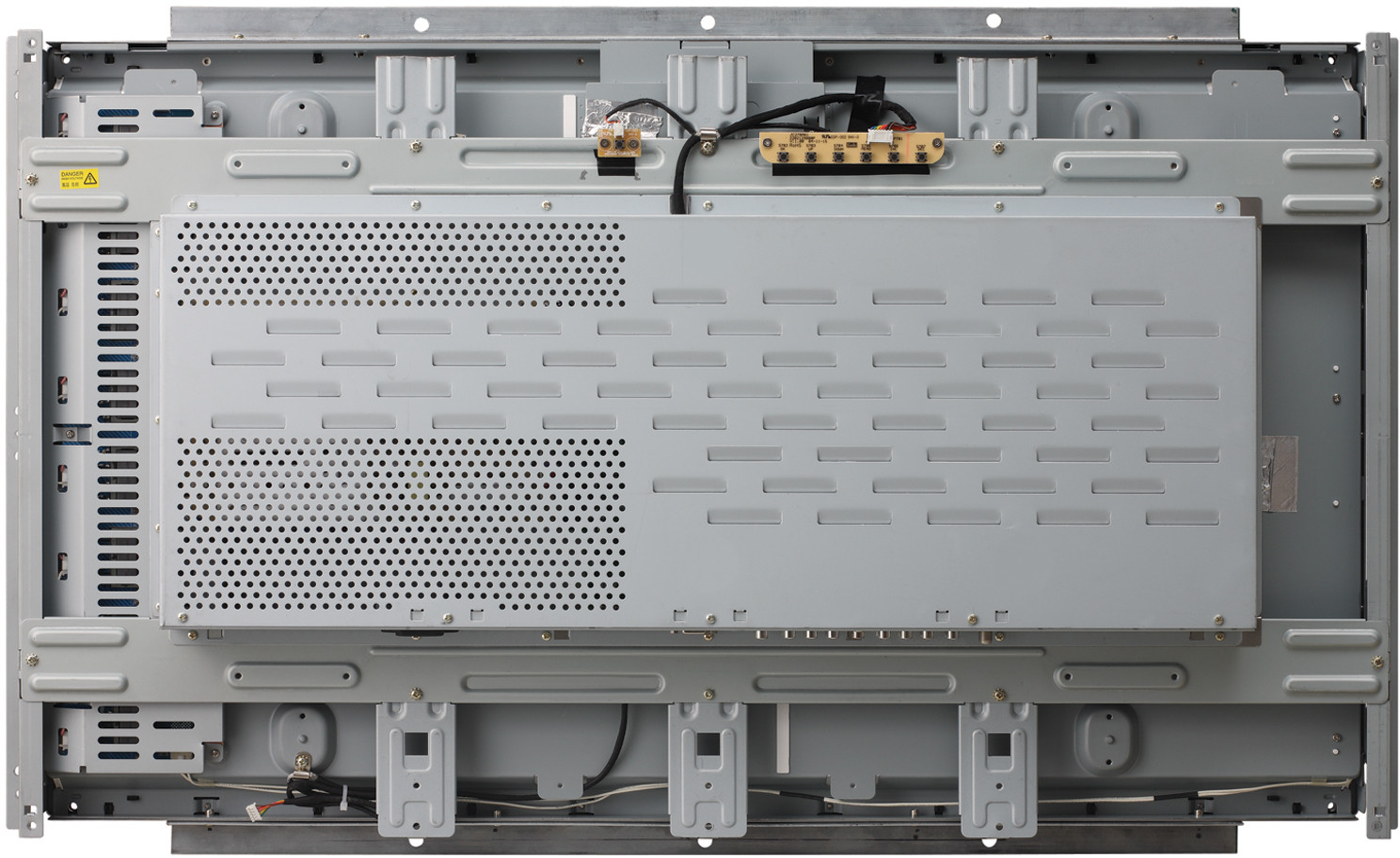

ViewSonic’s 37" OP3710 Open Frame Commercial LCD Display is ideal for use in kiosks, simulators, instrumentation packs, and gaming/entertainment installations.- Six-point metal chassis makes it easy to mount in any of these applications and eliminates the need for non-bezel displays
- Communicate targeted messages or play gaming/entertainment content on your schedule to your chosen audience
- The LCD panel delivers vibrant images for high-quality digital signage displays
- VGA inputs and outputs allow you to connect to PCs and high-def content sources
- Wide viewing angles, high brightness and contrast and 1366x768 PC resolution display crystal clear images in scrolling text or video
- Sets a new standard for large format, open frame displays.
SPECIFICATIONS
- LCDType: 94cm / 37" color TFT active matrix, wide LCD
Contrast Ratio: 2000:1 (typ)
Viewing Angles: 176º horizontal, 176º vertical
Brightness: 500 cd/m2 (typ)
Display Area: 813mm/32,2" horizontal x 460mm/18,1" vertical; 940mm/37" diagonal
Optimum Resolution: 1366x768
Response Time: 8ms
Light Source: Long life, 50,000 hrs. (typ)
Aspect Ratio: 16:9
Panel Surface: Anti-glare, hard coating (3H) - DIMENSIONSPhysical Without Stand: 44.2" x 26.1" x 5.4" (1122mm x 663mm x 136mm)
- REGULATIONSUL/cUL, FCC
- PACKAGE CONTENTSLCD display, power cable, Quick Start Guide
- WARRANTYOne-year limited warranty on parts and backlight
- RECYCLE/DISPOSALThe lamp in this product contains mercury. Please dispose of in accordance with local and federal laws.
- INPUTVideo Input: VGA 15-pin mini D-sub
Video Output: VGA 15-pin mini D-sub - INPUT SIGNALTV/Video comp.: 1360x768, 1280x1024, 1280x768, 1280x720, 1024x768, 800x600, 720x400, 640x480
- CONNECTORPower: 3-pin plug
- POWERVoltage: AC 100-240V (universal), 50-60Hz
Consumption: 185W (typ) - CONTROLSPicture: Auto image adjust, brightness, contrast, color adjust (9300k, 6500k, 5400k, user color), information (H/V frequency, resolution, pixel clock, serial number, model number, web site address), manual image adjust ( H. size, H/V position, fine tune, sharpness), set up menu (language select, resolution notice, OSD position, OSD time out, OSD background), memory recall
- OPERATING CONDITIONSTemperature: 41-104ºF (5-40ºC) landscape, 41-95ºF (5-35ºC)portrait
Humidity: 20-85% (non-condensing) - WEIGHTNet Without Stand: 31.9 lb. (15.4 kg)
