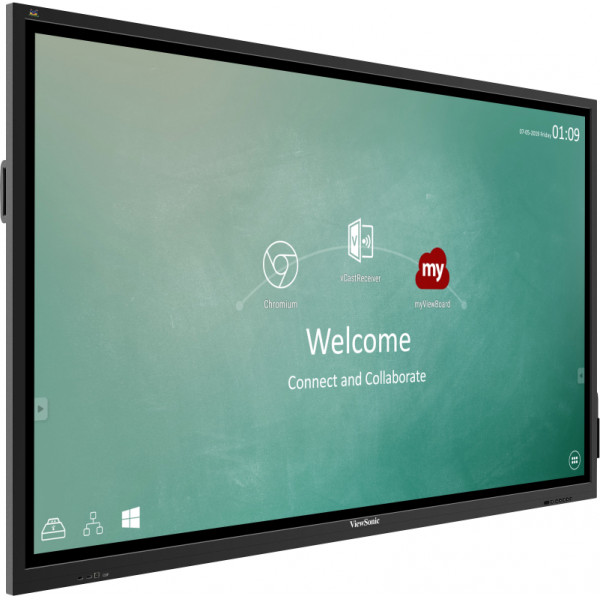

IFP6530

ViewBoard®️ 65'' 4K Interactive Display

  • UFT (Ultra Fine Touch) Technology
  • myViewBoard™ digital whiteboard software
  • Dual-pen writing with 3mm/8mm diameter pen tips
  • Ambient Light Sensor
  • ENERGY STAR®️ certified
Sales Enquiry

OVERVIEW

The ViewBoard® IFP30 series embraces UFT (Ultra Fine Touch) Technology to offer more precise writing and faster processing time than traditional IR panels. 2mm height sensitivity increases writing accuracy while allowing for dual-pen annotation with both 3mm & 8mm diameter pens. It’s also incredibly responsive, distinguishing the different touch diameters among pens, fingers and palms to avoid false strokes. In addition, the IFP30 series is integrated with myViewBoard™ digital whiteboard software to provide collaboration on the go, and is further complimented by build in ViewBoard vCAST wireless presentation application for instant screen sharing. Interactive whiteboards are becoming commonplace. The IFP30 series is the solution for schools and workplaces of all sizes and considerations.

UFT Technology

Ultra Fine Touch Technology produces a lag-free, pen-on-paper writing experience. Writing accuracy is greatly improved and student-teacher interaction flows more naturally thanks to real-time response rates, dual-pen recognition and our new 3mm tipped pens.

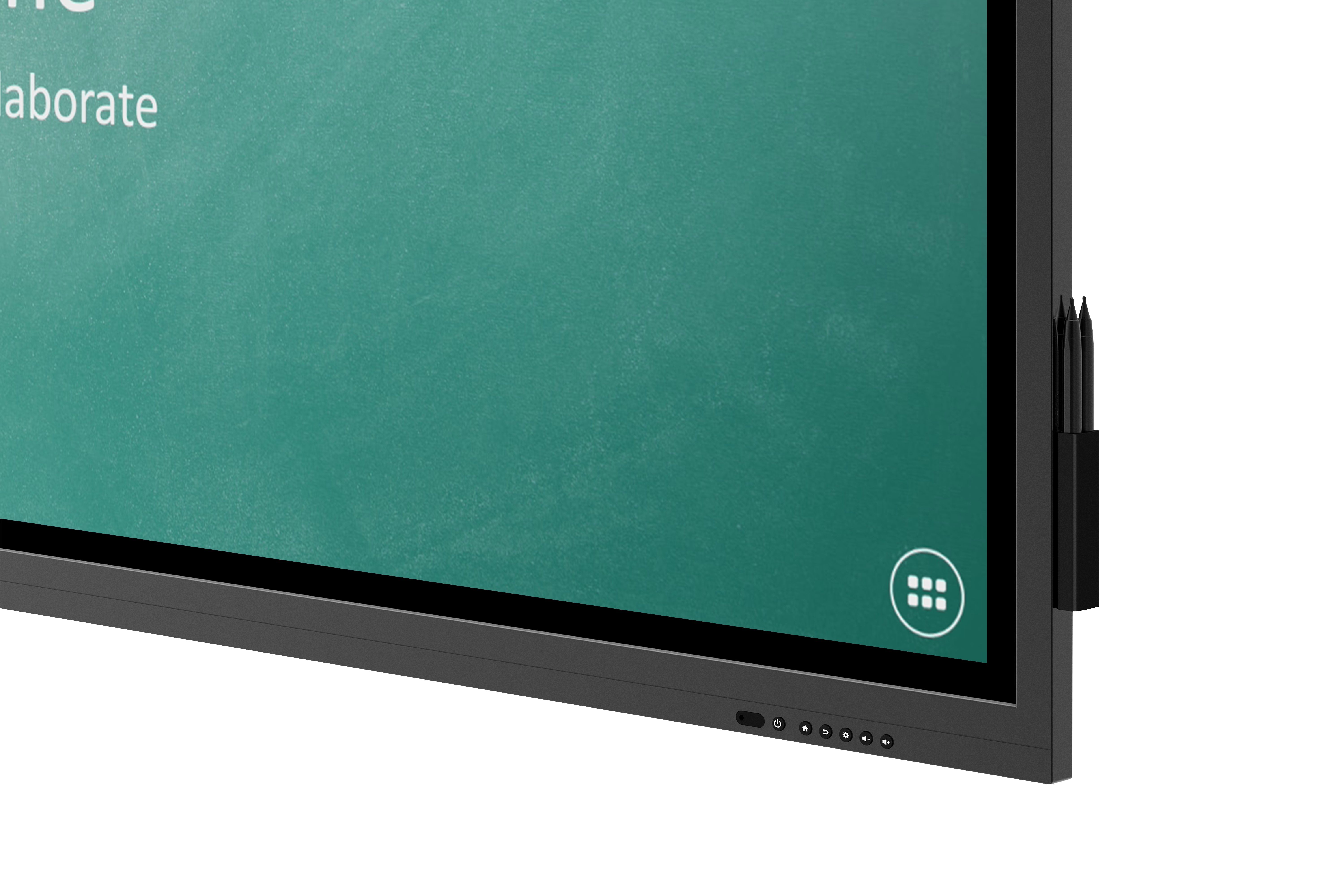

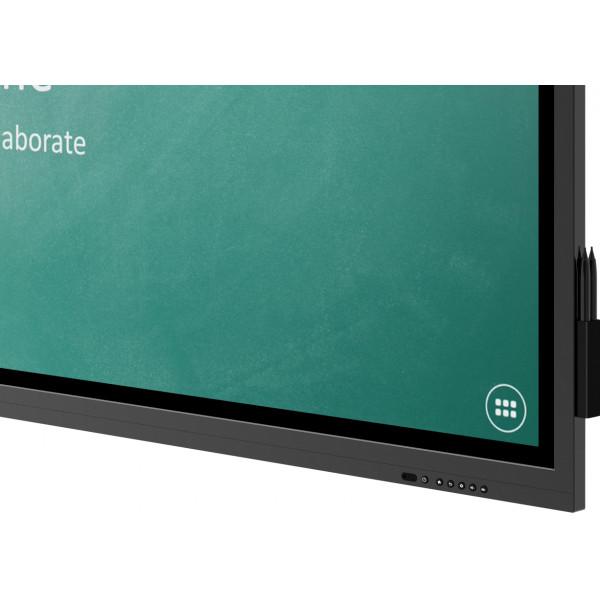

Dual-Pen

Automatically detect pen diameter (8mm & 3mm) and write simultaneously with different colours and thicknesses.

Full Native Performance on embedded OS

Built-in myViewBoard™ digital whiteboard software to collaborate on the go.

Wireless Content Sharing

Content sharing with built-in ViewBoard® Cast software.

Environmental Sustainability

ENERGY STAR certified for increased energy efficiency.

Ambient Light Sensor

Automatically adjust the brightness to relieve eye strain.

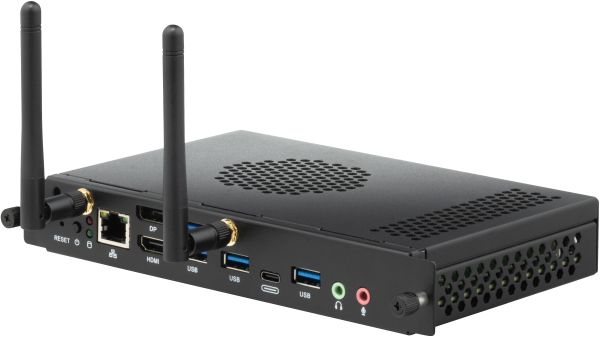

Slot-in PC

Intel OPS PC allows for efficient deployment and easy maintenance (Optional).

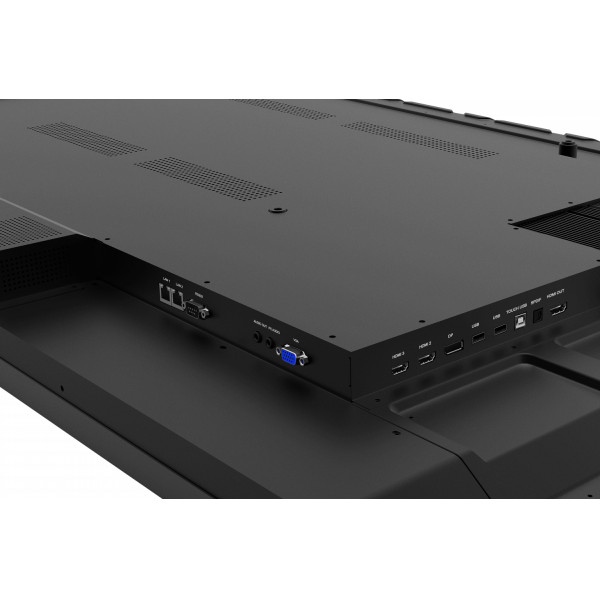

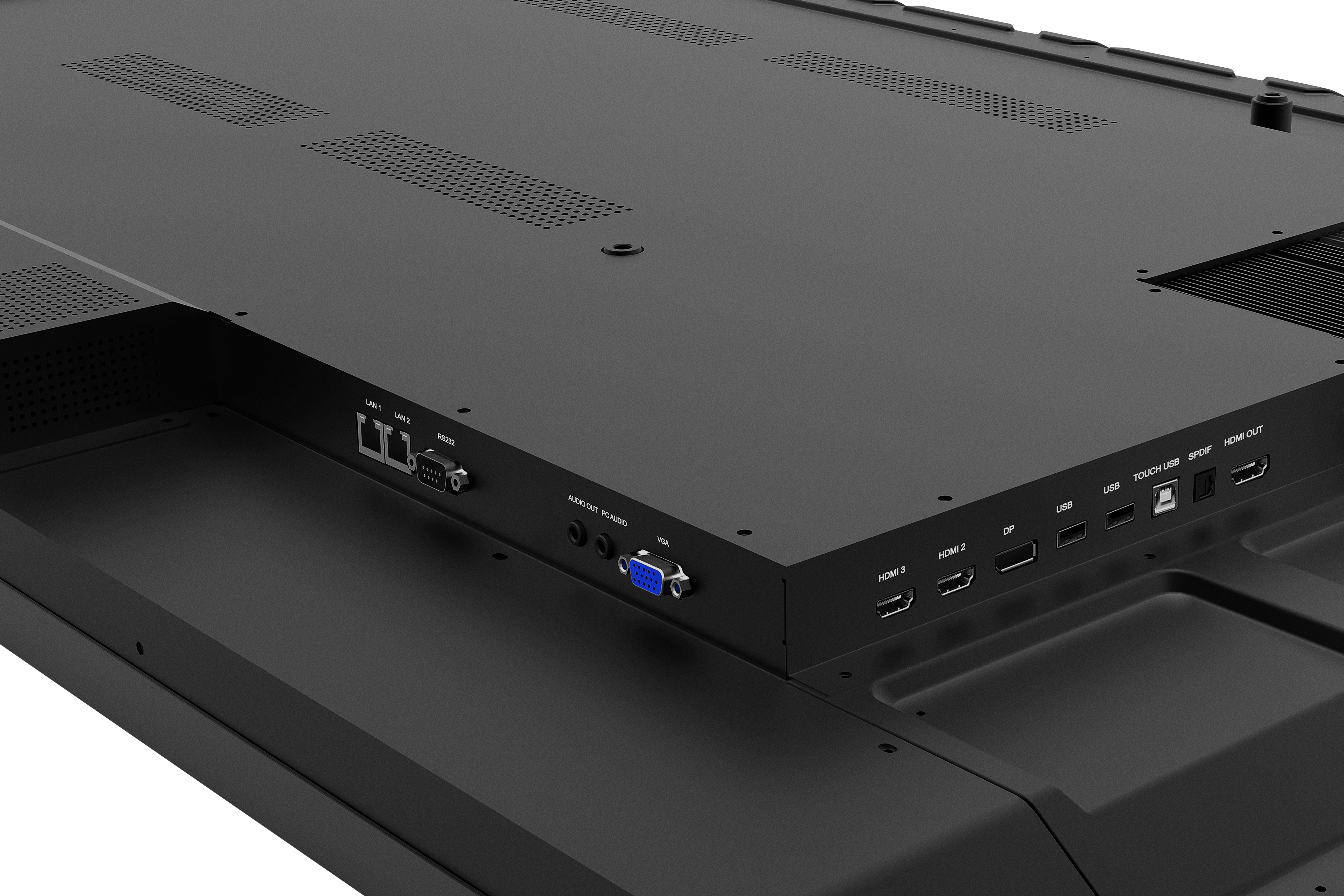

I/O Ports

  1. CONTROLS PANEL
  2. USB X 2
  3. TOUCH USB
  4. HDMI IN
  5. HDMI OUT
  6. SPDIF OUT
  7. TOUCH USB
  8. USB X 2
  9. DISPLAY PORT IN
  10. HDMI IN X 2
  11. VESA® WALL Mount 600x400 mm
  12. RS232 IN
  13. AUDIO OUT
  14. VGA IN
  15. LAN X 2
  16. PC AUDIO IN

SPECIFICATIONS


  • Display
    Panel Size: 65"
    Type/Tech: IPS/V-by-one
    Display Area (mm): 1428.48*803.52mm
    Aspect Ratio: 16:9
    Native Resolution: 3840x2160
    Colours: 10 bits
    Brightness: 360(Typ.)
    320(min.)
    Contrast Ratio: 1200:1
    Response Time: 6ms(Type)
    Viewing Angles: H = 178, V = 178 typ.
    Backlight Life: 50,000 hrs
    Surface Treatment: Hardness: 7H
    Costing: AG coating
    Thickness: 4mm
    Bezel: 29/29/29/49.7mm(btm.)
    Orientation: Landscape
  • Platform
    Processor: ARM Cortex-A73*2 + Cortex-A53*2 1.5Hz
    RAM: 3GB DDR4
    Storage: 16GB
  • Touch
    Type/ Tech: IR Recognition
    Touch Resolution: 32767W*32767D
    Touch Point: 20 points
    10 writing
