OVERVIEW

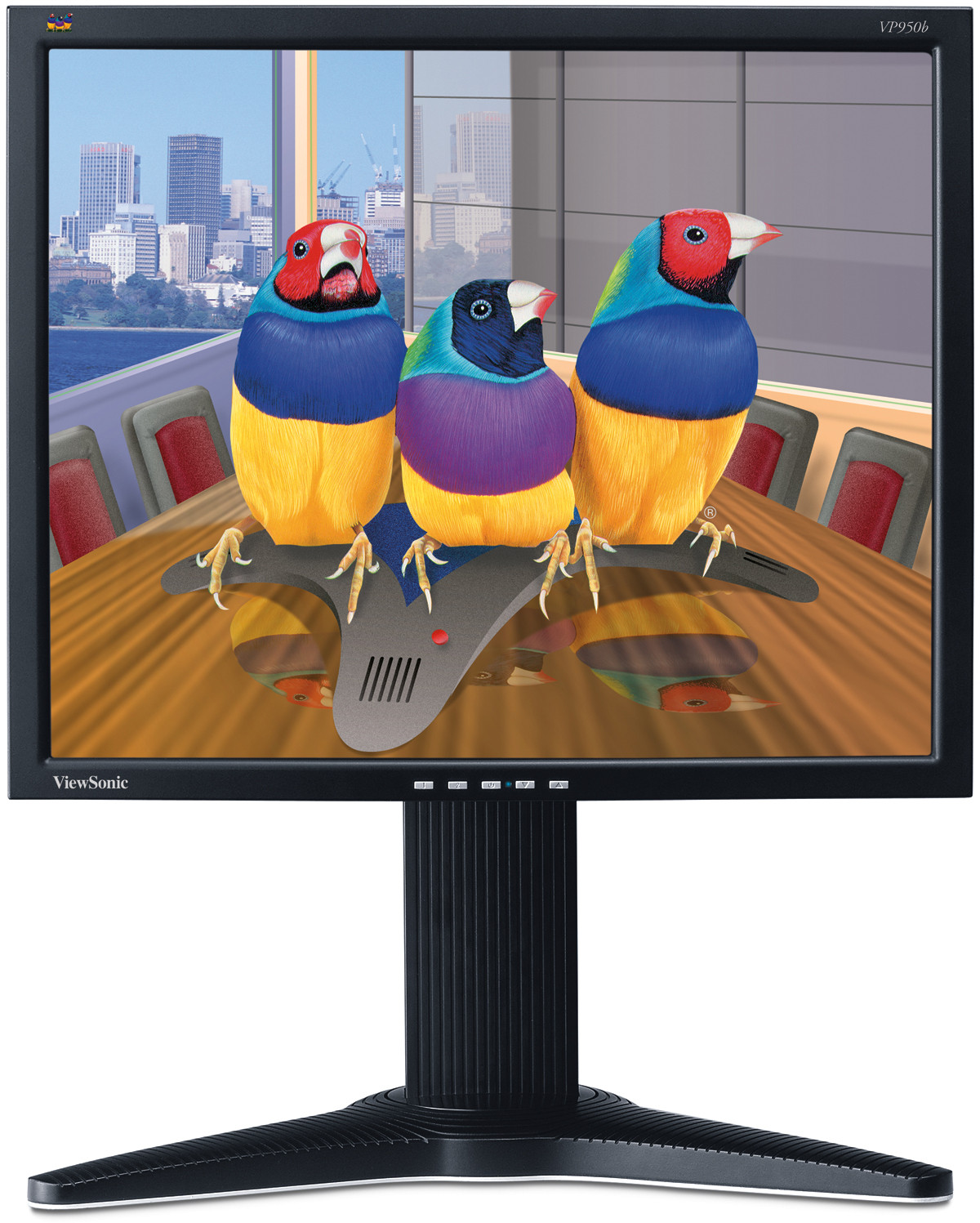

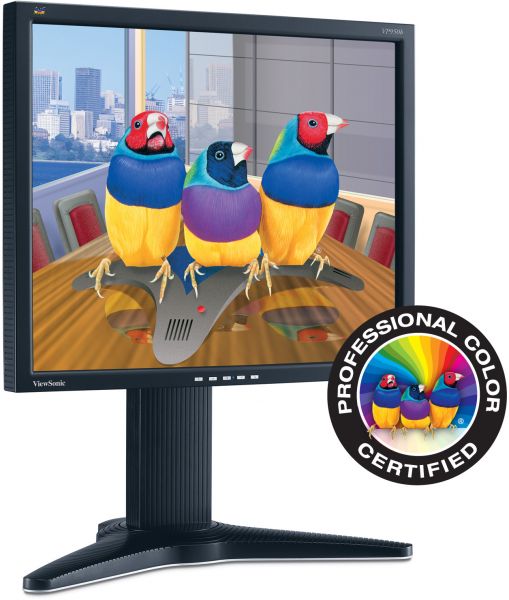

ViewSonic’s 48 cm / 19" VP950b LCD is a professional-grade display with 98% NTSC colour capability for richer, more natural colours across the entire colour spectrum. It is ideal for medical imaging, where precise colour rendition is vital to diagnosis. Graphics production, film and financial professionals will also find this display perfectly suited to their needs. 2000:1 DYNAMIC CONTRAST RATIO (typ.) and ultra-fast ClearMotiv 2ms response time (GtoG) deliver SUPERIOR FRONT-OF-SCREEN PERFORMANCE. The VP950b offers extensive ergonomic adjustments including height adjust, tilt, 120º swivel and pivot, and even a quick release stand. Certified for Windows Vista, this display is also HDCP compatible and features OptiSync digital/ analogue inputs plus 4 USB PORTS TO DELIVER A VERSATILE AND FLEXIBLE professional package. Step into a world of amazing colour and accuracy with the VP950b.Professional-grade colour and performance
It's not just another professional LCD. It's a ViewSonic.
REVIEWS
“Note 1,5”
“Note 1,5”
“Note 1,5”
“Note 1,5”
“Note 1,5”
“The ViewSonic VP Series is included in this CES roundup, highlighting its 110 percent NTSC color gamut.”
“Note 1,5”
SPECIFICATIONS
- COLORSBlack
- LCDTyp: 48 cm / 19" TN colour TFT active matrix SXGA LCD
Kontrastverhältnis: 800:1 (typ.), 2000:1 DCR (typ.)
Betrachtungswinkel: 170° horizontal, 160° vertical (at 10:1)
170° horizontal, 170° vertical (at 5:1)
Helligkeit: 280cd/m2 (typ.)
Anzeigefläche: 37.6cm horizontal x 30.1cm vertical, 48.3cm diagonal
Optimale Auflösung: 1280 x 1024@60Hz
Reaktionszeit: 2ms (grey-to-grey), 5ms (off-on-off, typ.)
Lichtquelle: Long life, 50000 hrs. (typ.)
Panel-Oberfläche: Anti-glare (3H)
Pixelabstand: 0.294mm
Farbtiefe: 16.7M colours supported (6-bit+2-bit HI FRC)
Pixeltakt: 140MHz
Farbgamut: Wide colour gamut, 98% of NTSC - KompatibilitätPC: VGA up to 1280 x 1024 non-interlaced
Mac®: Power Mac™ up to 1280 x 1024 non-interlaced
- AbmessungenPhysisch mit Fuß: 412 x 391-510 x 279
Physisch ohne Fuß: 412 x 331 x 63
Verpackung (B x H x T): 470 x 523 x 195 - ZertifikateTCO’03, CE, CB, GS, ERGO, ISO 13406-2 (pixel failure class II), UL,
cUL, GOST-R, Hygienic, FCC-B (ICES), ICES-003B, NOM, SASO, ENERGY, ENERGY STAR, C-Tick, KTL/MIC, BSMI, PSB, TUV-S/IRAM/UL-AR S Mark, MPR II, CCC, Green Mark, EPEAT, WEEE, RoHS - LieferumfangLCD Monitor, power cable, 15-pin VGA video cable, DVI-D cable, USB cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers)
(multi-language) - AnschlüsseAnalog: 15-pin mini D-sub (detachable cable)
Digital: 24-pin DVI-D (detachable cable) (HDCP enabled)
Stromversorgung: 3-pin plug (CEE22)
USB: 1 x upstream (4-pin Typ B)/4 x downstream (4-pin Typ A), USB 2.0 - Stromversorgung Spannung: AC 100–240V, 50–60Hz (Auto-Switch), internal power supply
Verbrauch: 40 watt (typ., without USB peripheral connected), <1 watt in power save mode - BedienungselementeGrundausstattung: Power, menu [1], up, down, select [2]
OSD: Auto image adjust, contrast, brightness, input select (D-sub, DVI-D),
ViewMatch® colour adjust (sRGB, 9300K, 7500K, 6500K, 5000K, user RGB),
information (resolution, H/V frequency, pixel clock, model number, serial
number), manual image adjust (H/V position, H size, fine tune, sharpness, DCR [on/off], response time [standard, advanced, ultra-fast]), setup menu
(language, resolution notice, OSD position, OSD timeout, OSD background, OSD pivot), auto white balance, OSD/power lock - BetriebsbedingungenTemperatur: 0° to 40°
Feuchtigkeit: 10% to 90% (non-condensation) - GewichtNetto mit Fuß: 5.6kg
Netto ohne Fuß: 4.4kg
Brutto: 7.5 kg - Videoeingang Frequenz: Fh: 24-82kHz, fv: 50-85Hz
Synchronisierung: H/V separated (TTL), composite, sync on green
Analog: RGB analogue (0.7/1.0 Vp-p , 75 ohms)
Digital: DVI-D (HDCP enabled, TMDS, 100 ohms, DDC/CI) - EnergieverwaltungMeets TCO’03 and ENERGY STAR standards
- SicherheitKensington security port
- WandhalterungVESA FDMI 100mm x 100mm

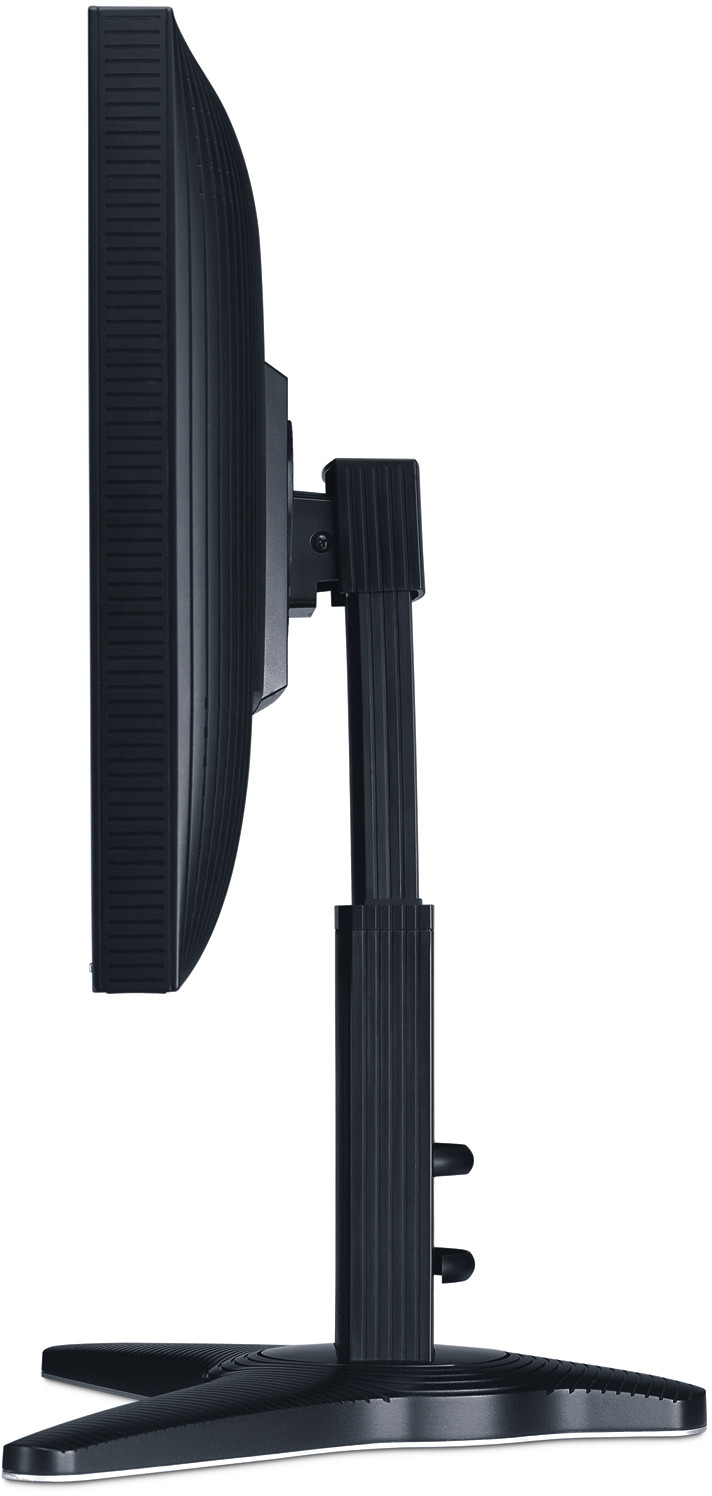

- ErgonomieNeigung: Down 5°, up 20°
Schwenken: 120° (60° left/right)
Höhenverstellung: 0~120mm
Drehung: 0°~90°
