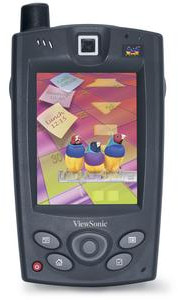

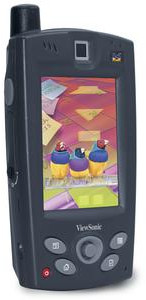

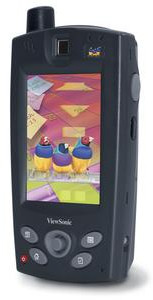

V38R-05

Rugged mobile computing

Sales Enquiry

GALLERY

OVERVIEW

Choose ViewSonic’s V38r-05 enterprise digital assistant for use in industries where versatile, rugged mobility is a must.

Withstands harsh conditions that can damage or destroy standard PDAs
Drop-tested up to four feet and is dust-proof and splash-proof
Industry-standard CE.NET 4.2 OS supports many third party applications and drivers, giving it nearly universal adaptability
With bar code scanner, 1.3 megapixel camera, a secure digital (SD) card slot and fingerprint sensor, the V38r-05 meets data and security needs for such diverse industries as healthcare, public safety, retail, logistics, field services and military
Integrated 802.11b/g wireless communications so you can update files and records remotely
Hot-swappable, rechargeable Li-Ion battery allows you to change your battery without shutting down or losing data
The bright color display delivers clear images in all lighting conditions

SPECIFICATIONS

COLORS
Black
Betriebssystem
Microsoft® Windows® CE.NET 4.2
Prozessor
Intel® XScale" 416MHz

Speichererweiterung
Secure Digital (SD) slot
Display (Auflösung)
89mm / 3.5" 240x320 TFT with 256k colors
Touchpanel
4-wire resistive; 3H hardness
Kabellose Kommunikation
802.11b/g with support for WEP 64/128, WPA RADIUS (EAP-TLS, PEAP, TTLS, and LEAP*), WPA-PSK and Microsoft® VPN IPSEC and PPTP *Requires 3rd party application
Schnittstellenkommunikation
USB 1.1 (host and client); RS-232
Barcodeleser
1-D CCD Image Engine and support for the following bar code formats: UPC (E&A), EAN, Code 39, Code 128, UCC, EAN 128, ISBN, Interleaved, Matrix, Industrial and Standard 2 of 5, Codabar, Code 93, MSI, Plessey and Telepen
AUDIO
Integrated 500mW speaker and microphone with echo cancellation (for VOIP applications)
Akku
3600mAh (standard battery), Li-Ion, up to 8-hour use, removable
Zertifikate
FCC, UL, CE Mark & Radio Country approvals: US/Canada, R&TTE
Betriebstemperatur
-10Cº+55º C
STORAGE TEMP.
-20Cº+65º C
Feuchtigkeit
10%85% at 30º C
Umweltschutzversiegelung
IP54 Category 2
DROP
Multiple 4-foot (1.2m) drops to concrete across operating temperature
Abmessungen (H x B) (cm)
5.8x3.2
Gewicht (mit Akku)
14 oz.
Mitgeliefertes Zubehör
Extended battery, protective flip cover, belt clip, AC power adapter, DC power connector, stylus, USB/RS-232 adapter, and USB cable
Sonderzubehör
Desktop cradle, universal car charger
Kamera
1.3 megapixel CMOS with LED illuminator
Fingerabdrucksensor
High definition 128x128 pattern sensor, 500 pixels per inch (ppi), 7.2mm square
Speicher: Flash
64MB
Speicher: SDRAM
128MB
