Brilliant Performance

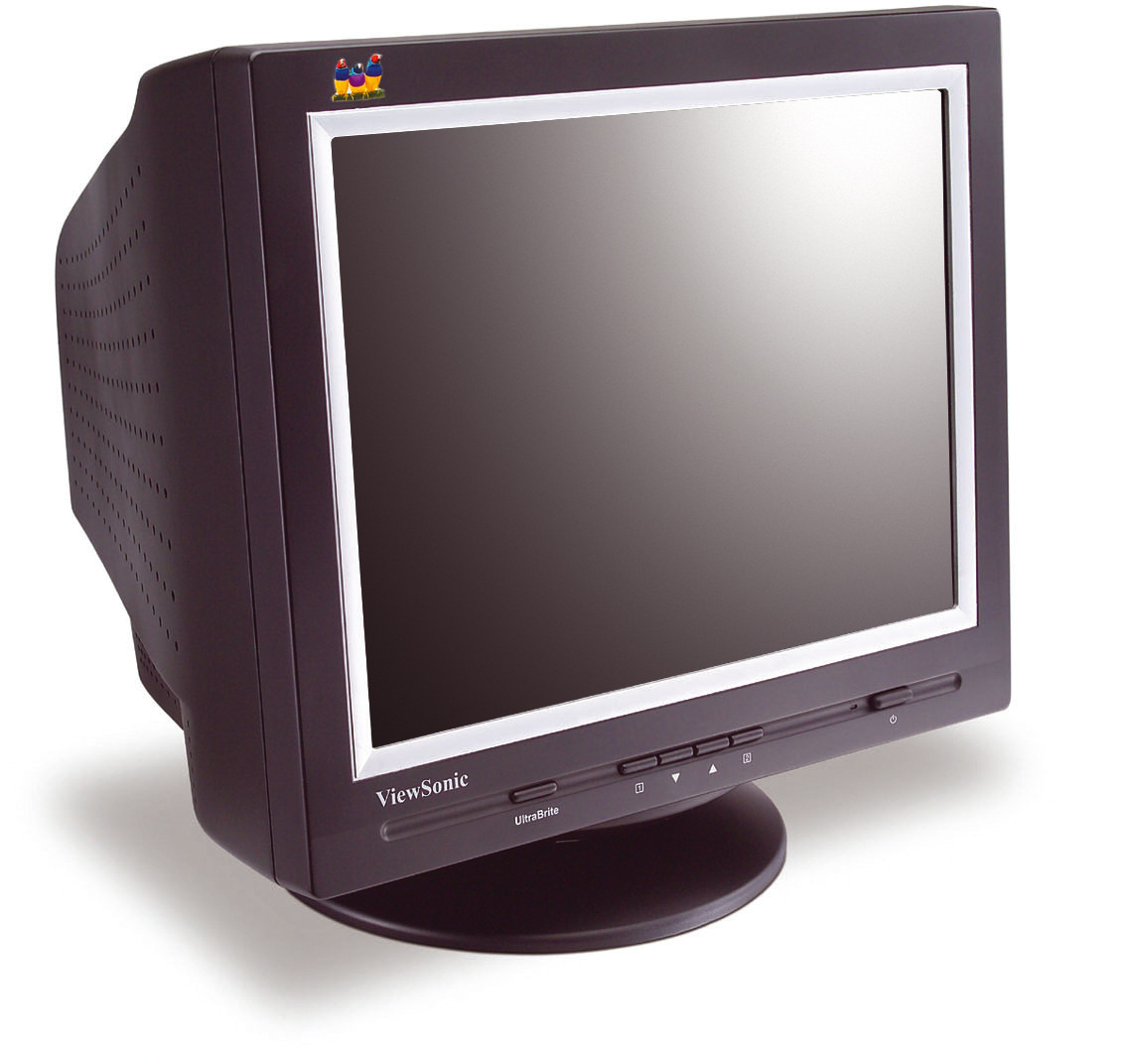

The ultra-stylish ViewSonic E96f+SB 48cm / 19" CRT monitor offers AFFORDABLE QUALITY, PERFORMANCE AND RELIABILITY. Thanks to its PerfectFlat® screen you'll view edge-to-edge, distortion-free images with minimised reflection and glare. With an easy touch of the UltraBrite button, choose between HIGH-BRIGHTNESS TO ENHANCE GAMING, DVD, TV AND GRAPHICS or normal brightness for word processing, spreadsheets and text. The ultra- fine 0.20mm horizontal dot pitch delivers precise picture definition when viewing everyday applications. Adjust your screen with the OnView® controls and secure them with the OSD lock function to ensure OPTIMUM SCREEN PERFORMANCE. Perfect for demanding business, SOHO and education applications.
SPECIFICATIONS
- COLORSBlack
- KompatibilitätPC: PC and compatible (from VGA up to 1792 x 1344)
Mac®: Power Mac™ G3/G4 (from 640 x 480 up to 1152 x 864) - AbmessungenPhysisch (B x H x T): 445mm (W) x 424mm (H) x 465mm (D)
- ZertifikateCCC, MPR II, SASO, CB
- EingangssignalFrequenz: Fh: 30 – 86kHz
Fv: 50 – 160Hz
Video: RGB analogue (0.7 Vp-p, 75 ohms)
Synchronisierung: H/V separated (TTL) - AnschlüsseStromversorgung: 3-pin plug (IEC320)
Signal: 15-pin mini D-sub - Stromversorgung Spannung: AC 100 – 240V, 50/60Hz (+/-3Hz) (auto-switch)
Verbrauch: 55 watts (typ.) - BedienungselementeGrundausstattung: Power on/off, menu, up, down, select, UltraBrite
OSD: Contrast, brightness, zoom, H/V size, H/V position, pincushion, pin balance, trapezoid, parallelogram, tilt, moiré reduction,
degauss, ViewMatch® colour (9300k, 6500k, 5000k user), ViewMeter, OSD position, language, OSD lock, Memory recall - BetriebsbedingungenTemperatur: 32-104ºF (0-40ºC)
Feuchtigkeit: 5% to 95% (no condensation) - GewichtNetto: 18.0kg
- Videoeingang Bandbreite: 210MHz (typ.)
- EnergieverwaltungMeets MPR II
- RöhrenmonitorTyp: 48cm / 19" (18" viewable) CRT, 90° deflection, PerfectFlat
Punktraster: 0.20mm horizontal x 0.14mm vertical, 0.25mm diagonal
Phosphor: RGB P22 (Cd free)
Glasfläche: Tint: (TM ~ 53.6%), anti-reflection, anti-static - Plug & Play DDC1, DDC2B
- MISCONVERGENCE0.25mm (max.) at centre
0.35mm (max.) at corner - Programmierbare ModiWerk: 10
Anwender: 12 - AnzeigeflächeWerkseinstellungen: 352mm (H) x 264mm (V) (typ.)
Maximum Scan: 360mm (H) x 270mm (V) (depending on signal timing used)
