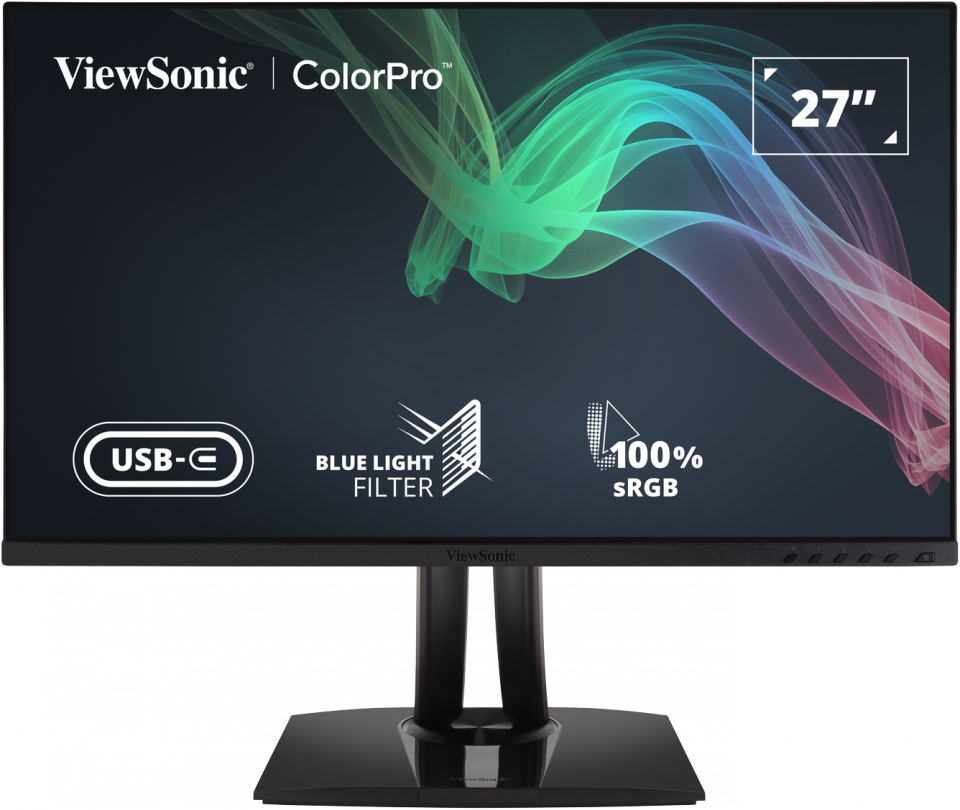

ViewSonic VP2756-4K 27" 4K UHD Pantone gevalideerde 100% sRGB en in de fabriek voorgekalibreerde monitor met 60W USB-C - Datasheet

Key Features

Levensecht: Internationale kleurstandaard Pantone gevalideerd en 100% sRGB breed kleurengamma
Precieze kleur: ColorPro geverifieerd met fabriekskalibratie voor overweldigende Delt E 2 kleurnauwkeurigheid
Multimedia-apparaten: ondersteuning voor USB-C met 60 W high-speed opladen, plus HDMI 2.0, DisplayPort 1.2a, USB 3.2
Onbeperkte Flexibiliteit: Auto Pivot & Ergonomische standaard met kantel-, draai-, pivot- en hoogteaanpassingen
Het zichtbare verschil: 4K UHD(3840* 2500) resolutie IPS paneel met 27” frameloos design
Veelzijdige werkmodi: inclusief CAM/CAD-modus voor ontwerp, portretmodus voor fotografie, TÜV-gecertificeerd voor blauwlichtfilter

Product Description

Ontworpen voor creatieve professionals, levert de ViewSonic VP2756-4k verbluffende, levensechte kleuren op het scherm. Pantone gevalideerde 100% sRGB-dekking zorgt voor een nauwkeurige kleurreproductie, zodat uw werk er elke keer weer uitziet zoals het hoort. Een USB-C-poort die eenvoudig kan worden aangesloten op uw apparaten voor eenvoudig opladen en gegevensoverdracht. Ergonomische techniek geeft u flexibiliteit en de Auto Pivot laat u moeiteloos tussen horizontale en verticale oriëntaties schakelen, uw werk kan worden bekeken zoals het hoort te zijn.

Visit Us

www.viewsonic.com

DISPLAY

Display Size (in.):	27
Viewable Area (in.):	27
Panel Type:	IPS Technology
Resolution:	3840 x 2160
Resolution Type:	UHD
Static Contrast Ratio:	1,000:1 (typ)
Dynamic Contrast Ratio:	20M:1
Light Source:	LED
Brightness:	350 cd/m² (typ)
Colors:	1.07B
Color Space Support:	10 bit (8 bit + A-FRC)
Aspect Ratio:	16:9
Response Time (Typical GTG):	5ms
Response Time (GTG w/OD):	5ms
Viewing Angles:	178º horizontal, 178º vertical
Backlight Life (Hours):	30000 Hrs (Min)
Curvature:	Flat
Refresh Rate (Hz):	60
Blue Light Filter:	Yes
Flicker-Free:	Yes
Color Gamut:	Adobe RGB: 81% size / 78% coverage (Typ) DCI-P3: 80% size / 80% coverage (Typ) EBU: 108% size / 98% coverage (Typ) REC709: 109% size / 100% coverage (Typ) SMPTE-C: 118% size / 100% coverage (Typ) NTSC: 77% size (Typ) sRGB: 109% size / 100% coverage (Typ)
Pixel Size:	0.155 mm (H) x 0.155 mm (V)
Surface Treatment:	Anti-Glare, Hard Coating (3H)

COMPATIBILITY

PC Resolution (max): 3840x2160

Mac® Resolution (max): 3840x2160

PC Operating System: Windows 10 certified; macOS tested

Mac® Resolution (min): 3840x2160

CONNECTOR

USB 3.2 Type A Down Stream:	2
USB 3.2 Type B Up Stream:	1
USB 3.2 Type C Up Stream; DisplayPort Alt mode :	1
HDMI 2.0 (with HDCP 2.2):	2
DisplayPort:	1
Power in:	3-pin Socket (IEC C14 / CEE22)

AUDIO

Internal Speakers: 2Watts x2
POWER

Eco Mode (Conserve): 19.3W

Eco Mode (optimized): 21.5W

Consumption (typical): 24W

Consumption (max): 28W

Voltage: AC 100-240V, 50/60 Hz

Stand-by: 0.3W

Power Supply: Internal
ADDITIONAL HARDWARE

Kensington Lock Slot: 1

Cable Organization: Yes
CONTROLS

Physical Controls: Key 1, Key 2, Key 3, Key 4, Key 5, Key 6 (power)

On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
OPERATING CONDITIONS

Temperature: 32°F to 104°F (0°C to 40°C)

Humidity (non-condensing): 20% to 90%
WALL MOUNT

VESA Compatible: 100 x 100 mm
INPUT SIGNAL

Frequency Horizontal: 15 ~ 136KHz

Frequency Vertical: 15 ~ 150Hz
VIDEO INPUT

Digital Sync: TMDS - HDMI (v2.0), PCI-E - DisplayPort (v1.2), Micro-Packet - Type C
ERGONOMICS

Height Adjust (mm): 130

Swivel: 120º

Tilt (Forward/Back): -5º / 21º

Pivot (Right/Left): 90º / 90º
WEIGHT (IMPERIAL)

Net (lbs): 16.6

Net Without Stand (lbs): 11.2

Gross (lbs): 22.5
WEIGHT (METRIC)

Net (kg): 7.5

Net Without Stand (kg): 5.1

Gross (kg): 10.2
DIMENSIONS (IMPERIAL) (WXHXD)

Packaging (in.): 29.1 x 18.3 x 8.9

Physical (in.): 24.1 x 16.15~21.27 x 8.5

Physical Without Stand (in.): 24.1 x 14.3 x 2.1
DIMENSIONS (METRIC) (WXHXD)

Packaging (mm): 740 x 465 x 225

Physical (mm): 613 x 410.31~540.31 x 215

Physical Without Stand (mm): 613 x 363 x 53

GENERAL

Regulations:	cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, BSMI, BIS
PACKAGE CONTENTS:	VP2756-4K x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v2.0; Male-Male) x1, USB Type-C Cable (Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Quick Start Guide x1
Recycle/Disposal:	Please dispose of in accordance with local, state or federal laws.
Warranty:	*Warranty offered may differ from market to market
Power Management:	Energy Star standards, EPEAT

PC Resolution (max):	3840x2160
Mac® Resolution (max):	3840x2160
PC Operating System:	Windows 10 certified; macOS tested
Mac® Resolution (min):	3840x2160

Eco Mode (Conserve):	19.3W
Eco Mode (optimized):	21.5W
Consumption (typical):	24W
Consumption (max):	28W
Voltage:	AC 100-240V, 50/60 Hz
Stand-by:	0.3W
Power Supply:	Internal

Physical Controls:	Key 1, Key 2, Key 3, Key 4, Key 5, Key 6 (power)
On Screen Display:	Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu

Temperature:	32°F to 104°F (0°C to 40°C)
Humidity (non-condensing):	20% to 90%

Frequency Horizontal:	15 ~ 136KHz
Frequency Vertical:	15 ~ 150Hz

Height Adjust (mm):	130
Swivel:	120º
Tilt (Forward/Back):	-5º / 21º
Pivot (Right/Left):	90º / 90º

Packaging (in.):	29.1 x 18.3 x 8.9
Physical (in.):	24.1 x 16.15~21.27 x 8.5
Physical Without Stand (in.):	24.1 x 14.3 x 2.1

Packaging (mm):	740 x 465 x 225
Physical (mm):	613 x 410.31~540.31 x 215
Physical Without Stand (mm):	613 x 363 x 53

Kensington Lock Slot:	1
Cable Organization:	Yes

Net (lbs):	16.6
Net Without Stand (lbs):	11.2
Gross (lbs):	22.5

Net (kg):	7.5
Net Without Stand (kg):	5.1
Gross (kg):	10.2
