Key Features
  • Diverse touch mogelijkheden
  • Efficient multitasken
  • Annoteren tijdens presentaties
  • Nauwkeurige maar soepele touch-ervaring
  • Comfortabele werkhoeken en snel beginnen
  • Touch support voor Windows, Android, Chrome, Linux en Raspberry Pi

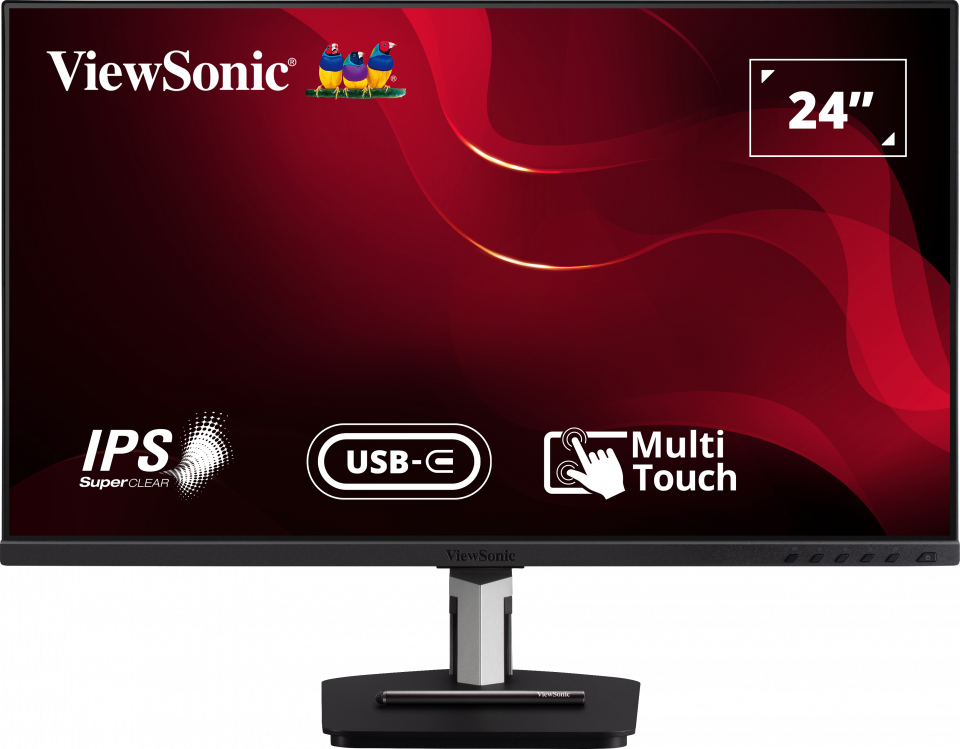

TD2455
Product Description
Met responsieve in-cel touch-technologie en een geavanceerd ergonomisch ontwerp, biedt de ViewSonic® TD2455-touchscreen praktische controle voor productievere werkruimten en collaboratieve klaslokalen. Met 24-inch (23,8-inch) Full HD-scherm met krachtige in-cell-touchtechnologie biedt het vloeiende en responsieve touch-tracking, samen met verbluffende schermprestaties, in een gestroomlijnd en randloos ontwerp. USB Type-C-connectiviteit biedt een plug-and-play-oplossing met één kabel voor laptops, terwijl DisplayPort-uitvoer eenvoudige schermspiegeling of uitgebreide desktops mogelijk maakt, ideaal voor kantoorproductiviteit en podiumtoepassingen zoals vergaderruimten of klaslokalen. Met een magnetische styluspen kunt u op het scherm schrijven of tekenen, en eenvoudig aan de displaystandaard bevestigen voor veilige opslag. Dus of het nu alleen wordt gebruikt op kantoordesktops, als presentatiestation in zakelijke vergaderruimten of als een interactieve leshub in de klas, de TD2455 helpt de efficiëntie en productiviteit te verhogen.
  1. Menu Controls
  2. VESA Compatible(Wall Mount 100x100mm)
  3. Internal Speakers
  4. AC IN
  5. HDMI
  6. DP IN
  7. USB Type C
  8. DP OUT(Output/MST daisy chain)
  9. Audio Out
  10. USB up stream
Visit Us
  • www.viewsonic.com
  • DISPLAY
    Display Size (in.): 24
    Viewable Area (in.): 23.8
    Panel Type: IPS Technology
    Resolution: 1920 x 1080
    Resolution Type: FHD (Full HD)
    Static Contrast Ratio: 1,000:1 (typ)
    Dynamic Contrast Ratio: 50M:1
    Light Source: LED
    Brightness: 250 cd/m² (typ)
    Colors: 16.7M
    Color Space Support: 8 bit (6 bit + Hi-FRC)
    Aspect Ratio: 16:9
    Response Time (Typical GTG): 6ms
    Response Time (GTG w/OD): 6ms
    Viewing Angles: 178º horizontal, 178º vertical
    Backlight Life (Hours): 30000 Hrs (Min)
    Curvature: Flat
    Refresh Rate (Hz): 60
    Low Blue Light: Software solution
    Flicker-Free: Yes
    Color Gamut: NTSC: 72% size (Typ) sRGB: 104% size (Typ)
    Pixel Size: 0.275 mm (H) x 0.275 mm (V)
    Touch Screen: Projected Capacitive, 10-point multi-touch
    Surface Treatment: Anti-Glare, Hard Coating (3H)
  • COMPATIBILITY
    PC Resolution (max): 1920x1080
    Mac® Resolution (max): 1920x1080
    PC Operating System: Windows 7/8/8.1/10/11 certified; macOS tested
    Mac® Resolution (min): 1920x1080
  • CONNECTOR
    USB 3.2 Type A Down Stream: 2
    USB 3.2 Type B Up Stream: 1
    USB 3.2 Type C Up Stream; DisplayPort Alt mode : 1 (60W power charger)
    3.5mm Audio Out: 1
    HDMI 1.4: 1
    DisplayPort: 1
    DisplayPort Out: 1
    Power in: 3-pin Socket (IEC C14 / CEE22)
  • AUDIO
    Internal Speakers: 2Watts x2
  • POWER
    Eco Mode (Conserve): 9.7W
    Eco Mode (optimized): 12.8W
    Consumption (typical): 17.9W
    Consumption (max): 20.4W
    Voltage: AC 100-240V
    Stand-by: 0.3W
    Power Supply: Internal Power Supply
  • ADDITIONAL HARDWARE
    Kensington Lock Slot: 1
  • CONTROLS
    Physical Controls: Key 1 (eye), Key 2, Key 3, Key 4, Key 5, Key 6 (power)
    On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
  • OPERATING CONDITIONS
    Temperature: 32°F to 104°F (0°C to 40°C)
    Humidity (non-condensing): 20% to 90%
  • WALL MOUNT
    VESA Compatible: 100 x 100 mm
  • INPUT SIGNAL
    Frequency Horizontal: 15 ~ 82KHz
    Frequency Vertical: 50 ~ 75Hz
  • VIDEO INPUT
    Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2), Micro-Packet - Type C
  • ERGONOMICS
    Tilt (Forward/Back): -5º / 60º
  • WEIGHT (IMPERIAL)
    Net (lbs): 14.2
    Net Without Stand (lbs): 8.2
    Gross (lbs): 18.6
  • WEIGHT (METRIC)
    Net (kg): 6.4
    Net Without Stand (kg): 3.7
    Gross (kg): 8.4
  • DIMENSIONS (IMPERIAL) (WXHXD)
    Packaging (in.): 24.3 x 16.3 x 11.2
    Physical (in.): 21.2 x 16.8 x 11.3
    Physical Without Stand (in.): 21.2 x 12.6 x 2
  • DIMENSIONS (METRIC) (WXHXD)
    Packaging (mm): 617 x 415 x 285
    Physical (mm): 539 x 426 x 286
    Physical Without Stand (mm): 539 x 320 x 52
  • GENERAL
    Regulations: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, KC, K-MEPS, BIS
    PACKAGE CONTENTS: TD2455 x1, 3-pin Plug (IEC C13 / CEE22) x1, DisplayPort Cable (v1.2; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Quick Start Guide x1, Passive touch pen x1, Passive touch pen head x1
    Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
    Warranty: *Warranty offered may differ from market to market
    Power Management: Energy Star standards, EPEAT
