Key Features
  • SuperClear® technologie
  • Frameloos ontwerp
  • HDMI, DisplayPort en VGA inputs
  • 7H hardheid (scherm)
  • Ondersteunt Windows® 7/8/10/11 en diverse Android en Linux versies

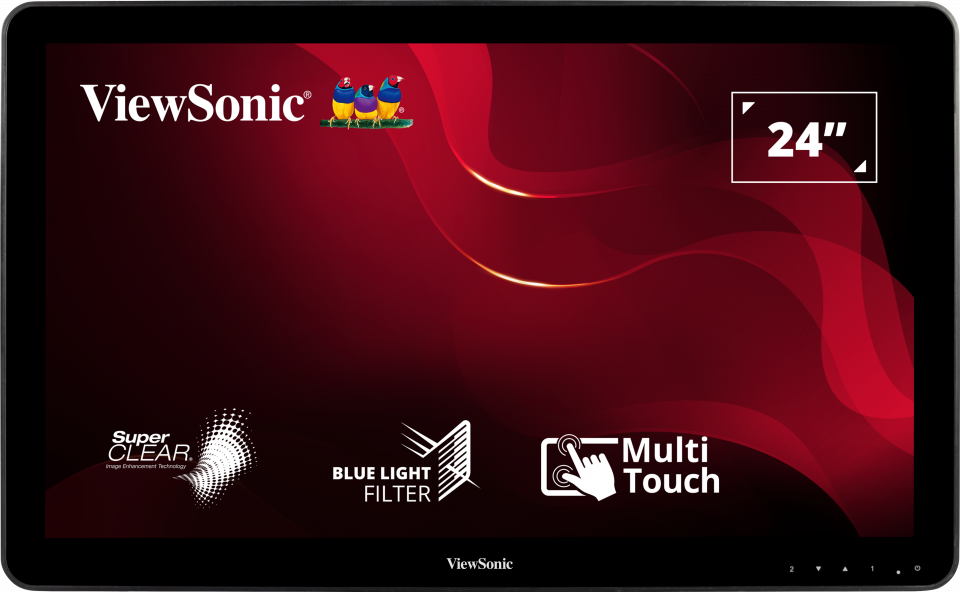

TD2430
Product Description
Dit scherm kan schuin of plat worden geplaatst voor comfort op maat en biedt maximale touchscreen-veelzijdigheid. De ViewSonic® TD2430 biedt fantastische flexibiliteit voor winkel-, onderwijs- of zakelijke markt en is een 24 inch (23,6 inch zichtbaar) Full HD-scherm met 10-punts multi-touch functionaliteit. De TD2430 biedt instelbare positionering, groothoekweergave en een duurzaam ontwerp en heeft alles om aan uw persoonlijke behoeften te voldoen. Cross-compatibiliteit met een breed scala aan besturingssystemen voegt nog meer gemak toe, waaronder Windows 10/11 en bepaalde Android- en Linux-versies. * Met een gestroomlijnd edge-to-edge scherm en frameloze rand presteert dit intuïtieve touchscreen net als uw favoriete tablet of smartphone om een ​​zeer nauwkeurige, ultra-responsieve aanraakervaring te bieden, ideaal voor interactiviteit in openbare omgevingen, kiosken, bewegwijzeringstoepassingen, klaslokalen etc... * Ondersteunt Windows 7/8/10/11, Linux 2.6.38 of hoger en Android 4.0 of hoger.
Visit Us
  • www.viewsonic.com
  • DISPLAY
    Display Size (in.): 24
    Viewable Area (in.): 23.6
    Panel Type: VA Technology
    Resolution: 1920 x 1080
    Resolution Type: FHD (Full HD)
    Static Contrast Ratio: 3,000:1 (typ)
    Dynamic Contrast Ratio: 50M:1
    Light Source: LED
    Brightness: 200 cd/m² (typ)
    Colors: 16.7M
    Color Space Support: 8 bit (6 bit + Hi-FRC)
    Aspect Ratio: 16:9
    Response Time (Typical GTG): 10ms
    Response Time (GTG w/OD): 10ms
    Response Time (Typical Tr+Tf): 25ms
    Viewing Angles: 178º horizontal, 178º vertical
    Backlight Life (Hours): 40000 Hrs (Min)
    Curvature: Flat
    Refresh Rate (Hz): 60
    Low Blue Light: Software solution
    Flicker-Free: Yes
    Color Gamut: NTSC: 72% size (Typ) sRGB: 104% size (Typ)
    Pixel Size: 0.272 mm (H) x 0.272 mm (V)
    Touch Screen: Projected Capacitive, 10-point multi-touch
    Surface Treatment: Glossy, Hard Coating (7H)
    Cover Glass Thickness: 1.8mm
  • COMPATIBILITY
    PC Resolution (max): 1920x1080
    Mac® Resolution (max): 1920x1080
    PC Operating System: Windows 8/10/11 certified; macOS tested
    Mac® Resolution (min): 1920x1080
  • CONNECTOR
    VGA: 1
    USB 3.2 Type A Down Stream: 2
    USB 3.2 Type B Up Stream: 1
    3.5mm Audio In: 1
    3.5mm Audio Out: 1
    HDMI 1.4: 1
    DisplayPort: 1
    Power in: DC Socket (Center Positive)
  • AUDIO
    Internal Speakers: 2Watts x2
  • POWER
    Eco Mode (Conserve): 19W
    Eco Mode (optimized): 22W
    Consumption (typical): 25W
    Consumption (max): 28W
    Voltage: AC 100-240V
    Stand-by: 0.5W
    Power Supply: External Power Adaptor
  • ADDITIONAL HARDWARE
    Kensington Lock Slot: 1
  • CONTROLS
    Physical Controls: 1, 2, Up, Down, Power
    On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
  • OPERATING CONDITIONS
    Temperature: 32°F to 104°F (0°C to 40°C)
    Humidity (non-condensing): 20% to 90%
  • WALL MOUNT
    VESA Compatible: 100 x 100 mm
  • INPUT SIGNAL
    Frequency Horizontal: RGB Analog: 24 ~ 82KHz, HDMI (v1.4): 15 ~ 82KHz, DisplayPort (v1.2): 15 ~ 82KHz
    Frequency Vertical: RGB Analog: 50 ~ 75Hz, HDMI (v1.4): 24 ~ 75Hz, DisplayPort (v1.2): 24 ~ 75Hz
  • VIDEO INPUT
    Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2)
    Analog Sync: Separate/Composite/SOG - RGB Analog
  • ERGONOMICS
    Tilt (Forward/Back): 20º / 53º
  • WEIGHT (IMPERIAL)
    Net (lbs): 12.1
    Net Without Stand (lbs): 12.1
    Gross (lbs): 15.6
  • WEIGHT (METRIC)
    Net (kg): 5.5
    Net Without Stand (kg): 5.5
    Gross (kg): 7.1
  • DIMENSIONS (IMPERIAL) (WXHXD)
    Packaging (in.): 25.3 x 17.1 x 5.5
    Physical (in.): 22.6 x 13.9 x 1.9
    Physical Without Stand (in.): 22.6 x 13.9 x 1.9
  • DIMENSIONS (METRIC) (WXHXD)
    Packaging (mm): 643 x 435 x 140
    Physical (mm): 573 x 353 x 47
    Physical Without Stand (mm): 573 x 353 x 47
  • GENERAL
    Regulations: cTUVus, FCC-B, ICES003, Energy Star, CEC, Adaptor AR Certified, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO
    PACKAGE CONTENTS: TD2430 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Audio Cable (Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1
    Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
    Warranty: *Warranty offered may differ from market to market
    Power Management: Energy Star standards
