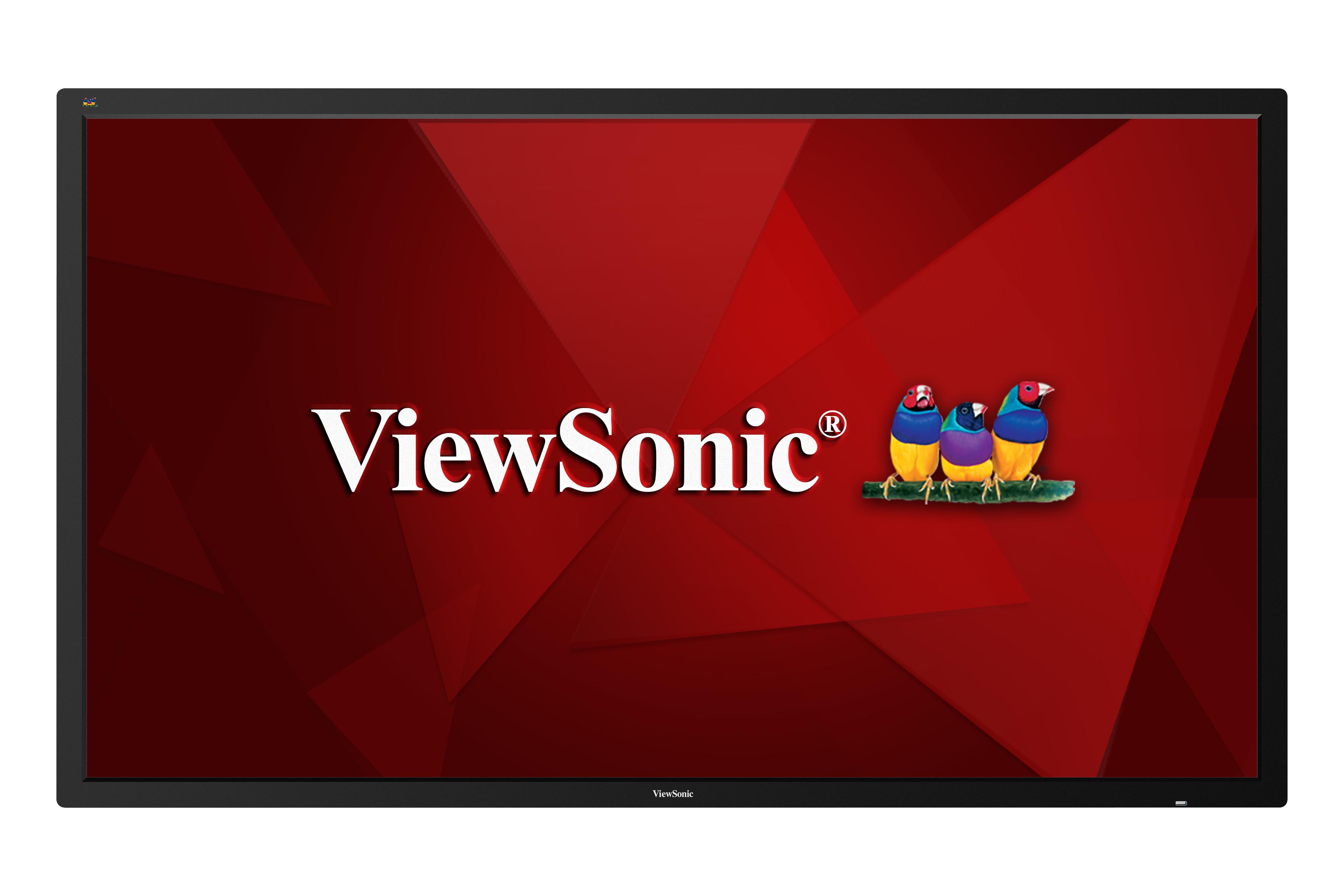

ViewSonic CDE7500 75" 4K Ultra HD LED Commercial Display

Key Features

Product Description

Visit Us

LCD PANEL

Panel Size:	75"
Type/ Tech:	TFT LCD Module with LED Backlight
Display Area (mm):	1649.66(H) x 927.94(V)
Aspect Ratio:	16:09
Resolution:	3840 x 2160
Colors:	1.07B colors (10bit)
Brightness:	450 nits (typ.) 400 nits (min.)
Contrast Ratio:	1200:1 (typ.)
Response Time:	8 ms
Viewing Angles:	H = 178, V = 178 (typ.)
Backlight:	DLED
Backlight Life:	30,000 Hours Min.
Hardness:	7H

INPUT

HDMI: x 4

RGB / VGA: x 1

Audio: x 1

CVBS (AV): x 1

YPbPr: x 1

RS232: x 1

PC Slot: x 1 PC Slot
OUTPUT

HDMI: x 1 (for one of HDMI1/2/3)

Audio (Earphone out): x 1

SPDIF: x 1

RS232: x 1
LAN

RJ45: x 1
USB

2.0 Type A: x 2 (side x1, top x1)

3.0 Type A: x 2 (side)
SPEAKERS

20W x 2
BUILT-IN PC

Processor: ARM Cortex A53 Dual Core 1.5G Hz CPU

Memory: 2GB

Storage: 16GB
COMPATIBILITY

VGA: Refer to timing table

HDMI: 480i, 480p,720p, 1080p, up to 2160p

CVBS: 480i
POWER

Voltage: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz

Consumption: 300 W
ERGONOMICS

Wall Mount (VESA® ): 600 x 400mm; Screw: M8 x 20mm
OPERATING CONDITIONS

Temperature (º C): 32°F to 104°F (0°C to 40°C)

Humidity: 10% ~ 90% non-condensing
DIMENSIONS

Physical w/o Stand (mm / inch): 1735.4 x 1014.0 x 93.2 mm / 68.32 x 39.92 x 3.67 inch

Packaging (mm / inch): 1990 x 1165 x 320 mm / 78.35 x 51.77 x 13.78 in
WEIGHT

Net (kg / lb): kg / lbs

Net w/o Stand (kg / lb): 43.05 kg / 94.91lbs

Gross (kg / lb): 65.40 kg / 144.18lbs
REGULATIONS

Standard: cTUVus, FCC, MX-CoC, Mexico Energy, CE, CB, RoHS, ErP, REACH, WEEE, CCC, China Energy Label

Voltage:	100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
Consumption:	300 W

Temperature (º C):	32°F to 104°F (0°C to 40°C)
Humidity:	10% ~ 90% non-condensing

Physical w/o Stand (mm / inch):	1735.4 x 1014.0 x 93.2 mm / 68.32 x 39.92 x 3.67 inch
Packaging (mm / inch):	1990 x 1165 x 320 mm / 78.35 x 51.77 x 13.78 in

2.0 Type A:	x 2 (side x1, top x1)
3.0 Type A:	x 2 (side)
