Xtremely fast, Xtremely clear

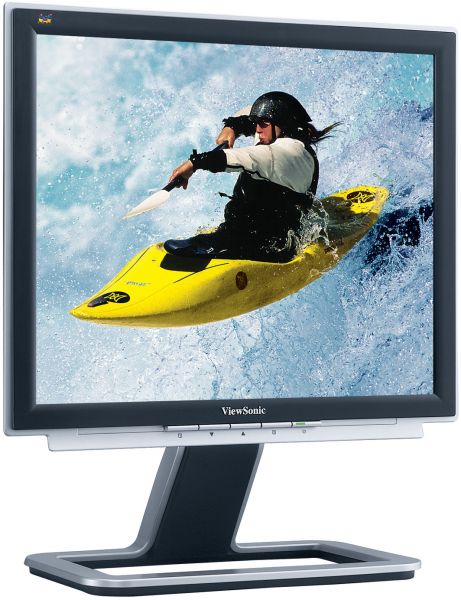

ViewSonic’s 19" VX924 LCD delivers XTREME PERFORMANCE WITH AN INDUSTRY-LEADING 3MS LIQUID CRYSTAL RESPONSE TIME, ensuring the smoothest , most fluid motion around. Coupled with high brightness, an excellent contrast ratio, wide viewing angles and classic styling, this LIGHTNING FAST monitor, will get the heartbeat of every gamer and action movie fan racing. OptiSync® technology further enhances this display’s appeal by enabling connections to digital and analogue video sources.
SPECIFICATIONS
- LCDType: 19” colour TFT active matrix SXGA LCD
Contrast Ratio: 550:1 (typ.)
Viewing Angles: 140° horizontal, 135° vertical (at 10:1)
160° horizontal, 160° vertical (at 5:1)
Display Area: 37.6cm horizontal x 30.1cm vertical, 48.3cm diagonal
Optimum Resolution: 1280 x 1024
Response Time: 3ms (grey-to-grey), 4.8ms (off-on-off)
Panel Surface: anti-glare 3H
Colour Support: 16.2M colours (6-bit+2-bit FRC)
Pixel Clock: 135MHz
Brightness: 270cd/m² - COMPATIBILITYPC: VGA up to 1280 x 1024 (max. 75Hz)
Mac®: Power Mac™ up to 1280 x 1024 (max. 75Hz) - DIMENSIONSW x H x D mm: 431 x 468 x 201 (with stand)
431 x 370 x 66 (without stand)
- REGULATIONSTCO’99, NEMO/GS2, NEMKO/ERGO3, CE, CB, UL, cUL, FCC-B,
ENERGY, NOM, ISO13406-2 (pixel failure class II), MPR II, GOST+R,
SASO, PCBC, VCCI, BSMI, CCC, PSB, C-TICK, TÜV-S,
PSE, Green Mark - PACKAGE CONTENTSLCD display, power cable, 15-pin VGA video cable, DVI cable, Quick
Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) - WARRANTYPlease see:
www.viewsoniceurope.com/UK/Support/warranty.htm - INPUTSync: H/V separate (TTL), composite, sync on green
Digital: DVI-D (TMDS, 100 ohm)
Analogue: RGB analogue (0.7 Vp-p, 75 ohm)
Frequency: Fh: 30–82kHz, Fv: 50–75Hz - CONNECTORAnalogue: 15-pin mini D-Sub (detachable cable)
Digital: 24-pin DVI-D (detachable cable)
Power: 3-pin (CEE22) - POWERVoltage: 100–240V, 50–60Hz (Auto-Switch), internal power
Consumption: 35W (typ); ≤ 1 watt in power save mode - CONTROLSOSD: Auto image adjust, contrast, brightness, input select, colour adjust
(sRGB, 9300K, 6500K, 5400K, user RGB), information (resolution,
H/V frequency, pixel clock, model number, serial number,
website), manual image adjust (H/V position, H size, fine tune,
sharpness), setup menu (language, resolution information, OSD
position, OSD timeout, OSD background), Recall
Physical: Power on/off, menu, up, down, select - OPERATING CONDITIONSTemperature: 0°C to 40°C
Humidity: 10% to 90% (non-condensation) - WEIGHTNet: 6.7kg (with stand), 5.3kg (without stand)
- POWER MANAGEMENTMeets TCO’99 and Energy Star standards
- ERGONOMICSTilt: Down 5°, Up 20°
