Stretch the speed envelope

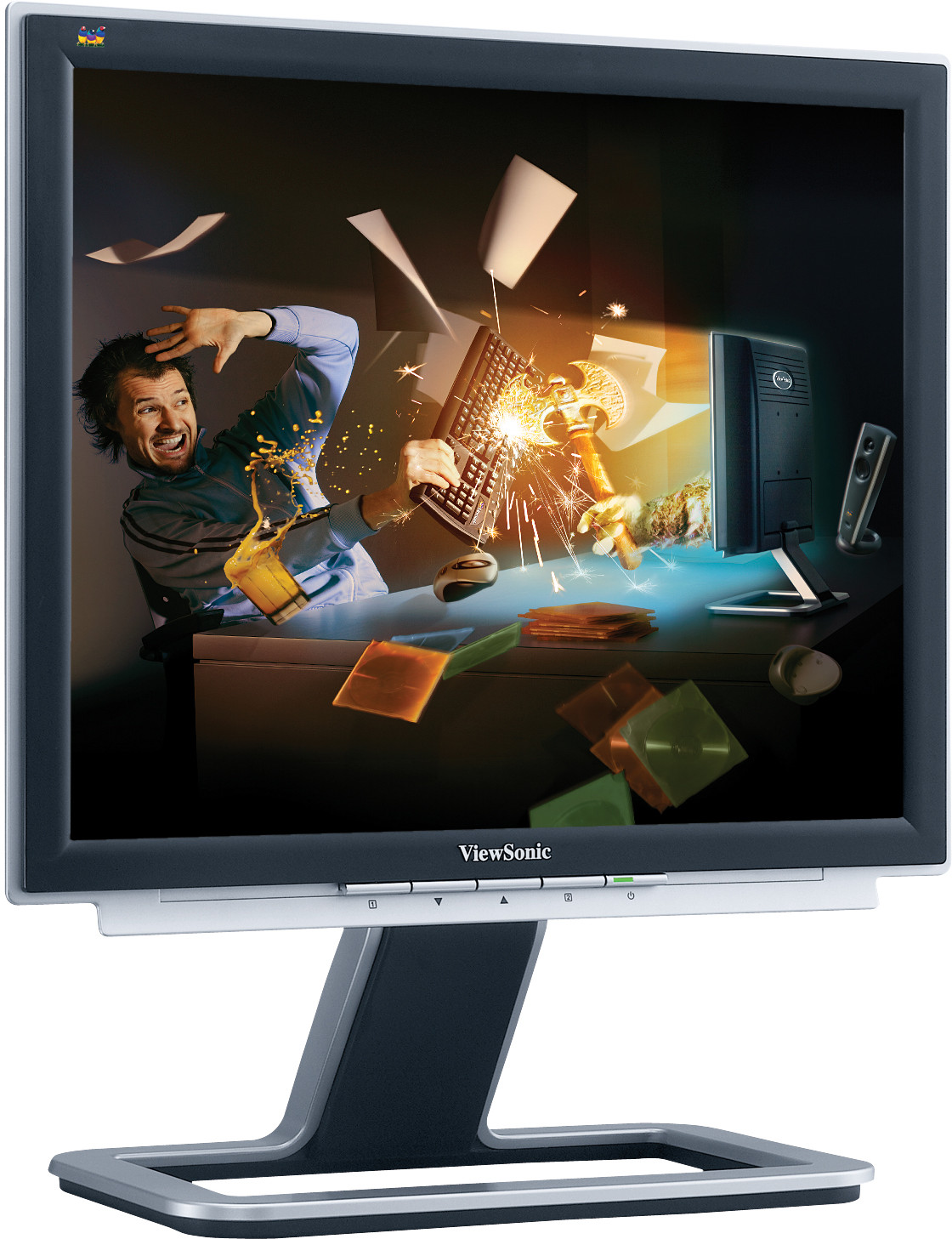

ViewSonic breaks the boundaries of performance time and time again. The VX922 19” LCD sets a new benchmark standard with an industry-leading 2ms video response time. The VX922 delivers incredible speed for smooth broadcast-quality full motion video. Combined with ultra-high brightness and contrast levels delivered through ViewSonic’s innovative Dynamic Structure™ and Amplified Impulse™ technologies, blurs and ghosts are replaced with pure, vibrant images. This kind of video performance is especially beneficial for graphic intensive applications like high-speed games and videos. Optisync® technology further enhances the display’s appeal with both digital (DVI) and analogue (VGA) connections. And the eye-catching slim-bezel design means the stylish VX922 is the ultimate combination or form and function. It’s not just an ultra-fast LCD. It’s a ViewSonic.
SPECIFICATIONS
- LCDType: 19” TN colour TFT active matrix SXGA LCD
Contrast Ratio: 650:1 (typ.)
Viewing Angles: 150° horizontal, 135° vertical (at 10:1)
160° horizontal, 150° vertical (at 5:1)
Display Area: 37.6cm horizontal x 30.1cm vertical, 48.3cm diagonal
Optimum Resolution: 1280 x 1024
Response Time: 2ms (grey-to-grey)
Panel Surface: Anti-glare
Pixel Pitch: 0.294mm
Colour Support: 16.2M colours (6-bit+2-bit FRC)
Pixel Clock: 135MHz
Brightness: 270cd/m² - COMPATIBILITYPC: VGA up to 1280 x 1024 non-interlaced (max. 60Hz)
Mac®: Power Mac™ up to 1280 x 1024 non-interlaced (max. 60Hz) - DIMENSIONSW x H x D mm: 431 x 468 x 201 (with stand)
431 x 370 x 66 (without stand)
- REGULATIONSTCO’99, NEMKO/GS2, NEMKO/ERGO3, CE, CB, UL, cUL, FCC-B, ENERGY, NOM,
ISO13406-2 (pixel failure class II), MPR II, GOST-R (Hygienic), (SASO),
PCBC, VCCI, BSMI, CCC, (PSB), (C-TICK), TÜV-S, PSE, Green Mark - PACKAGE CONTENTSLCD monitor, power cable, 15-pin VGA video cable, DVI cable, Quick Start Guide,
ViewSonic Wizard CD-ROM (User Guide/drivers) - WARRANTYPlease see: www.viewsoniceurope.com/UK/Support/warranty.htm
- INPUTSync: H/V separate (TTL), composite, sync on green
Digital: DVI-D (TMDS, 100 ohm)
Analogue: RGB analogue (0.7 Vp-p, 75 ohm)
Frequency: Fh: 30 – 82kHz, Fv: 50 – 75Hz - CONNECTORAnalogue: 15-pin mini D-Sub (detachable cable)
Digital: DVI-D (detachable cable)
Power: 3-pin (CEE22) - POWERVoltage: AC 100 – 240V, 50/60Hz (auto switch), internal power supply
Consumption: 35 watt (typ.), <1 watt in power save mode - CONTROLSBasic: Power on/off, menu [1], up, down, select [2]
OSD: Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), colour adjust
(sRGB, 9300K, 6500K, 5400K, user RGB), information (resolution, H/V frequency,
pixel clock, model number, serial number, website), manual image adjust (H/V
position, H size, fine tune, sharpness), setup menu (language, resolution notice,
OSD position, OSD timeout, OSD background), OSD/power lock, memory recall - OPERATING CONDITIONSTemperature: 0°C to 40°C
Humidity: 10% to 90% (non-condensation) - WEIGHTNet: 6.7kg (with stand), 5.3kg (without stand)
- POWER MANAGEMENTMeets TCO’99 and Energy Star® standards
- ERGONOMICSTilt: 35 watt (typ.), <1 watt in power save mode
