OVERVIEW

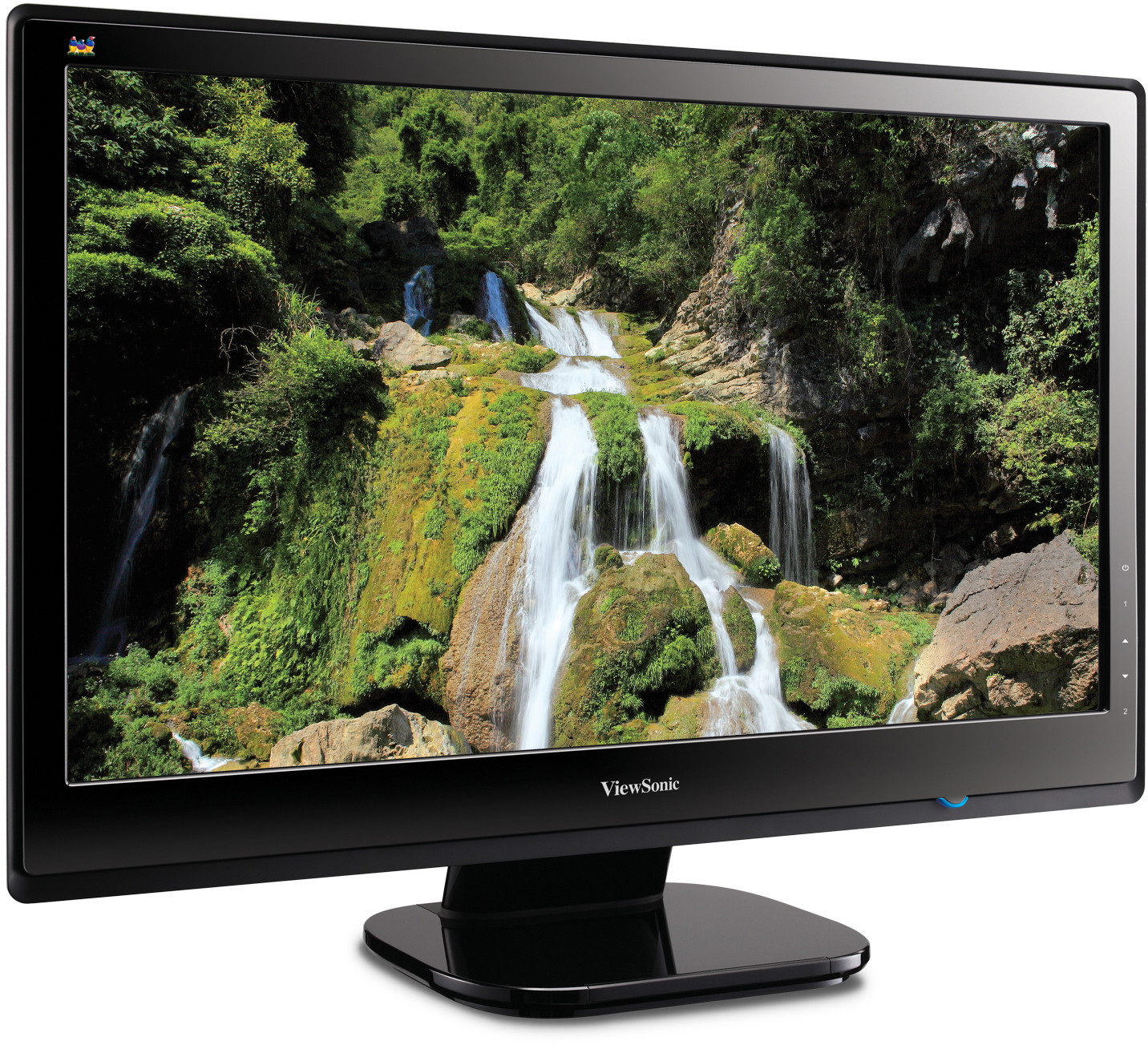

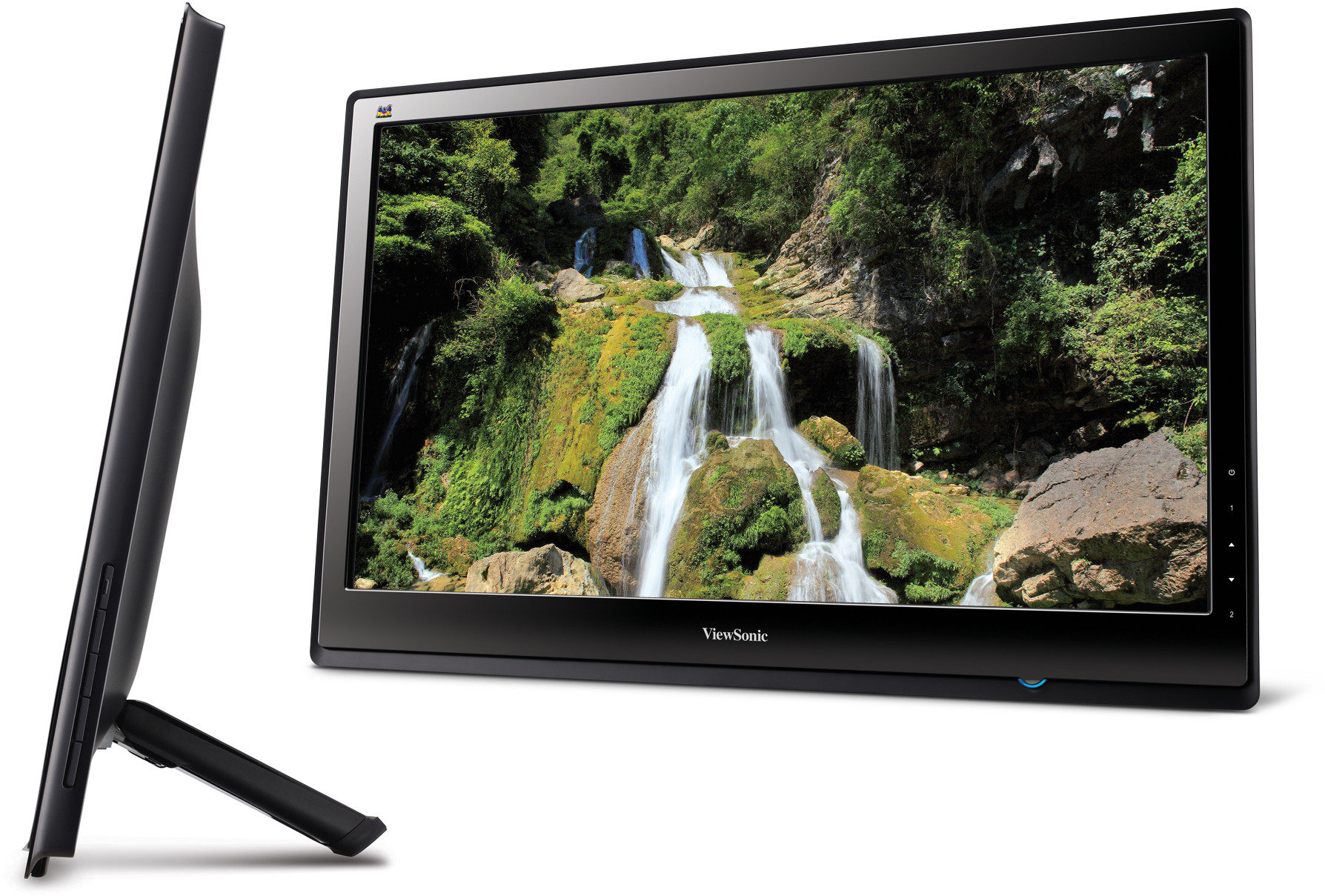

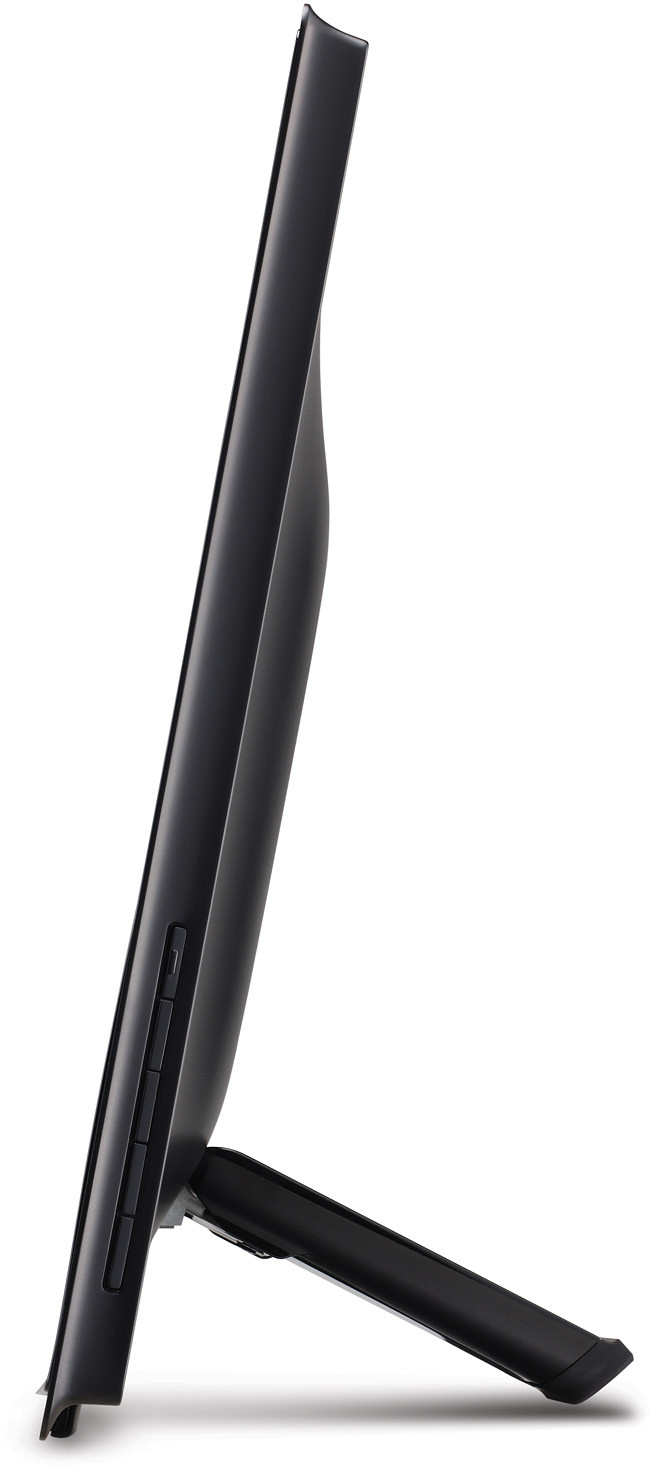

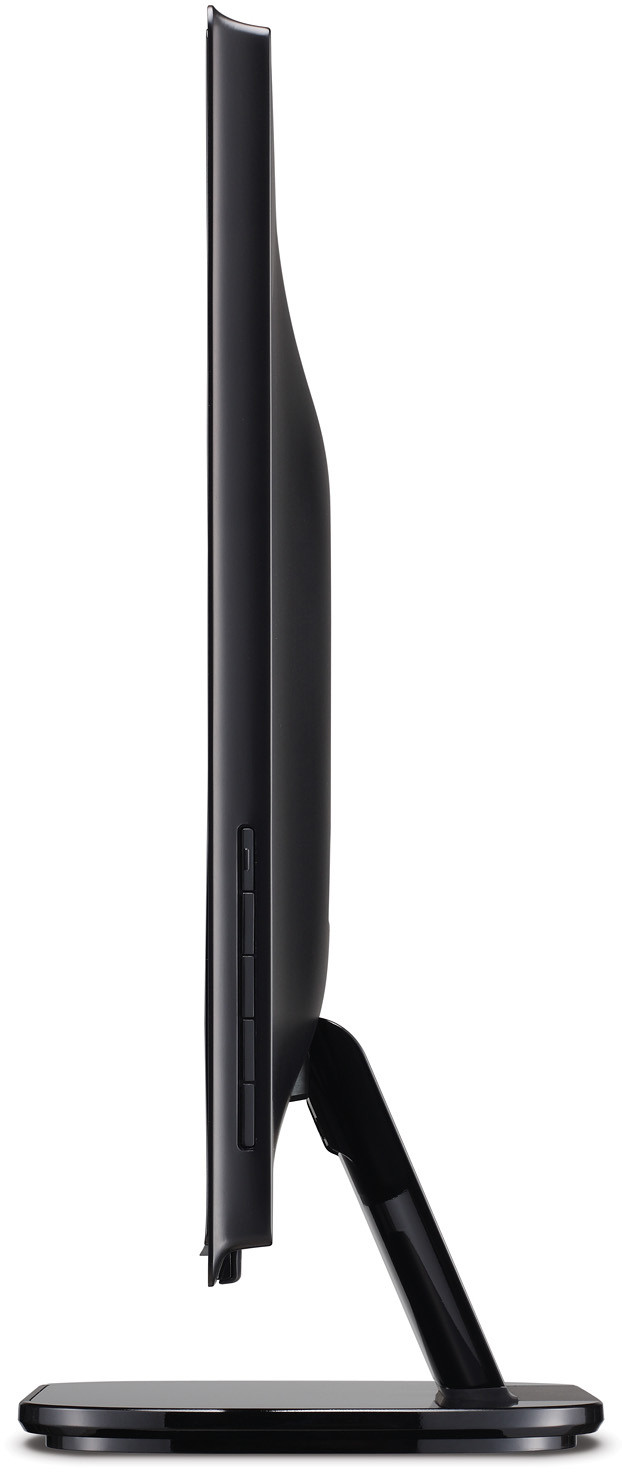

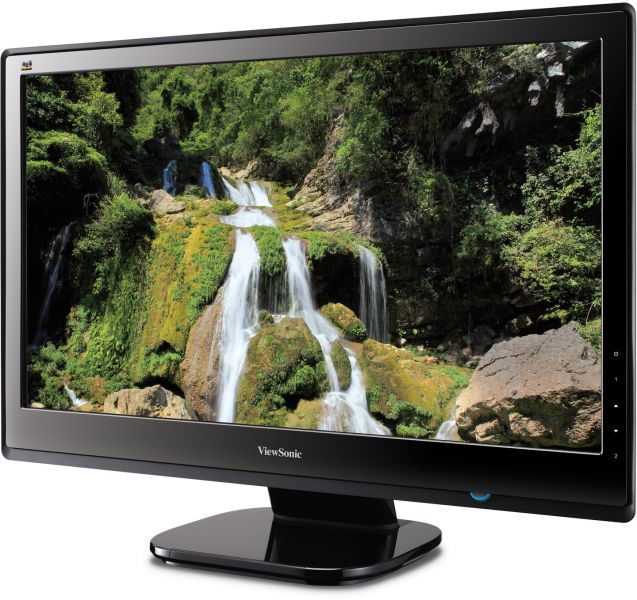

ViewSonic’s VX2753mh-LED features an LED backlight 27" ultrathin widescreen monitor with up to 40% energy savings compared to a regular 27" monitor. Environmentally friendly mercury free VX2753mh-LED offers Full HD 1920x1080 resolution, two HDMI inputs, external power supply, 1ms response time, 30,000,000:1 MEGA dynamic contrast ratio, book stand option and SRS Premium Sound. Ideal for both home and office with a glossy black finish. The aspect ratio adjustment feature automatically senses the input singleand will not stretch a 4:3 signal but instead will position the image in the middle of the screen with side bars.The industry’s best pixel performance policy, energy saving Ecomode and Windows 7 certification, make VX2753mh-LED a greatlong term investment.
REVIEWS
SPECIFICATIONS
- LCDContrast Ratio: 1200 :1 (Typ.) 800:1(min)
Viewing Angles: 170° (H), 160° (V)
Brightness: 300 cd/m² (Typ.)
Optimum Resolution: 1920 x 1080
Response Time: 3.4 (Typ), GTG : 1 ms
Panel Surface: Anti-Glare, Hard coating (3H)
Pixel Pitch: 0.3114 mm (H) x 0.3114mm (V)
Colour Support: 16.7 M
Size: 27” wide Color TFT Active Matrix LCD with 16:9 aspect ratio
Dynamic Contrast Ratio: 30,000,000:1 - COMPATIBILITYPC: VGA up to 1920x1080 non-interlaced
Mac®: Power Mac, up to 1920x1080 - DIMENSIONSPhysical With Stand: 658 mm (W) x 480 mm (H) x 212 mm (D)
- REGULATIONSBSMI, CCC, China Energy, PSB, C-Tick, KCC, CE, CB, GostR/Hygienic, Ukraine, UL/cUL,
FCC-B, ICES-B, ENERGY STAR 5.0, EPEAT Silver, WEEE, RoH - INPUTSync: RGB Analog (75 ohms, 0.7 / 1.0 Vp-p)
Analogue: RGB Analog (75 ohms, 0.7 / 1.0 Vp-p)

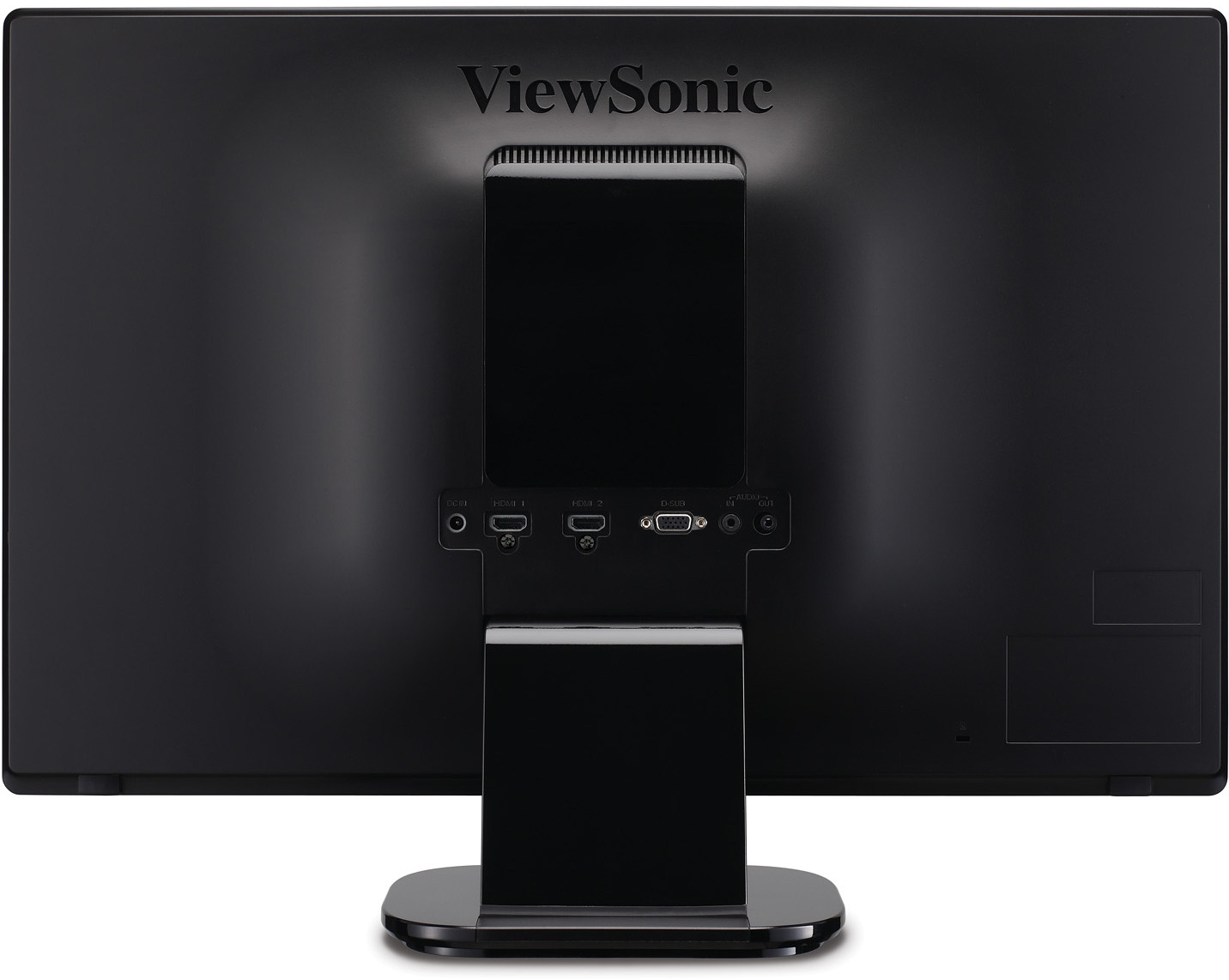

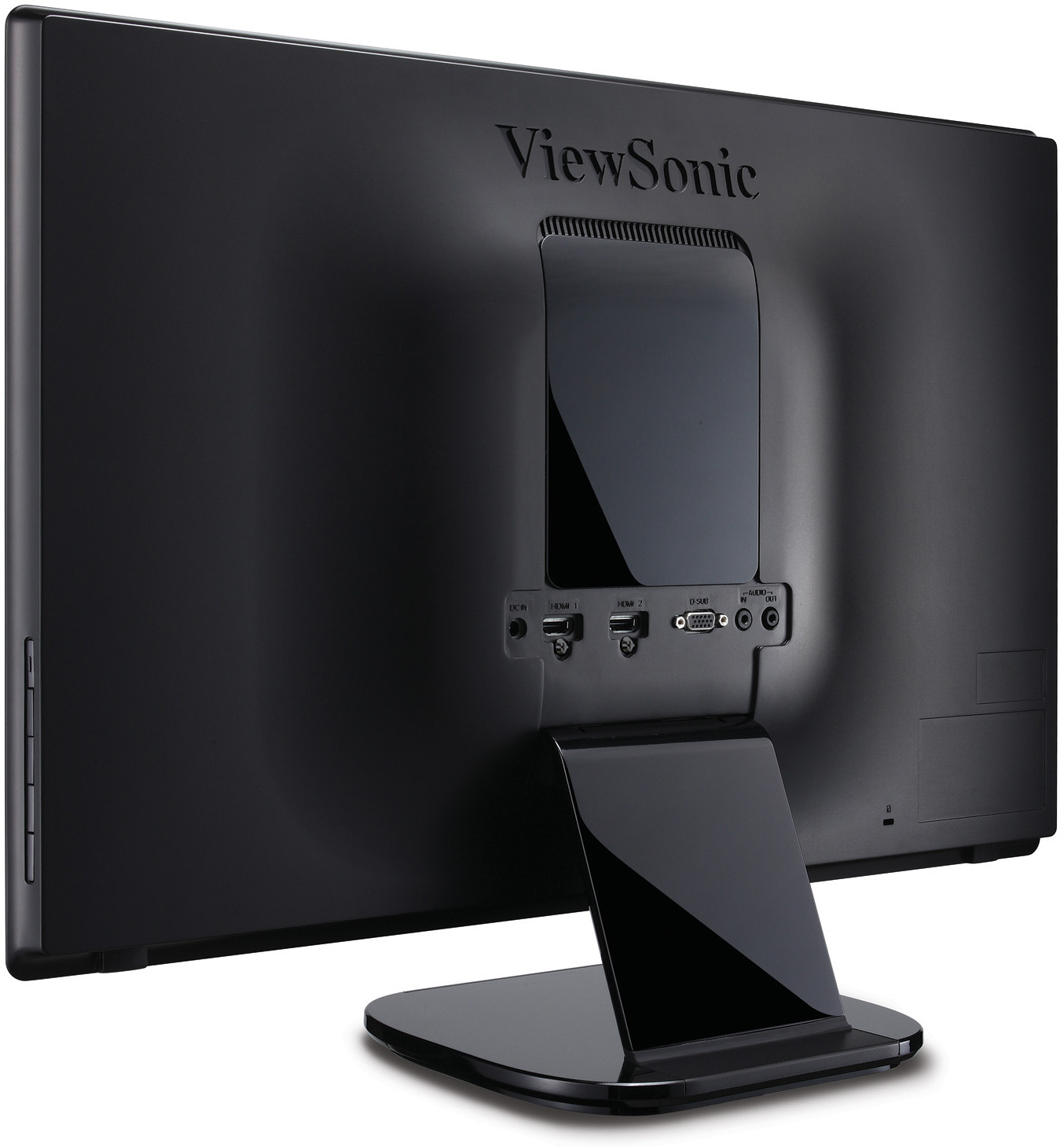

Frequency: Fh = 24 – 83 kHz ; Fv = 50 ~ 76 Hz - CONNECTORAnalogue: 1×15 pin mini D-sub
Digital: HDMI x 2 (HDMI ver.1.3)
Audio: Audio Out - 3.5 mm jack (blue) / Audio In - 3.5 mm jack (green )
Power: External Power Adapter - POWERVoltage: AC 100-240V (Universal); 50 / 60Hz(Switch)
Consumption: 31W (typ.) w/o Audi, 44w(Max) with Audio
Eco Mode: 26W (Optimize) / 21W (Conserve)
Save mode: ≦1w - AUDIOSpeakers: 2W x2
- WEIGHTNet: 4.7kg
- OPERATING CONDITIONSHumidity: 20-90% (no condensation)
Temperature: 32° F–104° F (0°C–40° C)
