- DIMENSIONS
Physical With Stand: 572mm × 418mm × 231mm (22.5" × 16.5" × 9.1")
Physical Without Stand: 572mm × 359mm × 62.3mm (22.5" × 14.1" × 2.5")
- REGULATIONS
UL, CUL, FCC-B (ICES), CB, CE, CES-003B, VCCI, Nemko ERGO (MPR II, ISO
13406-2), TUV-S, NOM, GOST-R, HYGIENIC (20 copies), Energy Star, CCC,
BSMI, PSB, C-TICK, KTL/MIC, SASO, WEEE, RoHS, Ukraine, EPEAT Silver
- PACKAGE CONTENTS
ViewSonic VX2433wm LCD, VGA cable, DVI cable, audio cable, power
cable, Quick Start Guide, ViewSonic Wizard CD
- AUDIO
Speaker: 2 × 2 watt with SRS WOW sound
- CONNECTOR
Analogue: 15 pin mini D-sub × 1
Digital: DVI-D (with HDCP) / HDMI
Power: 3-pin AC plug (CEE22)
Audio: 3.5 mm Audio in / 3.5 mm Audio out jacks
- POWER
Voltage: AC 100-240V (Universal); 50/60Hz (Switch)
Consumption: 45 (typ.)
Eco Mode: optimize 37W (typ.) / conserve 30W (typ.)
Save mode: ≦2W
- CONTROLS
Basic: [1], [2], Power, Down, Up
OnView®: Auto image adjust, contrast/brightness, input select (D-sUB, DVI, HDMI
PC, HDMI AV), audio adjust (volume, mute), color adjust (sRGB, 9300K,
7500K, 6500K, 5000K, user color [RGB]), information, manual image adjust (H/V position, horizontal size, fine tune, sharpness, dynamic
contrast, response time, aspect ratio, display mode, ECO mode), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background, sleep), memory recall
- OPERATING CONDITIONS
Temperature: 0 - 40°C (32 - 104°F)
Humidity: 20 - 90% (Non condensed)
- WEIGHT
Gross With Stand: 7.05 kg (15.5 lbs)
Net: 5.6 kg (12.2 lb.)
- VIDEO INPUT
Frequency: Fh: 24-83kHz, Fv: 50-76Hz
Sync: Separate Sync / Composite Sync / SOG
Analogue: RGB Analog (75 ohms, 0.7 / 1.0 Vp-p)
Digital: DVI-D (TMDS, 100ohms, with HDCP), HDMI 1.3
- POWER MANAGEMENT
ENERGY STAR® standards
- VESA MOUNT COMPLIANT
VESA 100mm × 100mm
- ERGONOMICS
Tilt: 20° ~ -5°

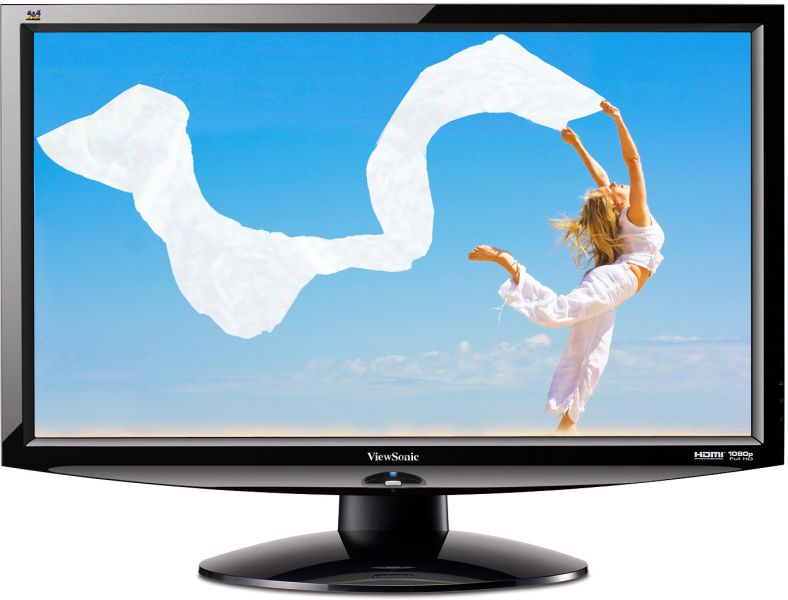

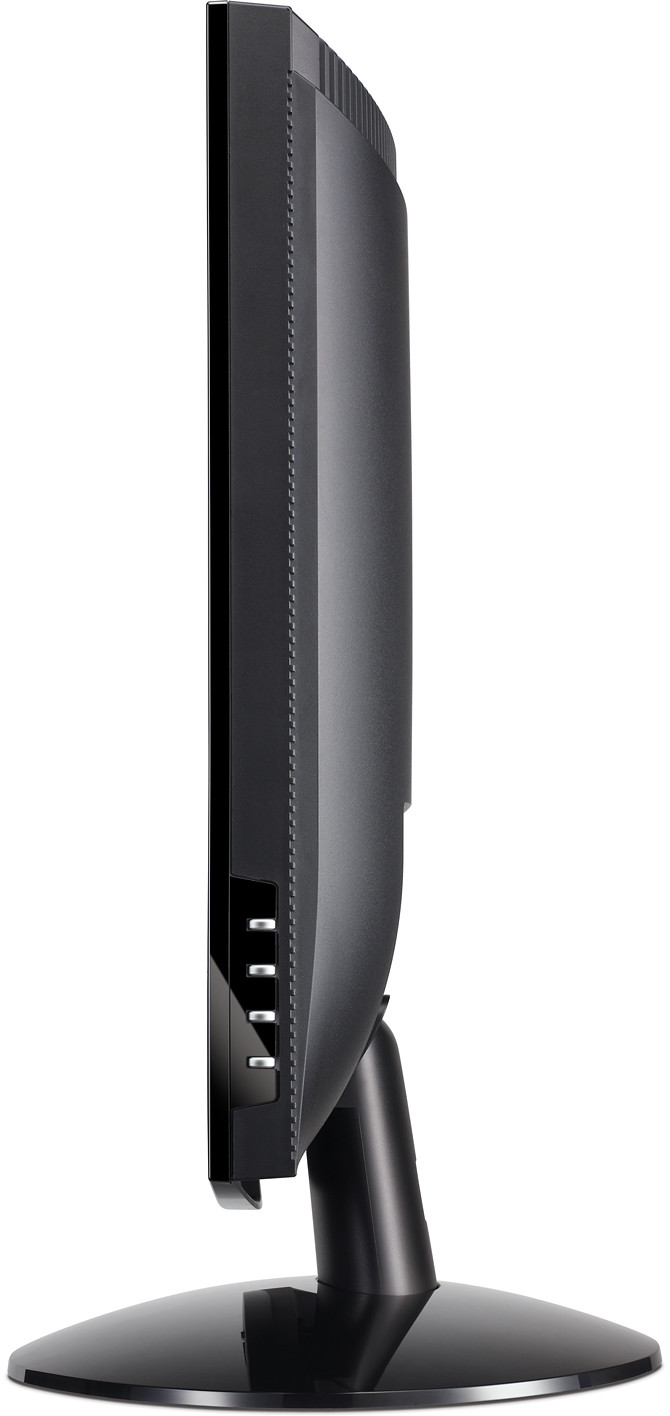

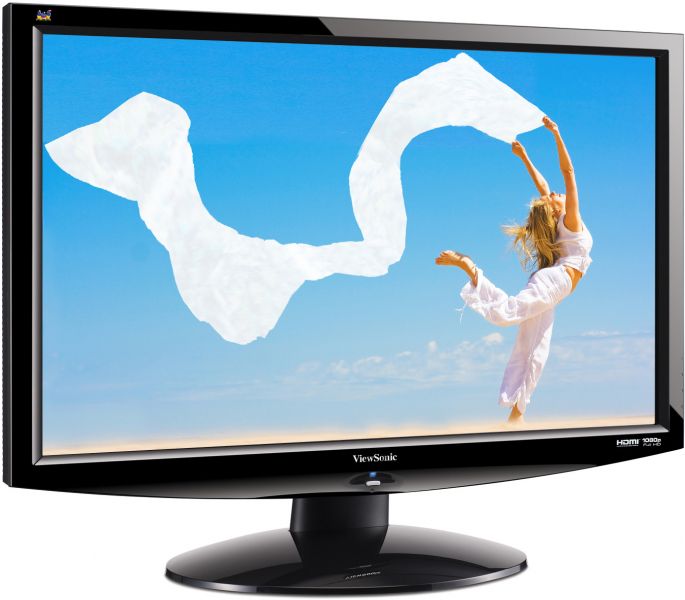

ViewSonic’s 61cm / 24" (23.6" viewable) VX2433wm 16:9 widescreen LCD delivers Full HD 1080p performance and ultra-fast 2ms video response for unsurpassed HD viewing on your desktop. The impressive 20,000:1 dynamic contrast ratio enhances your movies, video and games with greater detail and definition especially in darker images. Multiple inputs including HDMI with HDCP give you extensive connectivity options for high-def data and entertainment. Integrated SRS WOW HD® speakers complete your multimedia desktop with amazing sound. Aspect ratio adjustment ensures your images are never distorted regardless of signal source. Ecomode automatically reduces power consumption and can extend backlight life. The VX2433wm is ideal for gamers, HD enthusiasts, and graphics professionals.
