See the World, Touch the Life

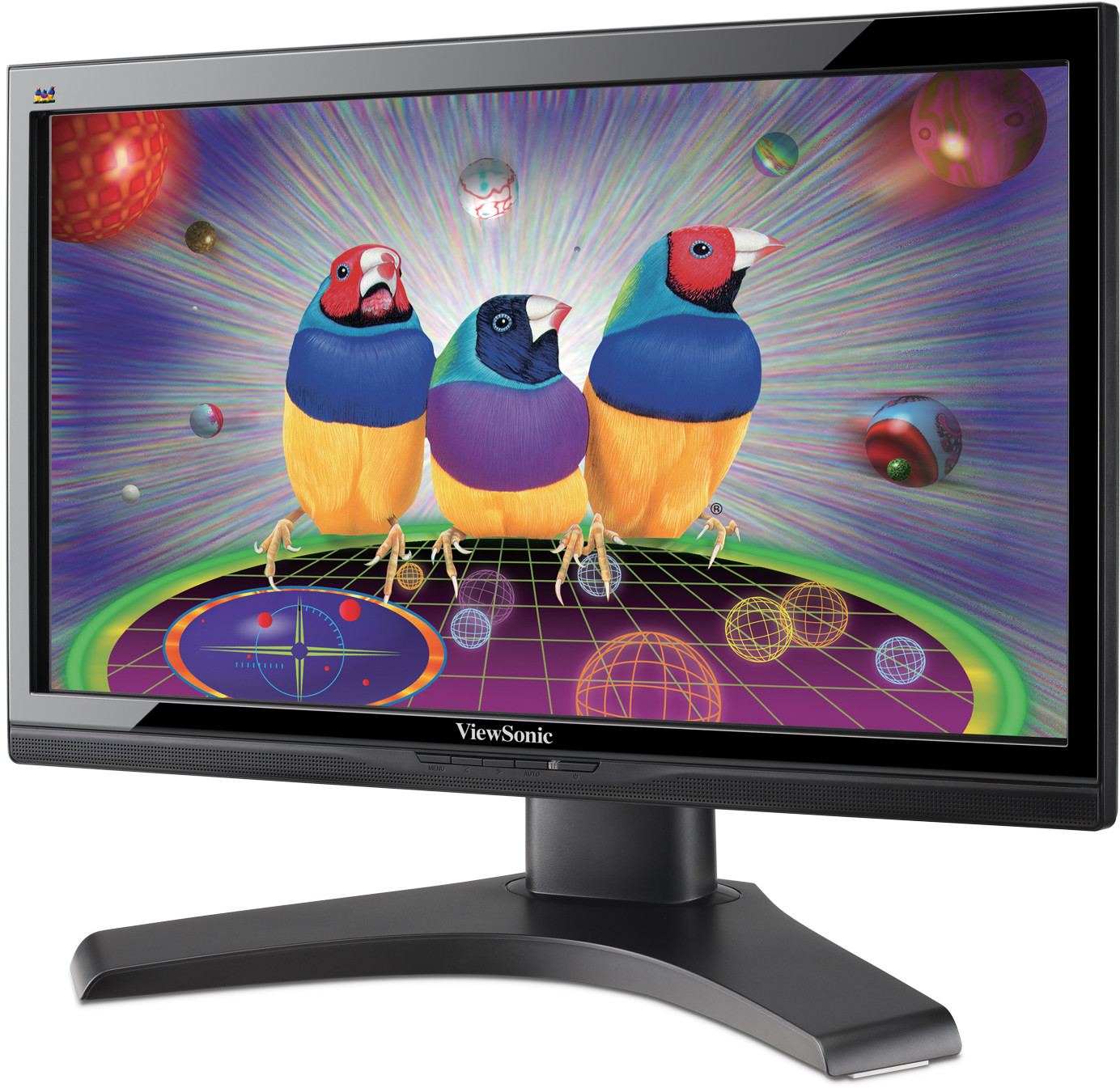

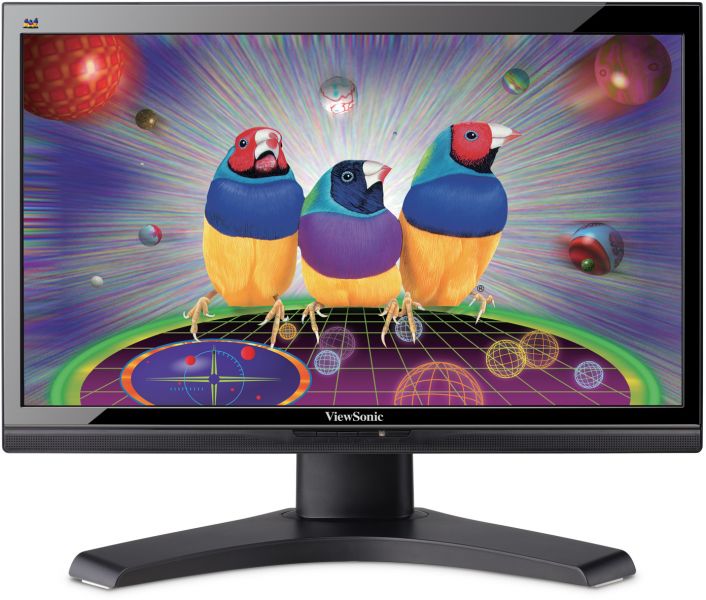

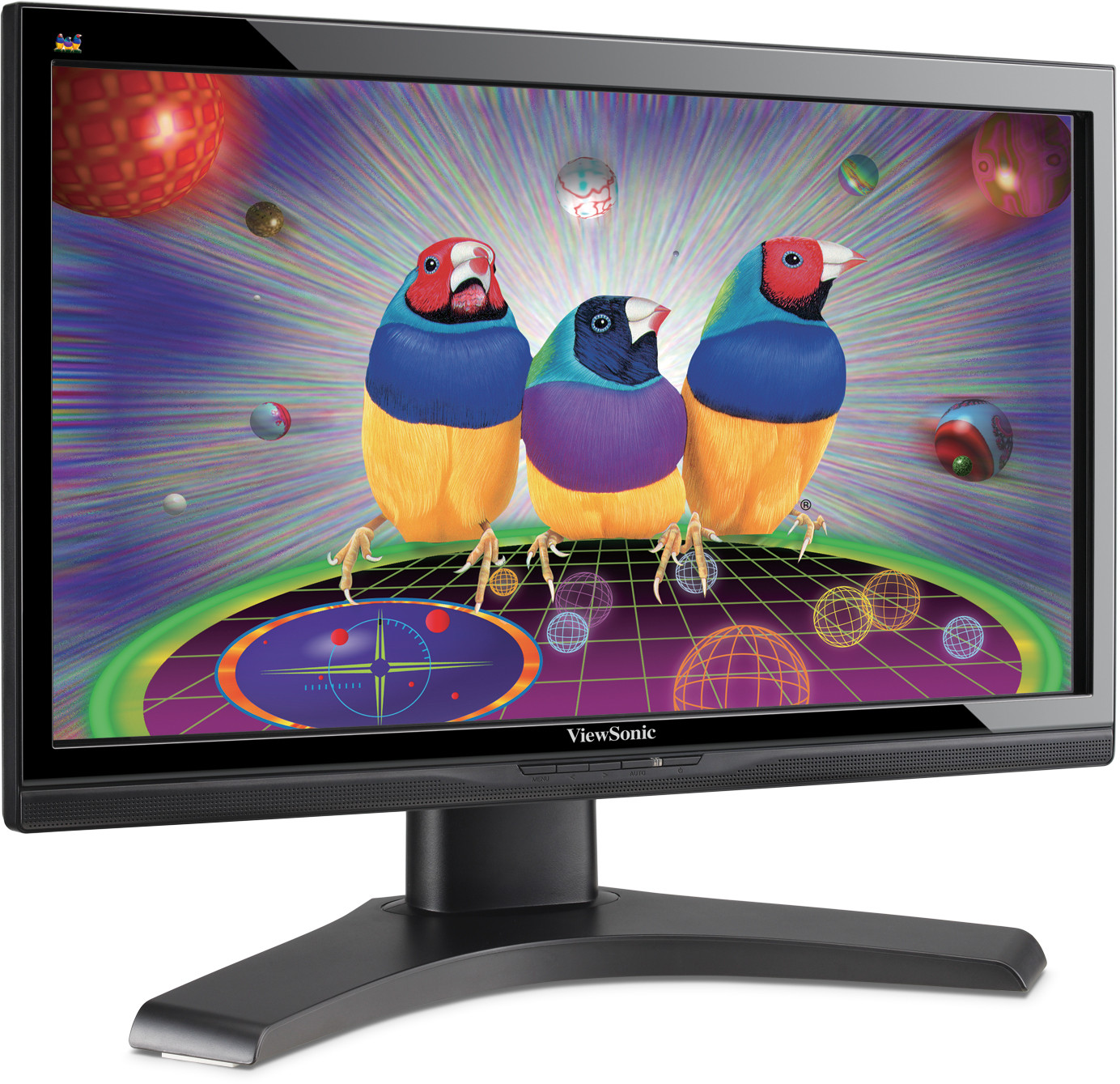

Designed with cutting-edge Infrared Optical Imaging technology, the 22" (21.5" viewable) ViewSonic® VX2258wm delivers multi-touch convenience in a large screen display that until now was only affordable on mobile devices. This full HD display lets you easily move and resize photos, web pages or documents by simply touching the screen. And with its DVI / VGA inputs, 100,000:1 dynamic contrast ratio and SRS Premium Sound™, the VX2258wm offers flexible connectivity and superior video / audio quality. Easy to setup – simply connect a USB cable (included) from your VX2258wm to a PC powered by Microsoft® Windows® 7 Home Premium or above. The VX2258wm is Microsoft Windows Touch certified, so you can enjoy the touch convenience enabled by many of the latest applications. Whether for work or fun, the ViewSonic VX2258wm helps you touch your world.SPECIFICATIONS
- COLORSBlack
- LCDContrast Ratio: 1000:1
Viewing Angles: 170° (H), 160° (V)
Optimum Resolution: 1920 x 1080
Response Time: 5ms (typical)
Light Source: 50,000 hrs (minimum)
Panel Surface: Anti-Glare, Hard coating (3H)
Pixel Pitch: 0.3mm (H)×0.3mm (V)
Colour Support: 16.7 M
Size: 55CM/21.5” wide Colour TFT Active Matrix LCD with 16:9 aspect ratio
Brightness: 200 cd/m²
Dynamic Contrast Ratio: 100,000:1 - COMPATIBILITYPC: VGA up to 1920×1080 Non Interlaced
Mac®: Power Mac, up to 1920×1080
- DIMENSIONSPhysical With Stand: 513×419×263 (mm), 20.1×16.4×10.5 (in)
- REGULATIONSBSMI, CCC, PSB, C-Tick, CE,Gost-R/Hygienic, Ukraine, UL/cUL, NOM,FCC-B, ICES-B,
UV-S/UL-AR S Mark, ENERGY STAR, EPEAT silver - INPUTSync: Separate Sync / Composite Sync / SOG
Analogue: RGB Analogue (75 ohms, 0.7 / 1.0 Vp-p)

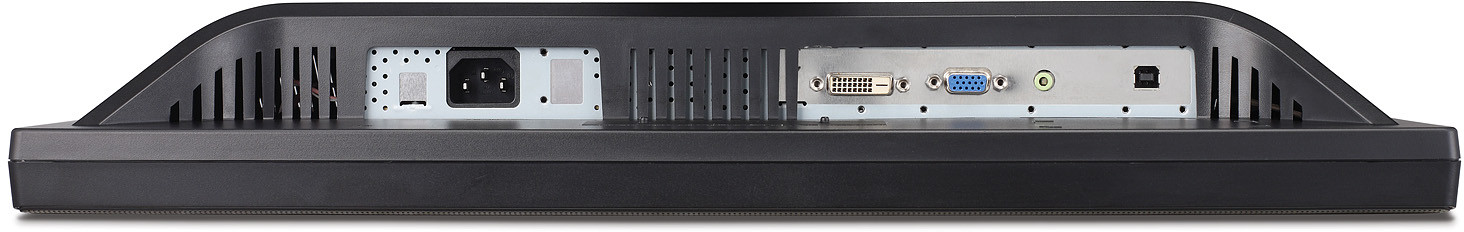

Frequency: 24–83kHz / 50–76Hz - CONNECTORAnalogue: 1×15 pin mini D-sub
Digital: 1×DVI-D
Audio Out: Audio Out - 3.5 mm jack
Power: Built-in power Adapter, 3-Pin plug
USB: For Touch connection - POWERVoltage: AC 100-240V (Universal); 50/60Hz(Switch)
Consumption: 24 W (typical) / 28 W (typical) with audio
Save Mode (W): ≦1W - CONTROLSBasic: [1], [2], Power, Down[▼], Up[▲]
OSD: Volume, mute, Colour Adjust, sRGB, 9300K, 7500K, 6500K, 5000K, User Colour [R, G, B],
Information, Manual Image Adjust, H/V Position, Horizontal Size, Fine Tune, Sharpness,
Dynamic Contrast, Response Time, Aspect Ratio, Display Mode, ECO Mode, Setup
Menu, Language, Resolution Notice, OSD Position, OSD Timeout, OSD Background,
Auto Power Off, Memory recall - VESA MOUNT COMPLIANT100mm × 100mm
- ERGONOMICSTilt: 20° ~ -3°
Swivel: 60° - AUDIOSpeakers: 1Wx2
- WEIGHTNet: 6.2 kg / 13.6 lbs
- OPERATING CONDITIONSHumidity: 20 - 90 (%)
Temperature: 0 - 40 (°C) / 32 - 104 (°F)
