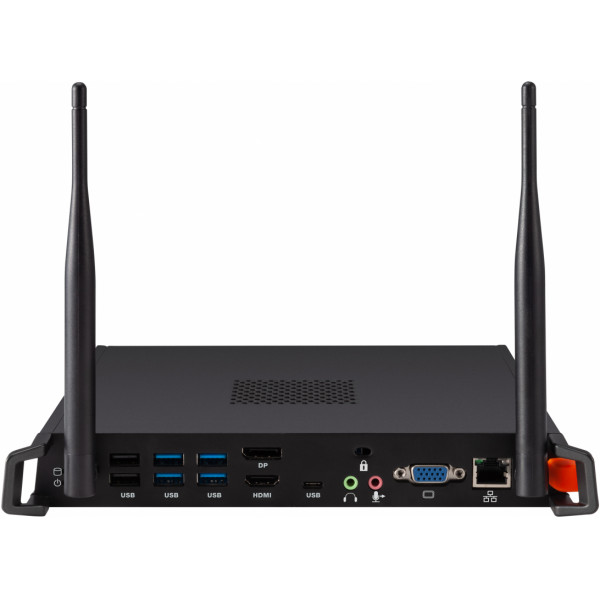

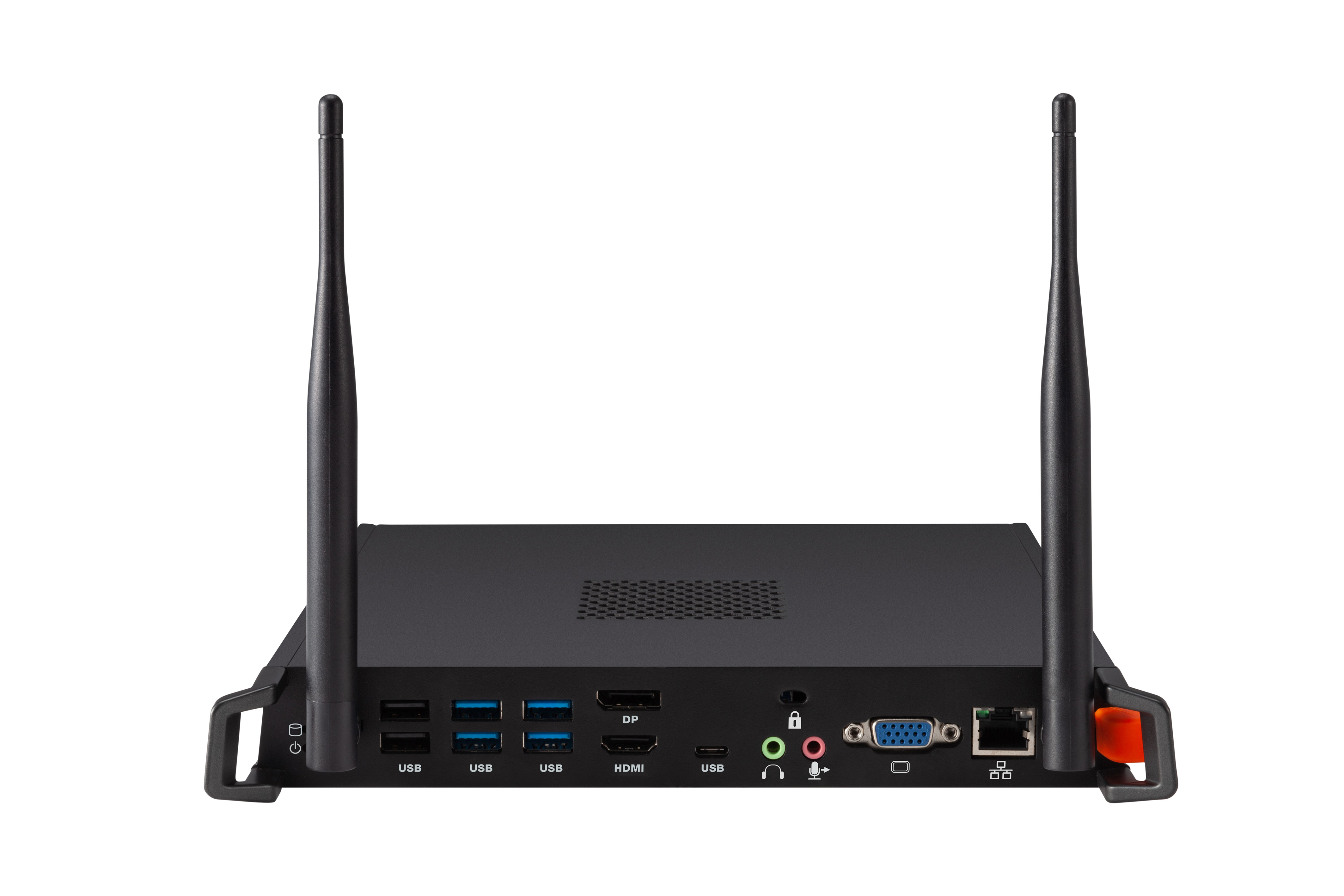

VPC16-WP-3
Windows Slot-in PC voor ViewBoard® interactieve displays
- Inclusief myViewBoard™ digital whiteboard software en ViewBoard® Cast content sharing software
- Powerful system met Intel® Core™ i5-8500 processor, 8GB (tot 32GB) DDR4 memory, met 128GB (tot 512GB) SSD opslag
De ViewSonic® VPC16-WP-3 Windows-slot-in-pc is de ideale geïntegreerde oplossing voor ViewBoard® interactieve displays. Deze insteekbare pc-module ondersteunt high-definition audio en video en wordt geleverd met myViewBoard ™ digitale whiteboard-software en ViewBoard® Cast-software voor het delen van inhoud. Met bekabelde connectiviteit, dual-band Wi-Fi en Bluetooth, een krachtige Intel® Core ™ i5-processor, 8 GB (tot 32 GB) DDR4-geheugen en 128 GB (tot 512 GB) SSD-opslag, bevat de VPC16-WP-3 de power die nodig is om CPU-intensieve applicaties te gebruiken.
SPECIFICATIONS
- CoreCPU: Intel 8th Gen. coffee Lake series with vPro, TPM
i5-8500 3.0GHz
Graphics: Integrated Intel® HD Graphics 530
Total Available Graphics Memory: 64GB
Max Resolution up to 4096x2304@60Hz - MemoryType: 260-pin DDR4 SO-DIMM x 2
Capacity: 8GB (up to 32GB) - SoftwareOperating System: Windows 10 Pro 64 bit
- StorageDimension: M.2 -2242(22 x 42 mm) / 2280(22 x 80 mm)
Capacity: 128GB SSD (up to 512GB)
Interface: M.2 -2242/2280 - INPUTMIC(Microphone): x1
- OUTPUTRGB / VGA: x1
DisplayPort: x1 (max. resolution 4096x2304@60Hz)
HDMI: x1 (max. resolution 3840x2160@24Hz)
Audio: x1 Earphone Out - LANRJ45: 1 x RTL8111(Gigabit)
- Wireless / BluetoothWireless / Bluetooth: Intel 9260 or 9560 WiFi+BT5.0 Module dual band
- USBType A: USB 3.0 x 4, USB 2.0 x 2
Type C: USB 3.1 x 1 - Support Media FormatVideo format: Container: ASF, WMA, WMV, WM, ASX, WAX, WVX , WMX, WPL, WMD, AVI, MPG, MPEG, M1V, MP2, MP3, MPA, MPE, M3U
Image format: Container: JPG, JPEG, JPE, JFIF, BMP, , DIB, PNG, GIF, TIF, TIFF
Audio codec: Container: MID, MIDI, RMI, AIF, AIFC, AIFF, WAV, CDA - Bundle SoftwareBundle Software: myViewBoard for Windows
QuickLaunch
Intel Unite
SureMDM
Nix Agent - PowerVoltage: AC 110-240V 50 / 60Hz
Consumption: 95W - OPERATING CONDITIONSTemperature (º C): -5°C to 45°C
Humidity: 10% ~ 90% @ 40°C Non-condensing. - DIMENSIONS (W x H x D)Physical (inch / mm): 246.2*265.4*32.2mm
Packaging (inch / mm): 350*310*90mm (1pc)
495*370*340mm (5pcs) - WEIGHTNet (lb / kg): 4.3lb / 1.95kg
Gross (lb / kg): 4.63lb / 2.1kg - REGULATIONSREGULATIONS: CE, R&TTE, FCC, FCC-IC-ID, cTUVus, , RCM, BSMI, NCC (TBD)
- PACKAGE CONTENTSPACKAGE CONTENTS: 1. VPC16-WP
2. ViewSonic Wizard CD
3. QSG - UPC CodeUPC Code: 76690700320 8
