Extreme work space plus enhanced ergonomics

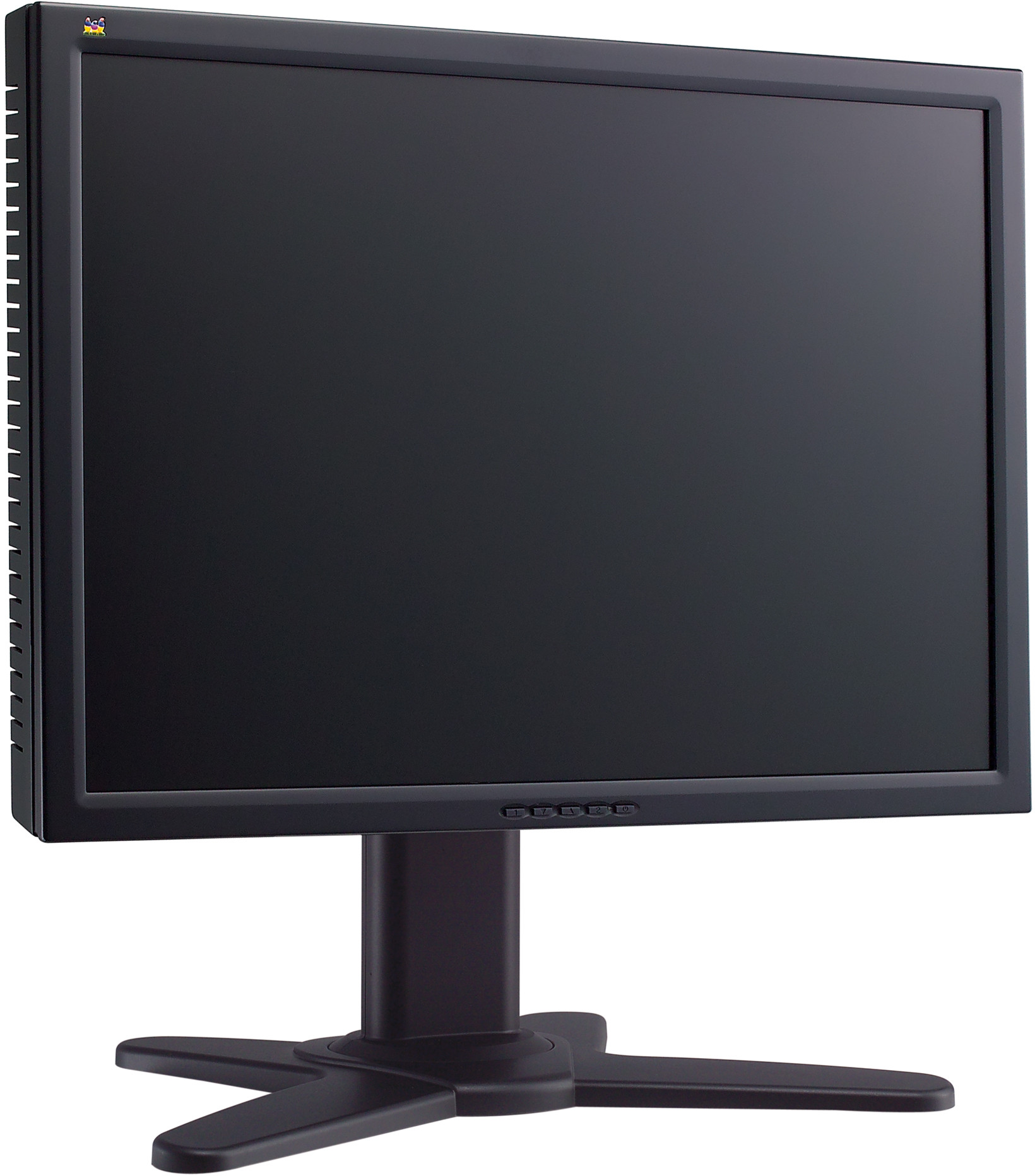

The VP2330wb wide-screen LCD monitor with an almost 60cm visible diagonal and 170° ultra-wide viewing angles is the ultimate choice - even for the most demanding professionals. Video editors, financial traders and CAD/CAM engineers as well as power gamers will welcome the possibility of multiple-panel configurations with easy HEIGHT/TILT/SWIVEL/PIVOT adjustments. This THINEDGE ULTRA-SLIM BEZEL LCD MONITOR boosts image quality with its ClearMotiv™ 8 ms broadcast-quality video technology, 800:1 contrast and the new PerfectSuite control software. The numerous digital/analogue inputs and USB 2.0 high-speed connectivity make the VP2330wb extremely versatile and will surely increase productivity as well as adding a new dimension to the viewing experience.It's not just another professional LCD. It's a ViewSonic.
SPECIFICATIONS
- COLORSBlack
- LCDType: Thin Edge™ - Ideal for multi monitor setups
Contrast Ratio: 800:1 (typ.)
Viewing Angles: 170° horizontal, 170° vertical (at 10:1)
170° horizontal, 170° vertical (at 5:1)
Brightness: 250cd/m² (typ.)
Glass Surface: Anti-glare
Display Area: 49.5cm (horizontal) x 30.9cm (vertical), 58.4cm diagonal
Optimum Resolution: 1920 x 1200
Response Time: 8ms (grey-to-grey), 16ms (off-on-off)
Pixel Pitch: 0.258mm
Bandwidth: 165MHz
Colour Support: 16.7M colours (8-bit) - COMPATIBILITYPC: Compatible from VGA up to 1920 x 1200 non-interlaced (max. 60Hz)
Mac®: Power Mac™ up to 1920 x 1200 (max. 60Hz)
- DIMENSIONSW x H x D mm: 542 x 404 – 539 x 295 (w/stand)
542 x 354 x 110 (w/o stand) - REGULATIONSTCO´99,ISO 13406-2 (pixel failure class II),UL,
cUL, FCC-B (ICES), CB, CE, ICES-003B, NOM, ENERGY, Energy Star, GOST-R,
Hygienic, SASO, KTL/MIC, BSMI, CCC, PSB, C-TICK, WEEE, RoHS - PACKAGE CONTENTSLCD display, power cable, 15-pin VGA video cable, DVI cable, USB cable,
Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers),
PerfectSuite™ CD-ROM - WARRANTYPlease see:
www.viewsoniceurope.com/UK/Support/warranty.htm - INPUTSync: H/V separated (TTL)
Digital: H/V separated (TTL), composite, sync on green
Analogue: RGB analogue (0.7/1.0 Vp-p , 75ohms)
Frequency: Fh: 24–96kHz, fv: 50–85Hz - CONNECTORAnalogue: 15-pin mini D-sub (detachable cable)
Digital: 29-pin Digital DVI-I (analogue and digital) (detachable cable)
USB: 1x upstream (4-pin Typ B)/4x downstream (4-pin Typ A) - POWERVoltage: AC 100–240V, 50/60Hz (Auto-Switch), external power supply
Consumption: 80 watt (typ.), <4 watt in power save mode - CONTROLSBasic: Soft power, menu [1] , down, up, select [2]
OSD: Auto image adjust, contrast, brightness, input select (D-sub, DVI-A, DVI-D),
colour adjust (sRGB, 9300K, 7500K, 6500K, 5400K, 5000K, user RGB),
information (resolution, H/V frequency, pixel clock, model number, serial
number), manual image adjust (PIP [PIP, PIP position, PIP swap], H/V position,
H size, fine tune, sharpness), setup menu (language, resolution notice, input
priority, OSD position, OSD timeout, OSD background, OSD pivot), auto
white balance, OSD/power lock, memory recall - OPERATING CONDITIONSTemperature: 0°C to 40°C
Humidity: 10% to 90% (non-condensing) - WEIGHTNet: 7.8kg (w/stand); 4.9kg (w/o stand)
- POWER MANAGEMENTMeets TCO’99, ENERGY and Energy Star standards
- ERGONOMICSTilt: Down 5°, up 20°
Swivel: 270° (135° left/right)
Height Adjustment: 0~ ≥ 135mm
Pivot: 270° (135° left/right)
