- DIMENSIONS
Physical With Stand: 564mmx442mmx250mm(22.2"x17.4"x9.8")
Physical Without Stand: 564mmx335mmx67mm(22.2"x13.2"x2.6")
- REGULATIONS
CB, WEEE, ROHS, UL/cUL, FCC-B, IRAM, NOM, ENERGY STAR®
, EPEAT, NEMKO/ERGO,CE, Ukraine, GOST-R+Hygienic ,SASO, BSMI, PSB,
C-TICK, MIC, VCCI, CCC, TCO 5.0
- PACKAGE CONTENTS
DVI-D Cable, Power Cable, Audio cable, USB cable
- INPUT
Sync: H/V Separated
Analogue: RGB Analog (75 ohms, 0.7/1.0 Vp-p)
Digital: DVI-D(TMDS, 100ohms)
Frequency: Fh: 22-82kHz, Fv: 50-75Hz
- CONNECTOR
Analogue: 15 pin mini D-sub×1
Digital: DVI-D
USB: down stream x2 / up stream x1
Audio: 3.5 mm Audio in
Power: Built-in power Adapter, 3-Pin plug
- POWER
Voltage: AC 100-240V(Universal); 50/60Hz(Switch)
Consumption: 45(Typical)
Eco Mode: Optimize 31W (typ.) / conserve 26W (typ.)
Save Mode (W): ≦0.5W
- CONTROLS
Basic: Power, Mute,[1], Up[▲], Down[▼], [2]
OnView®: Auto image adjust, Contrast/Brightness, Audio adjust: Volume, mute,
Colour adjust: sRGB, 9300K, 7500K, 6500K, 5000K, user colour [R, G, B]
Information, Manual image adjust: H/V position, Horizontal size,
fine tune, sharpness, dynamic contrast, aspect ratio, Eco mode,
Setup menu: Language select, resolution notice, OSD position, OSD
timeout, OSD background, memory recall
- POWER MANAGEMENT
TCO 5.0, ENERGY STAR®
- VESA MOUNT COMPLIANT
VESA® 100mmx100mm
- ERGONOMICS
Tilt: 20˚~-5˚
Swivel: 360˚(180 ˚left / 180 ˚right)
Height Adjustment: 0~135mm
Pivot: 0˚~90˚ clock wise
- AUDIO
Speakers: 2x2 watt
- WEIGHT
Gross: 9.6 kg(21.2 lb)
Net: 7 kg(15.4 lb)
- OPERATING CONDITIONS
Humidity: 10-90%(Non condensed)
Temperature: 32-104°F(0-40°C)

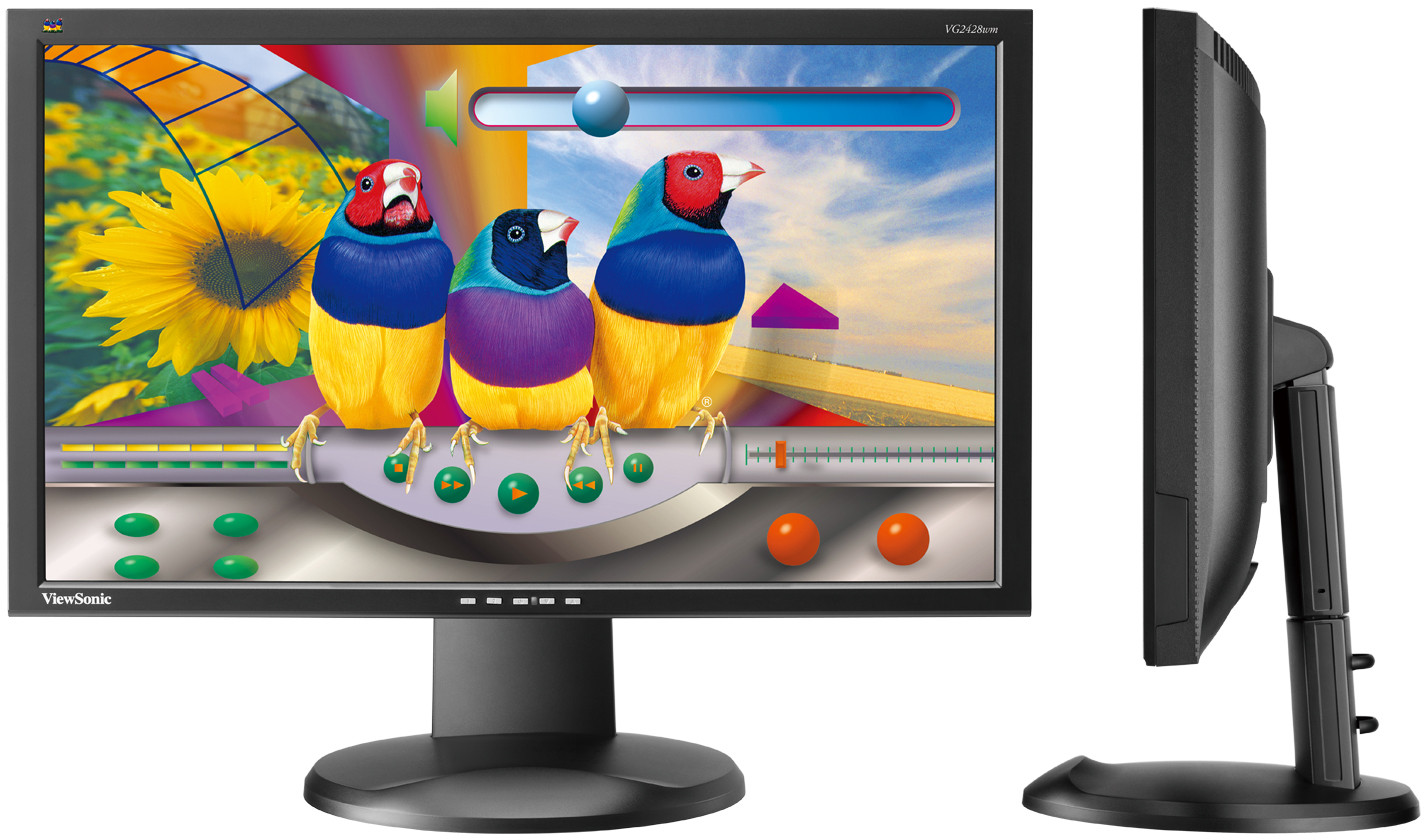

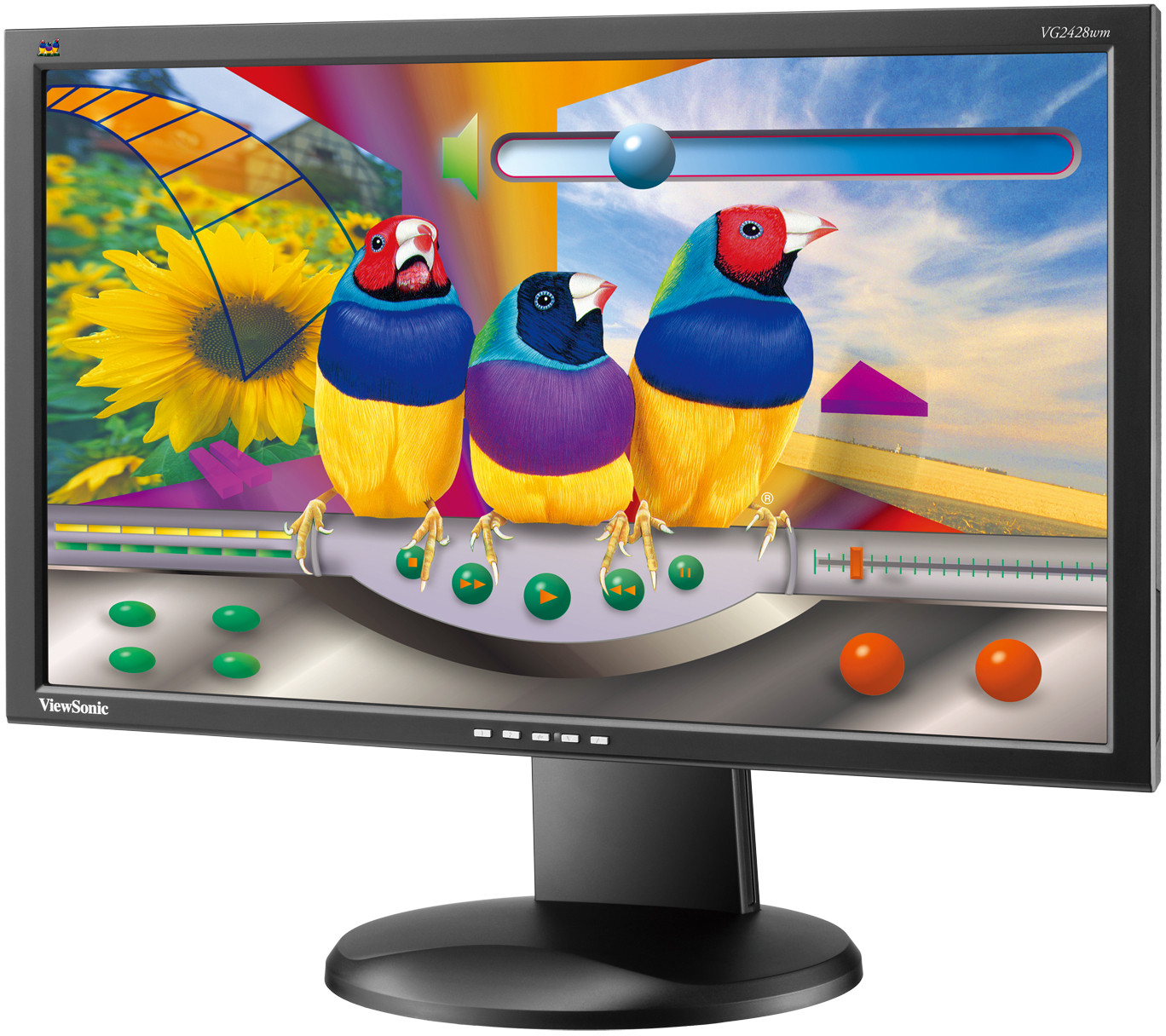

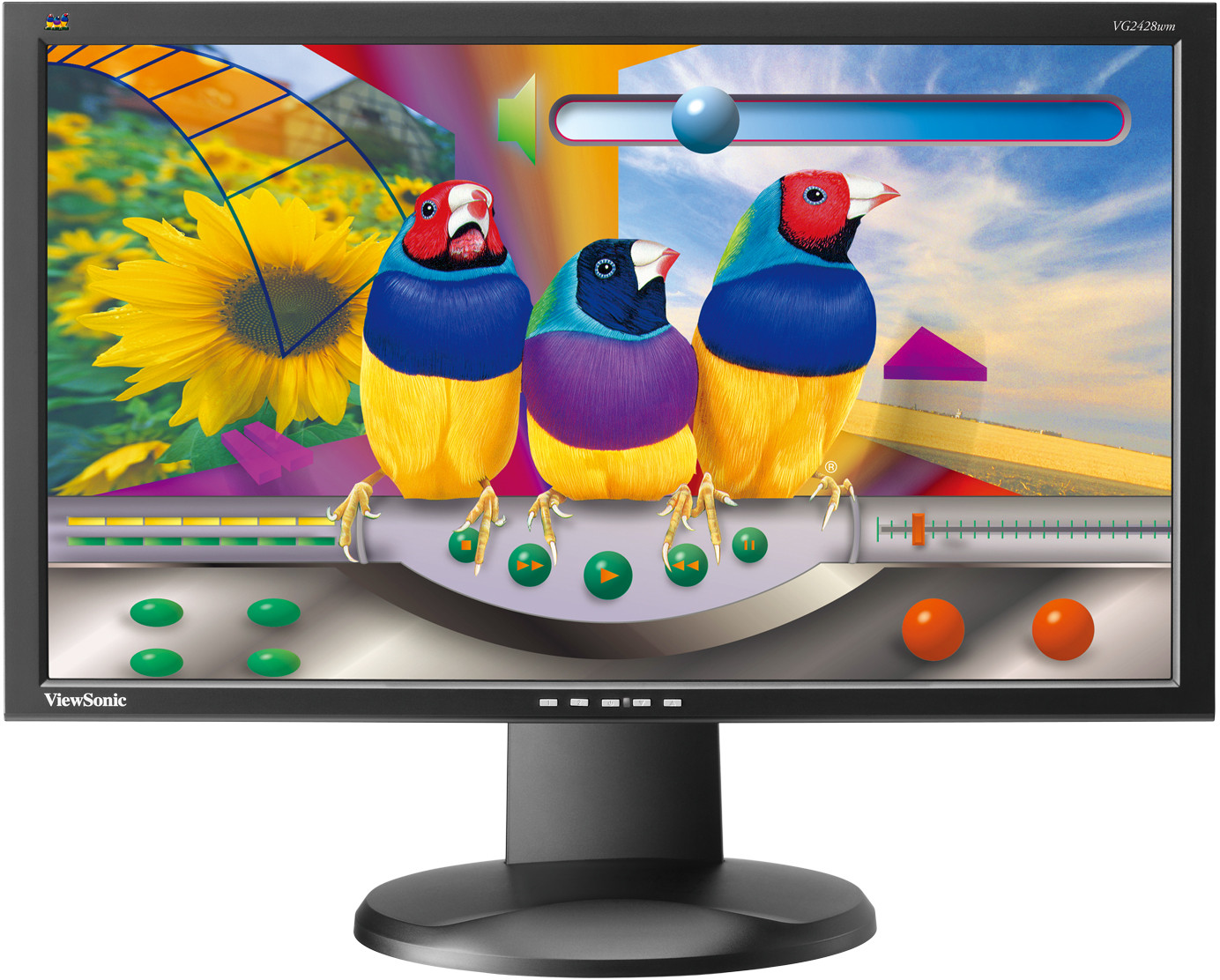

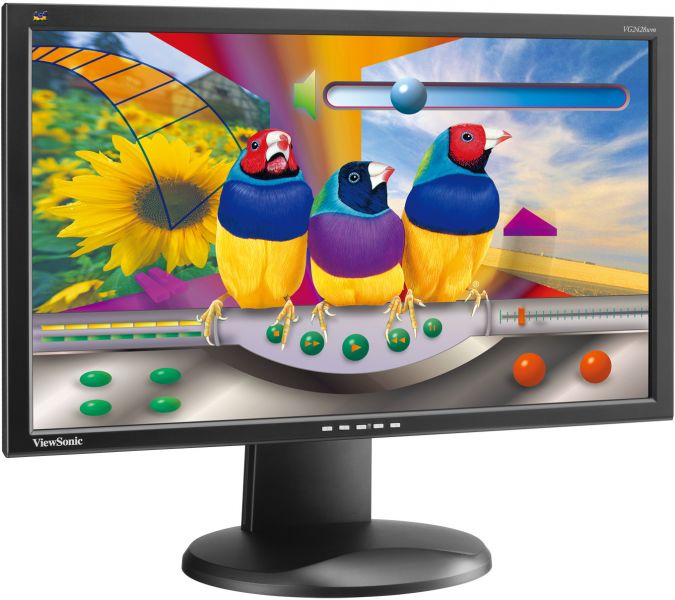

The 24”(23.6”/60cm vieawable) VG2428wm LCD is the big and wide, multimedia solution to your demanding business needs. Featuring Full HD 1920x1080 resolution and 100,000:1 dynamic contrast ratio, this high performance display is ideal for graphics professionals, high-def multimedia visuals and other digital content. The DVI-D connector ensures your high-def content stays high-def, while the USB ports expand your connectivity for greater convenience. The fully adjustable ergonomic base enhances your comfort. The slim bezel allows you to have a large screen on your desk and use minimal space. Demanding professionals will love the feature-packed, high-performance, widescreen VG2428wm.
