OVERVIEW

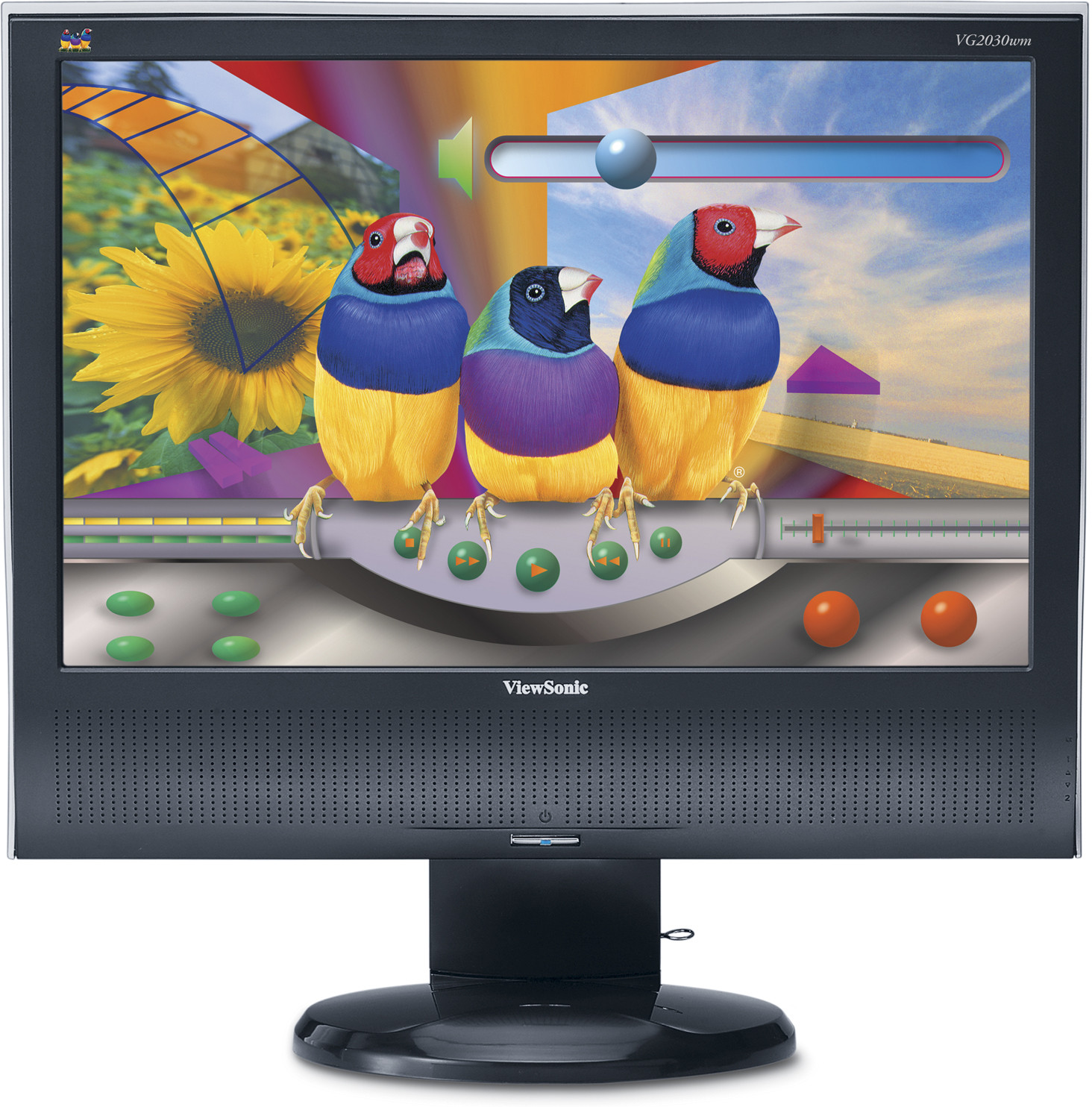

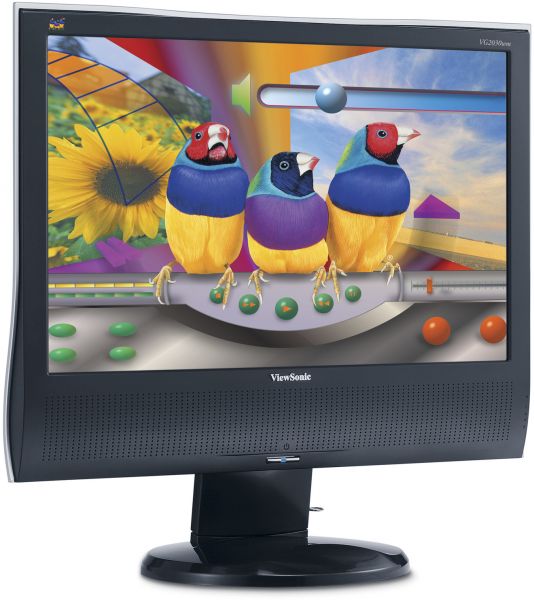

The ViewSonic 20” VG2030wm features 16:10 WIDESCREEN format with 1680 x 1050 optimum resolution and ERGONOMIC HEIGHT ADJUSTMENT. View two documents side-by-side or work in two applications simultaneously to improve productivity. High 300cd/m²brightness and ultra-high 800:1 contrast ratio produce bright, crisp, detailed images. Graphics professionals love the FAST 5MS RESPONSE TIME that delivers blur-free, full motion video. Digital and analogue inputs ensure maximum connectivity options while height adjustment, tilt and 360° swivel settings guarantee the best possible viewing position ensuring you’ll work comfortably for hours. Further, built-in stereo speakers provide multimedia performance without desk clutter. The VG2030wm is the stand-out price/performance choice, offering lifestyle enjoyment and workplace productivity in a single stunning package.Panoramic widescreen display
It’s not just a digital widescreen LCD monitor. It’s a ViewSonic.
REVIEWS
SPECIFICATIONS
- COLORSBlack
- LCDType: 20” Wide TN colour TFT active matrix WSXGA+ LCD
Contrast Ratio: 800:1 (typ.)
Viewing Angles: 160° horizontal, 160° vertical (at 10:1)
170° horizontal, 170° vertical (at 5:1)
Brightness: 300cd/m² (typ.)
Display Area: 43.3cm horizontal x 27.1cm vertical; 51.1cm diagonal
Optimum Resolution: 1680 x 1050@60Hz
Response Time: 5ms (off-on-off) (typ.)
Light Source: Long life, 60000 hrs. (typ.)
Panel Surface: Anti-glare
Pixel Pitch: 0.258mm
Colour Support: 16.7M colours (6-bit+Hi FRC)
Pixel Clock: 165MHz - COMPATIBILITYPC: VGA up to 1680 x 1050 non-interlaced
Mac®: Power Mac™ G3/G4/G5 up to 1680 x 1050 non-interlaced
- DIMENSIONSPhysical With Stand: 493 x 477-557 x 230
Physical Without Stand: 493 x 388 x 70
W x H x D mm: 565 x 545 x 273 - REGULATIONSTCO'03, GS, ERGO, ISO 13406-2 (pixel failure class II), CB, CE, GOST-R, UL, cUL, FCC-B, ICES-003, NOM, SASO, Energy Star, C-Tick, MIC, BSMI, PSB, MPR II, CCC, WEEE, RoHS
- PACKAGE CONTENTSLCD Monitor, power cable, 15-pin VGA video cable, audio cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language)
- AUDIOSpeaker: 2 x 2 watt integrated stereo speakers x 1.5-watt
- CONNECTORAnalogue: 15-pin mini D-sub (detachable cable)
Digital: 24-pin DVI-D (detachable cable)
Power: 3-pin AC plug (CEE22)
Audio: 3.5mm stereo audio line-in - POWERVoltage: AC 100–240V, 50/60Hz (auto switch), internal power supply
Consumption: 43 watt (typ.), <1 watt in power save mode - CONTROLSBasic: Power, menu [1], up, down, select [2], mute
OSD: Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), audio adjust (volume, mute), ViewMatch® colour adjust (sRGB, 9300K, 7500K, 6500K, 5400K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall - OPERATING CONDITIONSTemperature: 3°C – 35°C
Humidity: 20% – 80% (non-condensation) - WEIGHTNet With Stand: 7.0kg
Gross: 9.2kg - VIDEO INPUTFrequency: Fh: 24–82kHz, Fv: 50–85Hz
Sync: H/V separate (TTL), sync on green
Analogue: RGB analogue (0.7 Vp-p , 75 ohm)
Digital: DVI-D (TMDS, 100 ohm) - POWER MANAGEMENTMeets TCO’03 and Energy Star® standards
- SECURITYKensington® security port

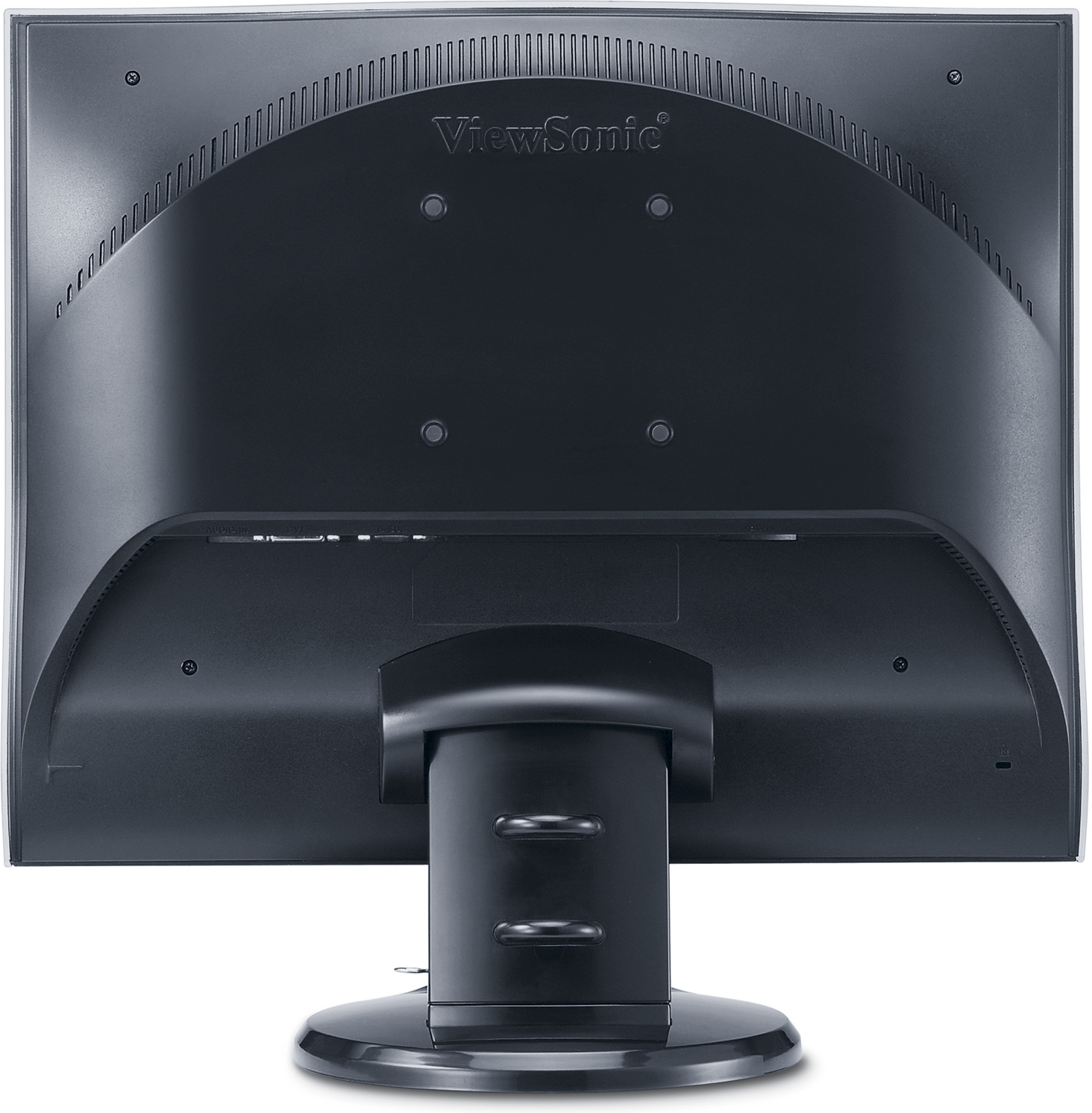

- VESA MOUNT COMPLIANTVESA FDMI 100mm x 100mm

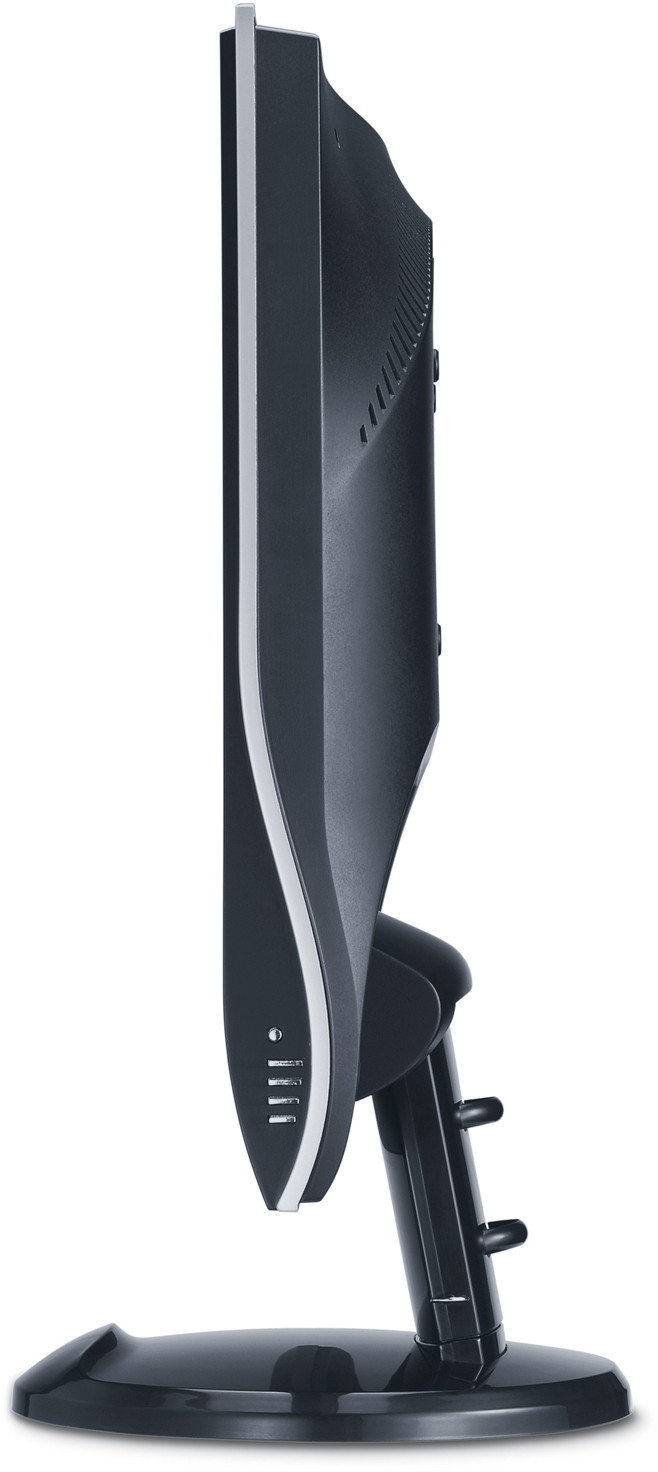

- ERGONOMICSTilt: Down 5°, Up 20°
Swivel: 360° swivel base
Height Adjustment: 0 ~ 80mm
