OVERVIEW
The VA705-LED, a 43cm/17” LED display, is a professionally built monitor for government and corporate applications. Its small size and SXGA 1280 x 1024 resolution allows for an efficient working environment. This Energy Star® certified display comes with a long-lasting power-saving LED backlight as well as ViewSonic’s exclusive ECO Mode that reduces power consumption based on different lighting environment and minimizes maintenance effort and costs. Embedded dynamic contrast ratio technology not only enhances the dark and bright contrast of images, but helps to produce a high 10,000,000:1 ratio to deliver perfect image performance. The built-in sRGB colour correction technology revives image colour and captures realistic images for consistent colour performance for professional presentations, photographs, graphic design or printing. The VA705-LED provides an eco-friendly solution and increases productivity, it is ideal for office applications.SPECIFICATIONS
- LCDContrast Ratio: 1,000:1 (typ.)
Viewing Angles: 170° / 160° (typ.)
Display Area: 43cm (17”)
Optimum Resolution: 1280 x 1024
Response Time: Typ. 5 ms
Aspect Ratio: 4:3
Panel Surface: Anti-glare, hard-coating (3H)
Pixel Clock: 0.264 mm x 0.264 mm
Brightness: 250 cd / m² (typ.)
Dynamic Contrast Ratio: 10,000,000:1
Backlight: White-light LED
Backlight Life: 40,000 hours (min.) - COMPATIBILITYPC: VGA up to 1280 x 1024
Mac®: MAC up to 1280 x 1024 - DIMENSIONSPhysical With Stand: 379 x 400 x 210mm (14.92” x 15.74” x 8.26”)
Physical Without Stand: 379 x 337.4 x 68mm (14.92” x 13.28” x 2.67”)
- REGULATIONSUL, CUL, FCC-B (ICES), CB, CE, TCO 6.0, ICES-003B,
TUV/GS, TUV ERGO (covers ISO13406-2 & MPRII),
TUV-S, NOM, GOST-R, HYGIENIC (20 copies),
Energy Star, CCC, BSMI, PSB, C-TICK, KTL/MIC,
SASO, WEEE, RoHS - INPUTSync: Separate Sync
Analogue: RGB analogue (75 Ω, 0.7 / 1.0 Vp-p)

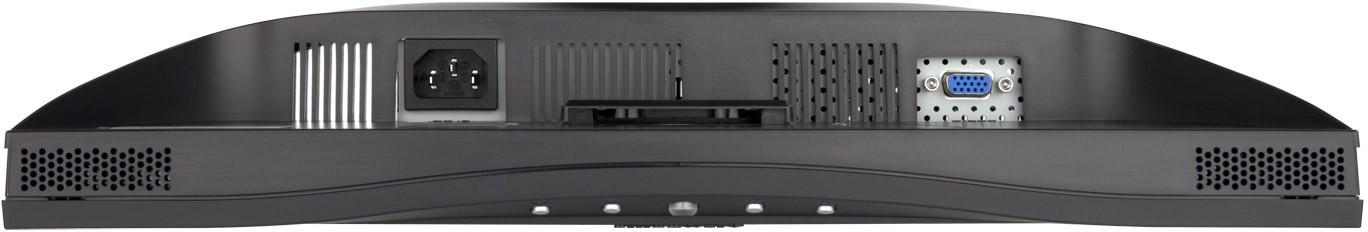

Frequency: Fh = 24 ~ 82 kHz ; Fv = 50 ~ 75 Hz - CONNECTORAnalogue: 15-pin mini D-sub x 1
Power: Internal Power Board , 3-pin Plug (CEE22) x 1 - POWERVoltage: AC 100 - 240V (universal); 50 / 60 Hz
Consumption: 20W (typ.); Optimise: 15W (typ.); Off/Standby <= 0.5W - VESA® MOUNT100mm x 100mm
- ERGONOMICSTilt: 20° ~ -3°
- WEIGHTNet With Stand: 2.91 Kg (6.41 lbs)
Net Without Stand: 2.56 Kg (5.64 lbs) - OPERATING CONDITIONSHumidity: 10% to 90% (non-condensing)
Temperature: 32° F to 104° F (0° C to 40° C)
