Feature-rich big screen.

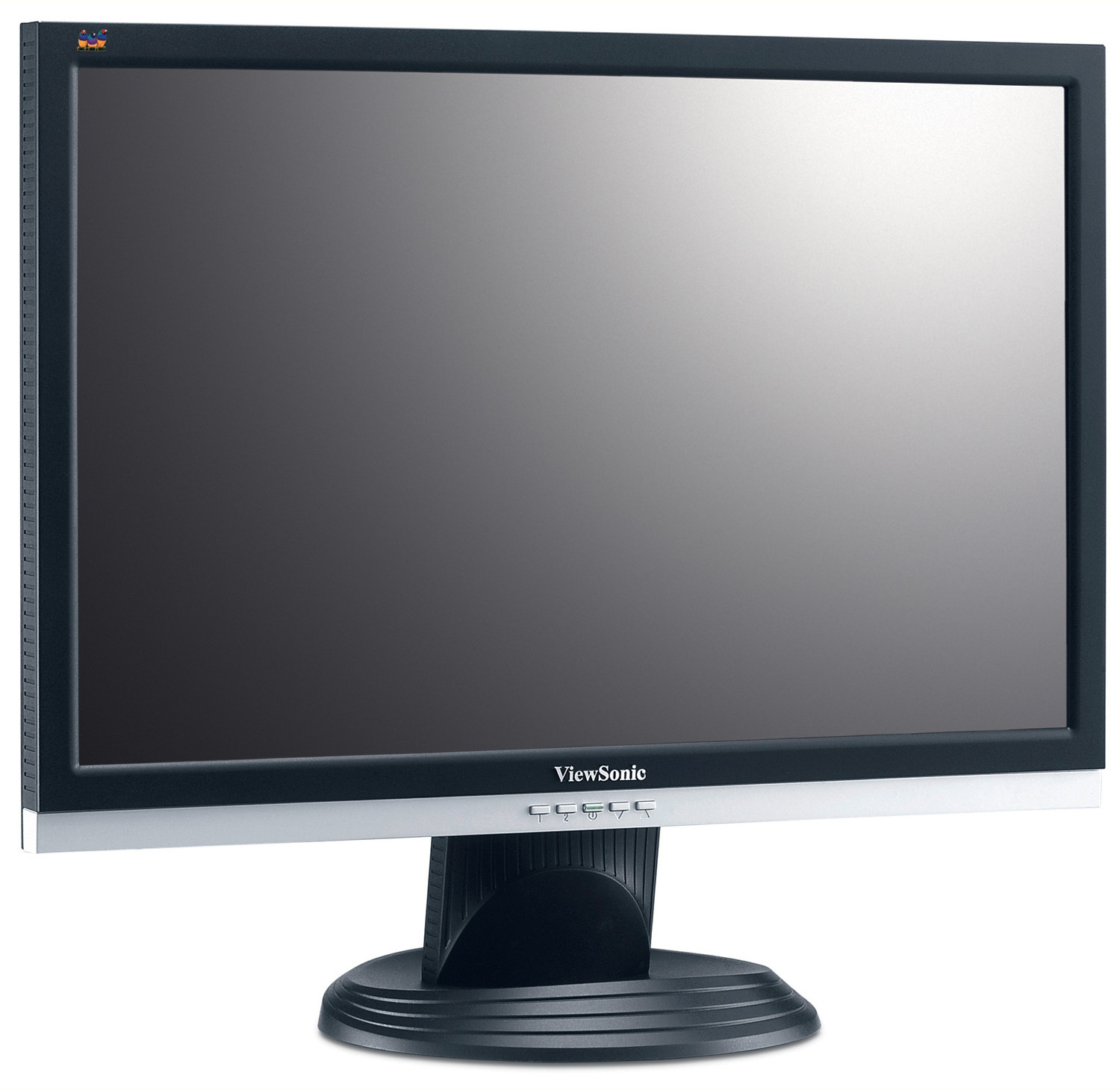

ViewSonic’s 65 cm / 25.5" VA2616wm LCD brings high-performance, widescreen displays to home office users, students and others who want a great desktop display. In addition to 1920x1200 resolution, this big 66 cm / 26" LCD also features EXTREME CLARITY, AMAZING COLOR and FAST 5MS CLEARMOTIV® VIDEO RESPONSE. Enjoy beautiful graphics and view spreadsheets in unbelievable clarity. Enhance your desktop with the stylish, slim-bezel design and enhance your productivity with the ability to VIEW TWO FULL-SIZE DOCUMENTS SIDE-BY-SIDE or work in multiple applications simultaneously on the widescreen display. Only 3.6" deep without the stand this display’s VESA® wall-mount compliance allows the VA2616w to fit beautifully into any office décor. Desktop users can enjoy panoramic performance without breaking their budgets.
SPECIFICATIONS
- COLORSBlack
- LCDType: 65cm / 25.5" color TFT active matrix WUXGA LCD
Contrast Ratio: 800:1 static (typ), 6000:1 DCR
Viewing Angles: 170° horizontal, 160° vertical @ contrast ratio >10:1
170° horizontal, 170° vertical @ contrast ratio >5:1
Brightness: 450 cd/m2 (typ)
Display Area: 550 x 344mm, 21.7" (51.12 cm) horizontal x 13.5" (34.25 cm) vertical; 25.5" (64.77 cm)diagonal
Optimum Resolution: 1920x1200
Response Time: 5ms (typ)
Light Source: Long life, 50,000 hrs. (min)
Panel Surface: Anti-glare
Pixel Pitch: 0.2865mm
Colour Support: 16.7M (6-bit + 2-bit FRC)
Pixel Clock: 165 MHz - COMPATIBILITYPC: VGA up to 1920x1200 non-interlaced
Mac®: Power Mac™ G3/G4/G5 up to 1920x1200
- DIMENSIONSPhysical With Stand: 596mm x 480mm x 254mm (23.5" x 18.9" x 10.0")
Physical Without Stand: 596mm x 406mm x 93mm (23.5" x 16.0" x 3.6") - REGULATIONSUL, cUL, FCC-B, CB, CE, NOM, IRAM, ERGO (covers ISO13406-2), BSMI, CCC, ENERGY STAR,® PSB, CTICK, RoHS, WEEE, VCCI, GOST-R, SASO, TCO’03
- PACKAGE CONTENTSLCD display, video cable, power cable,
Quick Start Guide, ViewSonic Wizard (DVI and HDMI cables
not included) - RECYCLE/DISPOSALThe lamp in this product contains mercury. Please dispose of in accordance with local, state or federal laws.
- CONNECTORAnalogue: 15-pin mini D-sub
Power: 3-pin AC plug (CEE22 - POWERVoltage: AC 100–240V (universal), 50/60Hz (auto switch)
Consumption: 64W (typ); below 1W in standby mode - CONTROLSBasic: Power, 1, down, up, 2
OnView®: Auto image adjust, contrast, brightness, input select (analog, digital, HDMI), ViewMatch® color adjust (sRGB, 9300K, 6500K – default, 5400K, RGB), information, manual image adjust (H. size, H. position, V. position, fine tune, sharpness, display mode, aspect ratio and ECO mode), setup menu etc.), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), memory recall - OPERATING CONDITIONSTemperature: 41–95°F (5–35°C)
Humidity: 20–80% (non-condensing) - WEIGHTNet With Stand: 7.32 kg (16.14 lbs)
Net Without Stand: 5.48 kg (12.08 lbs)
Gross With Stand: 9.76 kg (21.52 lbs) - VIDEO INPUTFrequency: Fh: 24~82kHz, Fv: 50~85Hz
Sync: H/V separated (TTL)
Analogue: RGB analog (75 ohms, 0.7 Vp-p) - POWER MANAGEMENTMeets TCO’03 and ENERGY STAR® standards
- SECURITYKensington security port
- VESA MOUNT COMPLIANTVESA FDMI 100X100mm
- ERGONOMICSTilt: -5°/+20°
